DMG Mori Eco 50
Sold
DMG Mori Eco 50
Description

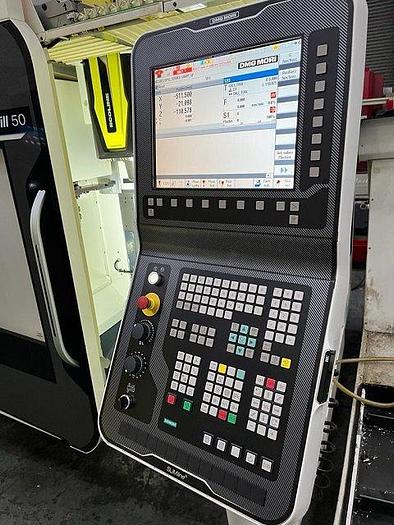

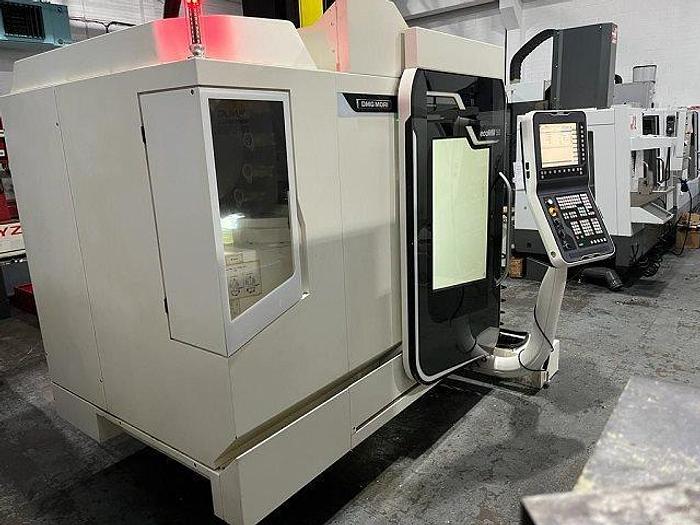

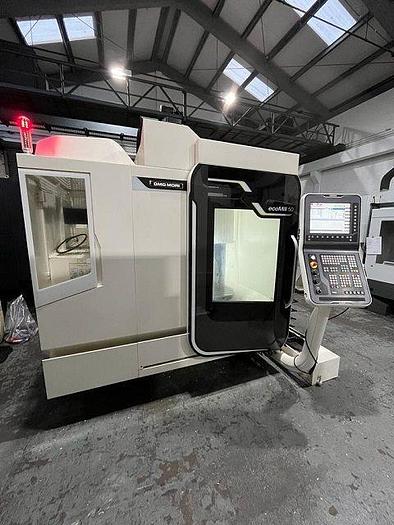

An immaculate, 2016 built, lightly used DMG Mori ECO 50 3 + 2 vertical machining centre with Siemens 828D Control with Shop Mill control, 12,000 RPM Control Tool setter & extended 32 tool position ATC.
Main spindle:

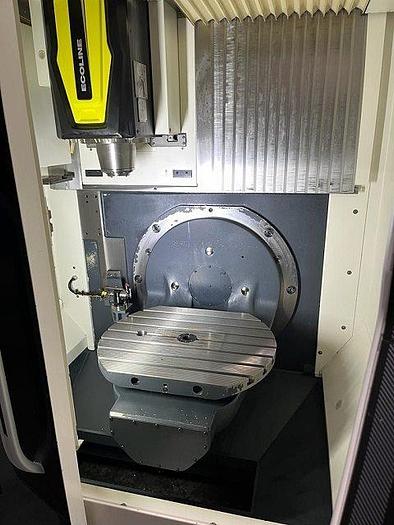

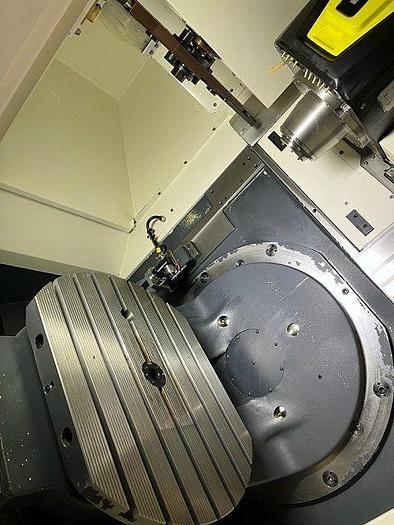

NC rotary table:

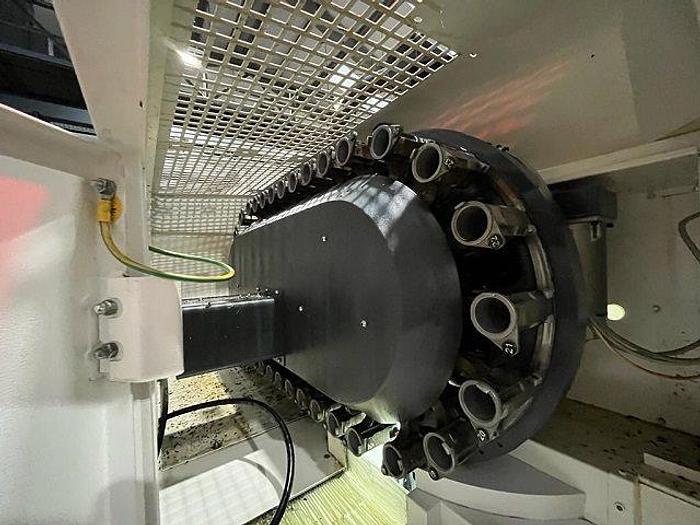

Tool magazine:
MACHINE DETAILS
EQUIPMENT
Tool Measuring probe, coolant equipment, high pressure coolant, chip conveyor
Specifications
| Manufacturer | DMG |
| Model | Mori Eco 50 |
| Year | 2016 |
| Condition | Used |
| Stock Number | cmu0/0444 |
| Name of machine | DMG Mori Eco 50 |
| X-way | 650 mm |
| Y-way | 450 mm |
| Z-travel | 400 mm |
| Speed range - main spindle | 20 - 12,000 RPM |
| Spindle motor power | 13Kw |
| Tool holder | SK 40 |
| Max. torque | 83 Nm |
| Table clamping surface | 630 x 500 mm |
| Max. table load | 200 kg |
| Swivel range | -5 / +110 ° |
| No of tools | 32 |
| Max. tool weight | 6 kg |
| Max. tool diameter | 80 mm |
| Max. tool diameter with free pocket each side | 130 mm |
| Max. workpiece length | 300 mm |
| Total power requirement | 17 kW |
| Machine weight | approx. 4,0 t |
| Space requirement | approx. 4,5 x 3,5 x 2,3 m |
