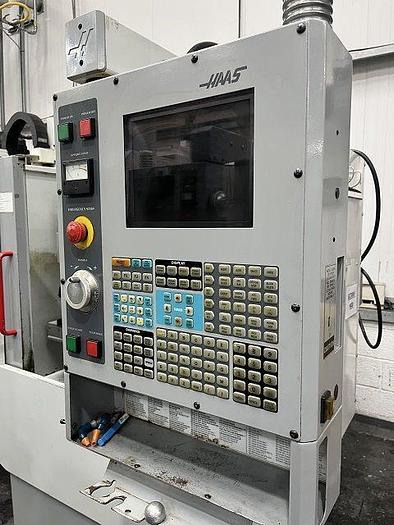

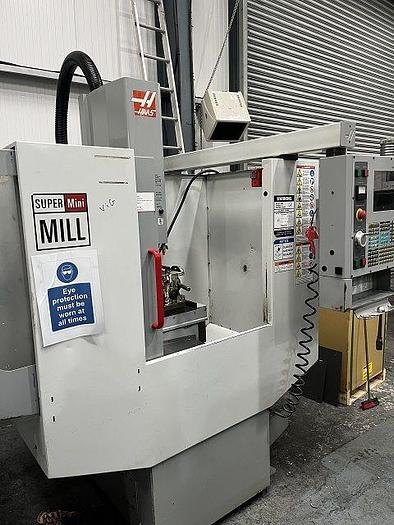

Haas Super Mini Mill
Sold
Haas Super Mini Mill
Description

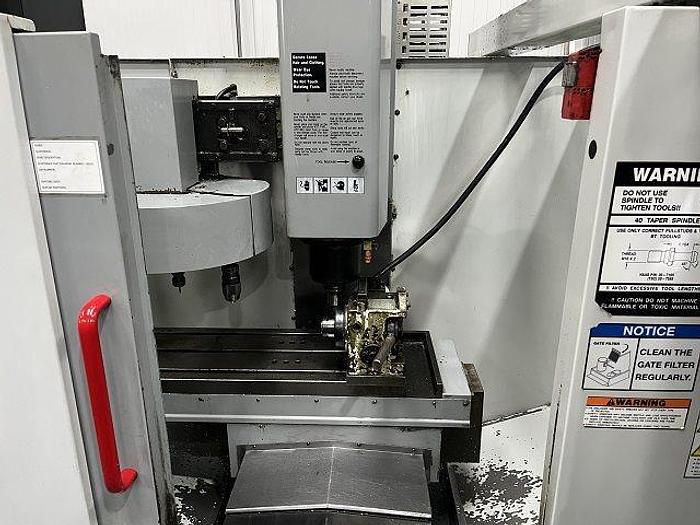

Haas Super Mini Mill fitted with 10,000 rpm spindle, 30 M/Min rapids & A HAAS 5C indexer. Spindle Nose to Table (~ max) 14 " 356 mm, Spindle Nose to Table (~ min)4 " 102 mm 305 mm T-Slot Width 5/8 " 16 mm, T-Slot Centre Distance 4.33 " 110.0 mm, Number of Std T-Slots 3 Max Weight on Table (evenly distributed) 500 lb 227 kg 17 ft-lb @ 4600 rpm 23 Nm @ 4600 rpm, Drive System Direct Speed Belt Drive, Taper BT or CT 40, Bearing Lubrication Air/Oil Injection Cooling Air Cooled 30.5 m/min, Rapids on Z 1200 in/min 30.5 m/min, Max Cutting 833 in/min 21.2 m/min Max Thrust Z 2000 lb 8896 N 89 mm, Max Tool Weight 12 lb 5.4 kg, Tool-to-Tool (avg) 2.8 sec, Chip-to-Chip (avg) 3.8 sec Capacity 40 gal 151 L
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill |
| Year | 2004 |
| Condition | Used |
| Stock Number | cmj/0188 |
| Max spindle speed | 10,000 RPM |
| Travel X-Y-Z | 406 mm - 305 mm - 254 mm |
| Accessories | 4th Axis 5C table |
| Table | Length 36 " 914 mm, Length (Work Area) 28.75 " 730 mm, Width 12 " |
| Spindle | Max Rating 15 hp 11.2 kW, Max Speed 10,000 rpm, Max Torque |
| Feedrates | Rapids on X 1200 in/min 30.5 m/min, Rapids on Y 1200 in/min |
| Axis motors | Max Thrust X 2000 lb 8896 N, Max Thrust Y 2000 lb 8896 N, |
| Tool changer | Type Carousel, Capacity 10, Max Tool Diameter (full) 3.5 " |
| Generals | Air Required 4 scfm, 100 psi 113 L/min, 6.9 bar, Coolant |
