XYZ LPM 710 VMC
Sold
XYZ LPM 710 VMC
Description

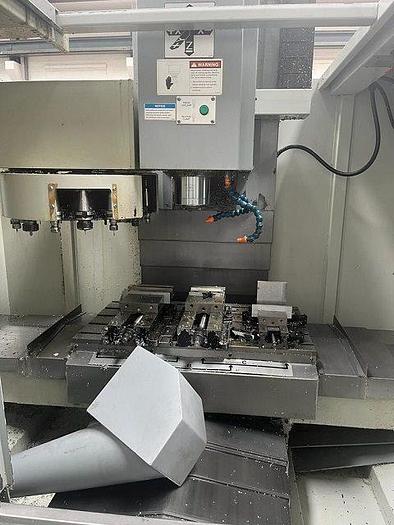

Used 2015 XYZ LPM 710 VMC with ProtoTrak PMX control, 8,000 RPM spindle with quick setting table.
X Travel 785 mm, Y Travel 470 mm, Z Travel 530 mm
Table size 900 x 500 mm Spindle centre to column 489 mm, Spindle to table 85 – 610 mm Rapid feed XYZ Axis 20M / Min Max table load 460Kg T slot size 18 mm, T slot number & pitch 5 x 100 mm Max Spindle speed 8000 RPM Spindle motor 15 HP Spindle taper BT40 Tool magazine capacity 16 Max tool diameter 80 mm, Max tool weight 7 kg Coolant capacity 220 Litres Ball screw size 40mm dia x 8mm pitch Machine weight 3,410 kg Footprint W x D x H 2870 x 2246 x 2743
Specifications
| Manufacturer | XYZ |
| Model | LPM 710 VMC |
| Year | 2015 |
| Condition | Used |
| Stock Number | cmj/0174 |

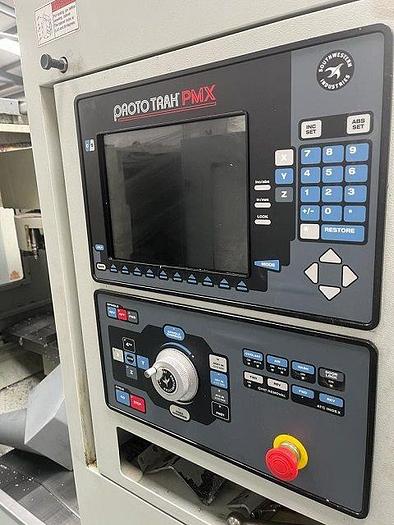

| Control | ProtoTrak PMX |
| Spec | X785 Y470 Z530 mm | RPM 8,000 | BT40 |
| Accessories | Swarf Auger, Tooling package, Conversational control |
| Travel X-Y-Z / Max spindle speed | 785 mm - 470 - 530 mm, 8,000 RPM |
