XYZ 710 VMC

XYZ 710 VMC

Description

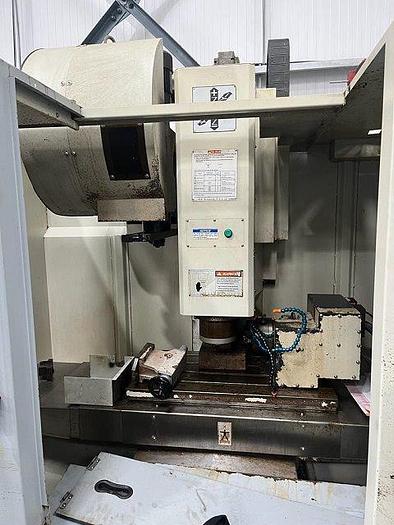

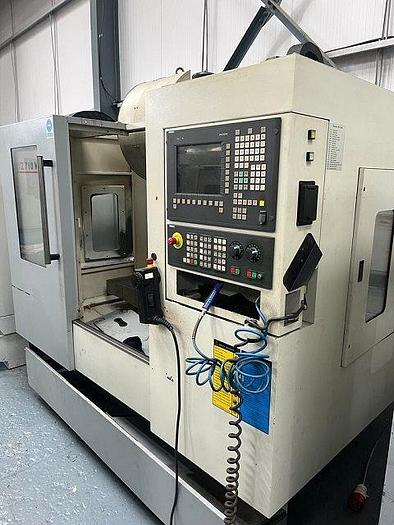

Used 2008 XYZ VMC 710 Vertical Machining Centre with Siemens 810D control & Shopmill, 8,000 RPM BT40 spindle, 24 tool side mount ATC & 4th Axis head with tailstock. Table size.760 x 430MM. Table load.500 KGS Longitudinal traverse. X AXIS 710MM. Cross traverse. Y AXIS 450MM. Vertical traverse. Z AXIS 500MM. Speeds.40-8000 RPM Feed rate.1-500MM / Min with 12,000mm / min Rapid Spindle nose to table.150-650MM. Spindle taper.BT40. Automatic tool changer with 24 Tools Tool weight.7 KGS. Input.415/3/50 AC 5.5 KW CONTINUOUS, 11 KW Main Motor

Specifications

ManufacturerXYZ
Model710 VMC
Year2008
ConditionUsed
Stock Numbercmu/0399
ControlSiemens 810D
Spec X 710 Y450 Z500 mm | 8000RPM | BT40
Accessories24 tool side mount ATC & 4th Axis head with tailstock
Name of machineXYZ 710 VMC
