XYZ LPM 710 VMC

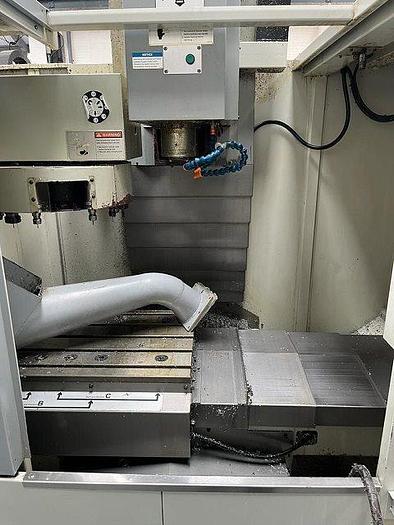

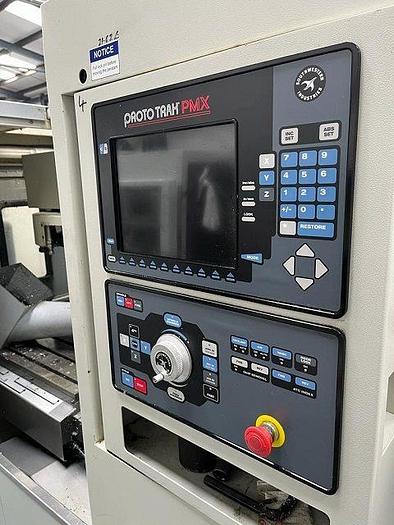

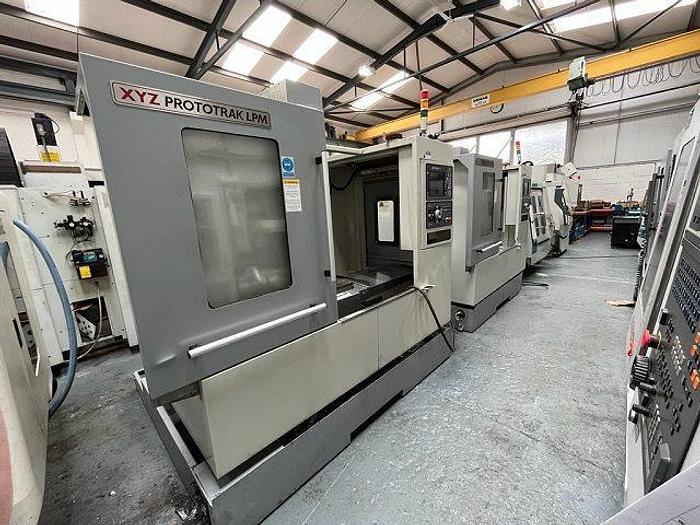

We have a pair of these machines, one a 2015 built machine, and this 2013 built example. Both are immaculate and in stock here in Bristol. 2013 Machine as follows: Used XYZ LPM 710 VMC with ProtoTrak PMX control, 8,000 RPM spindle with quick setting table. Table size 900 x 500 mm X Travel 785 mm, Y Travel 470 mm, Z Travel 530 mm Spindle centre to column 489 mm, Spindle to table 85 – 610 mm Rapid feed XYZ Axis 20M / Min Max table load 460Kg T slot size 18 mm, T slot number & pitch 5 x 100 mm Max Spindle speed 8000 RPM Spindle motor 15 HP Spindle taper BT40 Tool magazine capacity 16 Max tool diameter 80 mm, Max tool weight 7 kg Coolant capacity 220 Litres Ball screw size 40mm dia x 8mm pitch Machine weight 3,410 kg Footprint W x D x H 2870 x 2246 x 2743
