Description

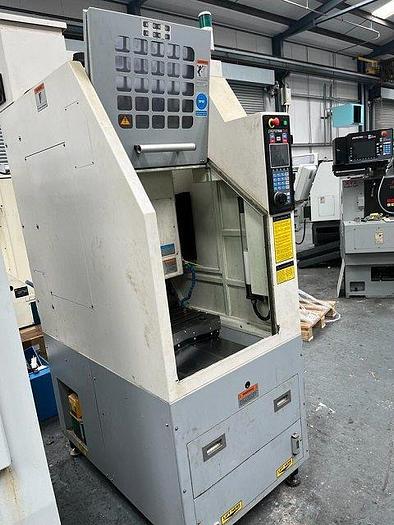

Used 2015 XYZ 2-OP portable VMC with 6000 RPM BT 30 Spindle, 8 tool ATC, tooling. *Photo’d as received.
Specifications
| Manufacturer | XYZ |
| Model | 2-OP |
| Year | 2015 |
| Condition | Used |
| Stock Number | cmu/0418 |

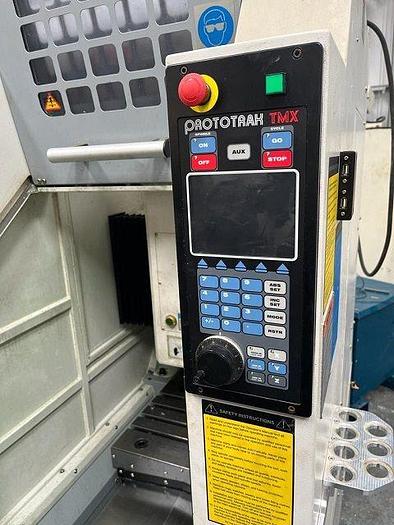

| Control | ProtoTrak TMX |
| Spec | X355 Y305 Z455 mm | 6000RPM | BT30 |
| Accessories | Tooling package |
| Name of machine | XYZ 2-OP |
| X travel | 355 mm |
| Y travel | 305 mm |
| Z travel | 455 mm |
| Table size | 457 x 381 mm |
| Spindle to table | 70 – 525 mm |
| Rapid feed xyz axis | 15 M/min Box Way |
| Max table load | 250 kg |
| T slot size | 16 mm |
| T slot number & pitch | 4 @ 63 mm |
| Spindle speed | 50 – 6,000 rpm max |
| Spindle motor | 3 hp |
| Spindle taper | BT 30 |
| Tool magazine capacity | 8 station |
| Max tool diameter | 50 mm |
| Machine weight | 1,100 kg |
| Footprint w x d x h | 760 x 1,220 x 2,565 mm |
