XYZ DPM

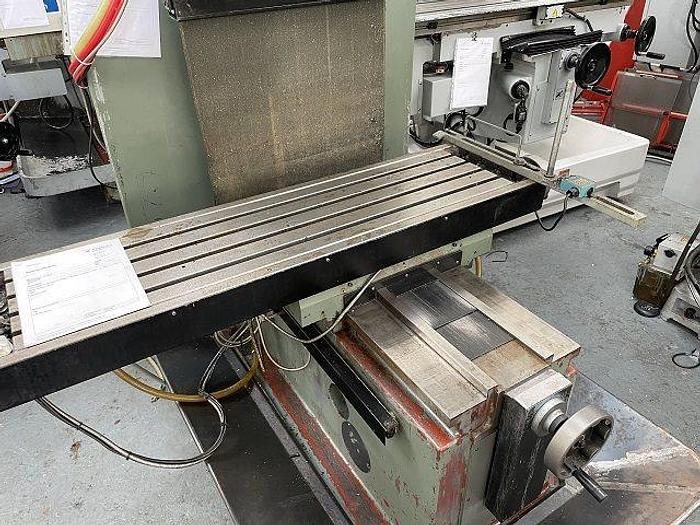

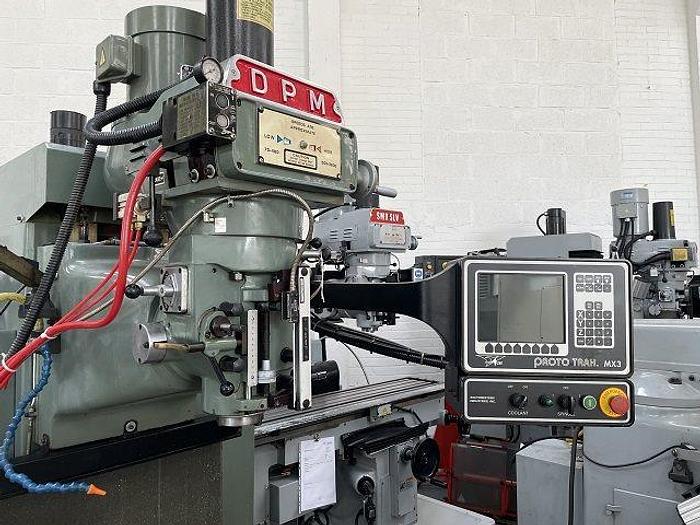

Used 1997 XYZ DPM bed mill by XYZ is offered to the market to the following specification. Table Size -1270 x 310 (50" x 12") Travel (X, Y, Z axis) – 750 x 508 x 597 (30” x 20” x 23.5") Quill Diameter – 100mm (3 15/16") Maximum Quill Travel – 125mm (5") Spindle Taper - ISO 40 Spindle Speed Range - 40-600, 300-3800 Spindle Centre to Column Face – 508mm (20") Spindle Motor Power - 5 HP Maximum Weight of Workpiece – 800 Kgs (1760 lbs.) Max height – 2489m (98") Width of machine including table – 2388mm (94") Overall width incl full table traverse -3454mm (136") Weight net / shipping lbs. – 2000kgs (4400 Lbs) Rapid traverse X, Y, Z – 3.8 M/Min (150 IPM) Auto Lube Pump Fitted with AGE3 Control DNC link
