Hurco VM1

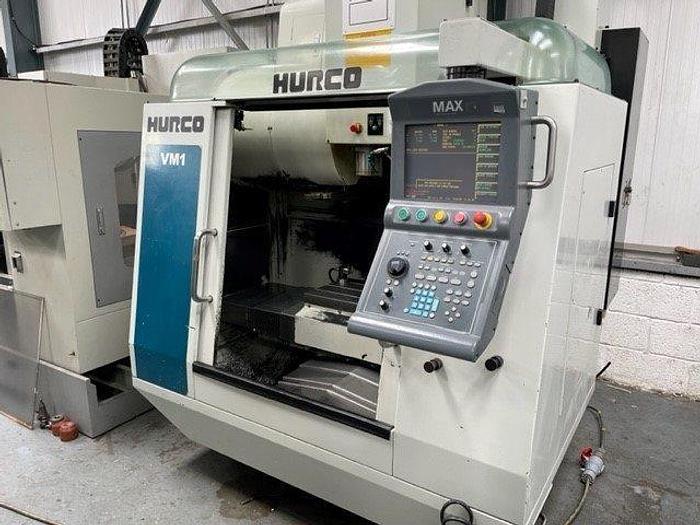

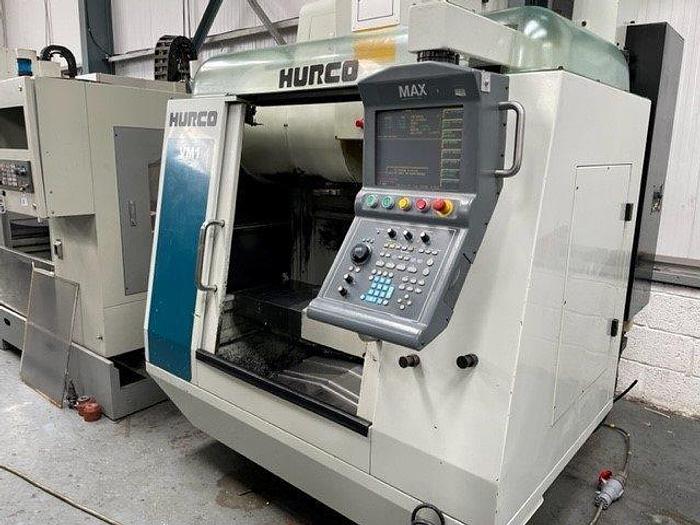

Used 2002 Hurco VM1

Footprint (WxD) 70.9"x 62.5" (1800mm x 1588mm) X-Axis Travel 26" (660mm) Y-Axis Travel 14" (356mm) Z-Axis Travel 18" (457mm) Table Working Surface 30" x 14" (762mm x 356mm) Max Weight on Table 750 lbs (340Kgs) T-Slots (spacing x width) 3 Slots Spindle Taper ANSI # 40 Taper (CAT 40) Max Spindle Speed 8,000 RPM Peak Spindle Motor 15 HP Max Spindle Motor Torque 54 @ 1,450 ft lbs @ RPM Rapid Traverse X,Y,Z Axis 20 M/Min Cutting Fee Rate 8M/Min Number of Tools ATC 16 CAT 40 Positioning/Repeatability ±0.0002" / 0.0001" Voltage 208-240 VAC/60HZ Power Rating 13 KVA
