Doosan Lynx 220B
Doosan Lynx 220B
orCall +44 (0) 117 965 2706
Description

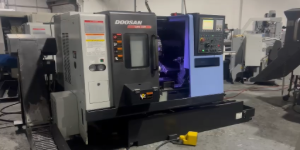

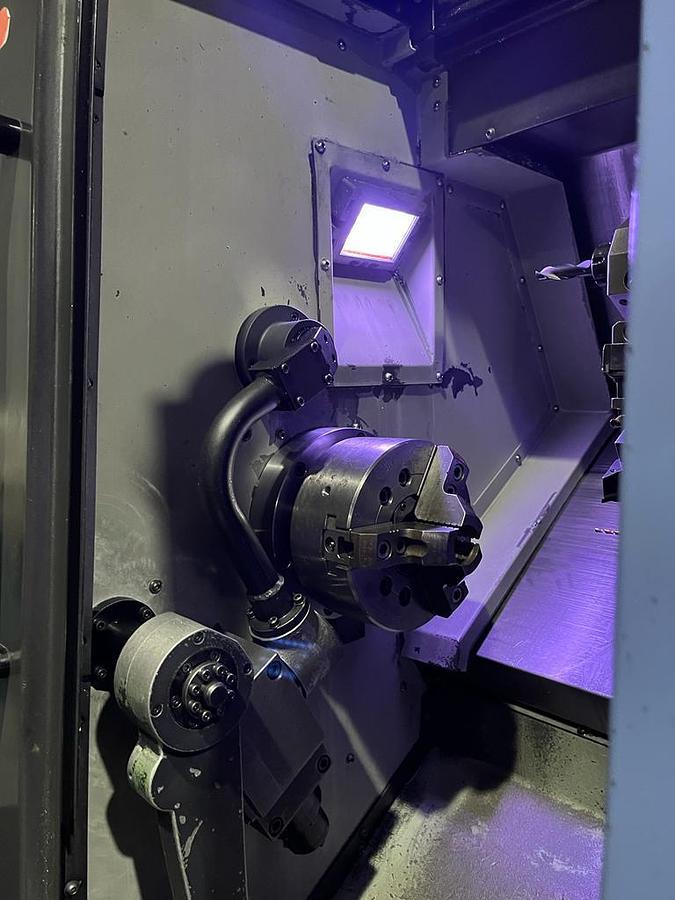

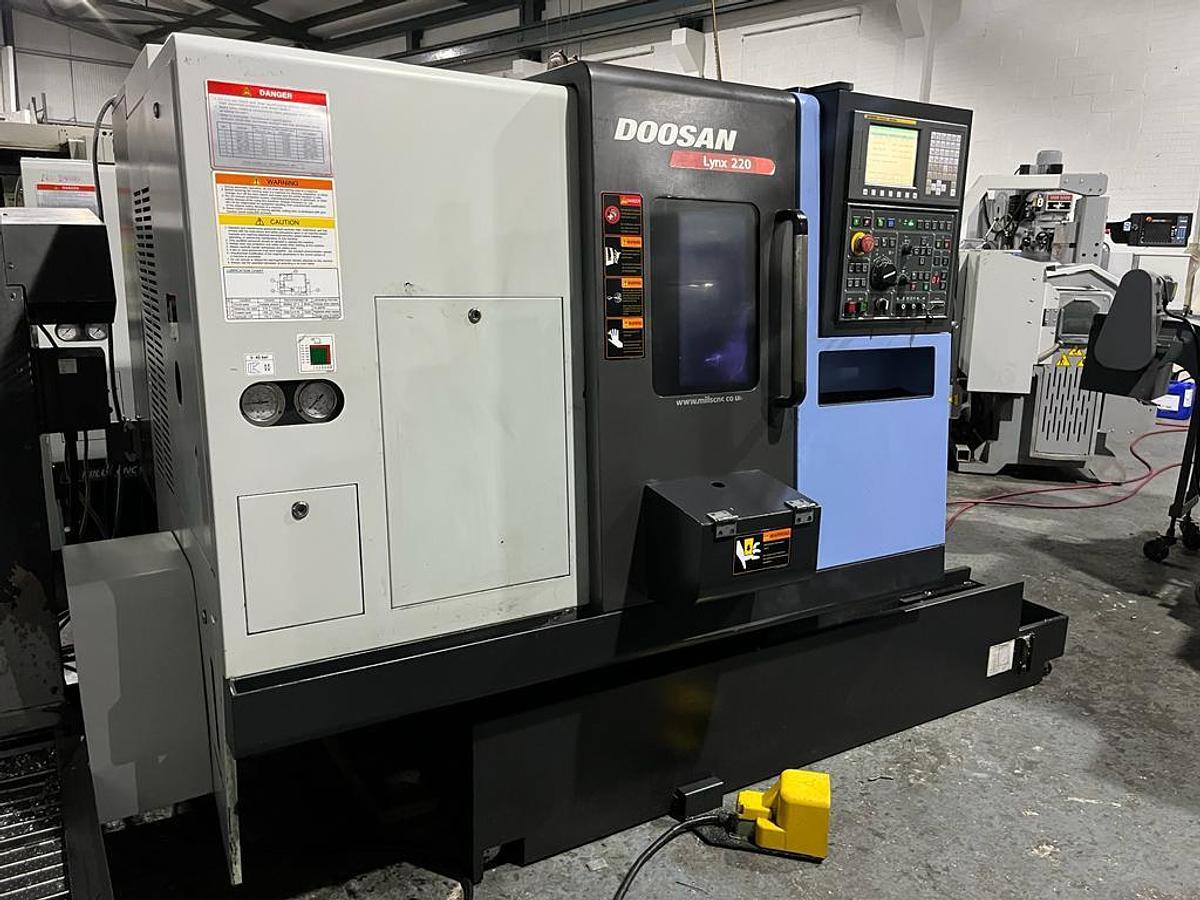

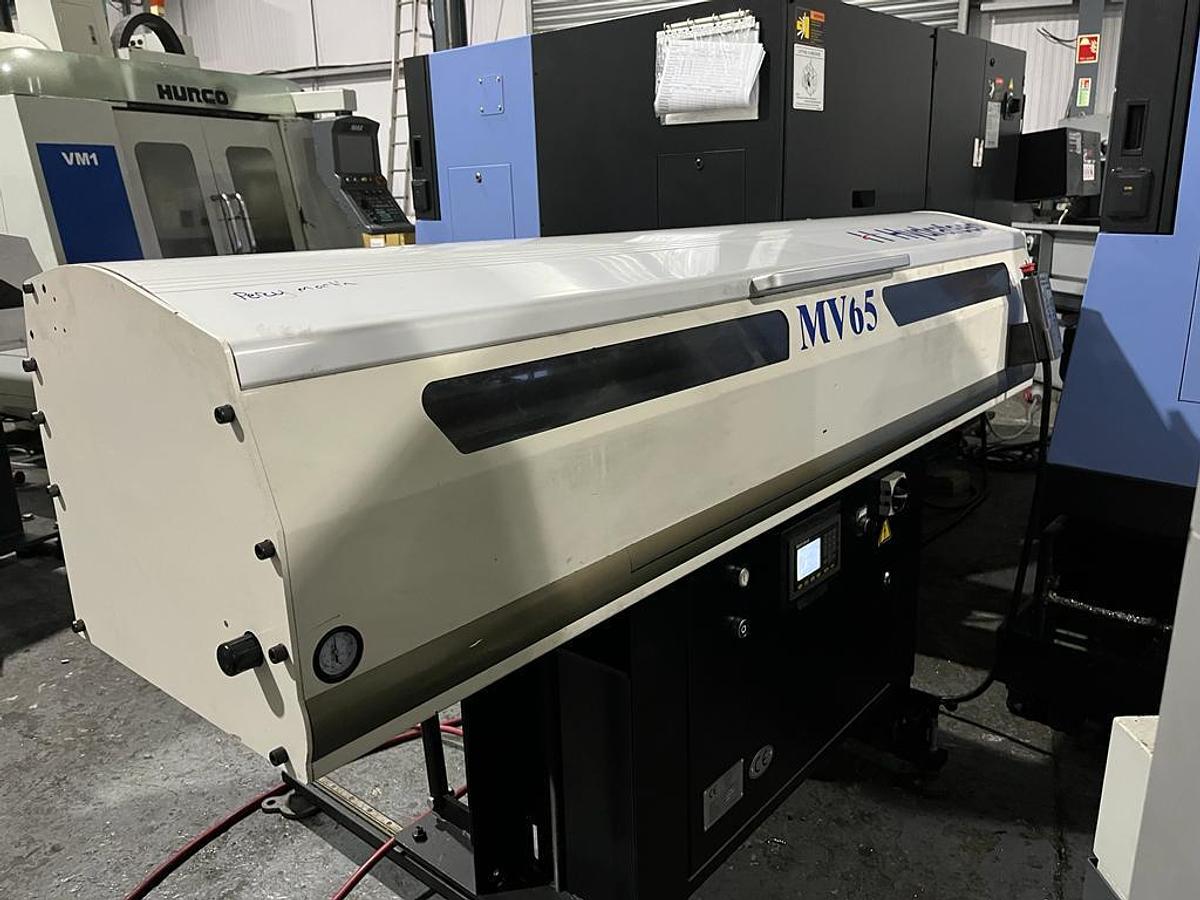

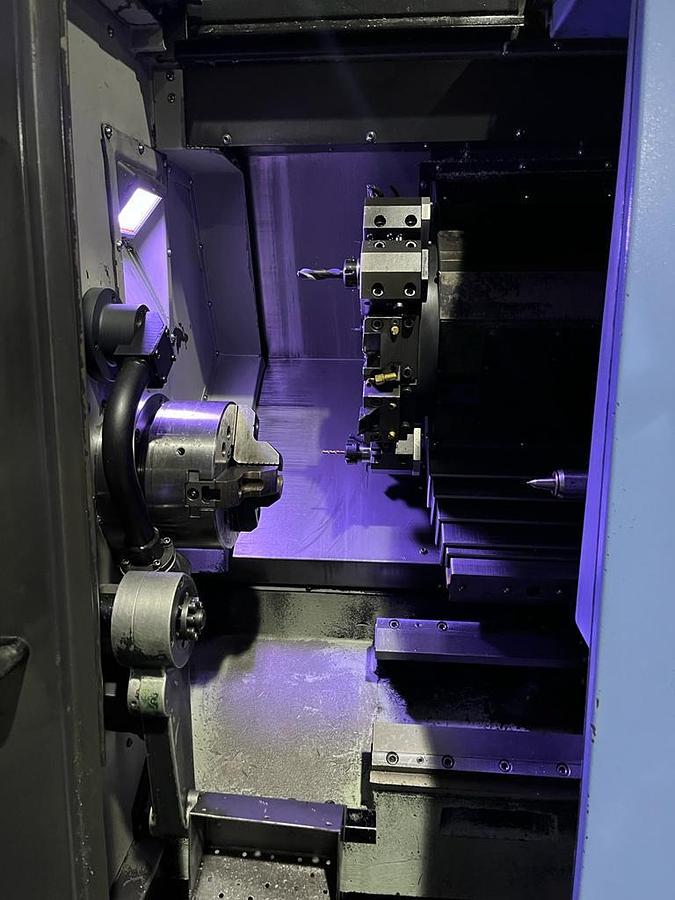

Used 2012 built Doosan Lynx 220B CNC lathe with Fanuc control, 8” 3 jaw chuck, collet chuck, barfeed, collet chuck, parts catcher, swarf conveyor, tailstock & tool setter.
Bar Capacity 51mm
Chuck Size 200mm

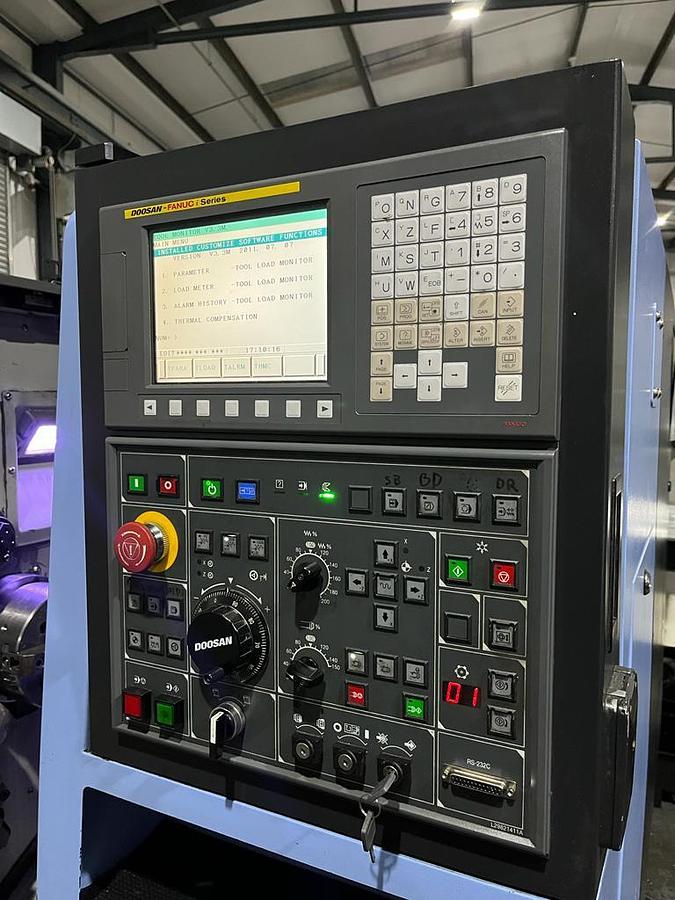

FANUC Oi-Series
Maximum Cutting Diameter 320mm
Maximum Cutting Length 305mm
Rapid Feedrates XZ: 30 x 36m/minute
Spindle Motor Power 11kW
Spindle Nose A2-6
Spindle Speed 5000rpm
Swing 510mm
Swing Over Carriage 290mm
Tailstock Quill Stroke 80mm
Tailstock Taper MT #4
Tool Size 25 x 25mm

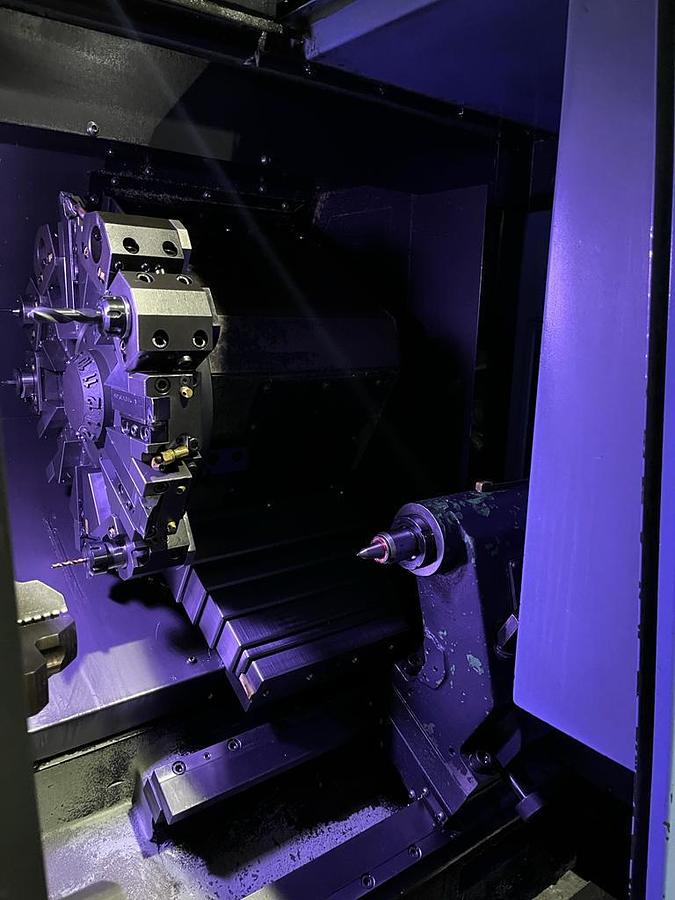

Turret Positions 12 Station
Machine Dimensions 3049 x 1620 x 1655mm
Machine Weight 3100kg
Specifications
| Manufacturer | Doosan |
| Model | Lynx 220B |
| Year | 2012 |
| Condition | Used |
| Stock Number | clj/0190 |
| Control | Fanuc |
| Spec | Spindle Bore 52 mm | Swing 510 mm | Travel X 175 Z 552 mm |
| Accessories | 8” 3 jaw chuck, collet chuck, barfeed, collet chuck, parts catcher, swarf conveyor, tailstock & tool setter. |
| Name of machine | Doosan Lynx 220B |
| Main spindle turning diameter max | 320mm |
| Main spindle turning length max | 533mm |
| Main spindle chuck diameter | 200mm |
| Main spindle max swing | 510mm |
| Main spindle bar diameter max | 65 mm |
| Tail stock quill and body | Standard |
| Rpm | 6,000 rpm |
