XYZ CT65

Sold

XYZ CT65

Description

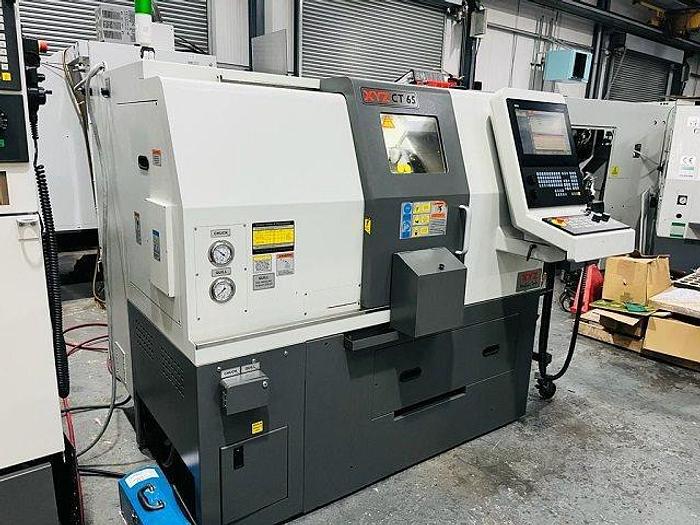

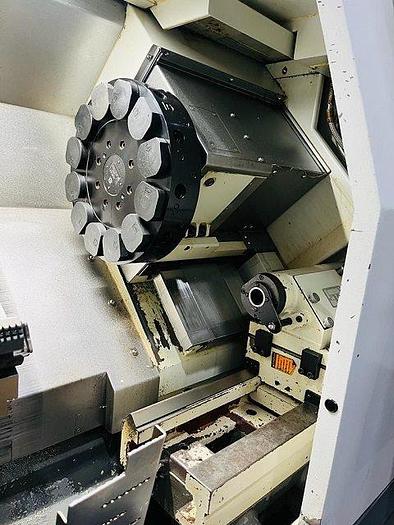

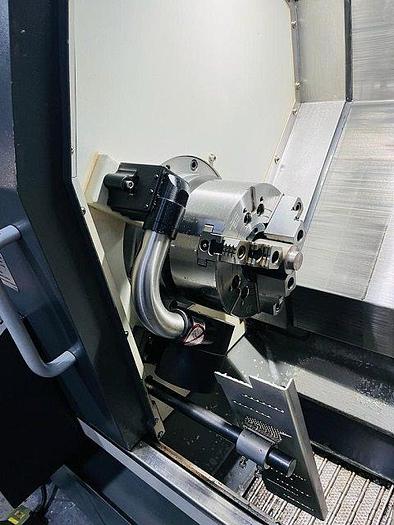

Used 2018 XYZ CT65, MPG, parts catcher, swarf conveyor & tail stock Power chuck diameter 200 mm, Maximum swing 400 mm Swing over carriage cover 260 mm, Maximum turned diameter 220 mm X Axis travel 175 mm, Z Axis travel 525 mm Spindle centre height from floor 998 mm, Spindle nose A2-6 Bar capacity 65 mm, Spindle front bearing internal dia 110 mm Max spindle speed 4,000 rpm, Spindle motor 17 kW / (23 HP) Min spindle speed for full power 1,500 rpm X & Z Axis rapid traverse rate 20 M/min X Axis slideway configuration Hard box way, Z Axis slideway configuration Hard box way Ball screw diameter (X & Z) 28/40 mm, Servo motors 11Nm Turret 12 Station VDI 30, Turning tool shank dimensions 20 x 20 mm Max. boring bar diameter 32 mm, Tailstock quill taper MT 4 Quill diameter and travel 75 / 120 mm, Max. quill thrust 800 kg Coolant tank capacity 80 litre, Coolant pump delivery 301/min @ 2.5 Bar Machine weight 3,600 kg, Footprint W x D x H approx. with conveyor 2,950 x 2,030 x 1,650 mm

Specifications

ManufacturerXYZ
ModelCT65
Year2018
ConditionUsed
Serial NumberSTA20110
Stock Numberclu/0389

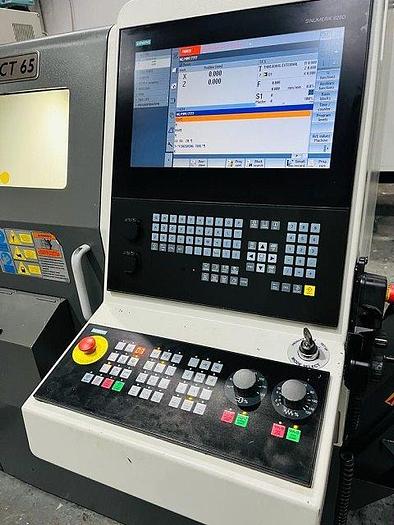

ControlSiemens
SpecSpindle Bore 32 mm | Swing 400 mm | Travel X 175 Z 525 mm
AccessoriesMPG, parts catcher, swarf conveyor & tail stock
Name of machineXYZ CT65
