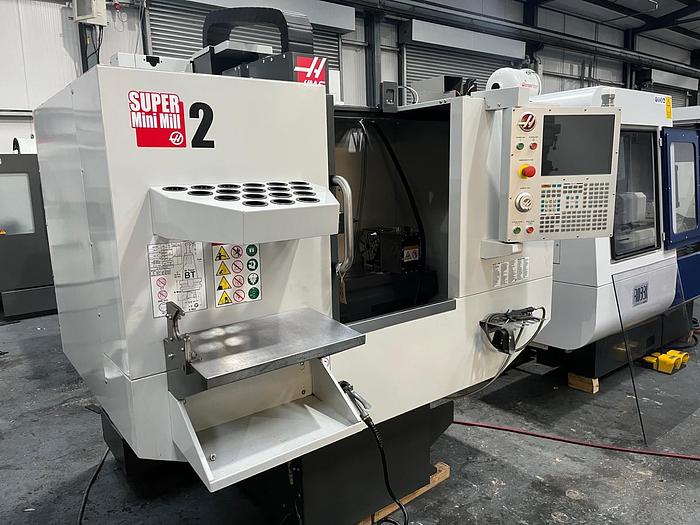

Haas Super Mini Mill 2

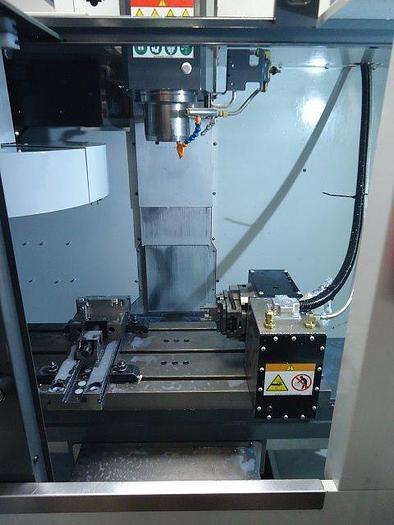

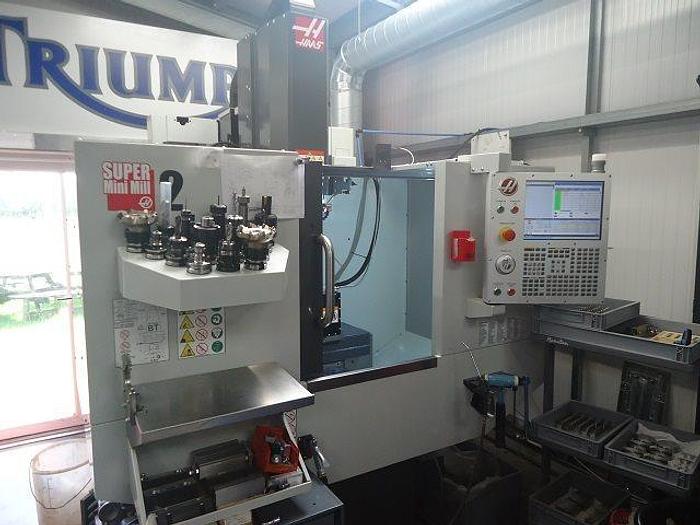

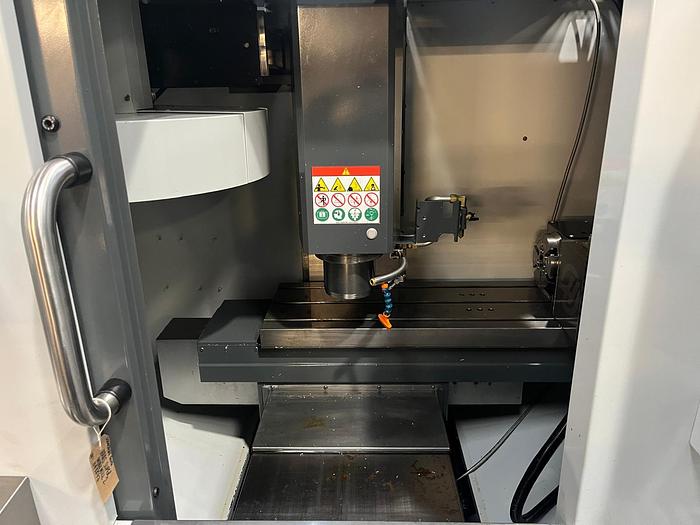

Used 2018 HAAS Super Mini Mill 2 with HRT160 4th Axis, 20 Tool Changer, Coolant Equipment, 10,000RPM Spindle, Extended Memory 1GB and Comp Table with only 2000 cutting hours in immaculate condition.

SPECIFICATION:

TRAVELS:

X Axis: 20″ (508 mm)

Y Axis: 16″ (406 mm)

Z Axis: 14″ (356 mm)

Spindle Nose to Table (~ max): Not specified

Spindle Nose to Table (~ min): Not specified

TABLE:

Length: 40″ (1016 mm)

Width: 14″ (356 mm)

T-Slot Width: 5/8″ (15.88 mm)

T-Slot Centre Distance: Not specified

Number of Std T-Slots: 5

Max Weight on Table (evenly distributed): 1500 lbs (680 kg)

SPINDLE:

Max Rating: 15 HP (11.19 kW)

Max Speed: 10,000 RPM

Max Torque: 90 ft-lb (122 Nm) @ 2000 RPM

Drive System: Vector Dual Drive

Taper: BT 40

Bearing Lubrication: Air/Oil Injection

Cooling: Air Cooled

FEEDRATES:

Rapid Traverse Rate (Max): 1200 IPM (30.48 m/min)

Cutting Feed Rate (Max): 833 IPM (21.17 m/min)

AXIS MOTORS:

Axis Motor Rating X Y Z: Not specified

TOOL CHANGER:

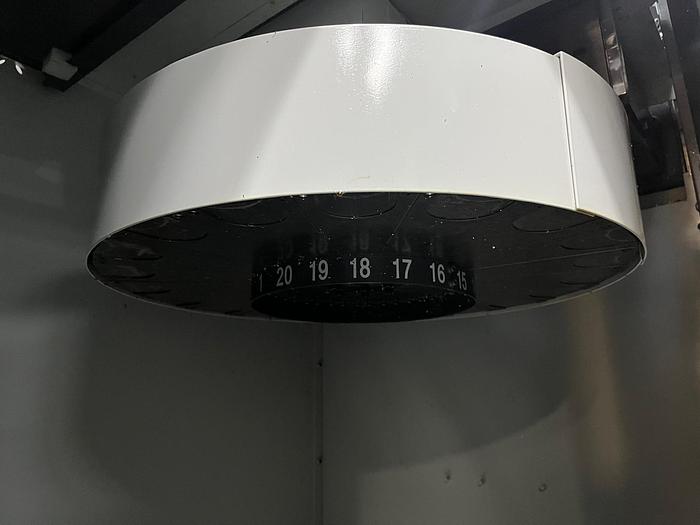

Type: 20 Tool Umbrella Type

Capacity: 24 + 1 Max

Max Tool Diameter: 5″ (127 mm)

Max Tool Length: 11″ (279 mm)

Tool Weight Max: 12 lbs (5.44 kg)

Tool Change Time: 1.6 sec

GENERAL:

Air Required: 100 psi (6.9 bar), 4 scfm (113.27 l/min)

Power Supply: 220V, 66FLA, 3-Phase
