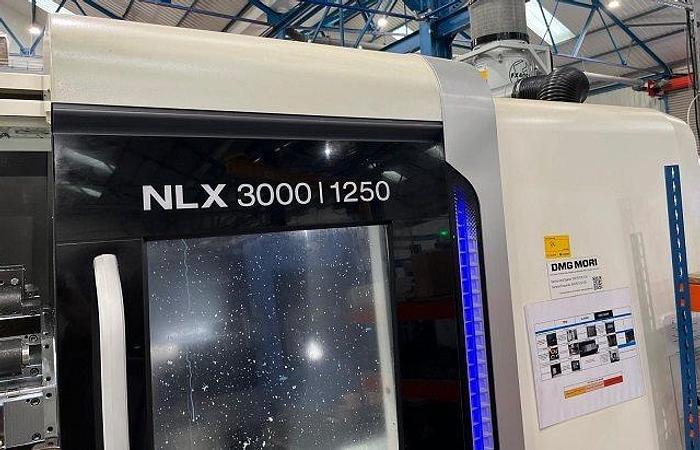

DMG MORI NLX 3000
Sold
DMG MORI NLX 3000
Description

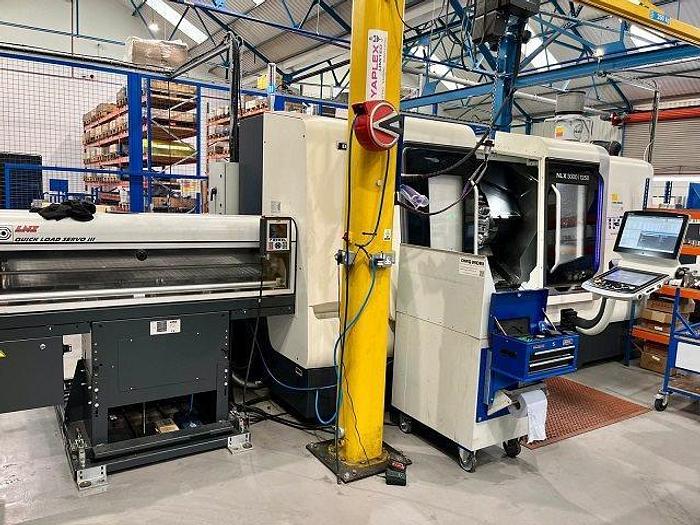

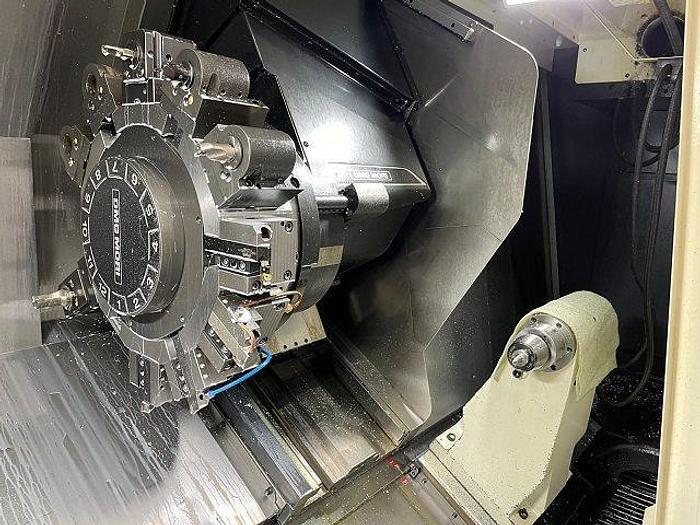

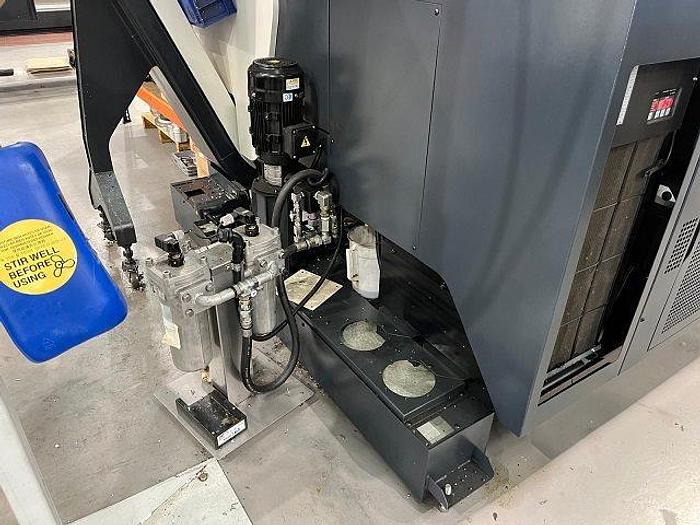

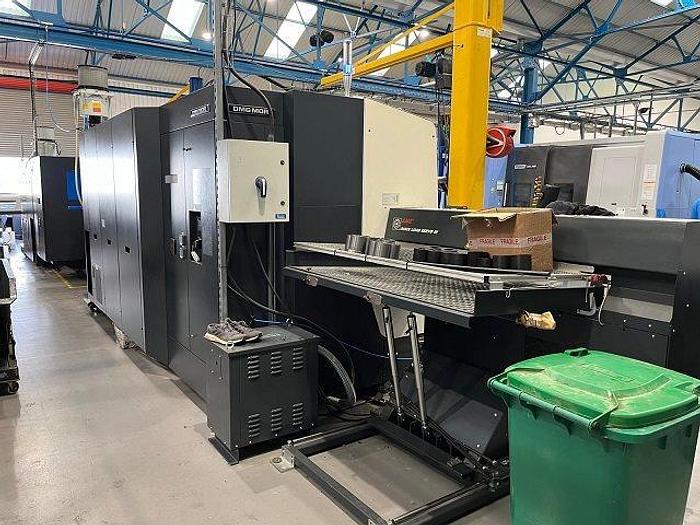

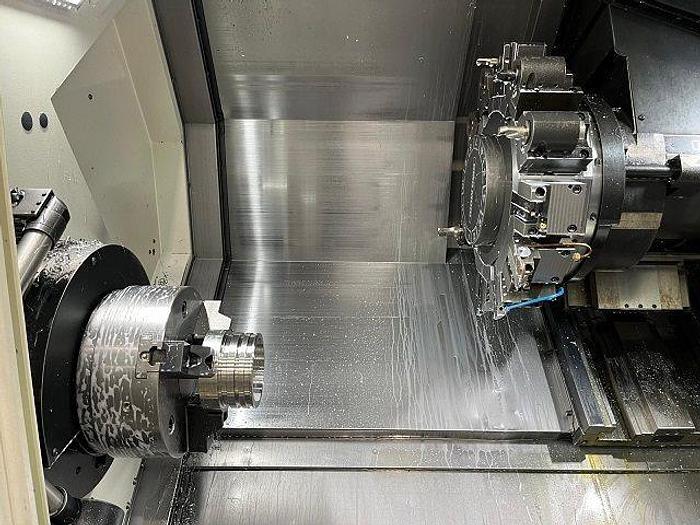

Used 2018 DMG Mori NLX 3000Y-1250 CNC lathe. An Immaculate and very well specified machine with large capacity, Celos–Fanuc control, 12” chuck, 102m spindle bore, 978mm swing & 1250mm turning length. This one is fitted with a BMT turret, has driven tools, C-Axis, Y-Axis, Tailstock, HP Coolant, LNS Servo Bar Feed, swarf conveyor & Renishaw part and tool probing. Travels Stroke X 280mm Stroke Y 120mm Stroke Z 1370mm Rapid traverse X 30 m/min Rapid traverse Y 10 m/min Rapid traverse Z 30 m/min Rapid traverse C 400 r/min Driven tool Speed 10000RPM Power 3.7/5.5/5.5 Max spindle speed 3,000 rpm Max Torque 995 Nm (100% DC) Max. bar capacity diameter 102 mm Rapid traverse rate X- Y- Z-axis 30/10/30 m/min
Specifications
| Manufacturer | DMG |
| Model | MORI NLX 3000 |
| Year | 2018 |
| Condition | Used |
| Stock Number | clu/OBO002 |

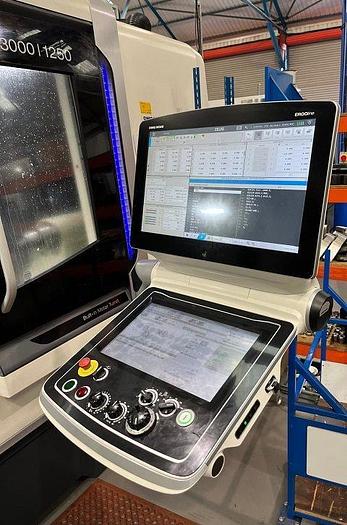

| Control | Celos-Fanou |
| Accessories | 12” chuck, 102m spindle bore, 978mm swing & 1250mm turning length. This one is fitted with a BMT turret, has driven tools, C-Axis, Y-Axis, Tailstock, HP Coolant, LNS Servo Bar Feed, swarf conveyor & Renishaw part and tool probing |
| Name of the machine | DMG MORI NLX 3000 |
| Swing over bed | 978mm |
| Workpiece diameter | 430mm |
| Workpiece length | 1260mm |
| Chuck size | 300mm |
| Turret type | BMT |
| Turret no of tools | 12 |
| Spindle motor power | 25KW (100% DC) |
| Number of driven tools with max. speed | 12/ 10000 RPM |
