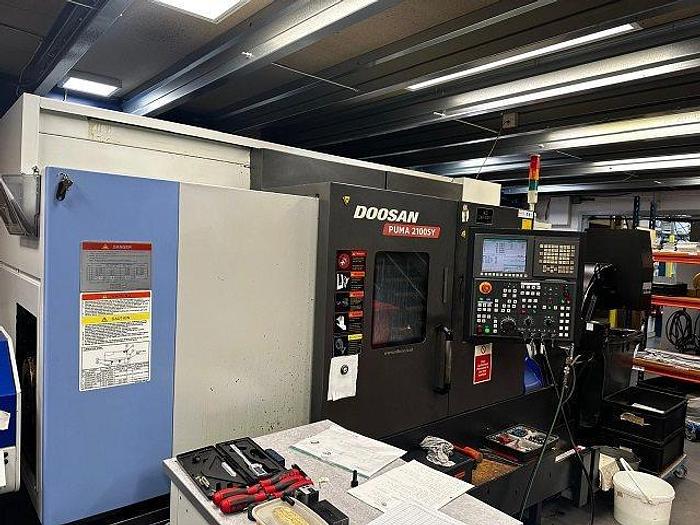

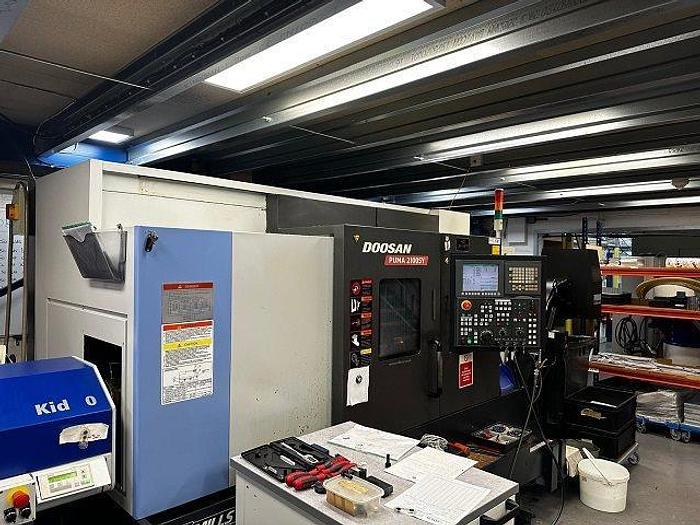

Doosan Puma 2100 SY

Sold

Doosan Puma 2100 SY

Description

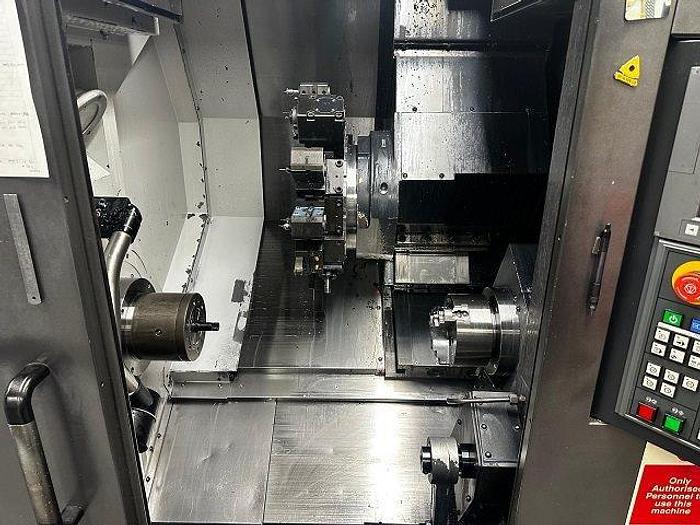

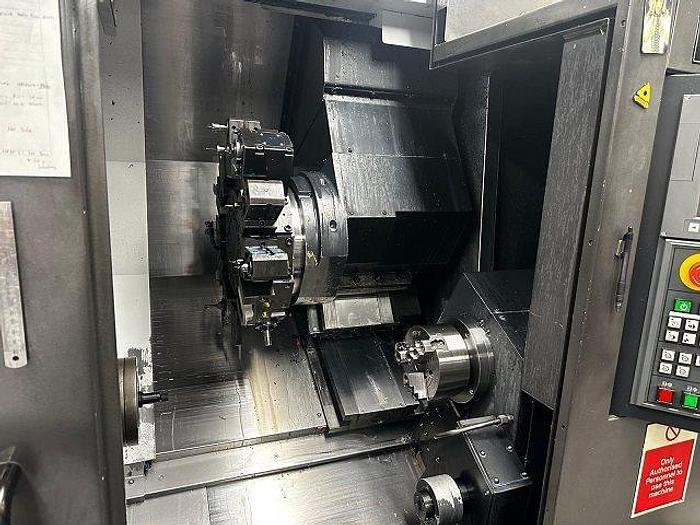

Used 2010 Doosan Puma 2100 SY in super condition, with Fanuc control, collet chuck on main spindle, 3 jaw chuck on sub, driven tools, C-Axis, Y-Axis, Sub spindle, parts catcher & conveyor, driven & static tool holder package, swarf conveyor.

Specifications

ManufacturerDoosan
Model2100 SY
Year2010
ConditionUsed
Stock Numberclu/0365
Name of machineDoosan Puma 2100 SY
Chuck size8" (fitted woth collet chuck)
Bar capacity65mm
Maximum swing780mm
Maximum turning diameter480mm
Maximum turning length545mm – 785mm
Maximum main spindle (power and speed)22kW/5000rpm
Sub-spindle with full c-axis (model dependent)15kW/6000rpm
Milling spindle (model dependent)7.5kW/5000rpm
Y-axis (model dependant)105mm (+/- 52.5mm)
Turret12/24 position
ControlDoosan-Fanuc i Series
