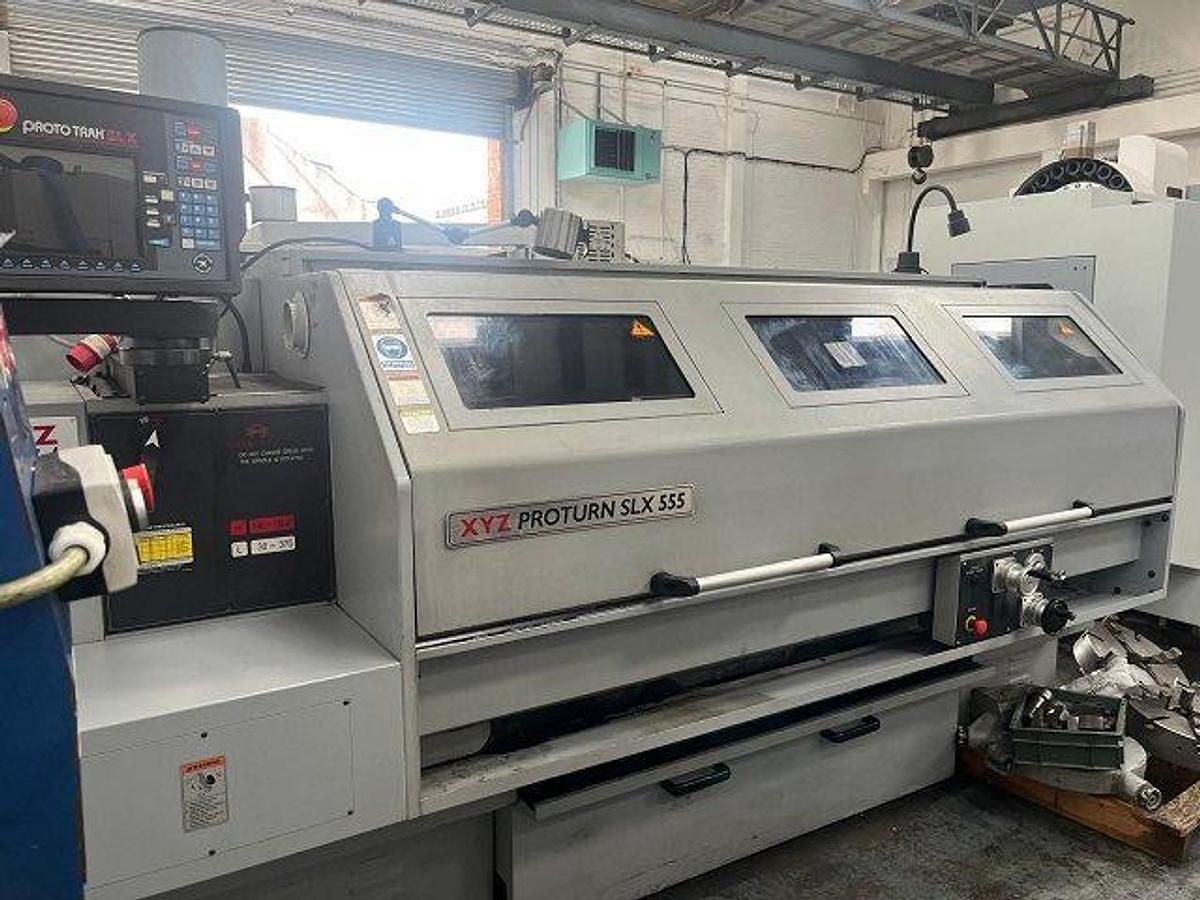

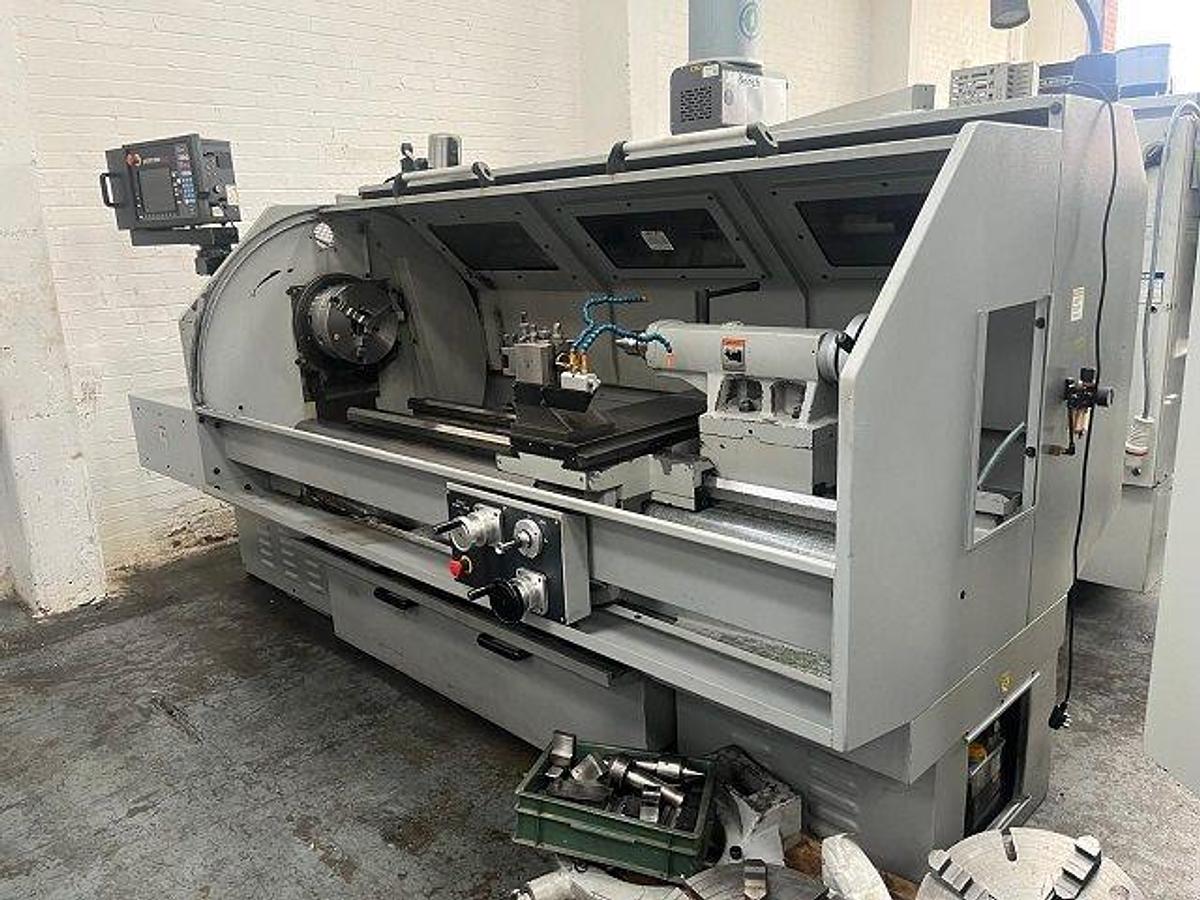

XYZ Proturn SLX 555 x 1750

Sold

XYZ Proturn SLX 555 x 1750

Description

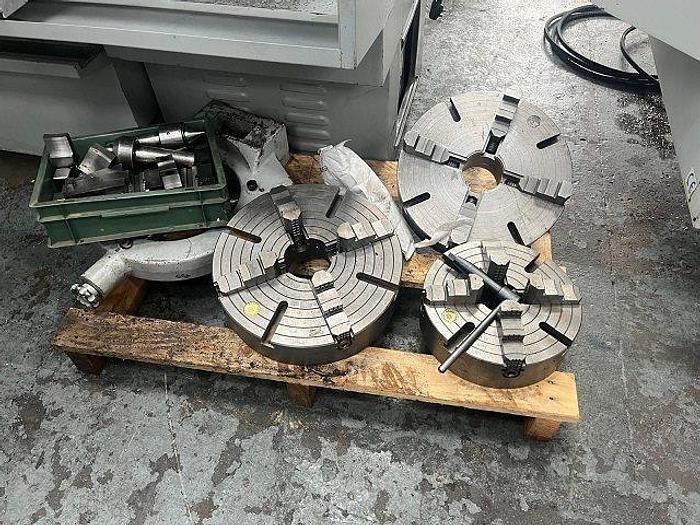

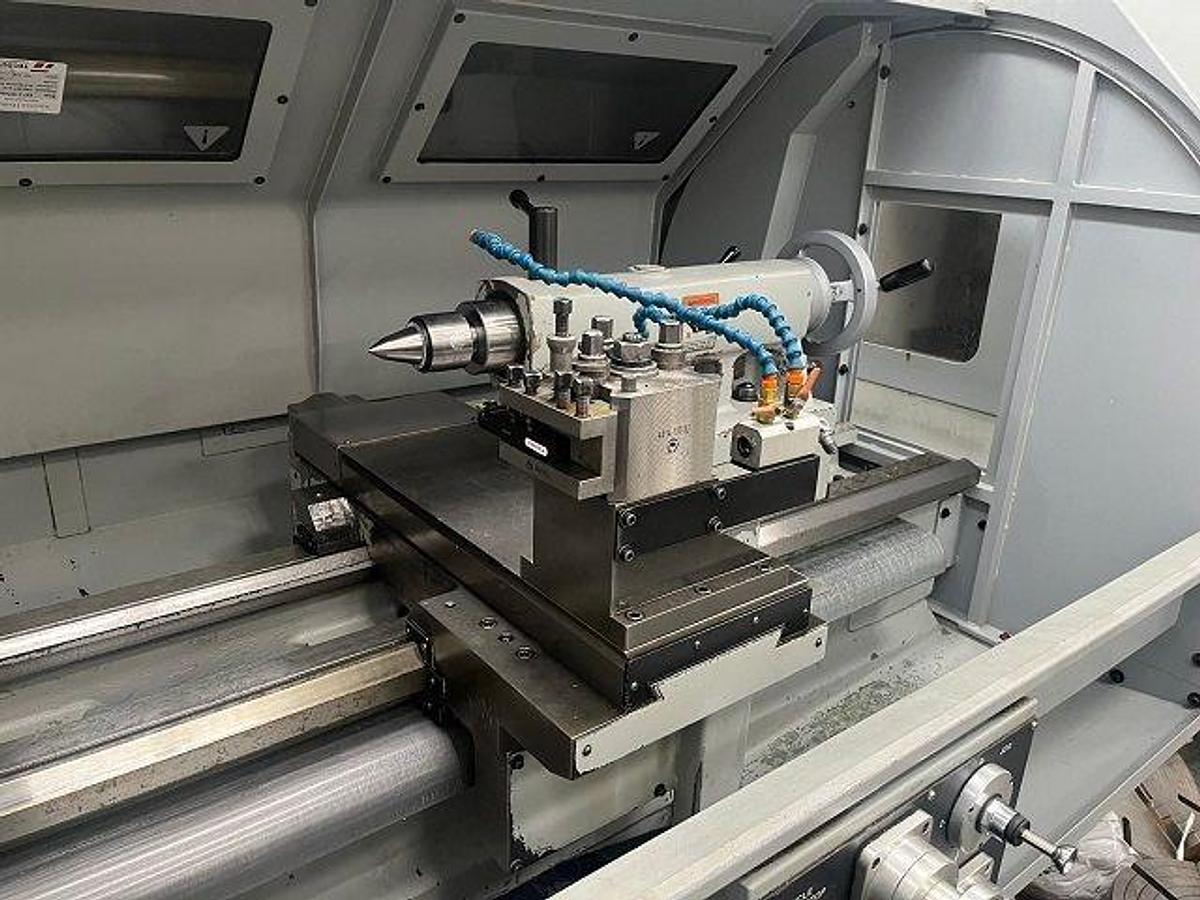

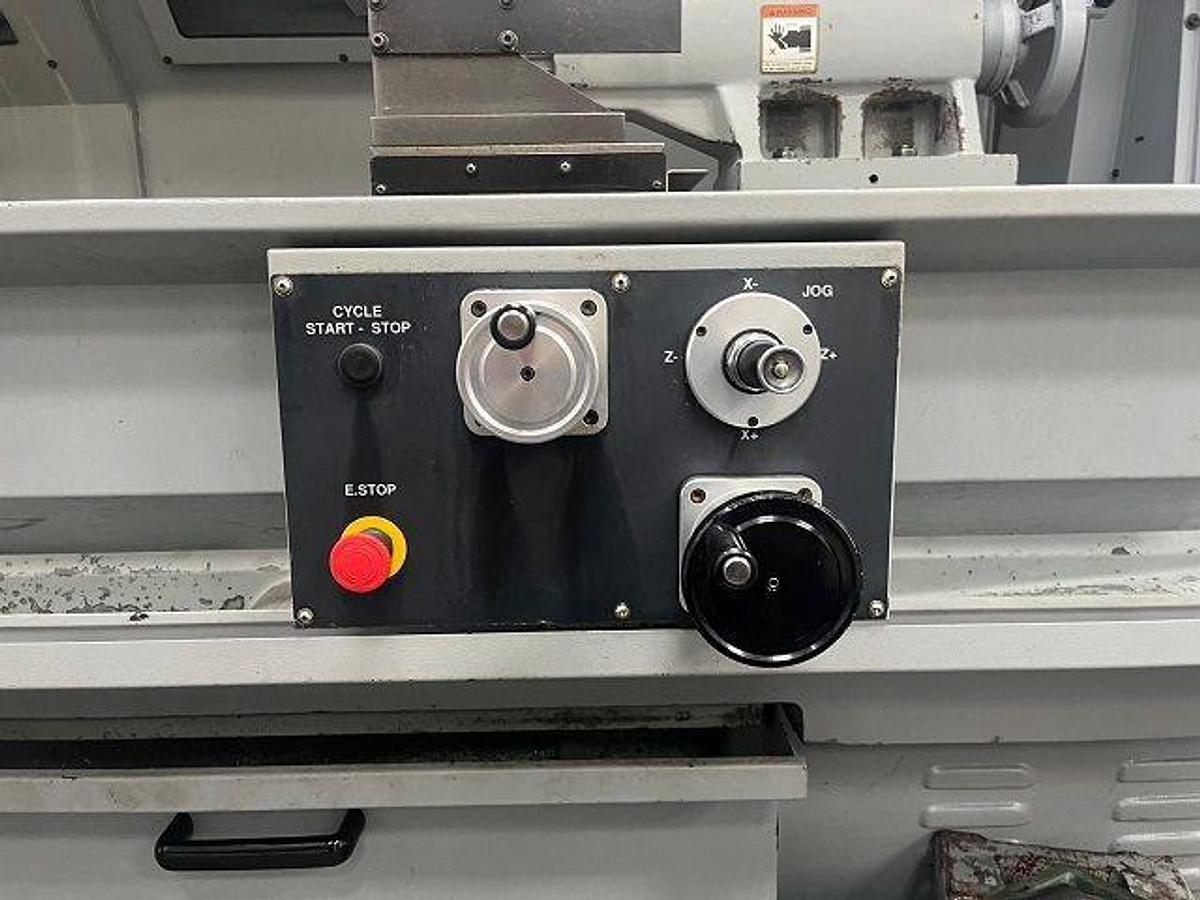

Just arrived and very rare on the used market! One used XYZ SLX 555 x 1.75M, in superbly well-maintained condition. Fitted with mist extraction. Rapid Traverse with Joy Stick 3 Jaw Chuck 315mm 4 Jaw Fixed steady Quick Change Toolpost and 6 Holders Air Assisted Floating Tailstock, with towing hitch Interlocked Chuck Guard and Main Guard Auto Lubrication, Coolant, Worklight Swing over bed: 560 mm, Swing in Gap: 935 mm, Gap in front of faceplate: 297 mm (max.) Swing over cross slides: 350 mm, Cross Slide Travel: 290 mm Spindle bore 104 mm, Spindle nose D 1-11 camlock Spindle taper MT7 in bush Spindle motor 11 Kw (15hp) Spindle speeds 30-1800 rpm – 2 ranges Tailstock Travel 200 mm Tailstock taper MT6 Tailstock diameter 105 mm Bed Width 500 mm Footprint L x D x H 5220 x 2150 x 1950 mm

Specifications

ManufacturerXYZ
ModelProturn SLX 555 x 1750
Year2013
ConditionUsed
Stock Numberclu/0355
Name of machineXYZ Proturn SLX 555 x 1750
Distance between centres1750 mm
