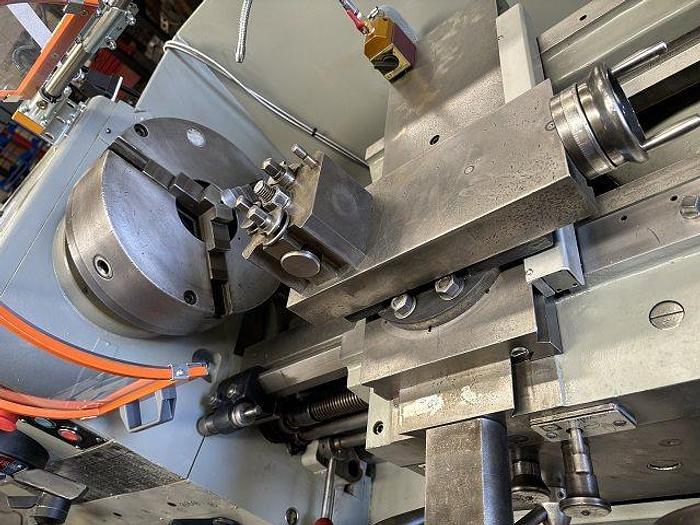

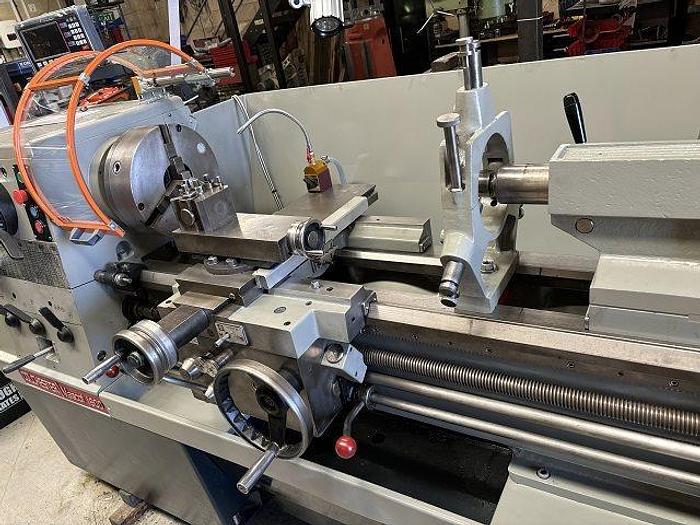

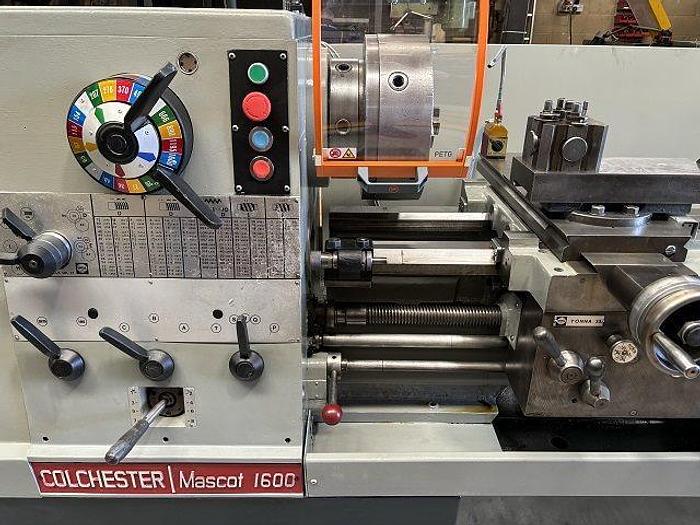

Colchester Mascot 1600
Colchester Mascot 1600
or
Call +44 (0) 117 965 2706
Description
Spindle Nose: D1-8, Spindle Bore: 3" (76mm) Equipment: Quick Change or 4 Way Tool Post, 3 Jaw Chuck, Chuck Guard, Feeds: 20-1600 rpm Main Motor: 10 HP, Power: Three Phase Electrics
Specifications
| Manufacturer | Colchester |
| Model | Mascot 1600 |
| Condition | Used |
| Stock Number | lu/OBO001 |
| Spec | Spindle Bore 76 mm | Swing 433 mm | 20-1600 RPM |
| Accessories | Quick Change or 4 Way Tool Post, 3 Jaw Chuck, Chuck Guard |
| Between centres | 50" |
| Height of centres | 8 1/2" |
| Swing over bed | 17"(433mm) |
| Swing in gap | 28"(711mm) |
| Swing over cross slide | 101/2" (267mm) |
| Gap in front of face plate | 10" |
| Gap piece length | 13 7/8" |
| Tailstock spindle taper | 5 Morse |
| Supply voltage | 415v 50 htz |
| Approx dimensions | 3400 x 1000 |
| Name of machine | Colchester Mascot 1600 |
