2008 HAAS TM2

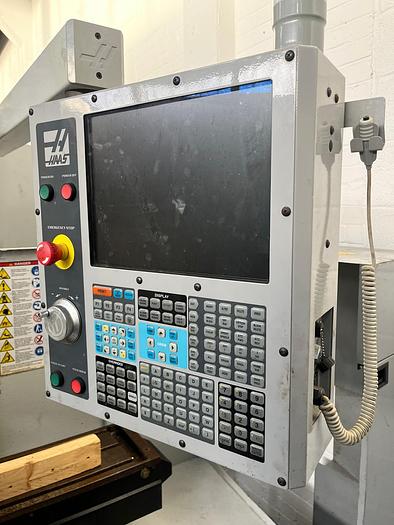

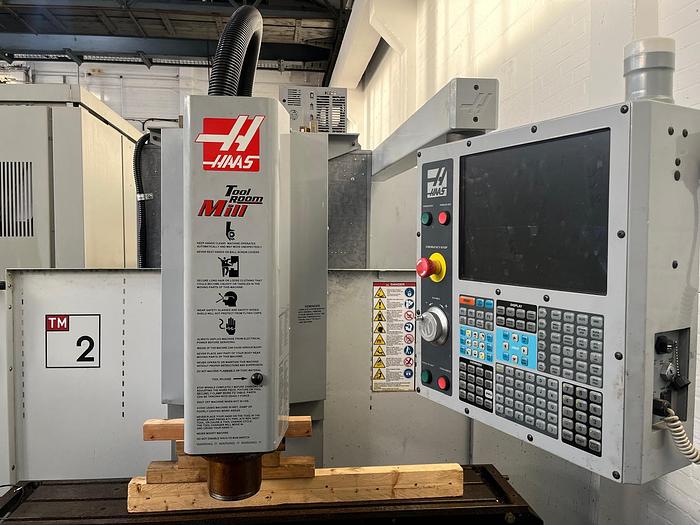

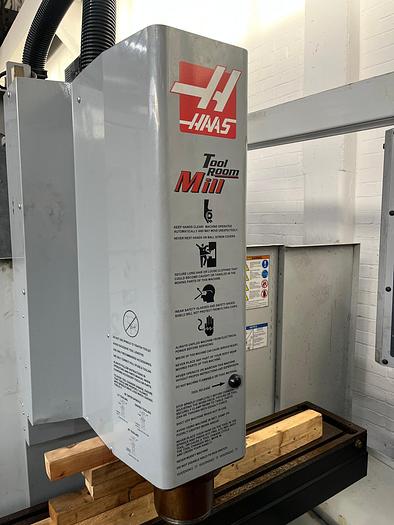

Just arrived Photo'd as arrived condition. Very clean ex university Haas TM2 open guarded CNC / Manual milling machine, with Haas

control, BT40 4000 RPM spindle, & 1016mm X Axis

movement...supplied with coolant equipment, tooling & manual set.

Specification:

X-Axis 1016 mm

Y Axis 406 mm

Z Axis 406 mm

Spindle Nose to Table (~ max) 508 mm

Spindle Nose to Table (~ min) 102 mm

Length 1466.9 mm

Width 267 mm

T-Slot Width 16 mm

T-Slot Center Distance 101.6 mm

Number of Std T-Slots 3

Max Weight on Table 454 kg

Max Rating 5.6 kW

Max Speed 4000 rpm

Max Torque 45 Nm @ 1200 rpm

Drive System Direct Speed, Belt Drive

Taper BT 40

Rapids on X 5.1 m/min

Rapids on Y 5.1 m/min

Rapids on Z 5.1 m/min

Max Cutting 5.1 m/min

Max Thrust X 8896 N

Max Thrust Y 8896 N
