Hurco TM10i
Sold
Hurco TM10i
Description
Used 2014 Hurco TM10i Heavy Duty 2-Axis CNC lathe, with WinMax control, 78mm bore, 10" chuck, 695mm centres, 25KW motor with tool probe, tailstock, parts catcher, swarf conveyor.
Specification:
Year: 2014
Make: Hurco
Model: TM 10i CNC Lathe
Bar Capacity: 78mm
Chuck Size: 250mm

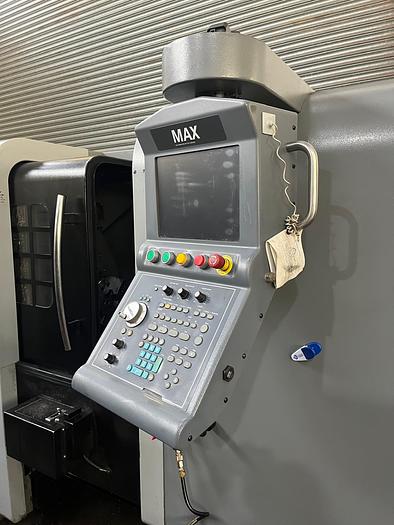

Control: Hurco WinMax
Distance Between Centres: 695mm
Machine Weight: 5,000kg
Maximum Cutting diameter: 450mm
Maximum Cutting Length: 720mm
Spindle Motor Power: 28kW
Spindle Speed: 3500rpm
Swing over the Cross-slide: 402mm
Tool Size: 25 x25 mm
Traverses XYZ: 250 x 750mm

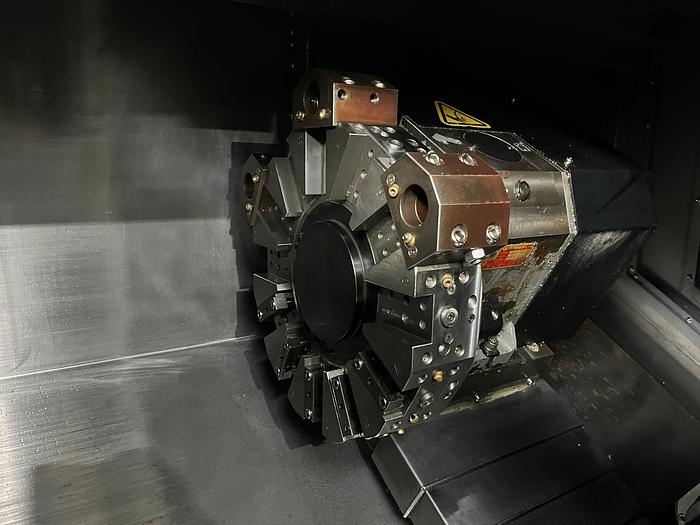

Turret Positions: 12 position
Specifications
| Manufacturer | Hurco |
| Model | TM10i |
| Year | 2014 |
| Condition | Used |
| Serial Number | TA-16103A4DAAA |
| Stock Number | clu/0371 |
| Control | Hurco Winmax |
| Spec | Spindle Bore 78 mm | Max Swing 582 mm | Travel mm X250 Z750 mm |
| Accessories | Tool probe, tailstock, parts catcher, swarf conveyor |
