2007 Mori Seiki NL2500SY
2007 Mori Seiki NL2500SY
Description

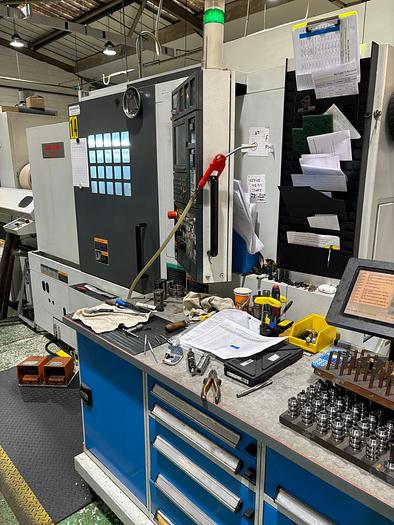

Used 2007 built Mori Seiki NL2500-700SY multi axis lathe with Sub Spindle, 2 x C-Axis, Driven Tools, Y-Axis. Supplied with 10” 3 jaw power, Collet Cuck and Collets on Sub, Tool Probe, Barfeed, Swarf Conveyor, Parts catcher & Tooling Package.
Specification:

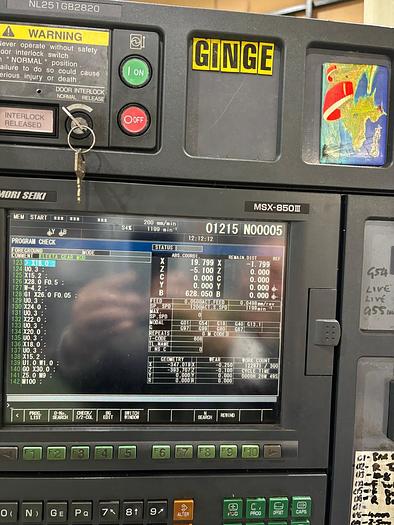

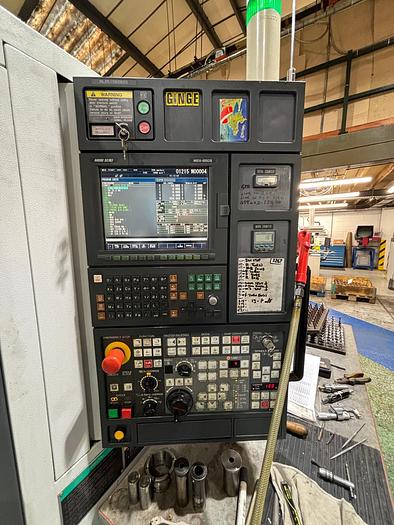

Numerical Control Type: FANUC MSX 850 BM III
Swing over Bed: 923mm, Swing Over slides: (mm): 755mm
X-Axis stroke: 260mm, Z-stroke: 795mm, Y-stroke: 100 (+or-
50)mm, Spindle speed: 4000RPM, Spindle motor power:18.5KW
Sub Spindle: 6,000RPM
Main Spindle bore:91mm, Spindle nose: A2 - 8"
Maximum machining diameter: 366mm
Maximum diameter in bar: 80mm, Maximum machining length:
705mm, Number of turrets: 1, Number of turret stations: 12
X axis rapid feed rate (m/min):30
Y axis rapid feed rate (m/min):10
Z axis rapid feed rate (m/min):30
Floor space (lxwxh): 3100 x 2000 x 2120
Specifications
| Manufacturer | Mori Seiki |
| Model | NL2500SY |
| Year | 2007 |
| Condition | Used |
| Serial Number | NL251GB2820 |
| Stock Number | clj/0207 |
| Control | FANUC MSX 850 BM III |
| Spec | Spindle bore 91mm | Max Swing 923 mm | Travel X 260 Y 100 Z 795 mm |
| Accessories | Sub Spindle, 2 x C-Axis, Y-Axis, 10” 3 Jaw Power Chuck, Collet Chuck and Collets, Tool Probe, Parts Catcher, Swarf Conveyor, Suite of Tooling, |
