2011 Hardinge GX 1000

Used 2011 Hardinge GX1000.Supplied with 8000 RPM Spindle, 30 station ATC, Swarf conveyor, coolant equipment & manual set.

SPECIFICATION:

TRAVELS:

X Axis 1020 mm, Y Axis 540 mm, Z Axis 540 mm

Spindle Nose to Table (~ max) 685 mm, Spindle Nose to Table (~ min) 145 mm

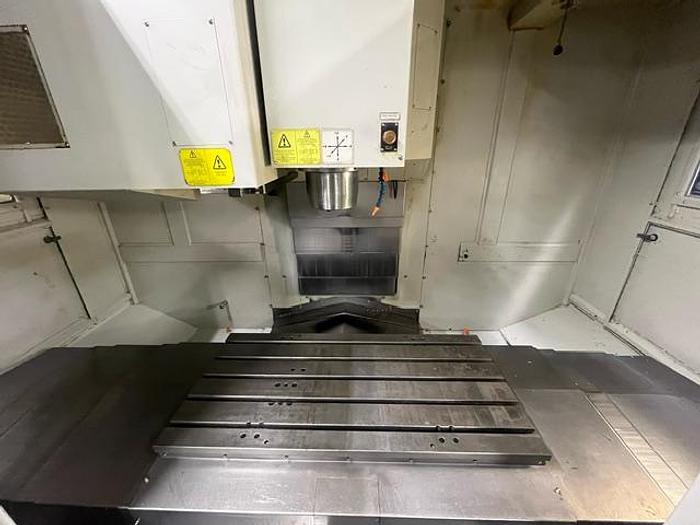

TABLE:

Length 1120 mm, Width 540 mm

T-Slot Width 18 mm, T-Slot Centre Distance 160.0 mm, Number of

Std T-Slots 3 Max Weight on Table (evenly distributed) 700 kg

SPINDLE:

Max Rating 17.4 hp 13 kW, Max Speed 8,000 rpm, Max Torque

82.76 Nm, Drive System Direct Speed Belt Drive, Taper

BT 40, Bearing Lubrication Air/Oil Injection Cooling Air Cooled

FEEDRATES:

Rapid and Jog (Max.) 36 m.min

Cutting Feed Rate (Max.) 12 m.min

AXIS MOTORS:

Axis Motor Rating X Y Z - 2.29 12,29 3.3 KW

TOOL CHANGER:

Type Carousel, Capacity 20

Max tool diameter 89 mm

Tool length Max. 250 mm

Tool weight Max. 6 kg

Tool change time 6 sec

GENERALS:

Air Required 4 scfm, 700 psi /min

Power supply 45A FLA / 400 v / 3 phase

Coolant

Capacity 360 L
