2012 Doosan Puma 2100SY

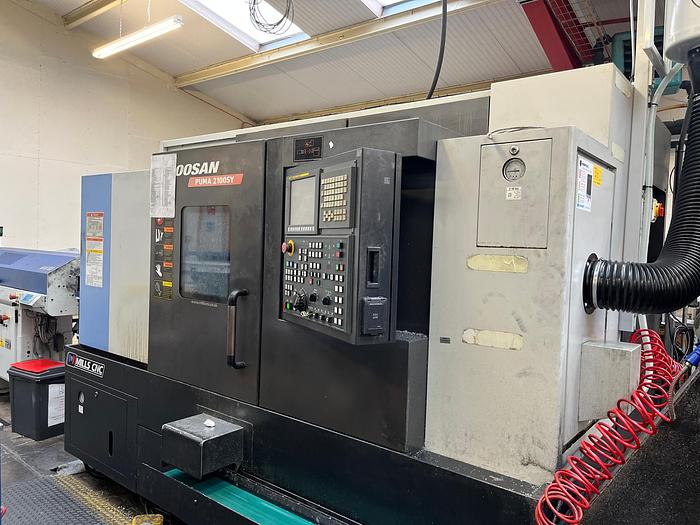

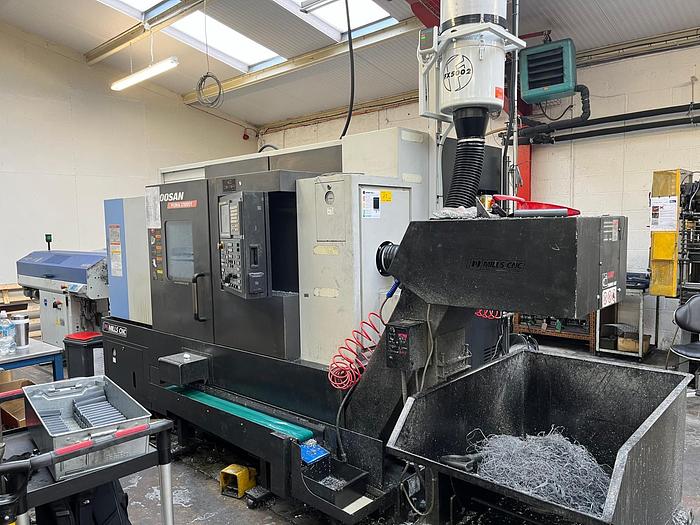

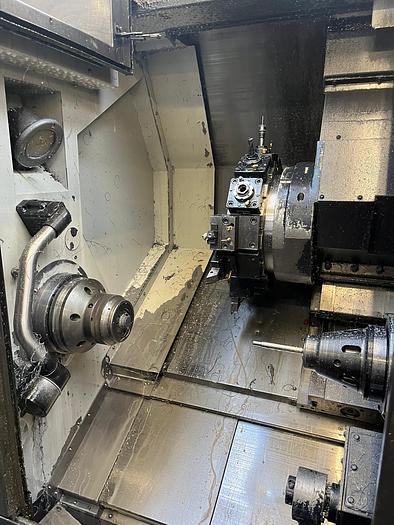

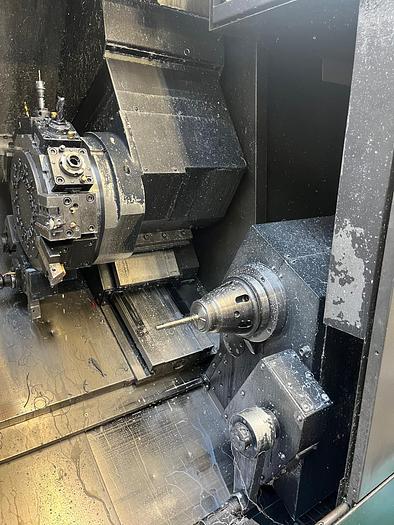

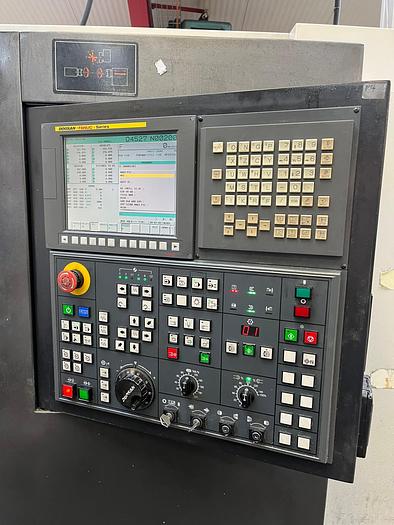

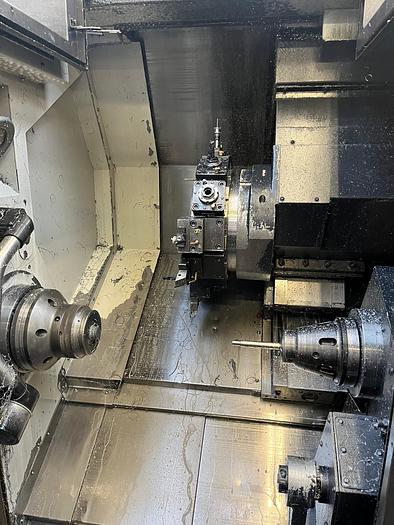

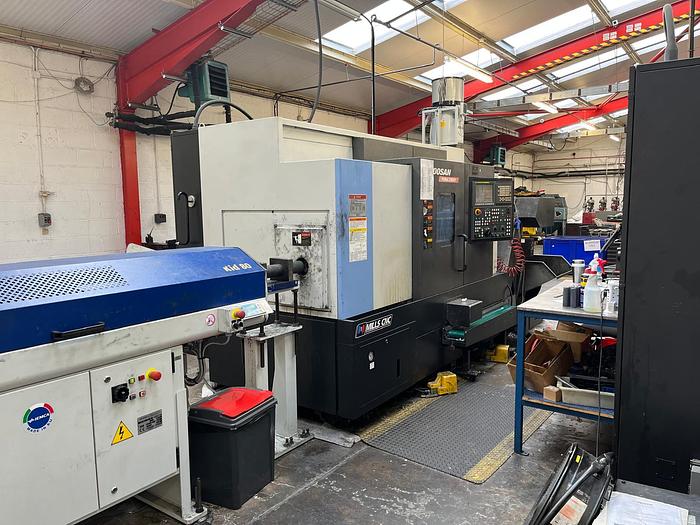

Doosan Puma 2100SY photo graphed onsite, with Fanuc control, collet chuck on main spindle and sub spindle, 3 jaw power chuck , driven tools, C-Axis, Y-Axis, Sub spindle, parts catcher & conveyor, driven & static tool holder package, swarf conveyor, Barfeed and Mist extractor. Due to the Bristol showroom end of January.

Machine Specification:

CONTROL

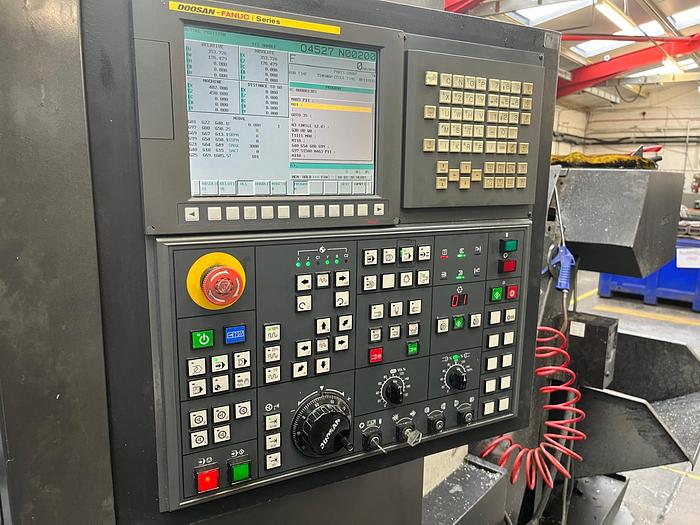

Doosan-Fanuc i Series

CAPASITY

Chuck size Main: 8" (fitted woth collet chuck)

Chuck size secondary spindle 5 "

Maximum swing 780 mm

Maximum Turning diameter 480 mm

Swing over the cross-slide: 630 mm

Bar work capacity main spindle 65 mm

MAIN SPINDLE

Spindle nose: A2-6

RPM maximum 4,500 min-¹

Motor output (40% ED rating) 22.0 kW

Maximum torque 184.0 Nm

SECONDARY SPINDLE

Sub spindle nose: A2-5

Rotating speed maximum 4,500 min-¹

Motor output (25%ED rating) 7.5 kW

Sub spindle c axis: 0.001 degrees

Sub spindle motor: 7.5 Kw

Sub spindle stroke: 590mm

TURRET

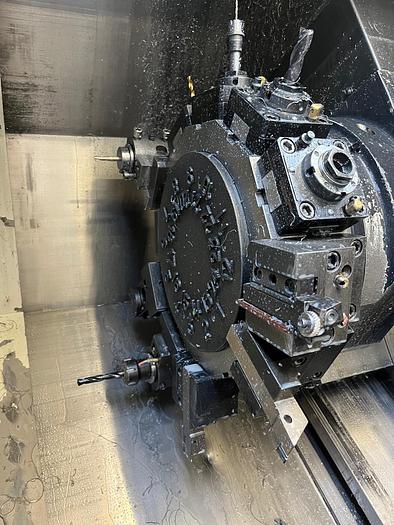

No of position on turret 12/24

Mill spindle rotating speed maximum 5,000 min-¹

FEED AXES

Travel (X axis) 260 mm

Travel (Y axis) -/+ 51mm

Travel (Z axis) 590 mm

Travel (W axis) 590 mm

Rapid traverse (X axis) 33 m/min

Rapid traverse (Y axis) 21 m/min

Rapid traverse (Z Axis) 33 m/min

Rapid traverse (W axis) 30 m/min

ACCESORIES

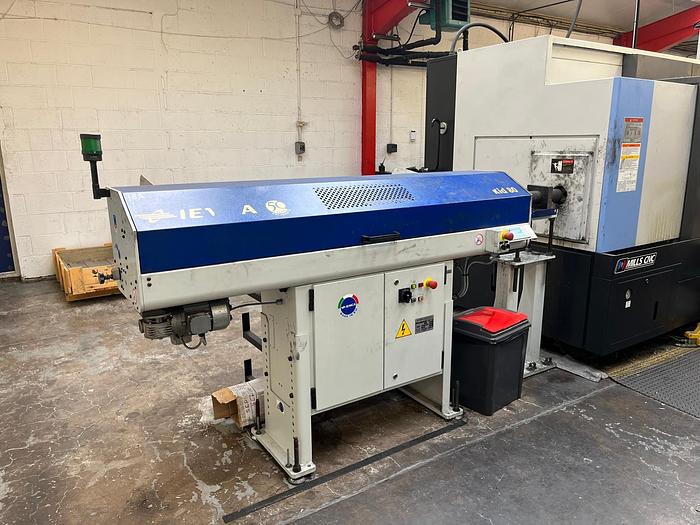

Kid 80 Barfeed

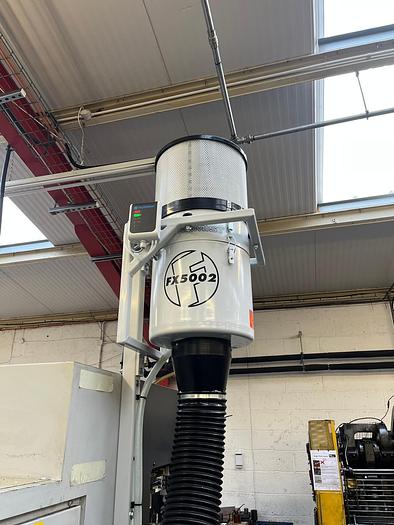

FilterMist mist extractor

MACHINE SIZE

Machine dimensions:4310 x 1863 x 2163mm

Barfeed 2100 x 1600 mm

Machine weight: 5900 kgs
