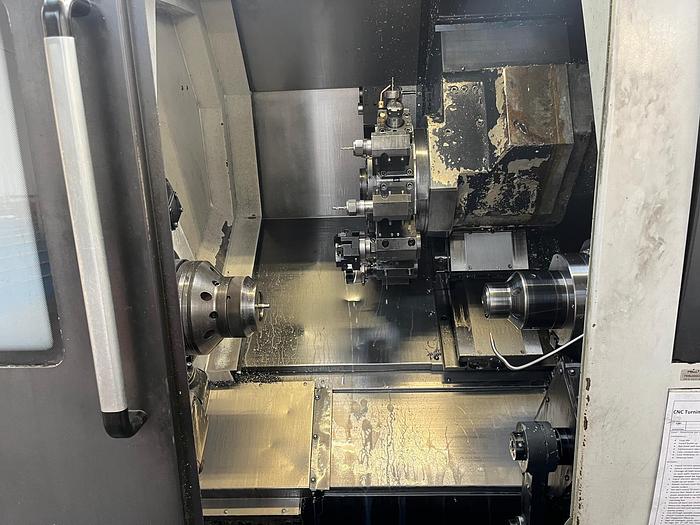

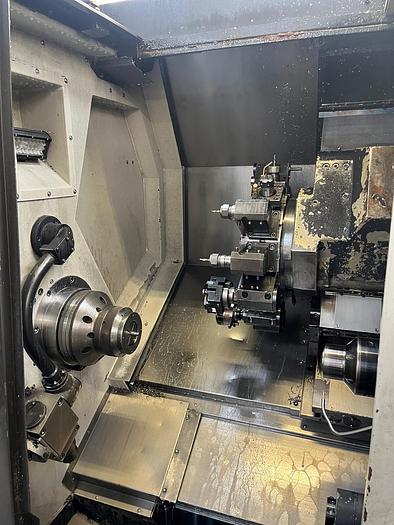

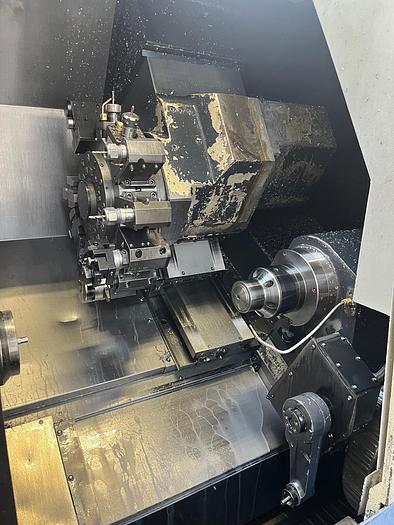

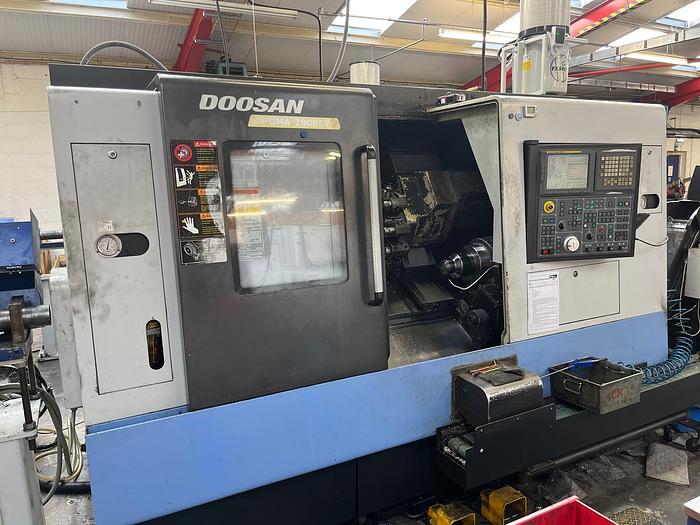

2007 Doosan Puma 2000SY

2007 Doosan Puma 2000 SY with Fanuc control, driven tools, 2 x C-Axis, Y-

Axis, tool probe, Iemca barfeed, swarf conveyor, parts catcher, collet chucks & 3 Jaw, Mist extractor.

Machine Specification:

CONTROL

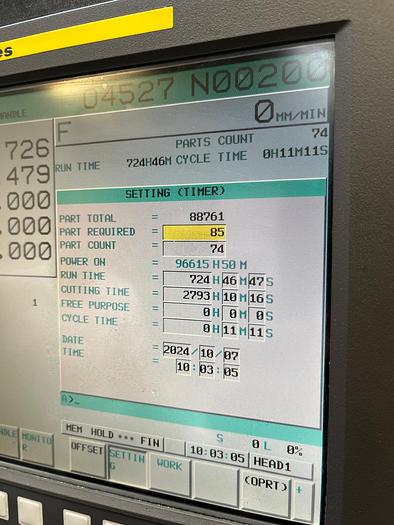

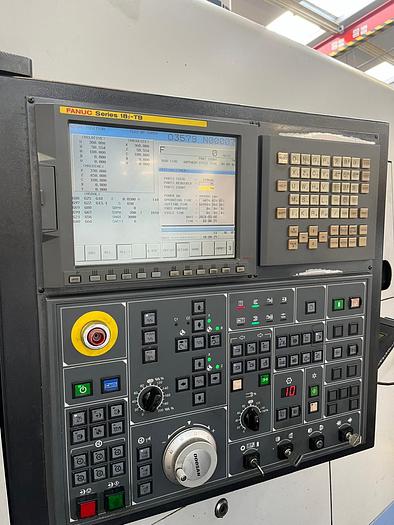

Fanuc 18 iT

CAPASITY

Chuck size Main: 8" (fitted with collet chuck)

Chuck size secondary spindle 5

Maximum swing 600 mm

Maximum Turning diameter 330 mm

Swing over the saddle: 550 mm

Max Turning Length: 510 mm

Bar work capacity main spindle 76 mm

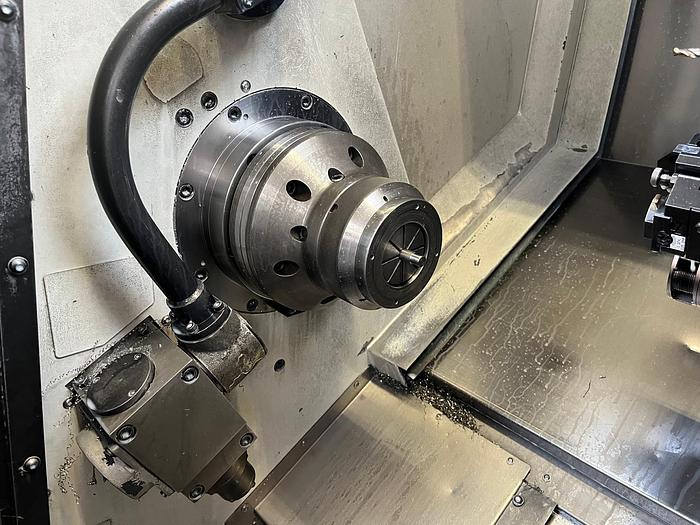

MAIN SPINDLE

Main Spindle Chuck Ø210 mm.

Bore 76 mm

Spindle nose: A2-6

RPM maximum 4,500 min-¹

Motor output (40% ED rating) 15.0 kW

Maximum torque 184.0 Nm

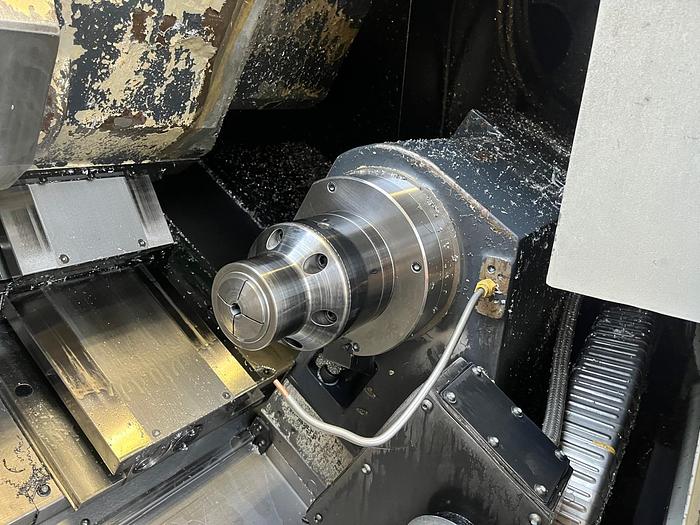

SECONDARY SPINDLE

Sub-Spindle Chuck Ø160 mm.

Bore 45 mm

Sub spindle nose: A2-5

Rotating speed maximum 6,000 min-¹

Motor output (25%ED rating) 7.5 kW

Sub spindle c axis: 0.001 degrees

Sub spindle motor: 7.5 Kw

Sub spindle stroke: 580mm

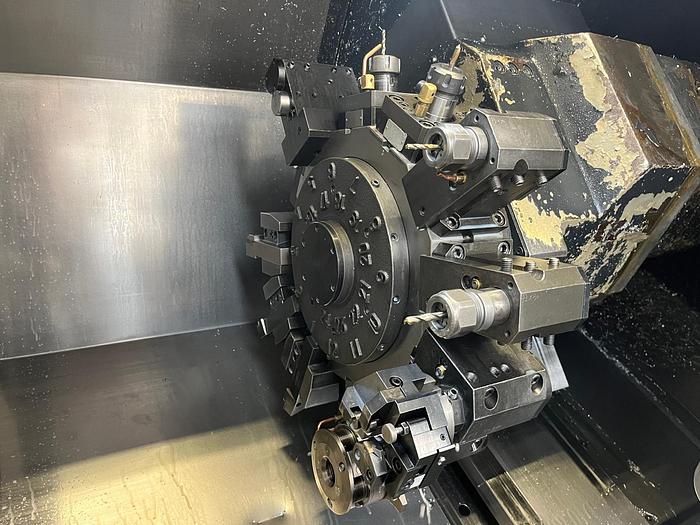

TURRET

No of position on turret 12/24

Mill spindle rotating speed maximum 5,000 min-¹

Rotary tool spindle motor power 5.5 kW

FEED AXES

Travel (X axis) 250 mm

Travel (Y axis) -/+ 50 mm

Travel (Z axis) 580 mm

Travel (W axis) 580 mm

Rapid traverse (X axis) 20 m/min

Rapid traverse (Y axis) 7.5 m/min

Rapid traverse (Z Axis) 24 m/min

Rapid traverse (W axis) 20 m/min

ACCESORIES

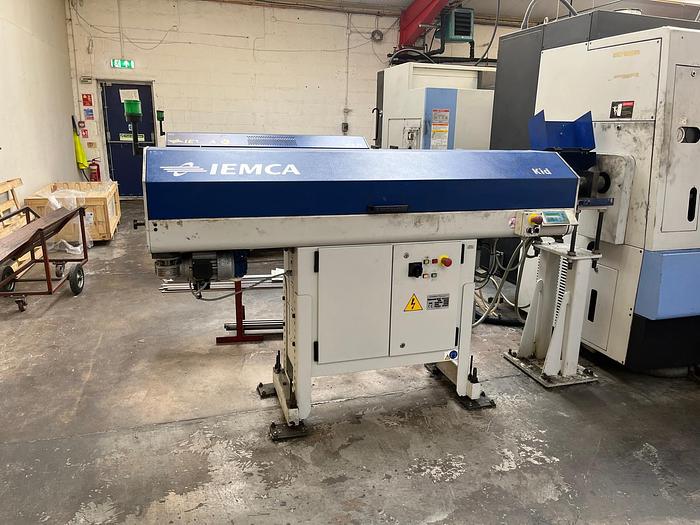

Kid 80 Barfeed

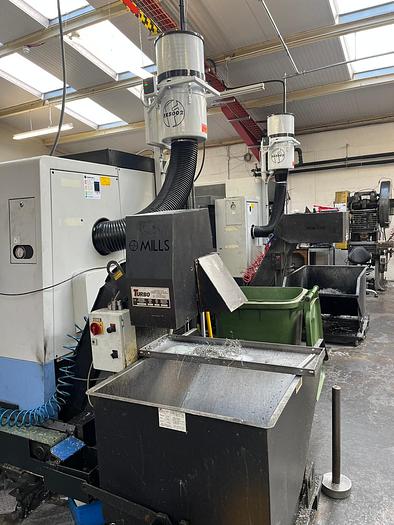

FilterMist mist extractor

MACHINE SIZE

Machine Dimension 2.060×3.185×1775 mm.

Barfeed 2100 x 1600 mm

Machine Weight 4.850 kg.

Total Power 58 Kva.
