2011 Mazak Quick Turn Nexus 250-II M

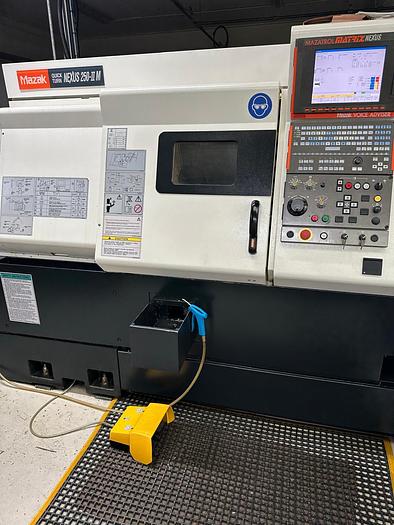

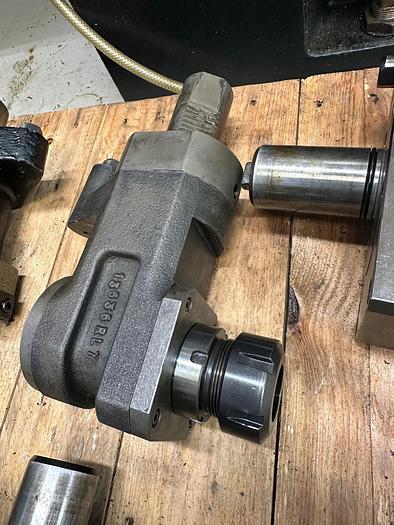

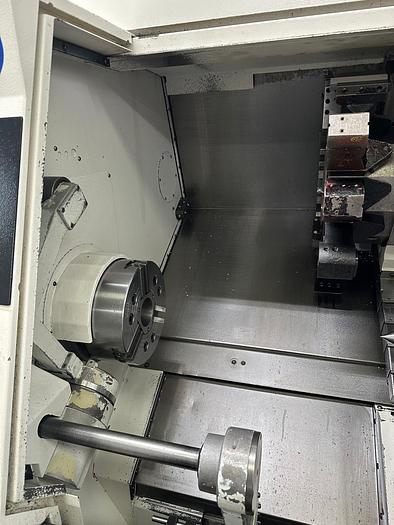

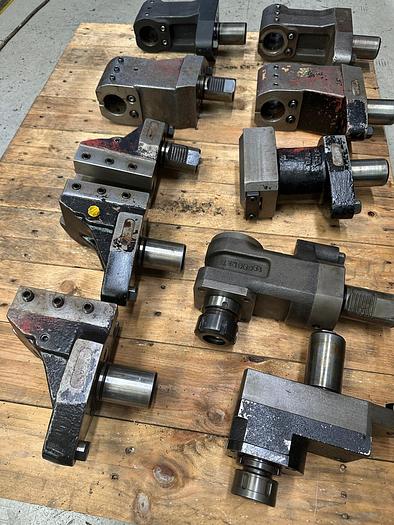

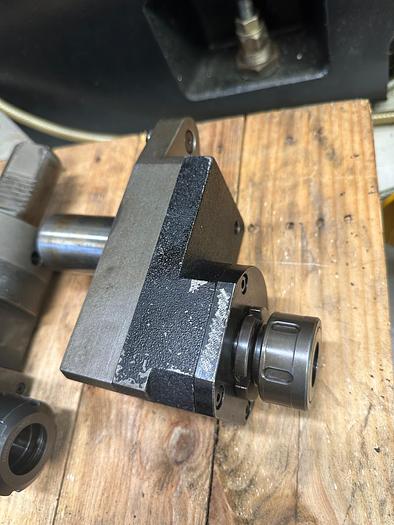

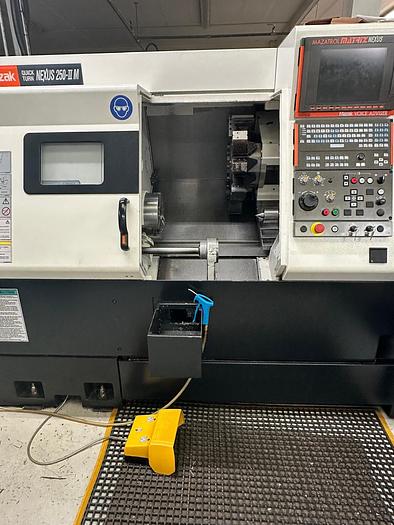

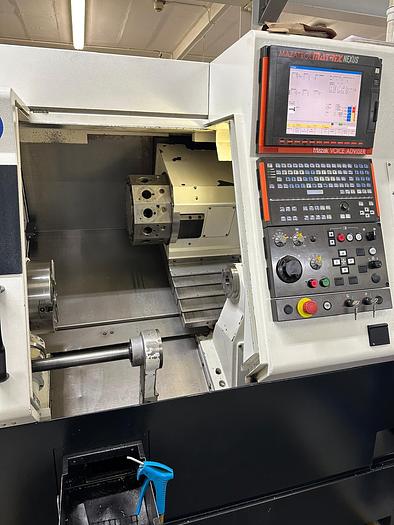

2011 Mazak Quick Turn Nexus 250-II M in superb condition with Mazak Matrix Nexus Control, 12-position turret, live tooling , chip conveyor, high-pressure coolant system, automatic tool presetter, and part catcher.

Machine Specification:

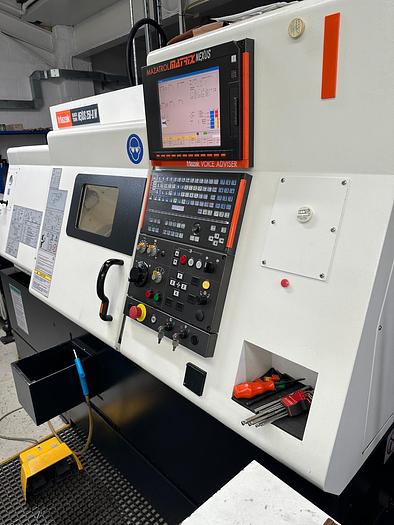

CONTROL

Mazak Matrix Nexus Control

15” Color LCD Touchscreen

Mazatrol conversational programming (also supports G-code)

Networking capabilities: Ethernet, USB, FTP, DNC

CAPACITY

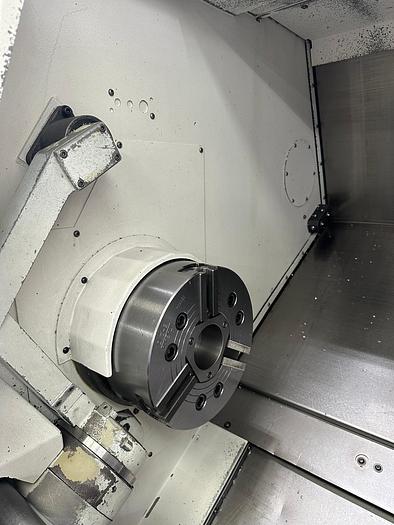

Chuck size (main spindle): 10”

Maximum swing: 610 mm

Maximum machining diameter: 350 mm

Maximum turning length (1000 mm bed): 1,025 mm

Maximum turning length (500 mm bed): 515 mm

Max bar work capacity (main spindle, dependent on chuck system): 76 mm

MAIN SPINDLE

Rotating speed maximum: 4,000 min⁻¹

Motor output (30-minute rating): 26.0 kW

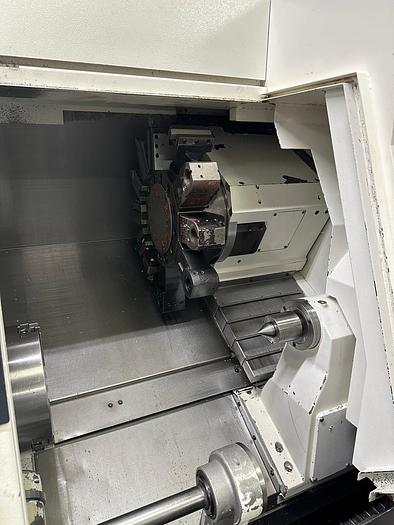

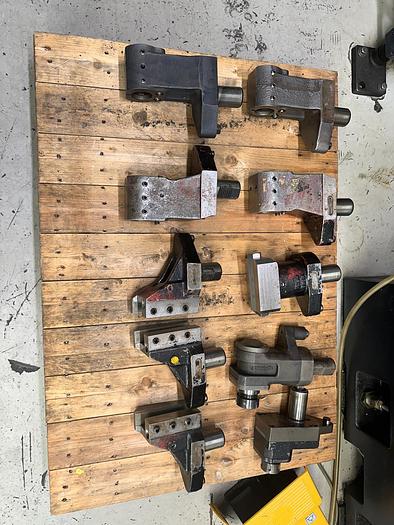

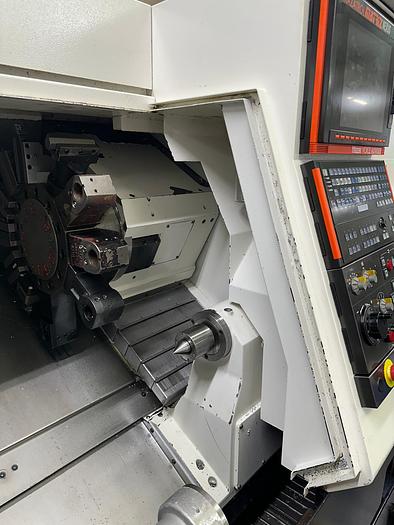

TURRET

Number of tools: 12

Mill spindle motor output (10-minute rating): 5.5 kW

FEED AXES

Travel (X axis): 190 mm (500 mm bed) / 225 mm (1000 mm bed)

Travel (Z axis): 515 mm (500 mm bed) / 1,025 mm (1000 mm bed) / 1,535 mm (1500 mm bed)

Rapid traverse (X axis): 30 m/min

Rapid traverse (Z axis): 30 m/min

ACCESSORIES

Chip conveyor (optional)

High-pressure coolant system (optional)

Automatic tool presetter (optional)

Part catcher (optional)

MACHINE SIZE

Machine dimensions (L x W x H): 2,475 mm x 1,780 mm (500 mm bed) / 4,382 mm x 2,095 mm (1500 mm bed)

Machine weight: Approx. 7,500 kg

Total power consumption: Approx. 20 kVA
