2018 XYZ SMX SLV
2018 XYZ SMX SLV
Description

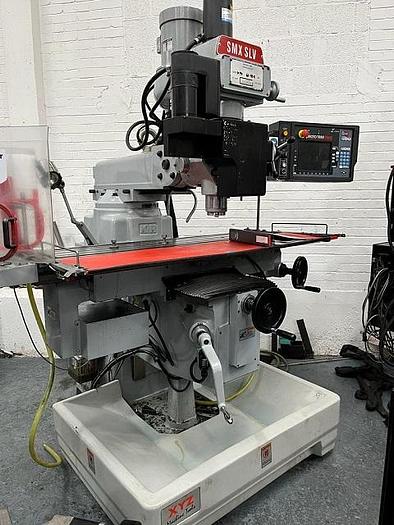

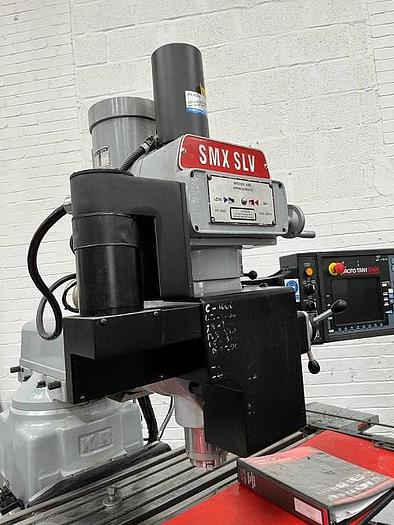

2018 XYZ SMX 3000 SLV is in very nice, well-maintained condition and has 1000mm X-Axis travel, and 3 Axis ProtoTrak SMX Control air power drawbar. power rise & fall knee, "slide & swing a side" table guards, table end tray extensions, low volt light, coolant equipment & stand on style base splash tray. Note: Photo'd as received.)
Specification:
Vari Speed Range High/Low 70-3600 rpm
ISO 40 Spinlde
Chrome Slides or Box Ways
3 Axis DRO

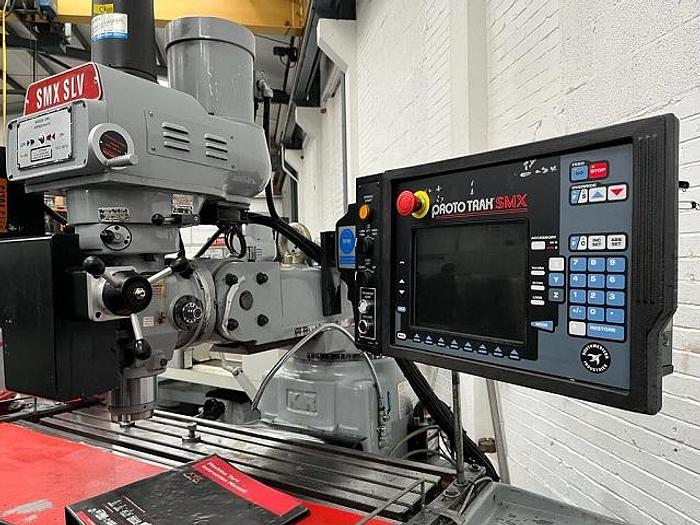

3 Axis ProtoTrak SMX Control
Power Rise & Fall to Knee
Auto Lubrication
Swarf Tray
Interlocked Guarding
Spindle Drive Motor 3.75 kw (5 HP)
Table size 1473 x 305 mm
T slots-3 15.9 mm 3 off
Longitudinal travel – X Axis 1000 mm
Cross travel – Y Axis 410 mm
Knee vertical travel – Z Axis 400 mm
Slide type Hardened Box Way
Ram travel 450 mm
Quill power feeds .038 .076 .15 mm
Quill travel 127 mm
(110 mm if SMX3)
Quill diameter 105 mm
Max throat depth 700 mm
Net weight approx. 1850 kg
Specifications
| Manufacturer | XYZ |
| Model | SMX SLV |
| Year | 2018 |
| Condition | Used |
| Serial Number | 13005 |
| Stock Number | cmu/0403 |
| Control | ProtoTrak SMX |
| Spec | Travel X1000 Y410 Z127 mm | 3600RPM | ISO 40 |
| Accessories | 3 Axis control, air power drawbar, power rise & fall knee, "slide & swing a side" table guards, table end tray extensions, low volt light, coolant equipment & stand on style base splash tray. |
