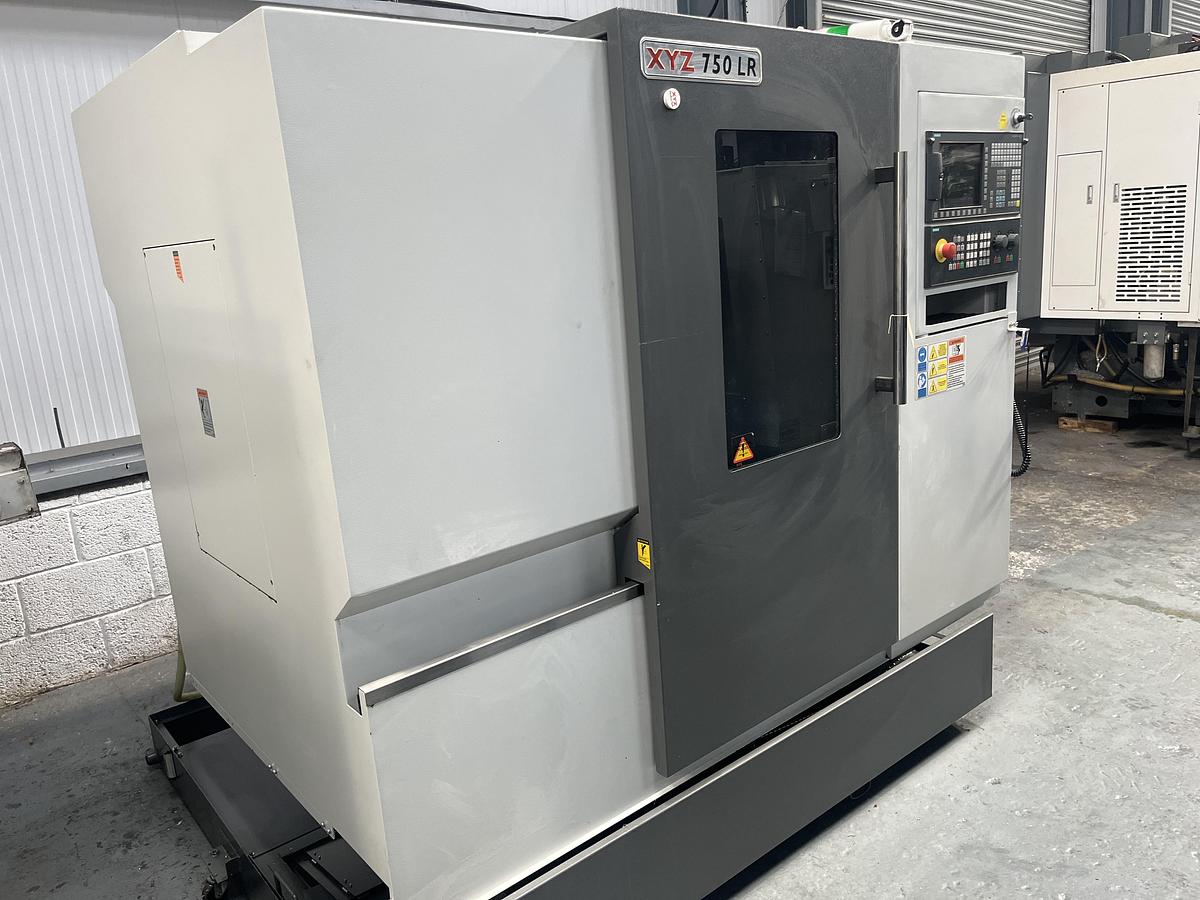

2018 XYZ 750LR

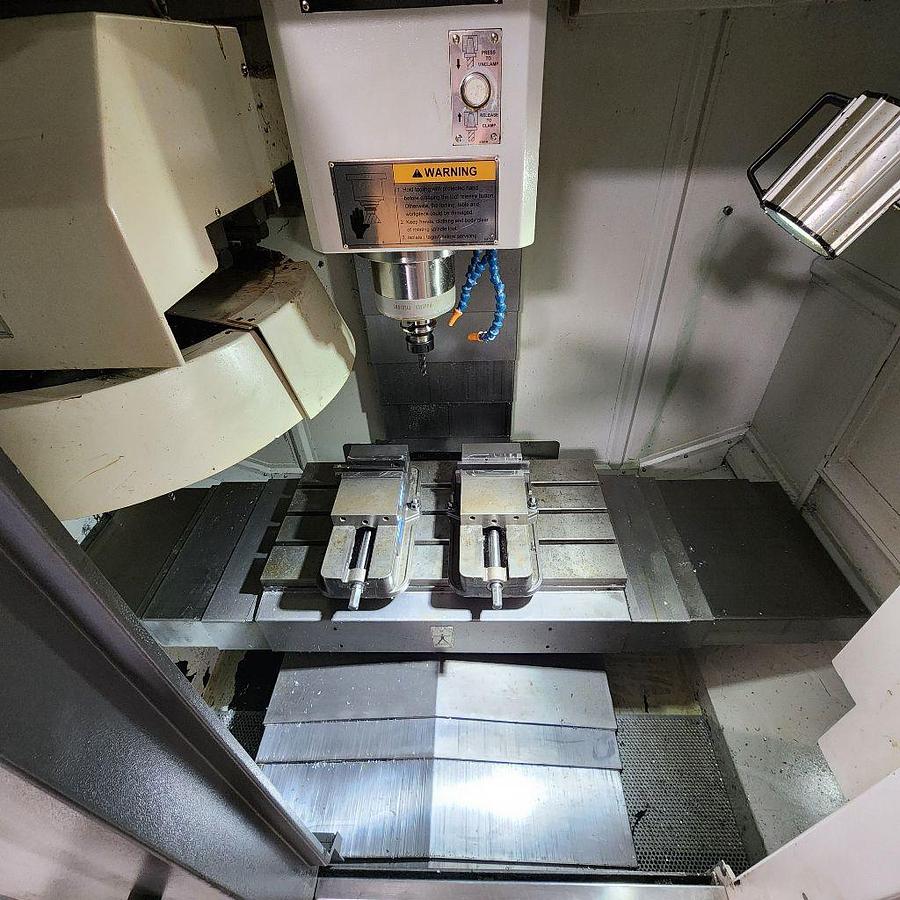

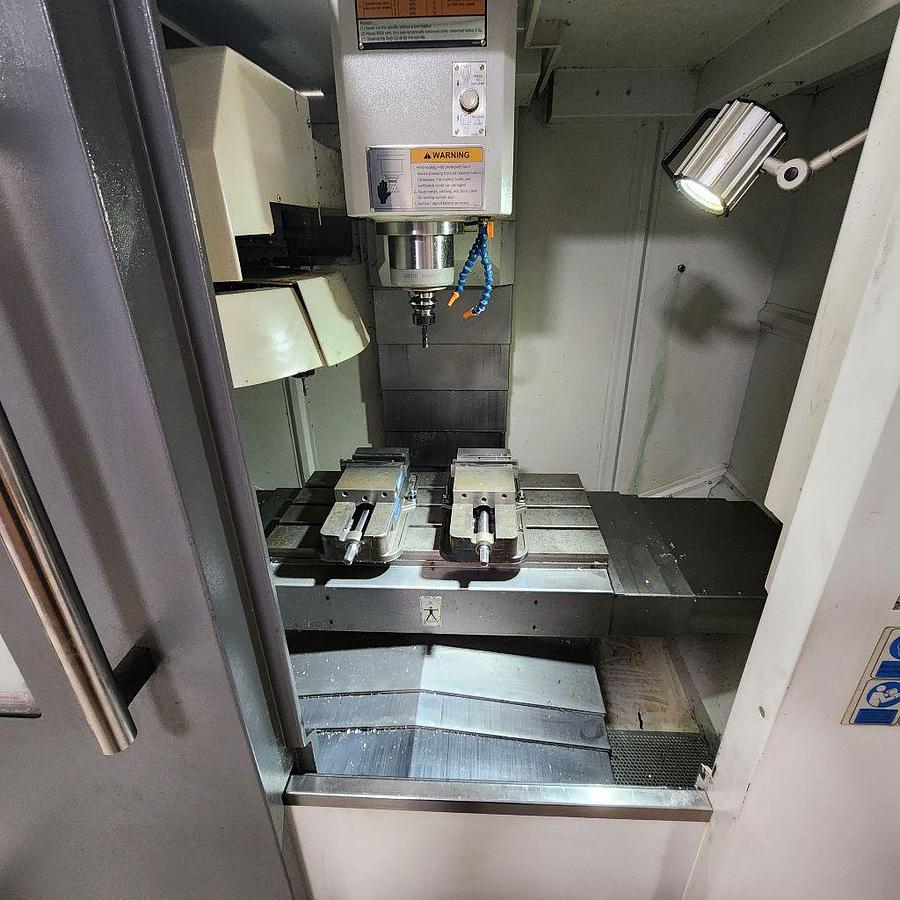

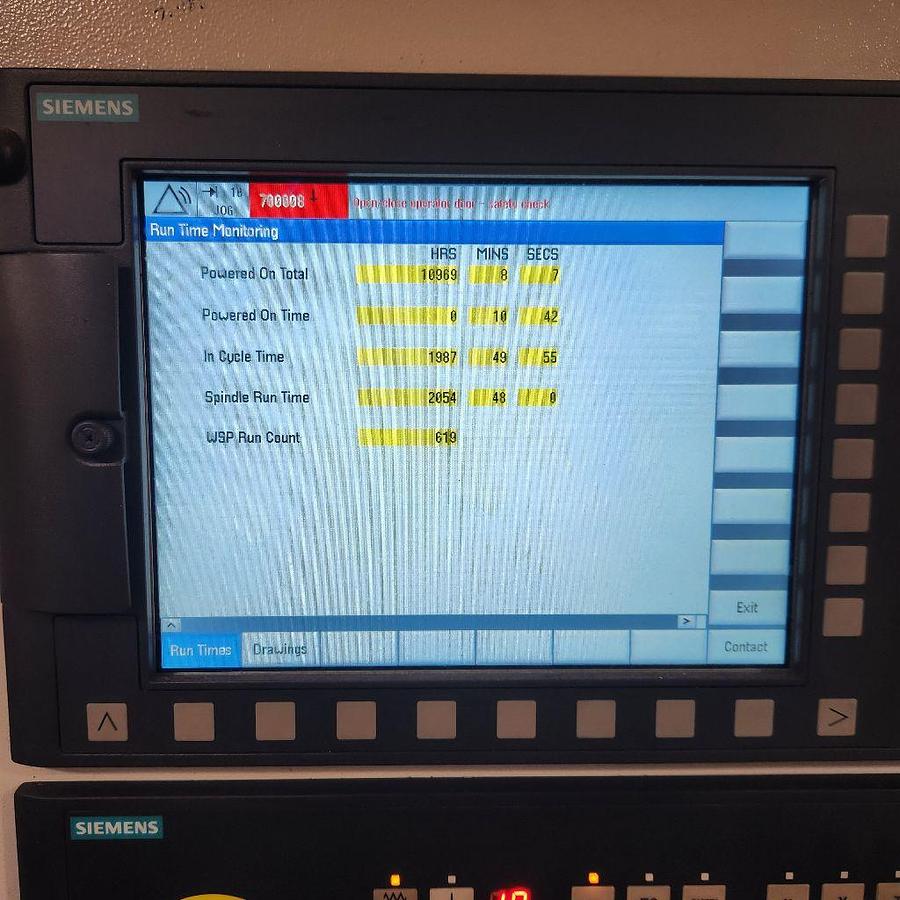

An immaculate 2018 XYZ 750 LR VMC fitted with 20 Tool ATC, Shopmill, MPG contour handwheel, with only 2000 spindle hours.

SPECIFICATION:

CONTROL:

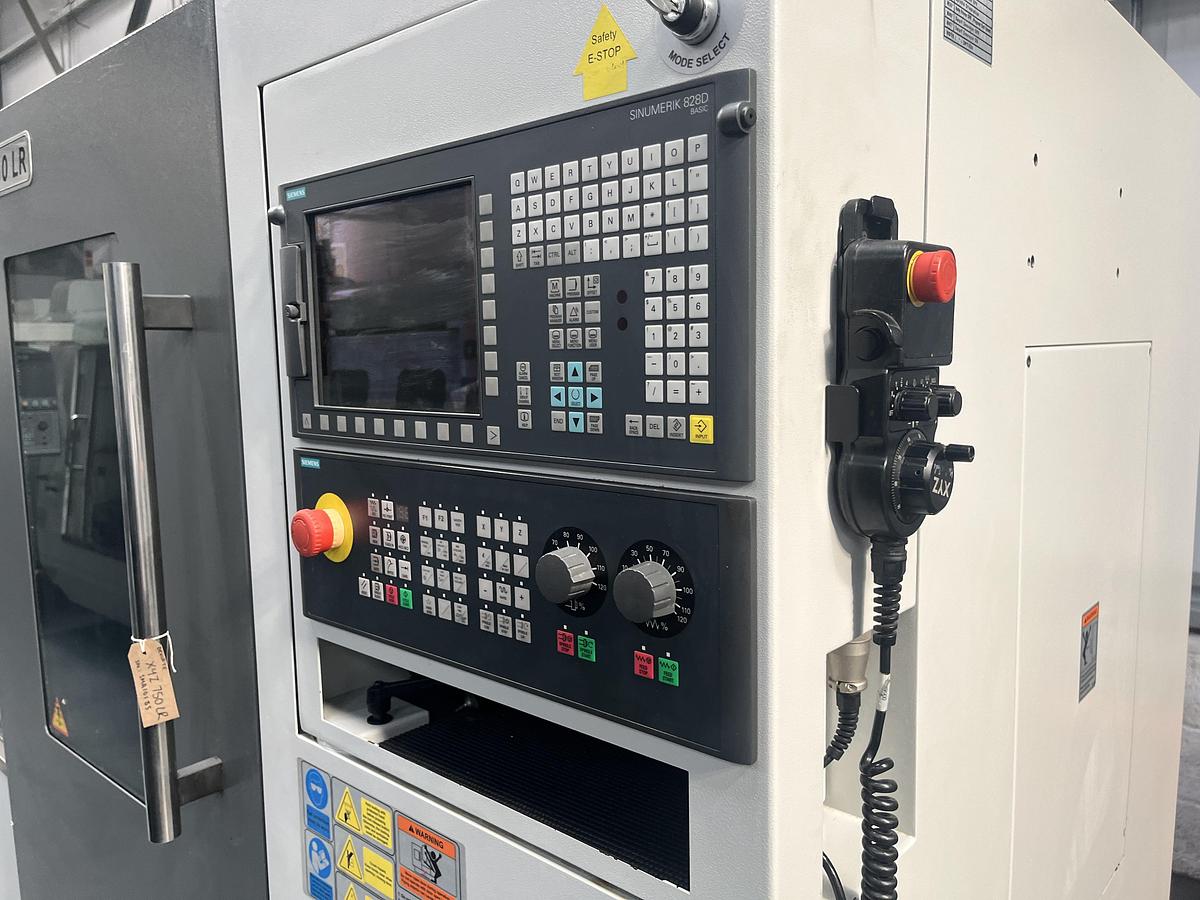

• Siemens 828D Control with ShopMill

TABLE:

• Size: 830 x 410 mm
• T-Slot Size: 3 x 16 x 100 mm
• Max Table Load Capacity: 500 kg
• Distance from Spindle Nose to Working Surface: 100 – 600 mm
• Distance from Spindle Centre to Main Column: 500 mm

AXIS TRAVEL:

• X-Axis Travel: 750 mm
• Y-Axis Travel: 440 mm
• Z-Axis Travel: 500 mm

SPINDLE:

• Spindle Taper: BT40
• Spindle Speeds: Up to 8,000 rpm

FEEDRATES:

• Rapids: 20 m/min
• Cutting Feed Rates (XYZ): 1 – 20,000 mm/min

SLIDEWAYS:

• Linear Rail Slideways

TOOL CHANGER:

• Type: 20 Tool Carousel
• Max Tool Weight: 7 kg
• Tool Change Time (T-T): 8 Secs

DRIVE MOTOR:

• Spindle Drive Motor: 10 HP
• Coolant Motor: 1/4 HP
• Chip Wash Motor: 1/4 HP

DIMENSIONS & WEIGHT:

• Overall Dimensions: 2,100 x 2,100 x 2,655 mm
• Gross Weight: 3,500 kg
