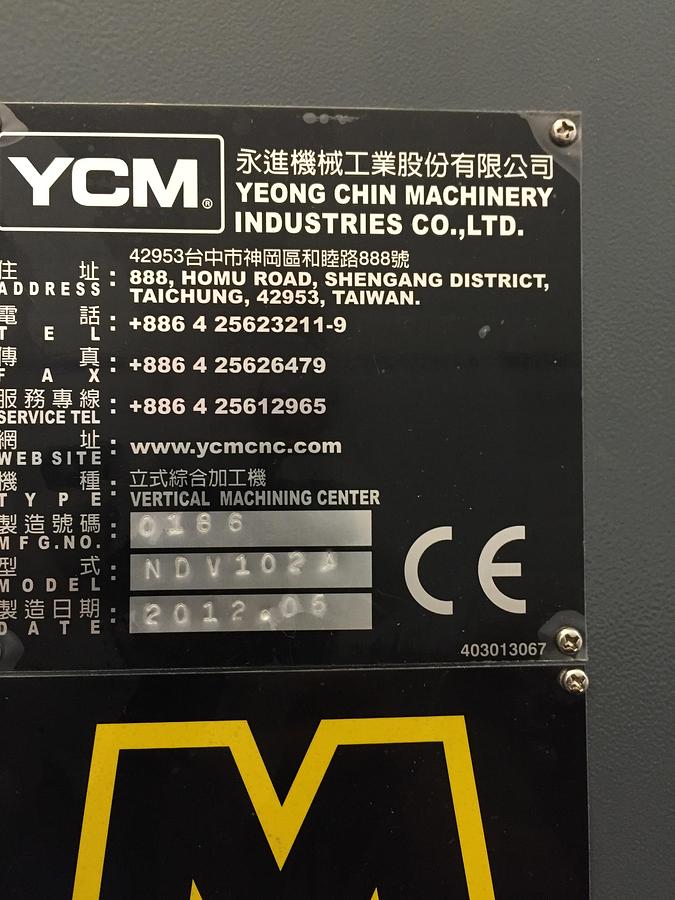

2012 YCM NDV 102A

Used 2011 YCM NDV102A Vertical Machining Centre. Supplied with 12,000 RPM Spindle, 30-station ATC, Swarf Conveyor, Coolant Equipment & Manual Set.

SPECIFICATION:

TRAVELS:

• X Axis: 1,020 mm
• Y Axis: 600 mm
• Z Axis: 600 mm
• Spindle Nose to Table (~ max): 700 mm
• Spindle Nose to Table (~ min): 100 mm​

TABLE:

• Length: 1,120 mm
• Width: 650 mm
• T-Slot Width: 18 mm
• Number of Std T-Slots: 6
• Max Weight on Table (evenly distributed): 1,000 kg​Machinery Resources International

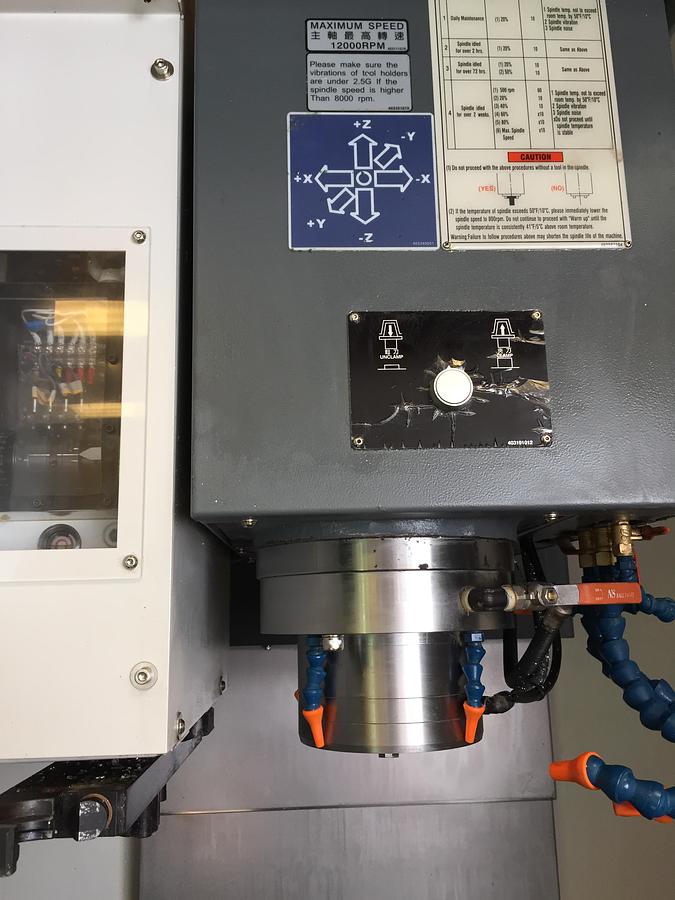

SPINDLE:

• Max Rating: 15 kW (20 hp)
• Max Speed: 12,000 rpm
• Drive System: Direct Speed Belt Drive
• Taper: Big Plus BBT40
• Bearing Lubrication: Oil Injection
• Spindle Chiller

FEEDRATES:

• Rapid and Jog (Max.): 24 m/min

AXIS MOTORS:

• Axis Motor Rating X/Y/Z: 2.29/2.29/3.3 kW​

TOOL CHANGER:

• Type: Side mount
• Capacity: 30T
• Max Tool Diameter: 76 mm
• Tool Length Max.: 300 mm
• Tool Weight Max.: 6 kg
• Tool Change Time: 2.5 sec​

GENERAL:

• Air Required: 78.2 psi/min
• Power Supply: 400 V / 3 Phase
• Coolant Capacity: 360 L
• Machine weight 7,000kg
