2016 XYZ SMX 3000 SLV

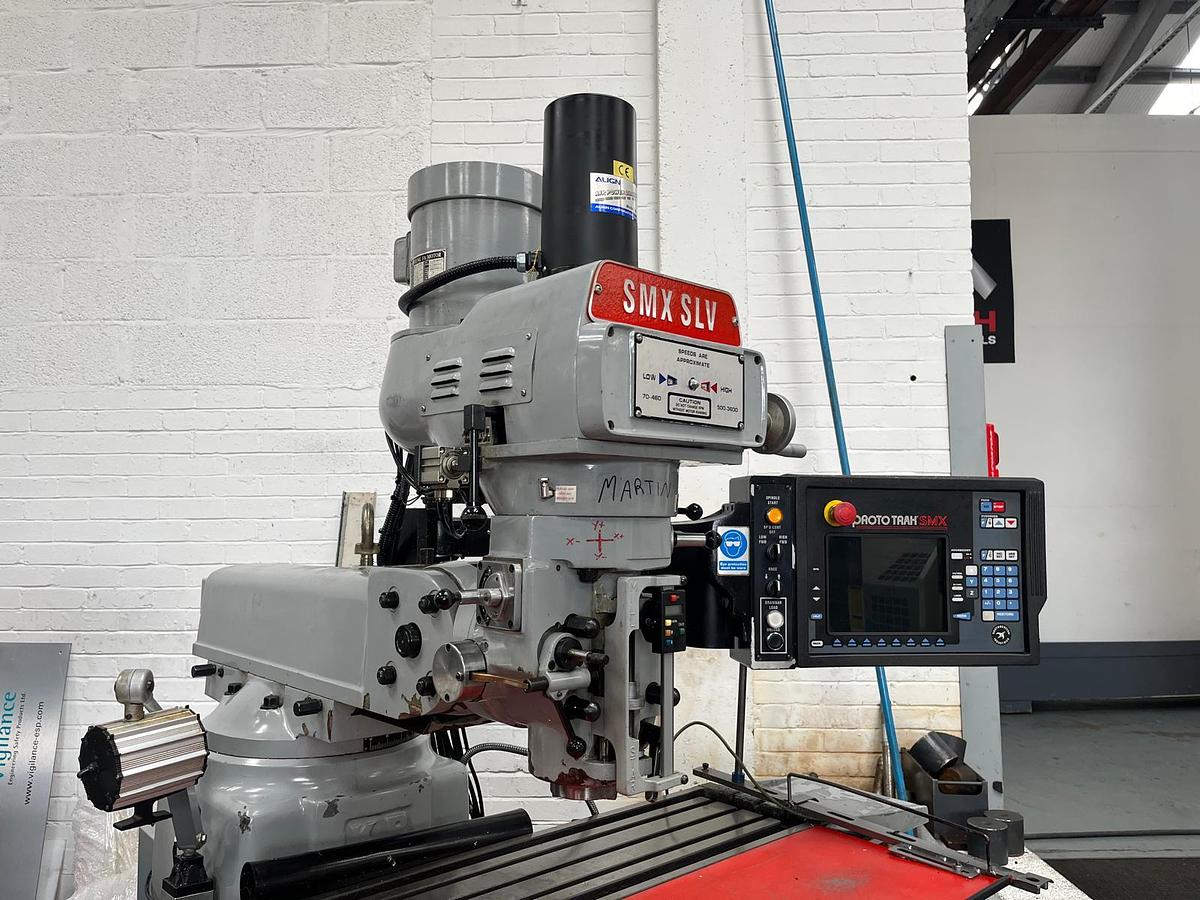

This used 2016 XYZ SMX 3000 SLV milling machine is in excellent condition and has been meticulously maintained. It features a 1m X-axis travel, 2-axis SMX controller, and an air-powered drawbar. These two XYZ SLV’s have come out in PX against one of our new MACH VMC’s. Machine 2 of 2.

SPECIFICATION:

CONTROL

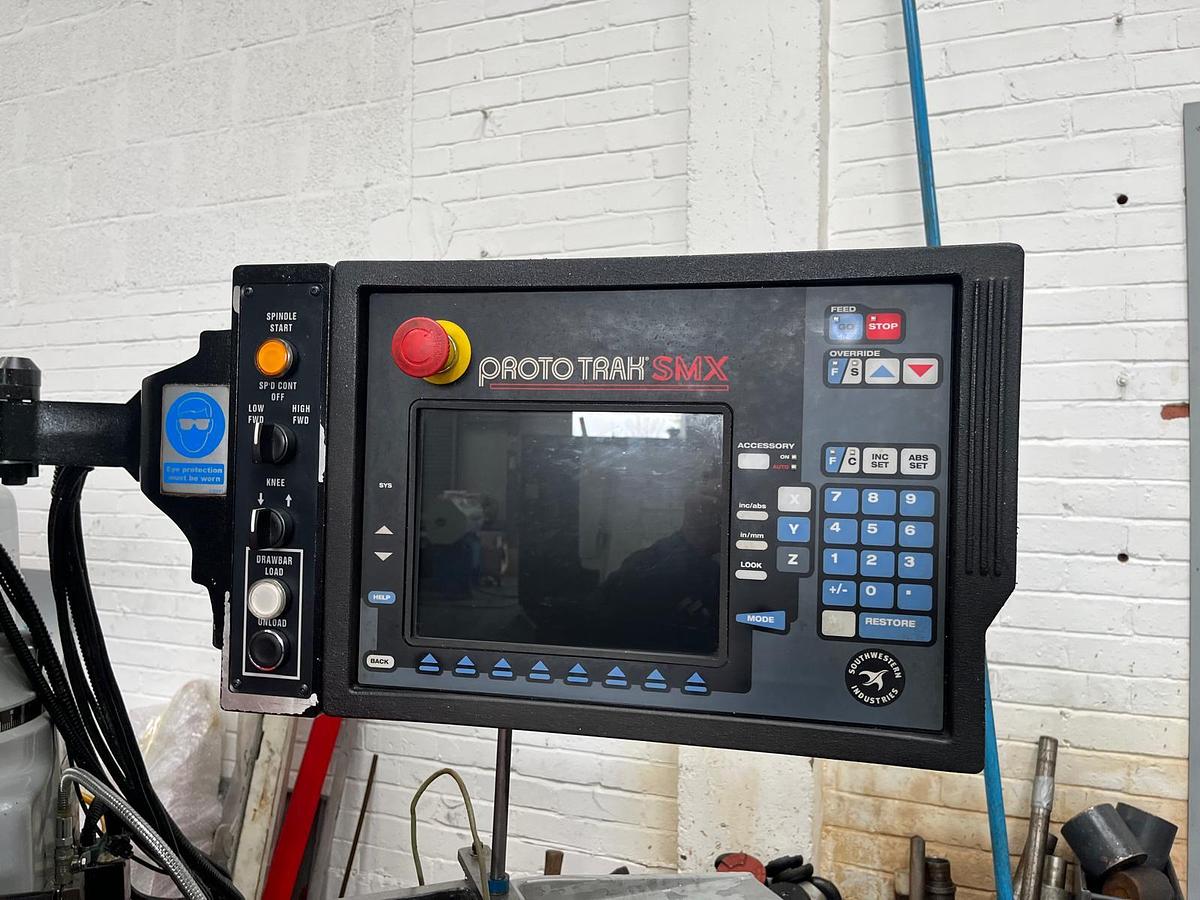

• 2-Axis SMX Control

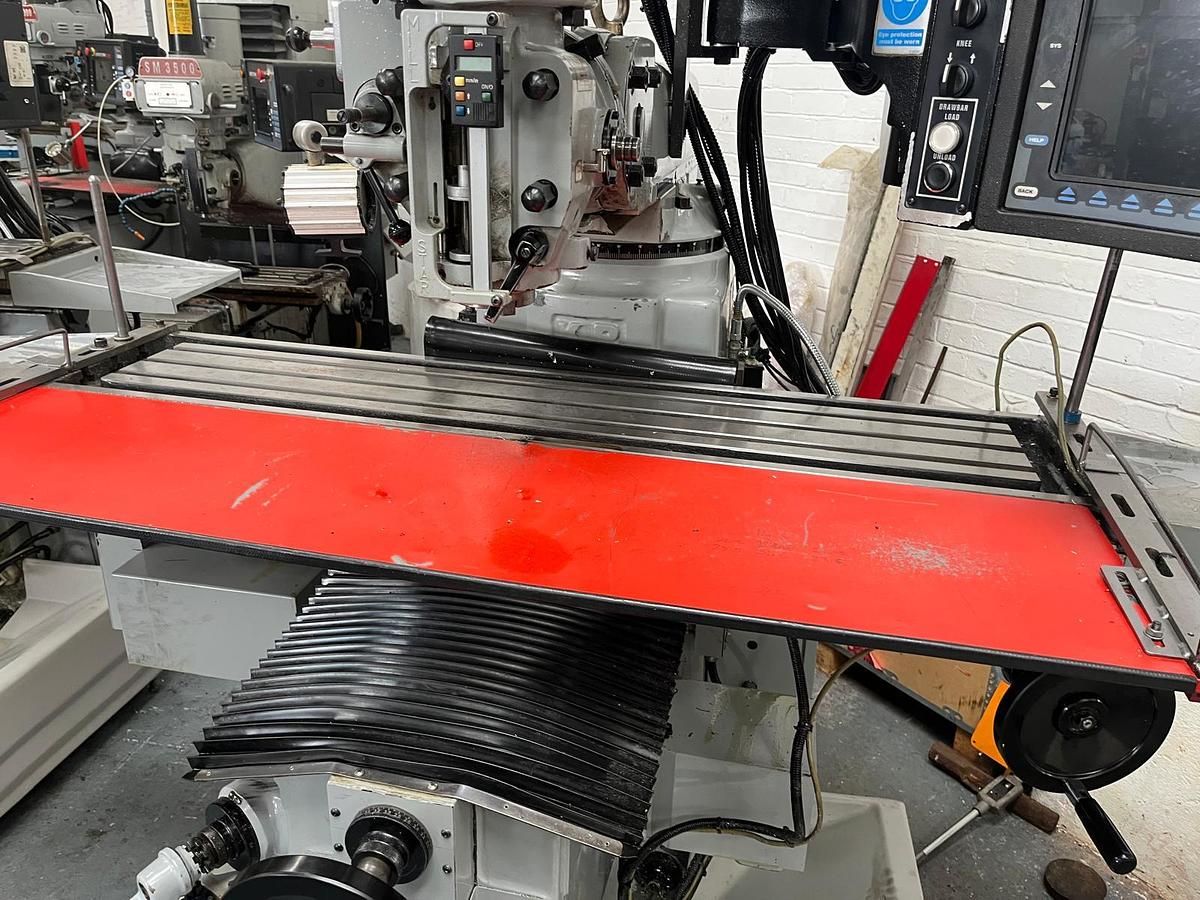

TABLE

• Size: 1473 x 305 mm
• T-Slot Size: 3 x 15.9 mm
• Max Table Load Capacity: N/A
• Distance from Spindle Nose to Working Surface: N/A
• Distance from Spindle Centre to Main Column: N/A

AXIS TRAVEL

• X-Axis Travel: 1000 mm
• Y-Axis Travel: 410 mm
• Z-Axis Travel: 400 mm

SPINDLE

• Spindle Taper: ISO 40
• Spindle Speeds: 70 – 3600 rpm (Variable Speed)
• Spindle Drive Motor: 3.75 kW (5 HP)

FEEDRATES

• Rapids: N/A
• Cutting Feed Rates (XYZ): N/A

SLIDEWAYS

• Hardened Box Way

DRIVE MOTOR

• Spindle Drive Motor: 3.75 kW (5 HP)
• Coolant Motor: N/A

DIMENSIONS & WEIGHT

• Overall Dimensions: N/A
• Net Weight: Approx. 1850 kg

ADDITIONAL FEATURES

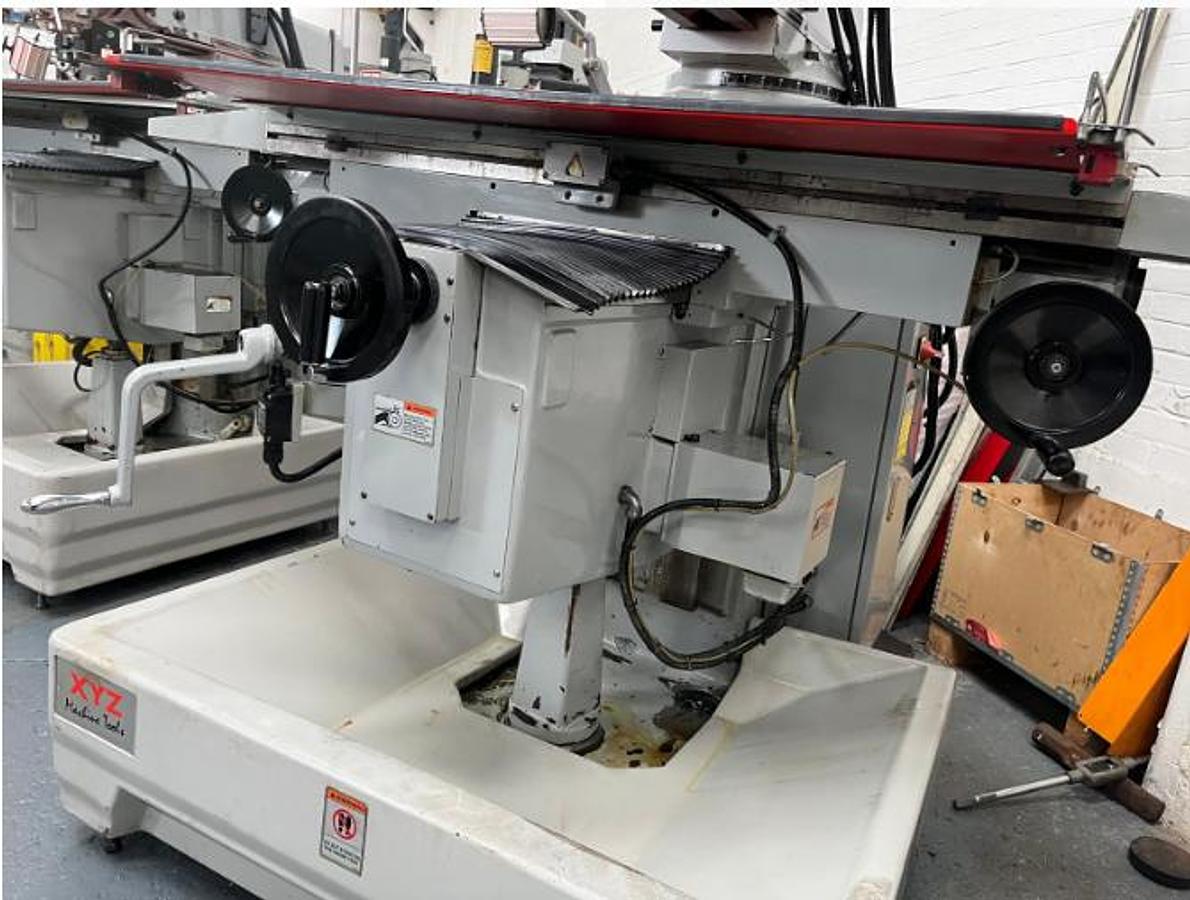

• Power Rise & Fall to Knee
• Auto Lubrication
• Swarf Tray
• Interlocked Guarding
