2017 XYZ VMC 1020HD
Sold
2017 XYZ VMC 1020HD
Description

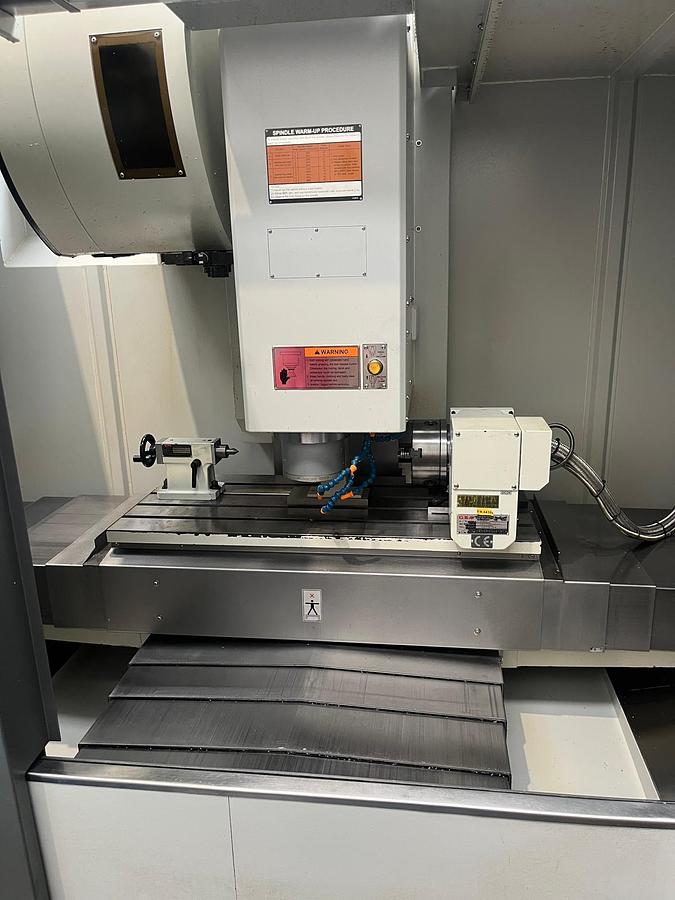

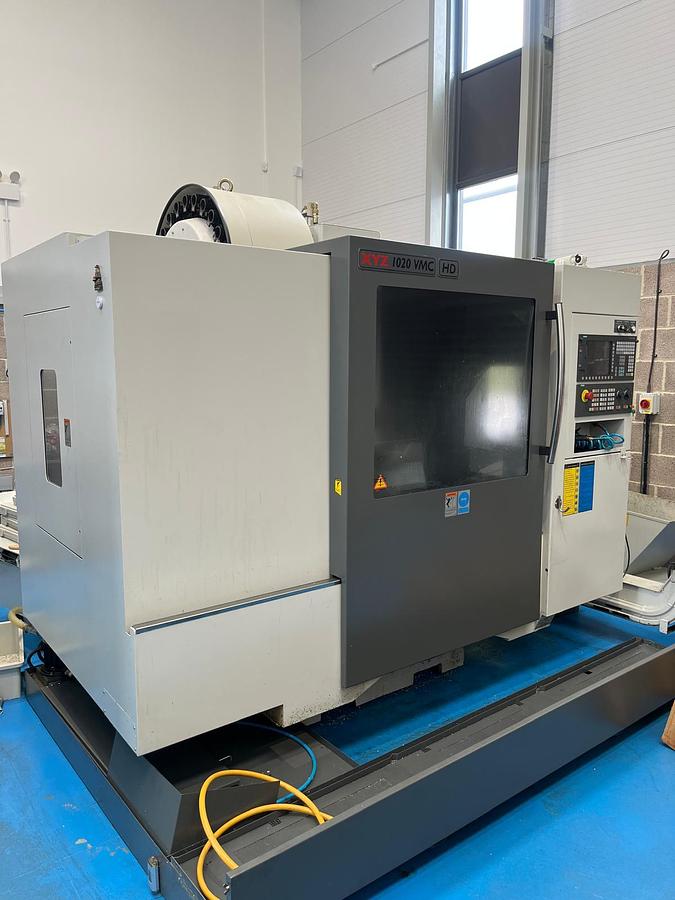

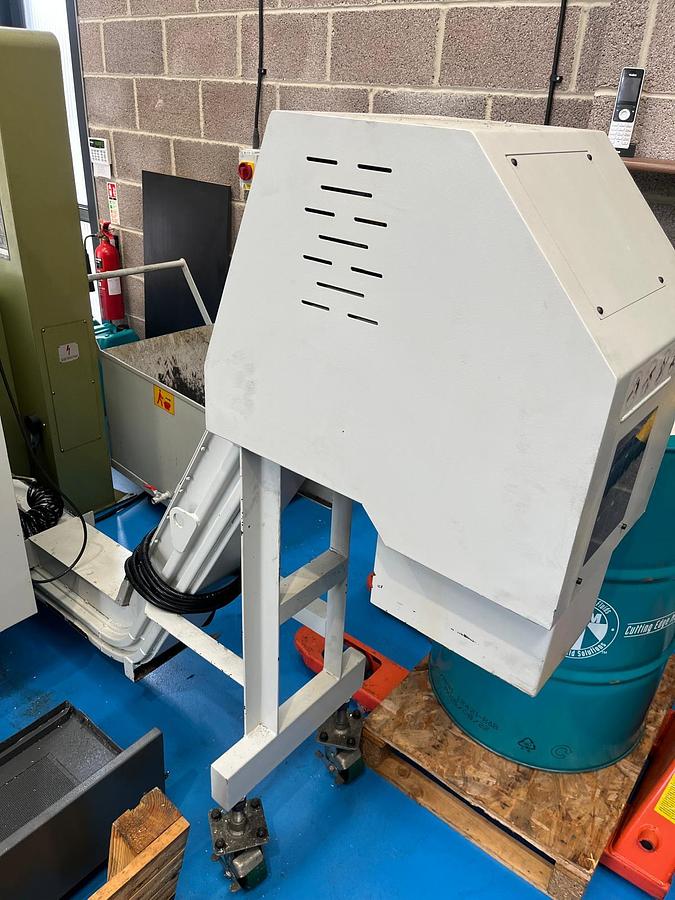

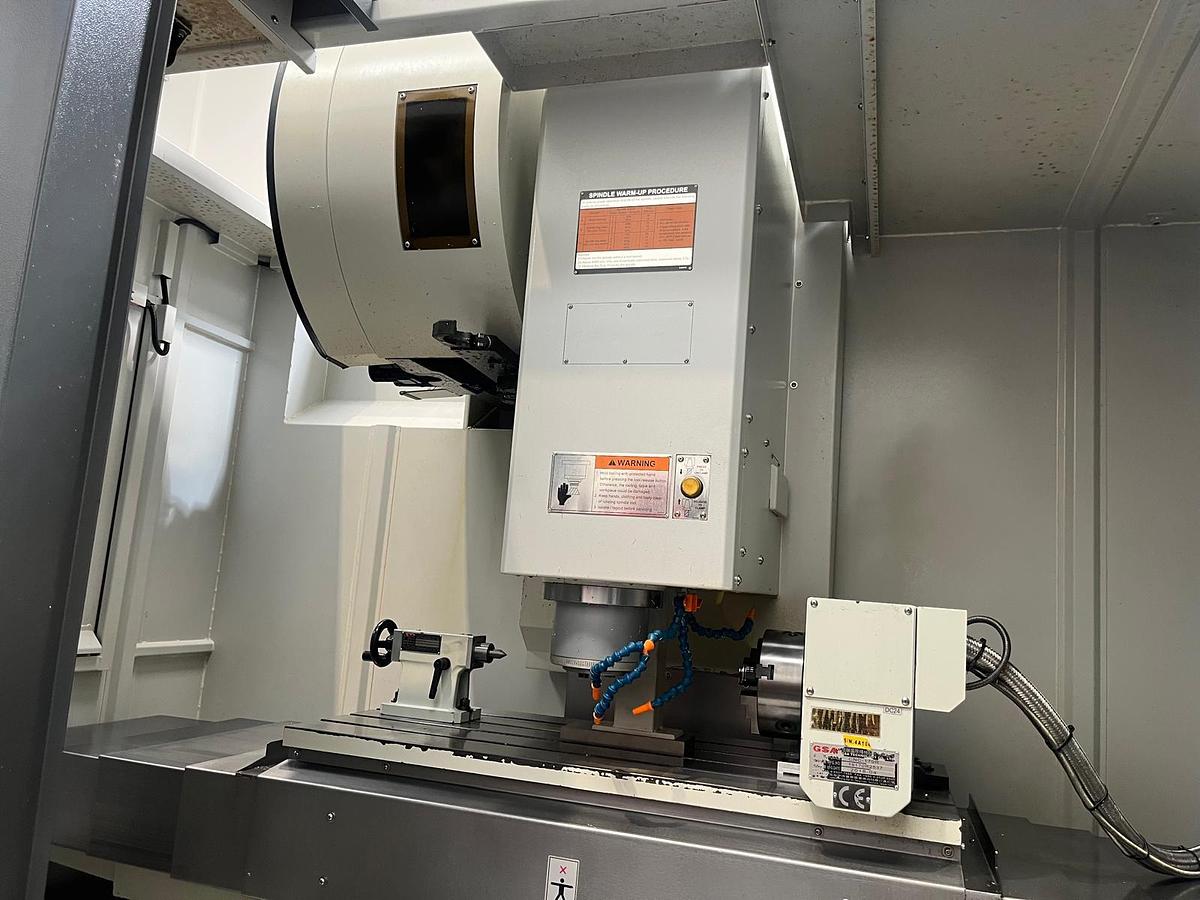

Briefly, a 2017 immaculate XYZ VMC 1020HD vertical machining centre, with Siemens 828D & ShopMill control, 8,000 RPM spindle, 24 tool side mount tool change, fitted with 4th Axis, swarf conveyor & supplied with a suit of tool holders. YOM 2017
Note: Photo’d during decommissioning, more photos to follow once it arrives
Specification:

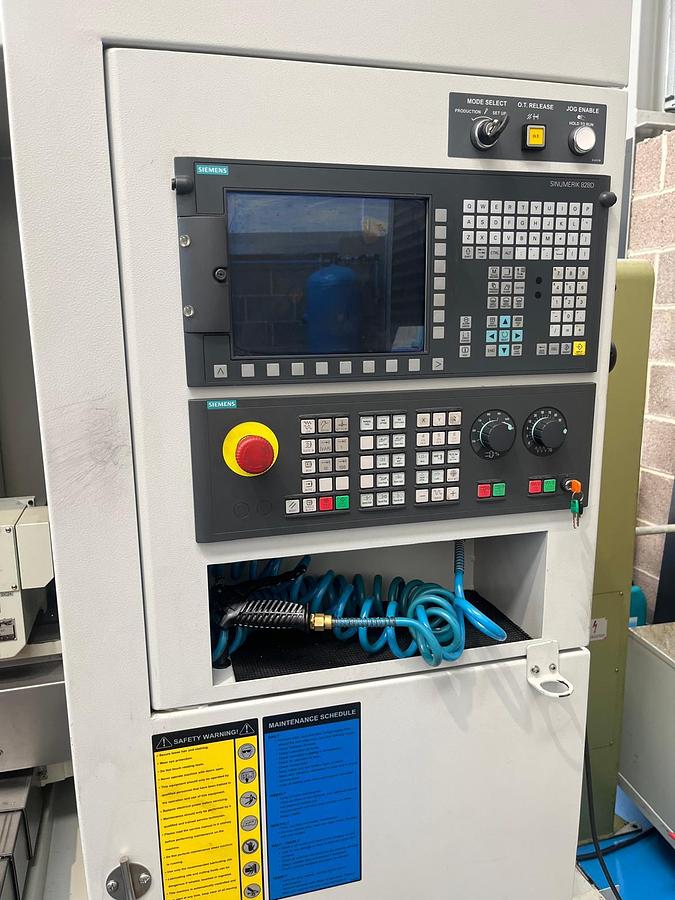

Control: Siemens 828D & ShopMill
Table size.1200MM X 450MM.
Table load.500 KGS
.Longitudinal traverse. X AXIS 1020MM.
Cross traverse. Y AXIS 500MM.
Vertical traverse. Z AXIS 500MM.
Speeds. 40-8000 RPM
Feed rate.1-500MM / Min with 12,000mm / min Rapid
Spindle nose to table.150-650MM.
Spindle taper.BT40.
Automatic tool changer.with.24 Tools Tool weight.7 KGS.
Input.415/3/50 AC 5.5 KW CONTINUOUS,
11 KW Main Motor
Specifications
| Manufacturer | XYZ |
| Model | VMC 1020HD |
| Year | 2017 |
| Condition | Used |
| Serial Number | TBC |
| Stock Number | cmu/0515 |
| Control | Siemens 828D & ShopMill |
| Accessories | 24 tool side mount tool change, fitted with 4th Axis, swarf conveyor & supplied with a suit of tool holders |
| Spindle Drive Motor | 3.75 kw (5 HP) |
| Vari Speed Range High/Low | 70-3600 rpm |
| Table size | 1473 x 305 mm |
| T slots-3 | 15.9 mm 3 off |
| Longitudinal travel | X Axis 1000 mm |
| Cross travel | Y Axis 410 mm |
| Knee vertical travel | Z Axis 400 mm |
| RAM travel | 450 mm |
| Spindle taper | 40 ISO |
| Quill power feeds | .038 .076 .15 mm |
| Quill travel | 127 mm - (110 mm if SMX3) |
| Quill diameter | 105 mm |
| Max throat depth | 700 mm |
| Net weight approx | 1850 kg |
