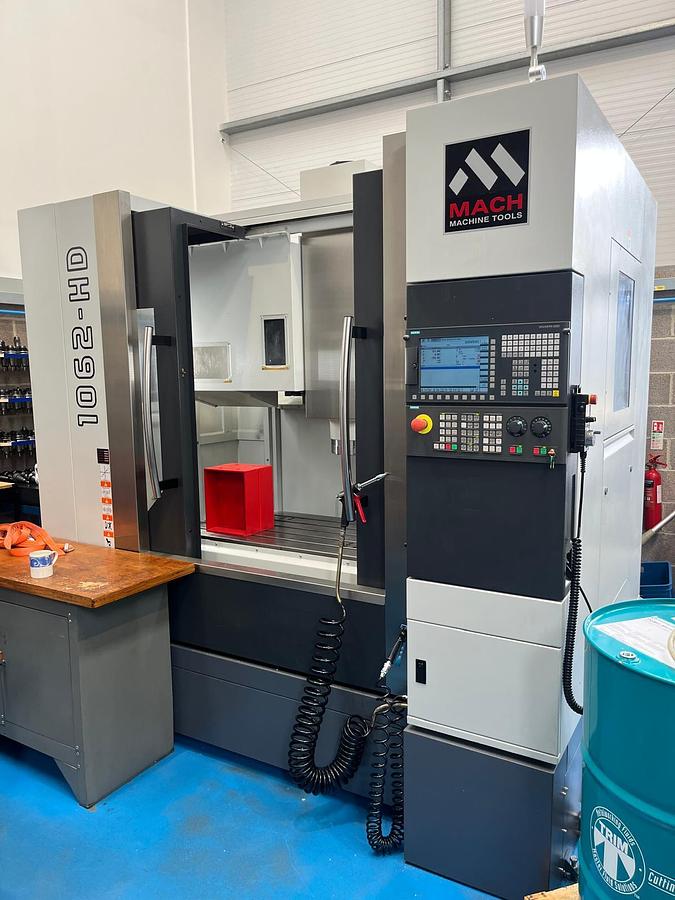

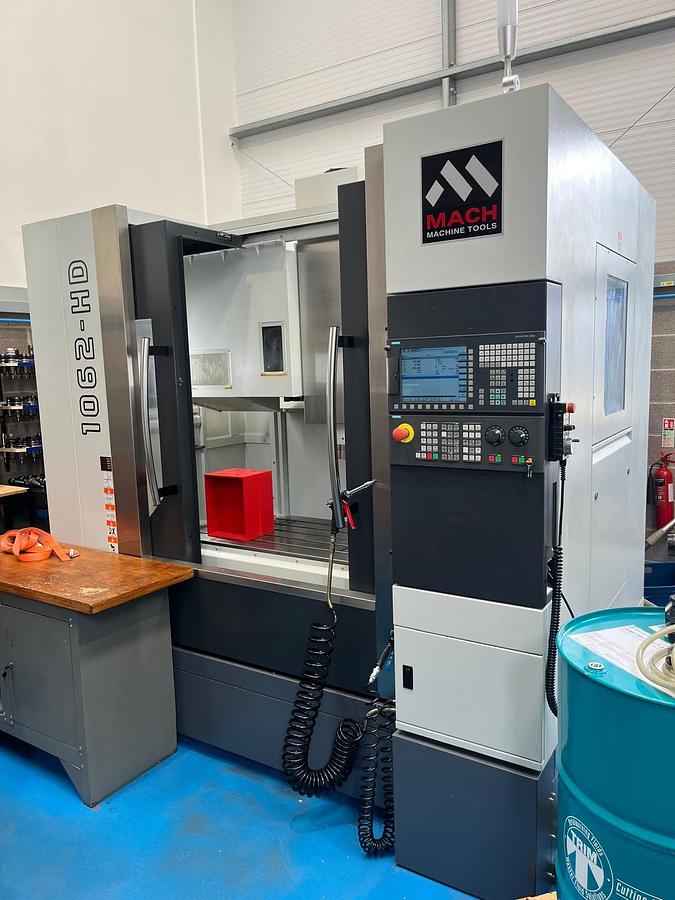

2020 MACH 1062HD VMC #cmu/0514

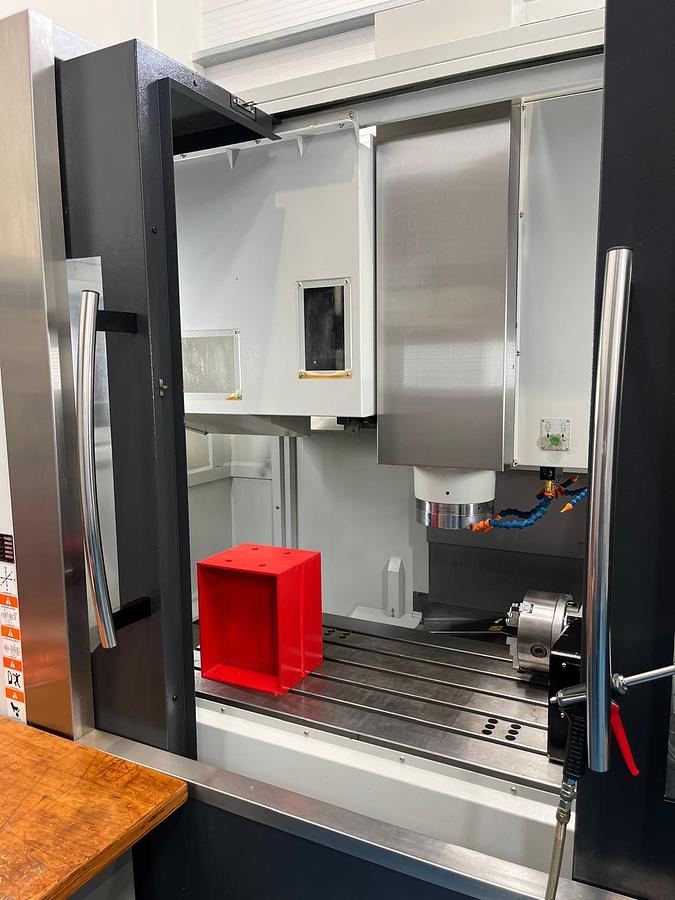

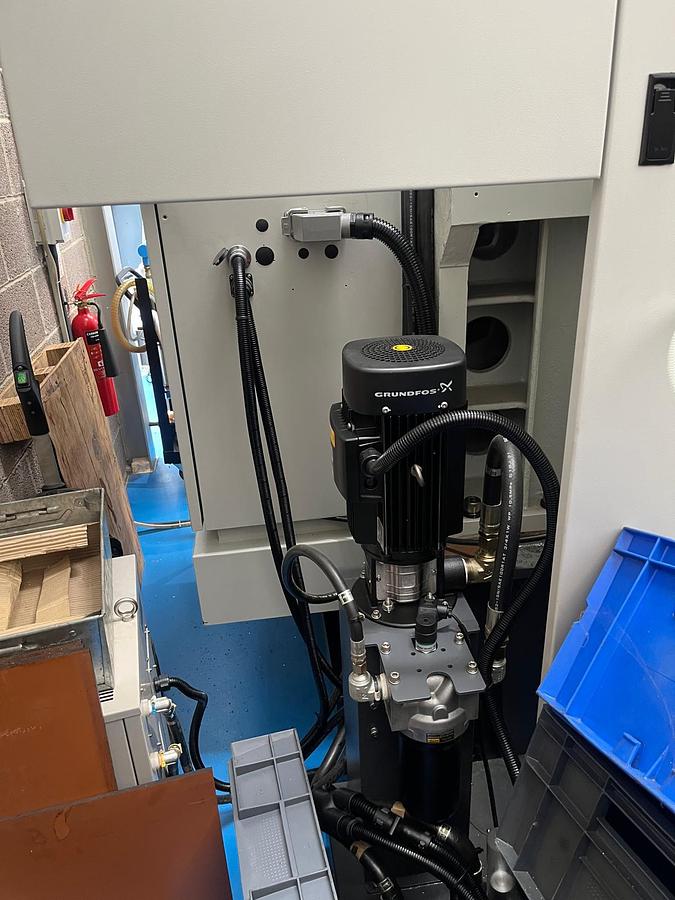

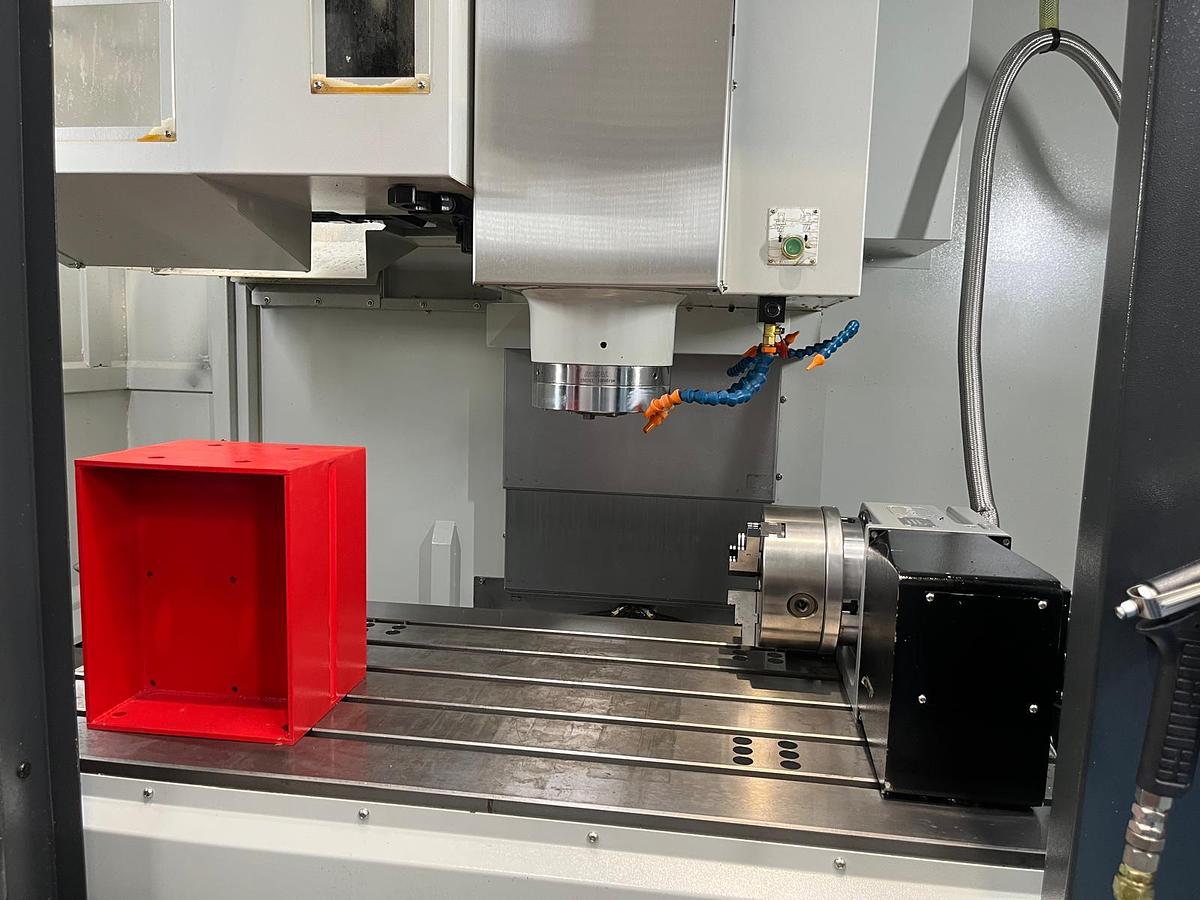

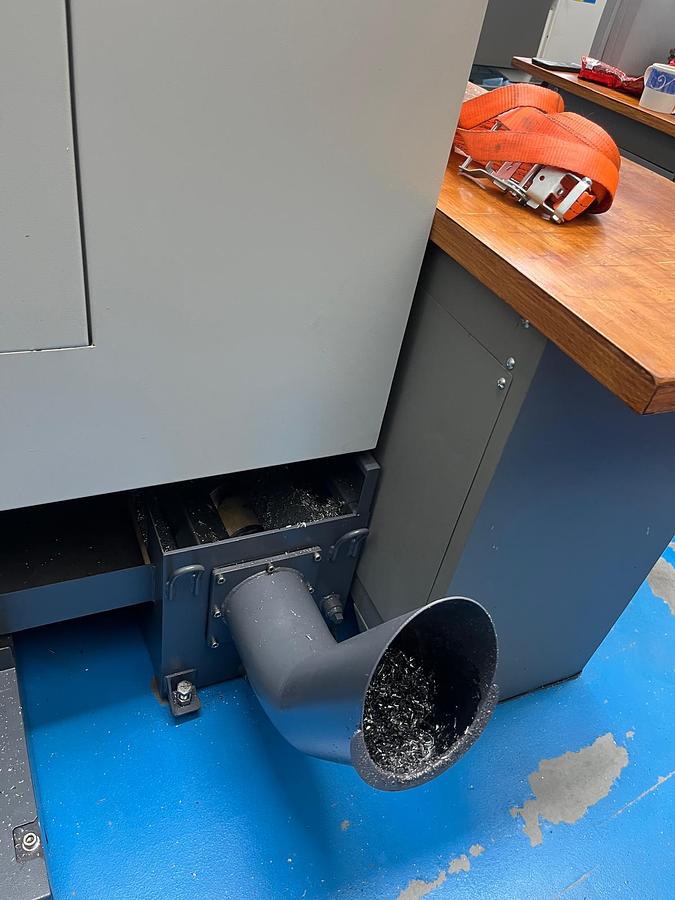

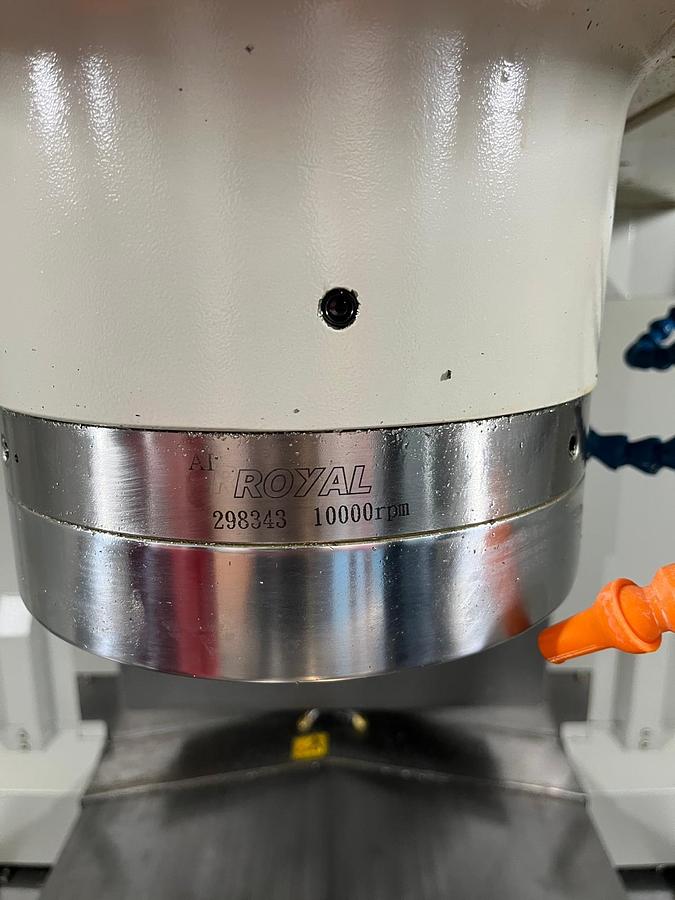

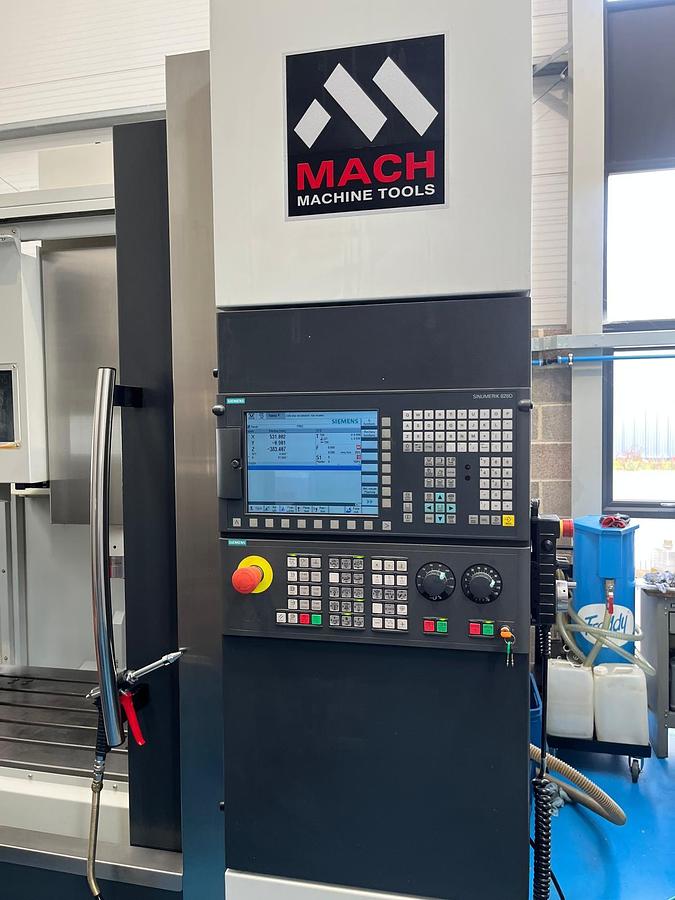

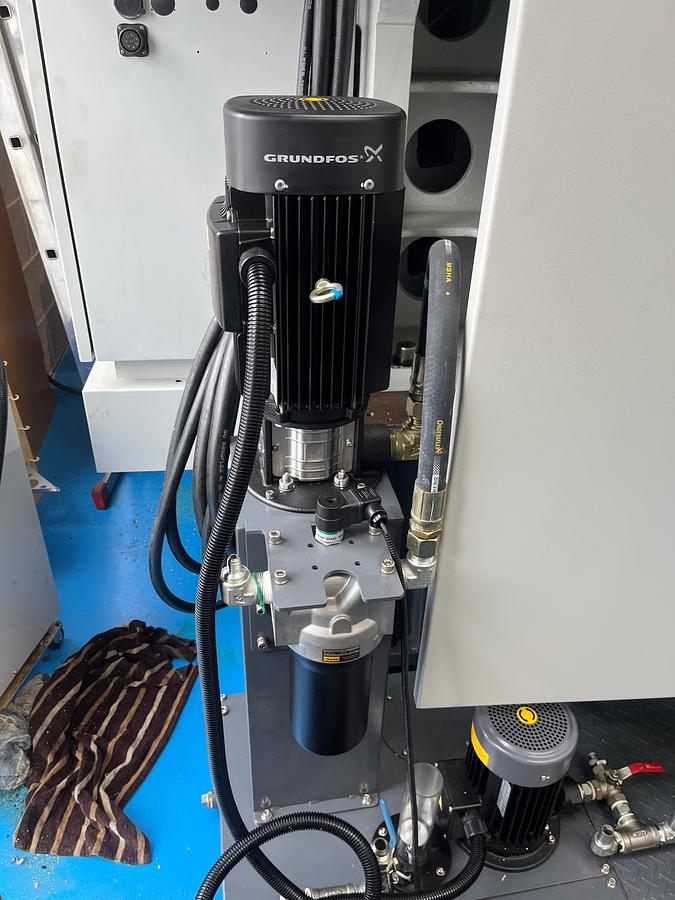

MACH 1062HD VMC vertical machining with Siemens 828D control with Shop Mill, 12,000RPM direct drive spindle with through spindle coolant & Face & Taper taper, 24 tool side mount ATC, fitted with  4th Axis, swarf auger and a suite of tool holders. Immaculate condition! Choice of 2!  YOM 2020

Note Photo’d during decommissioning, more pictures to follow once machine are in our Bristol Showrooms.

Specification:

Vertical Machining Centre

Spindle Taper    BBT 40 Face and Taper (Direct Drive)

Spindle RPM      12,000 RPM

Spindle Power   18.5Kw (25 HP)

Spindle Torque  118 Nm

Table Length      1200mm (47.2”)

Table Width       600mm (23.6”)

Tee Size & No     18mm - 5

Tee Slot Offset   100mm (3.93”)

X Axis Travel       1020mm (40.15”)

Y Axis Travel       625mm (24.6”)

Z Axis Travel       610mm (24”)

Linear Rail Size   45mm

Ballscrew diameter 45mm

Rapid Traverse Rate 36 m/min

Acceleration       X:0.7G / Y: 0.7G / Z: 0.5G

Spindle Nose to Table     100-710mm (3.94” – 27.95”)

Spindle centre to Column  420mm (16.53”)

X, Y & Z Axis Way Linear Roller Bearing

Magazine Positions 24

Maximum Tool Length    300mm

Maximum Tool Weight   8 Kg (17.6 lbs)

Max table load  900 Kgs (1984 lbs)

Coolant Capacity             400 L

Lubrication         Automatic grease system

Flood coolant flow rate  70 L/min – 4 bar

Machine Weight              7300 Kg (16093 lbs)
