2018 XYZ VMC 800-HD cmu/0516

2018 XYZ VMC 800-HD cmu/0516

Available quantity:1

or
Call +44 (0) 117 965 2706

Description

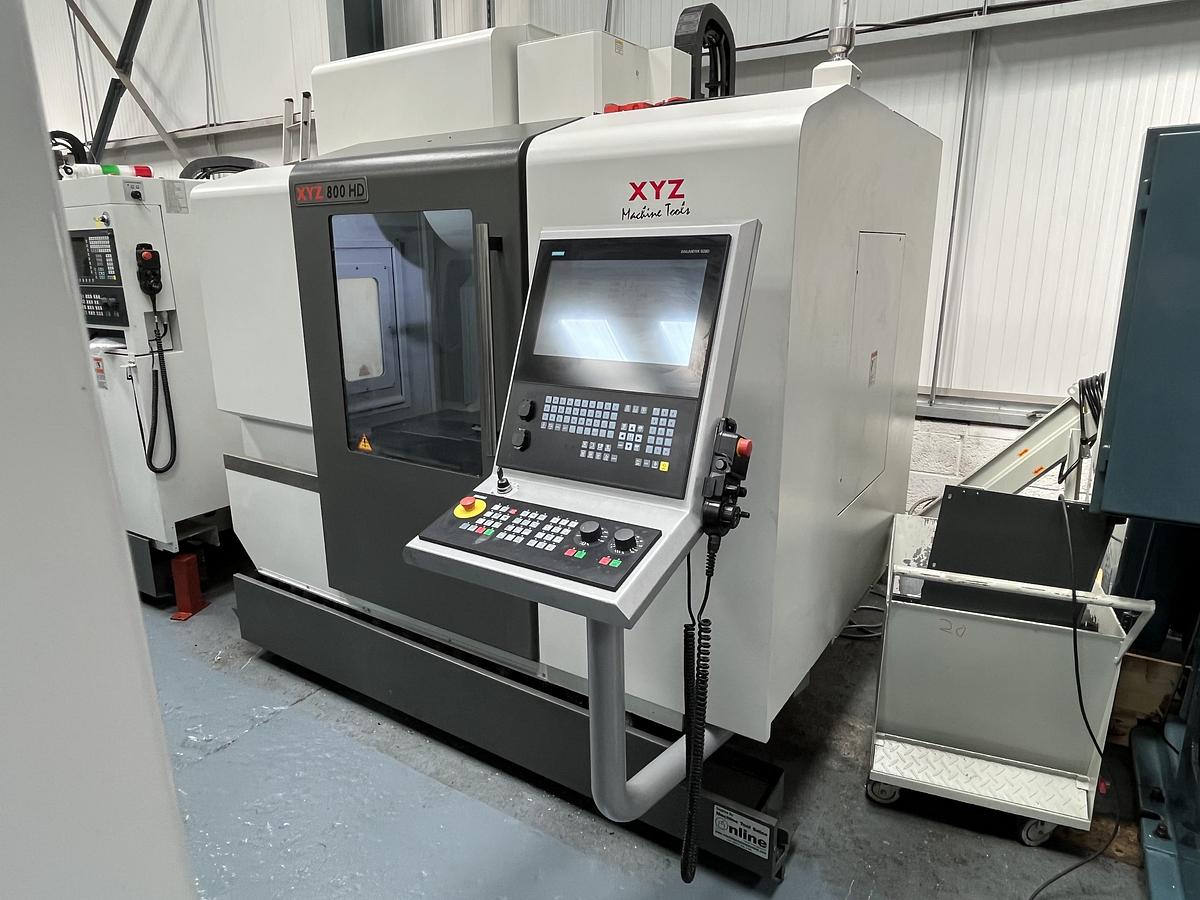

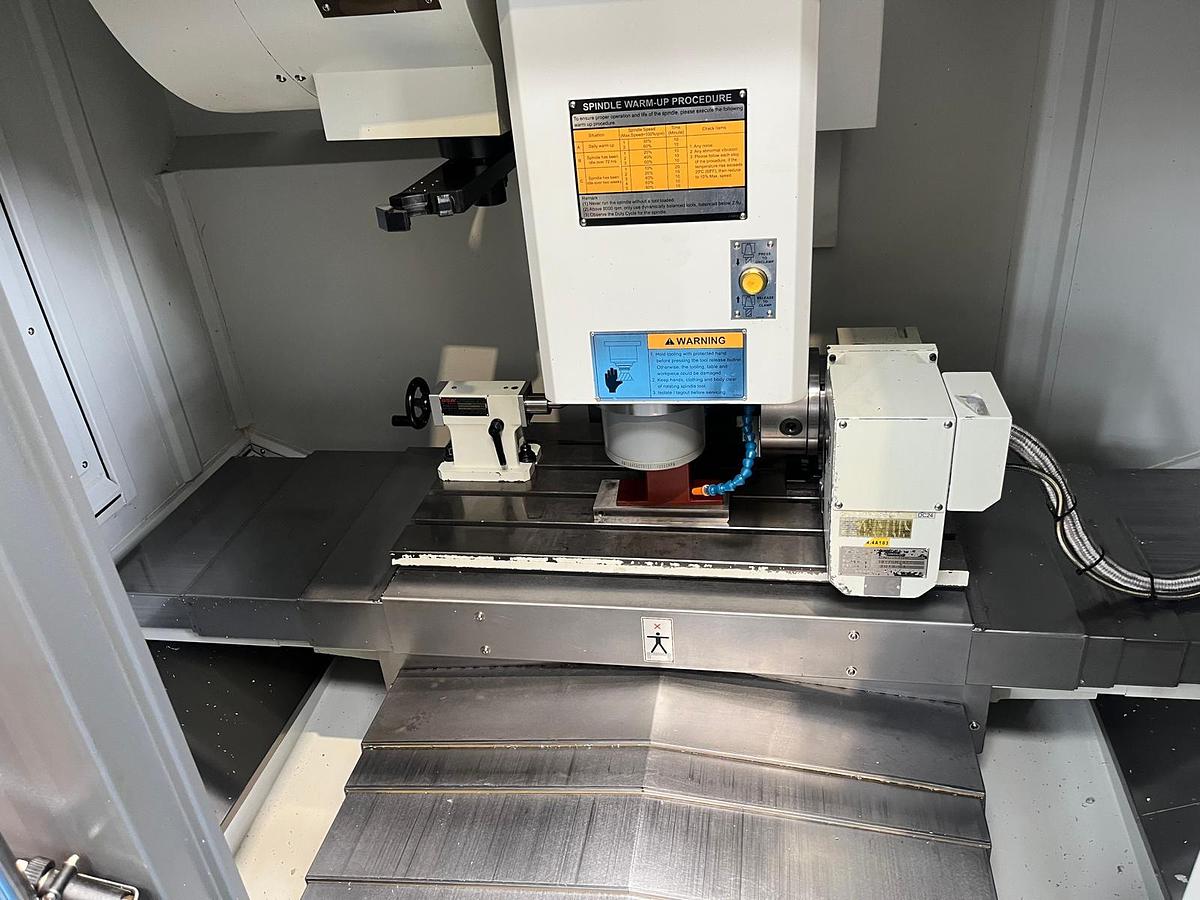

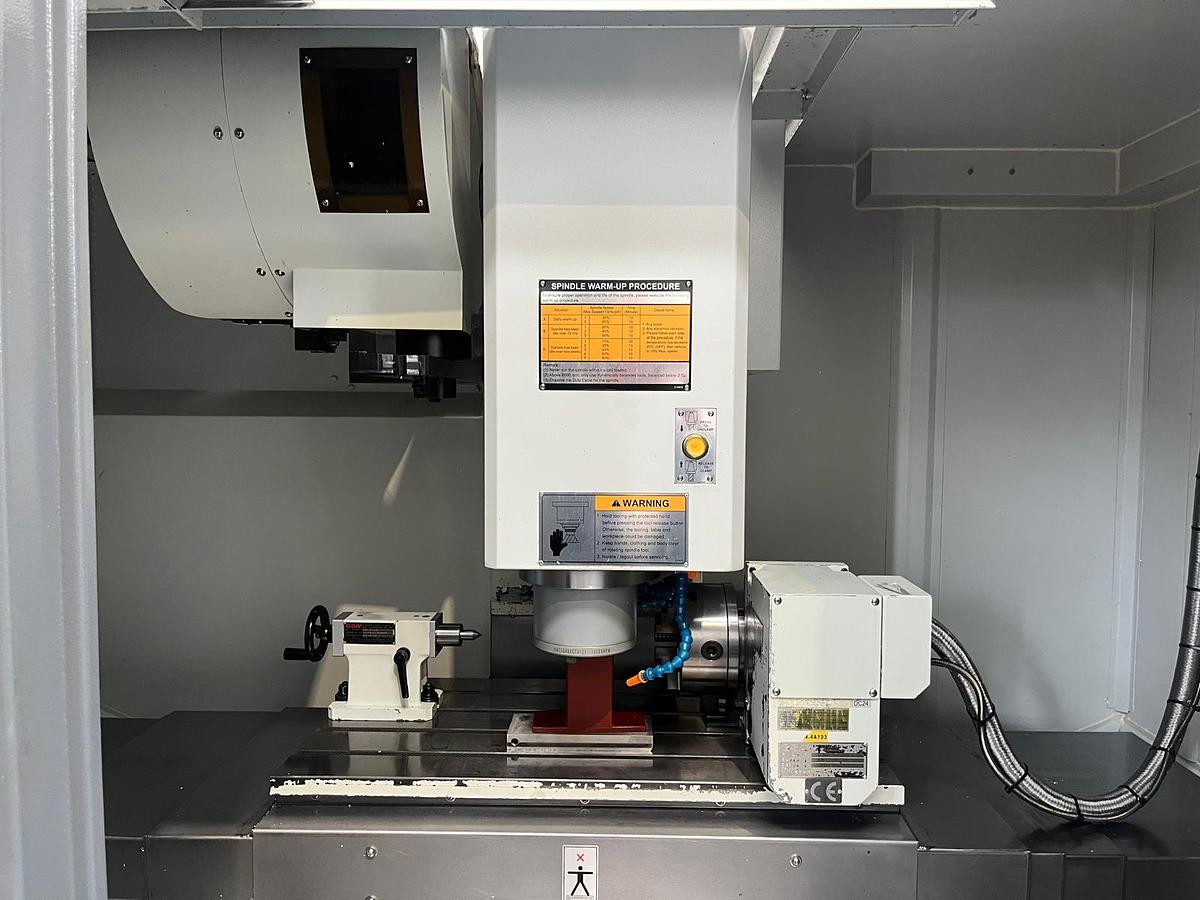

A used but immaculate 2018 built XYZ VMC 800-HD with Wide Screen Siemens 828D control with Shopmill, 10,000 RPM, 24 tool ATC & fitted with 4th Axis, swarf conveyor and a suite of tooling.



NOTE: Photo’d during decommissioning, so more pictures to follow once the machine arrives in our showroom.



YOM 2018

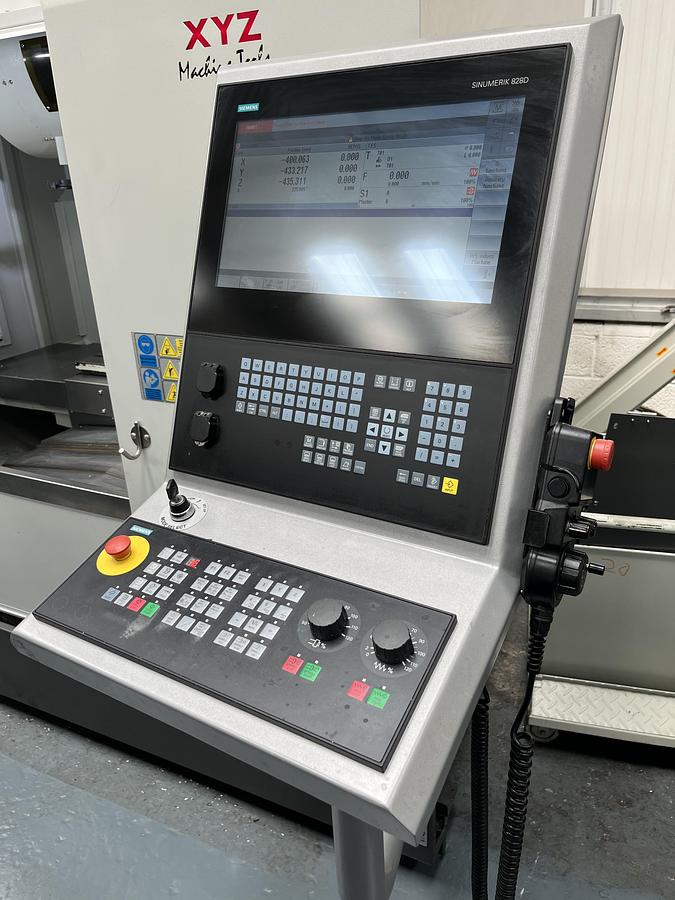

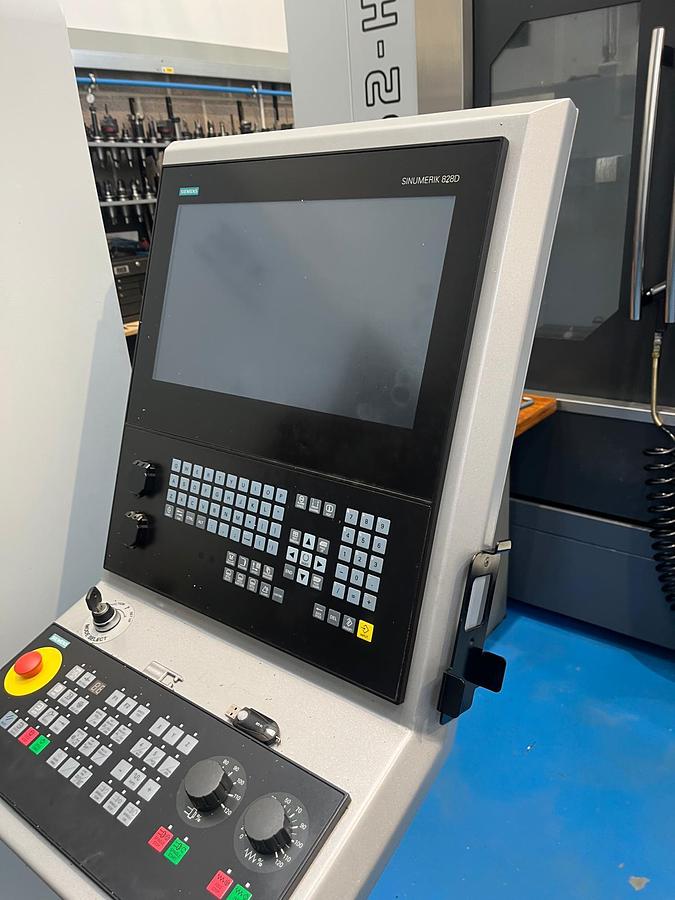

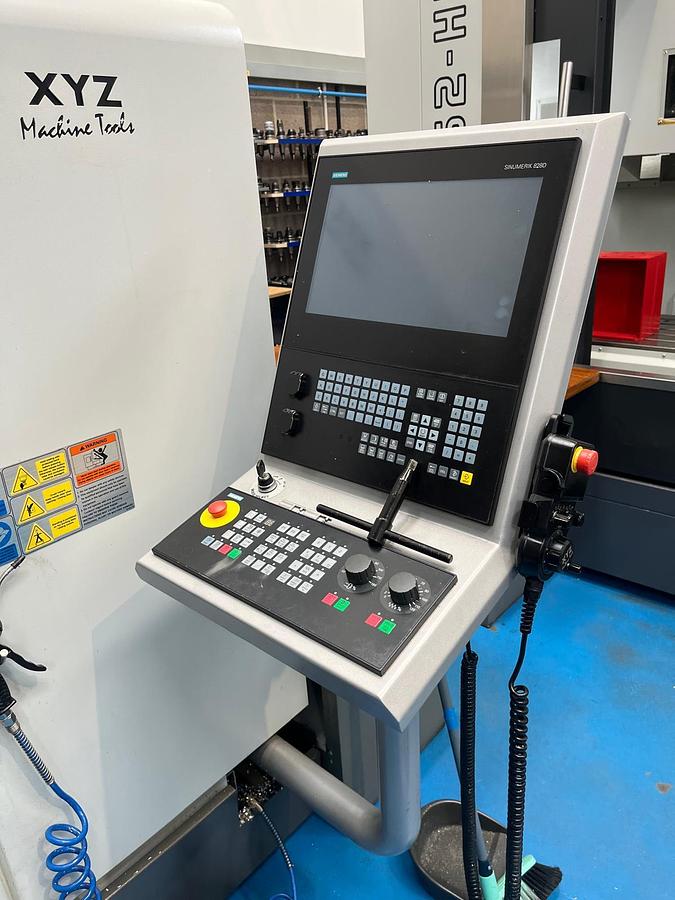

Siemens 828D with Shopmill

Optimised Digital Servo Drives.

Spindle: 21kW (28hp) 10,000 rpm

Table Size: 920 x 480mm

Travels: 800 x 500 x 510mm

Machine Weight: 4,400kg

Conforming to ISO 10791

Positional accuracy: +/- 5 microns

Repeatability: = +/- 2 microns

Circularity over 300mm: 10 microns

Geometric accuracy over 300mm: 10 microns

Hardened Table.

Rigid Tapping.

High Pressure Flood Coolant.

LED Worklight.

24 Station Arm Type.

Remote Electronic Handwheel.

Networking.

USB Port.

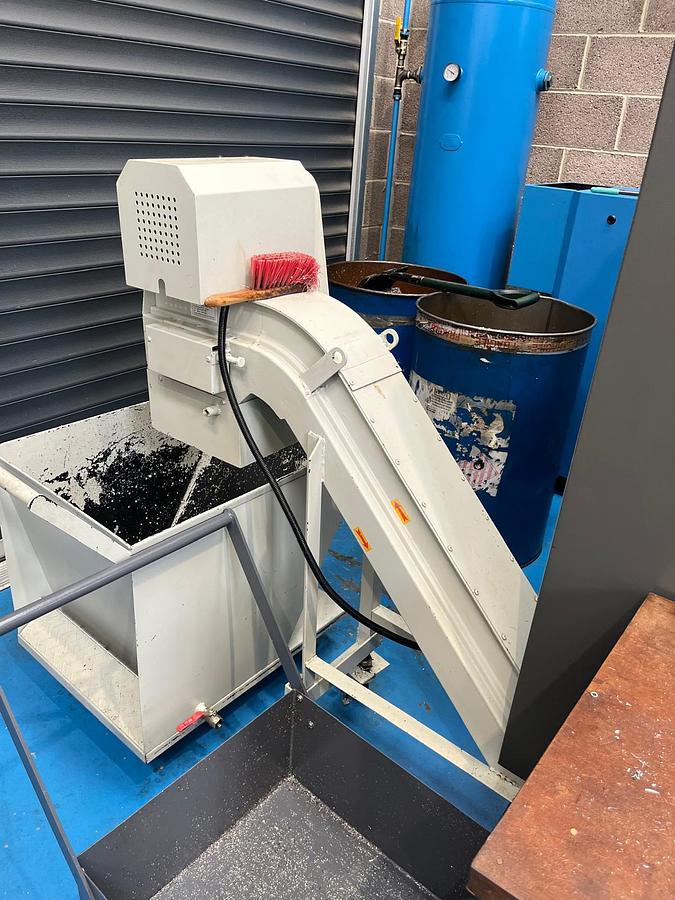

Swarf Conveyor & Bin.

Specifications

ManufacturerXYZ
ModelXYZ VMC 800
Year2018
ConditionUsed
Serial NumberTBC
Stock Numbercmu/0516
ControlWide Screen Siemens 828D control with Shopmill
AccessoriesLED Worklight. 24 Station Arm Type. Remote Electronic Handwheel. Networking. USB Port. Swarf Conveyor & Bin.
SpecTravel 800 x 500 x 510mm | 10,000 RPM | ISO 10791
