2012 XYZ VMC 1020

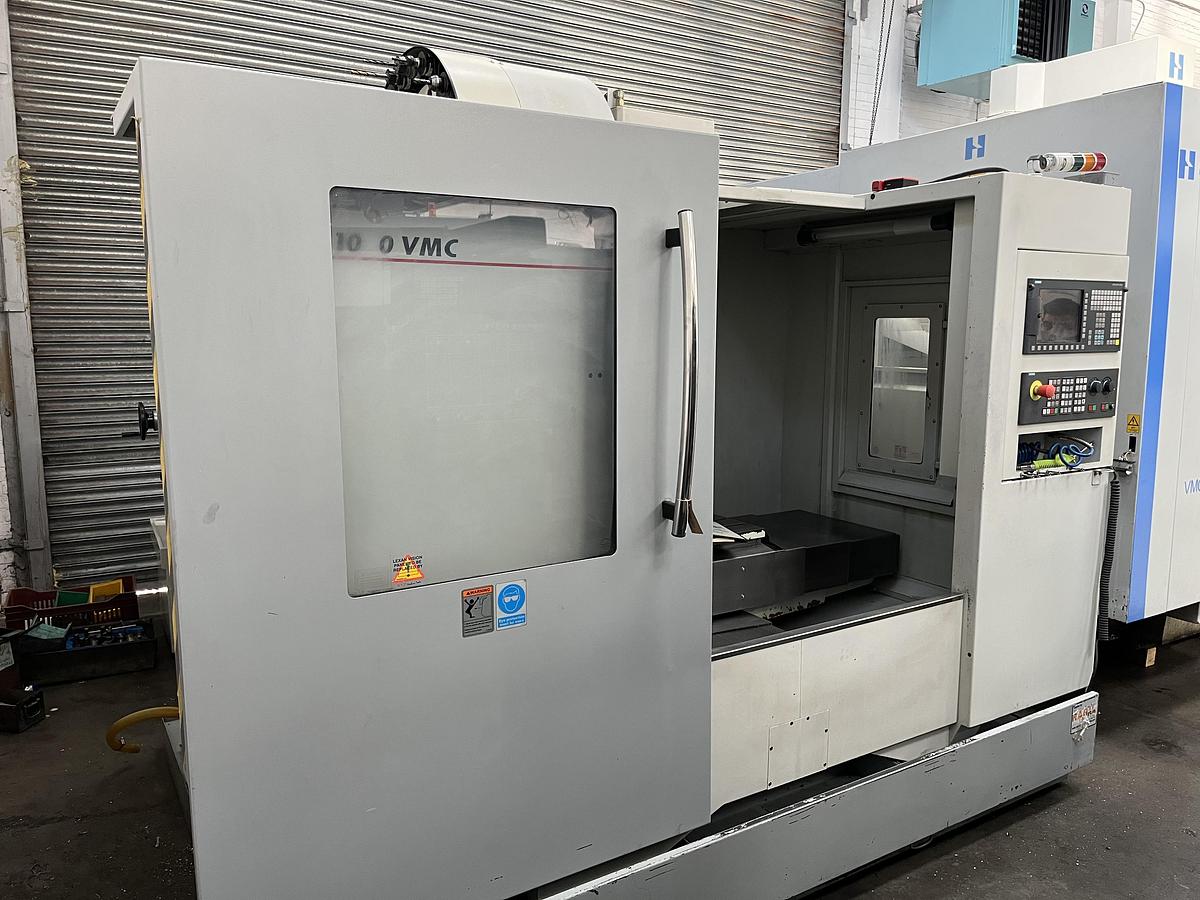

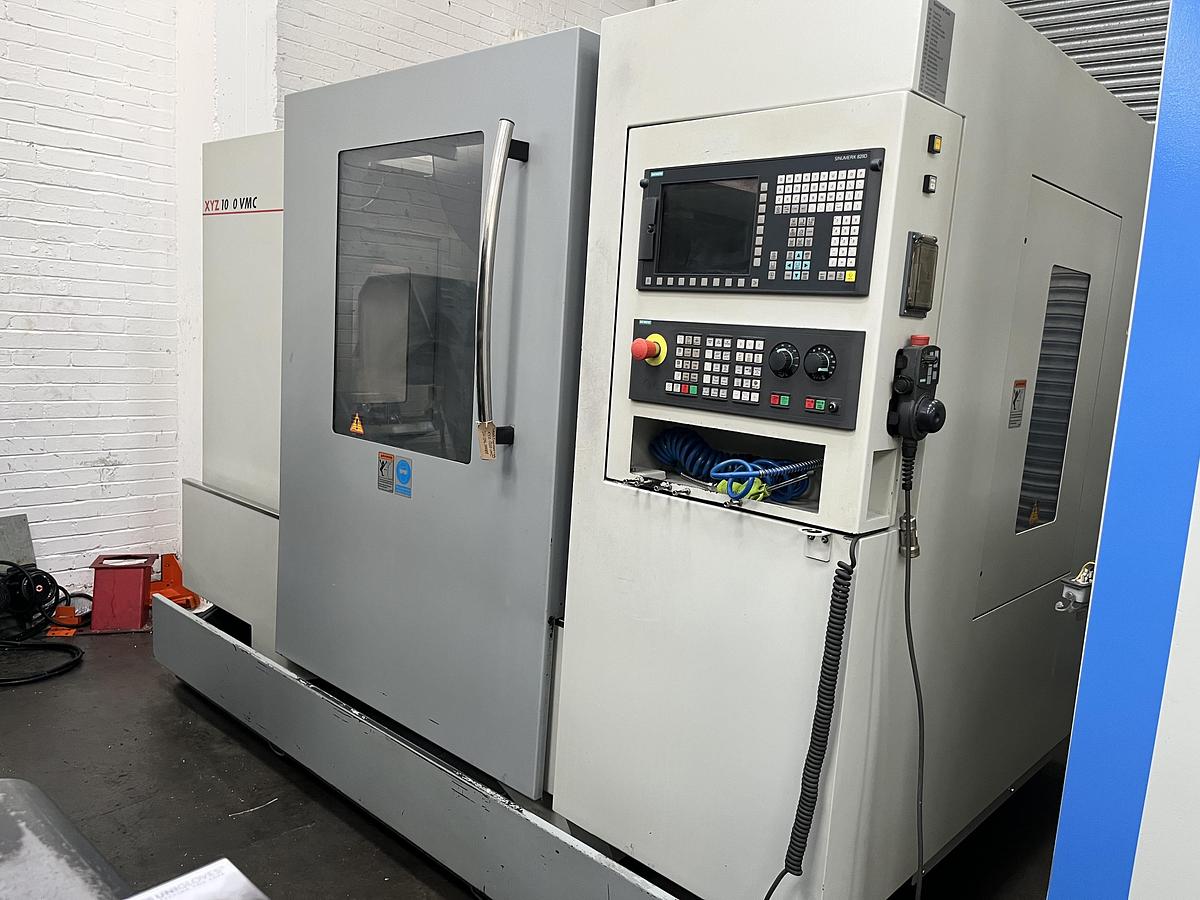

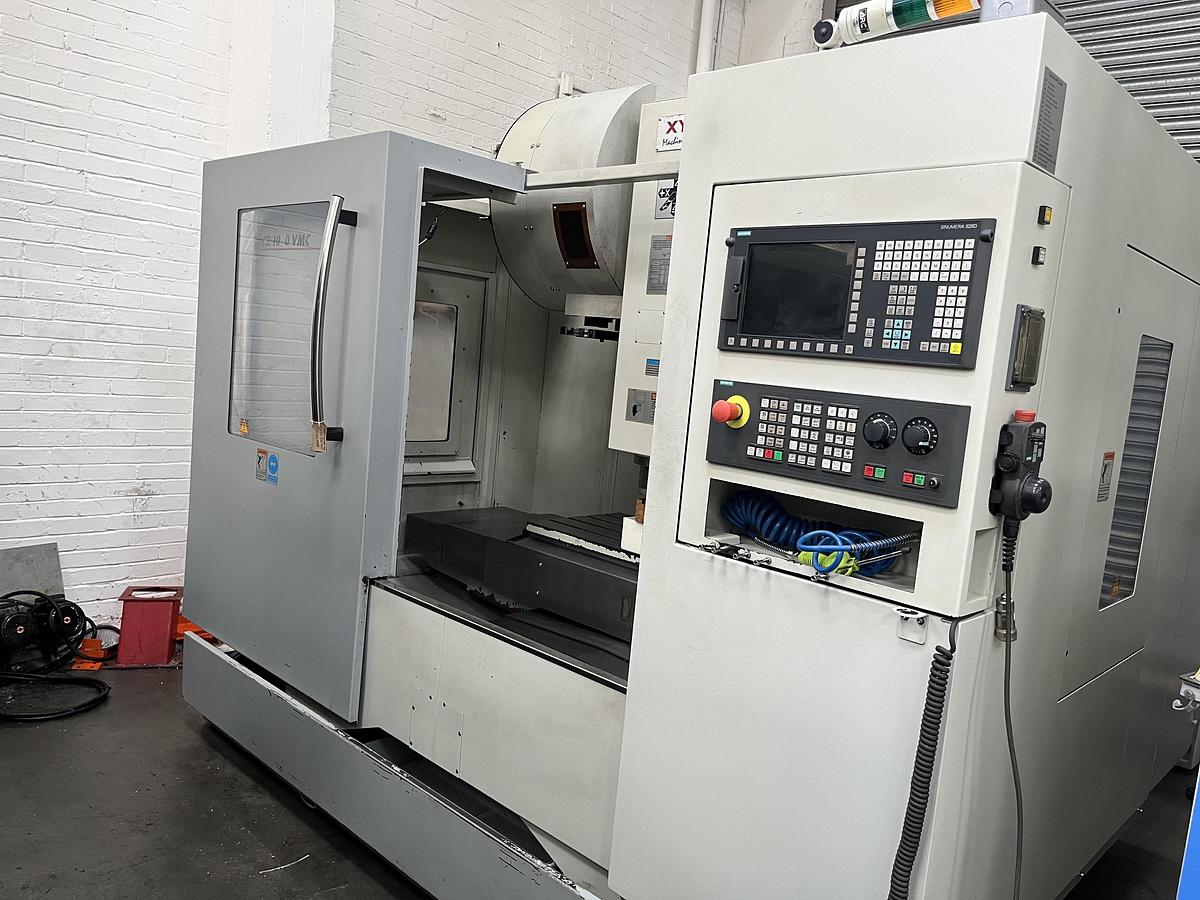

Used 2012 YZ VMC 1020 Vertical Machining Centre

Supplied with Siemens 828D & ShopMill control, 8,000 RPM spindle, 24-station side-mount ATC, Coolant Equipment, and Manual Set.

SPECIFICATION:

TRAVELS:

• X Axis: 1,020 mm
• Y Axis: 500 mm
• Z Axis: 500 mm
• Spindle Nose to Table (max): 650 mm
• Spindle Nose to Table (min): 150 mm

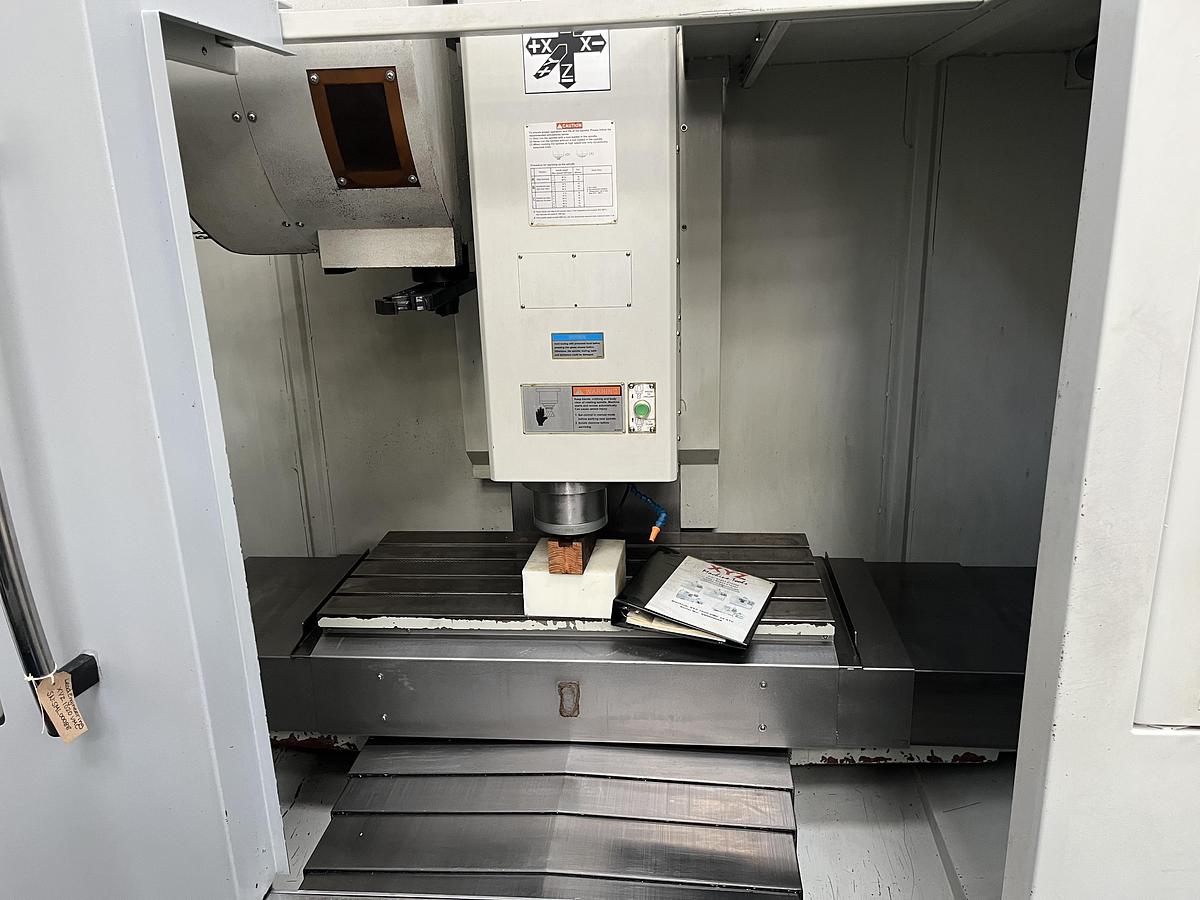

TABLE:

• Length: 1,200 mm
• Width: 450 mm
• Max Weight on Table (evenly distributed): 500 kg

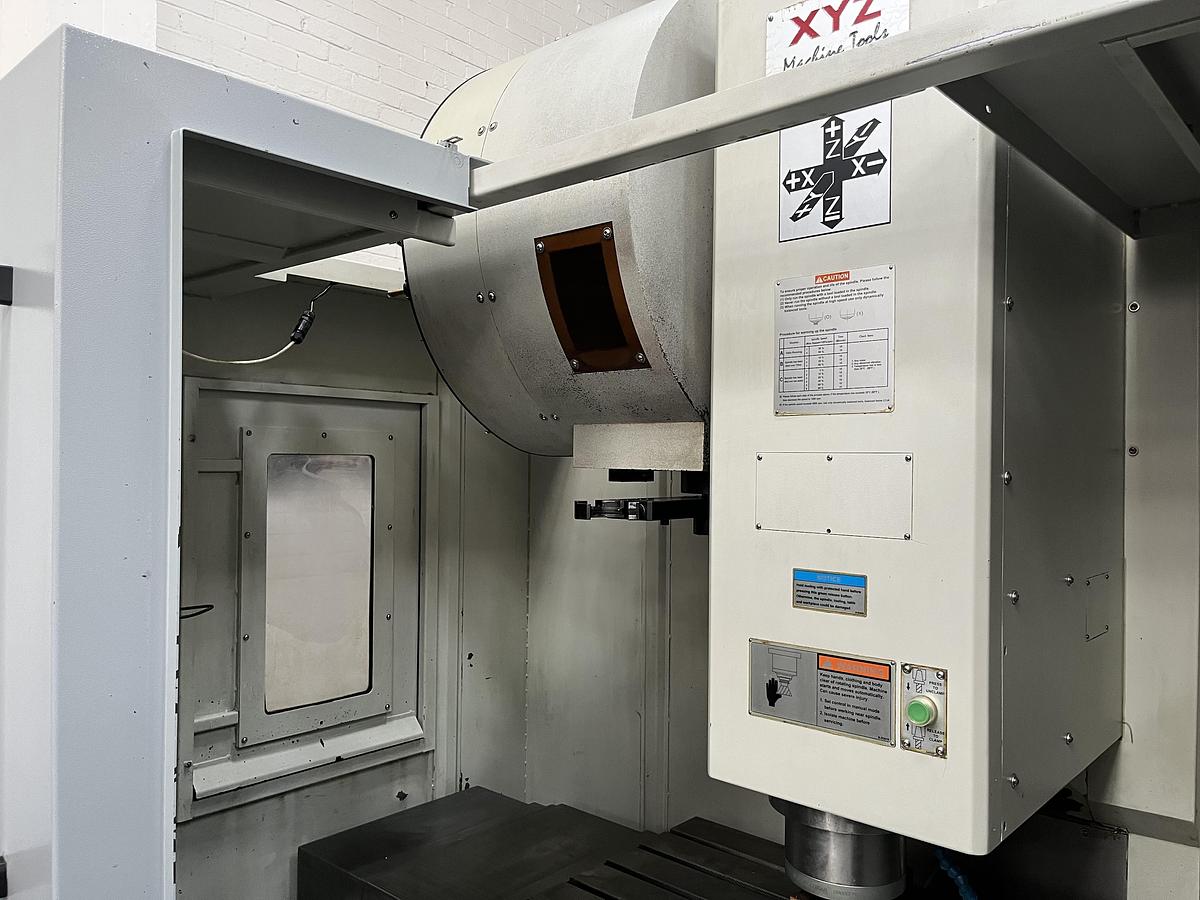

SPINDLE:

• Max Speed: 8,000 rpm
• Taper: BT40
• Drive System: Belt Drive
• Spindle Motor: 11 kW (5.5 kW continuous)

FEEDRATES:

• Cutting Feedrate: 1 – 500 mm/min
• Rapid Traverse (X/Y/Z): 12,000 mm/min

TOOL CHANGER:

• Type: Side mount
• Capacity: 24 Tools
• Max Tool Weight: 7 kg

GENERAL:

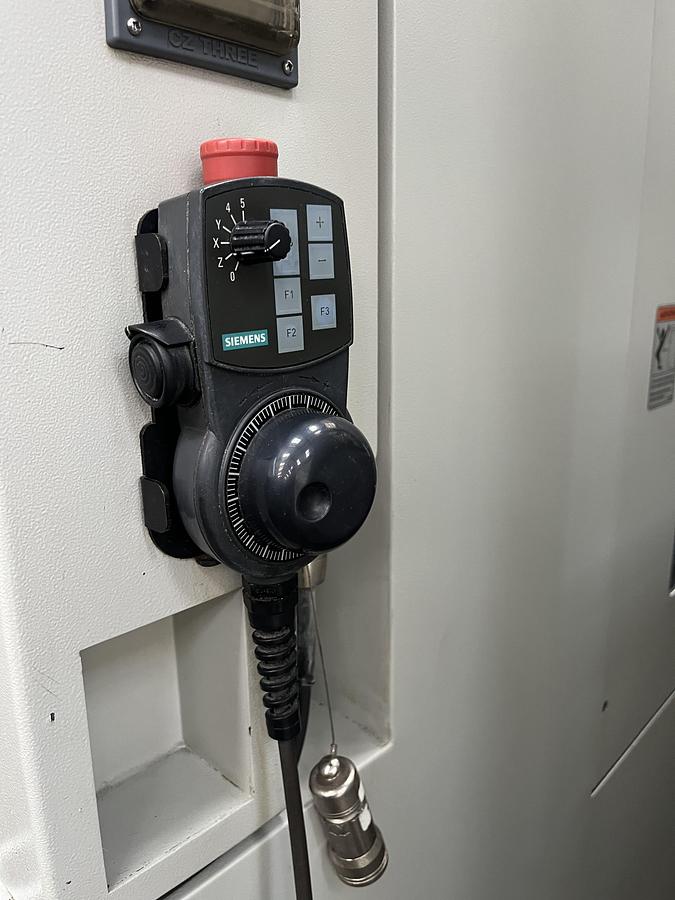

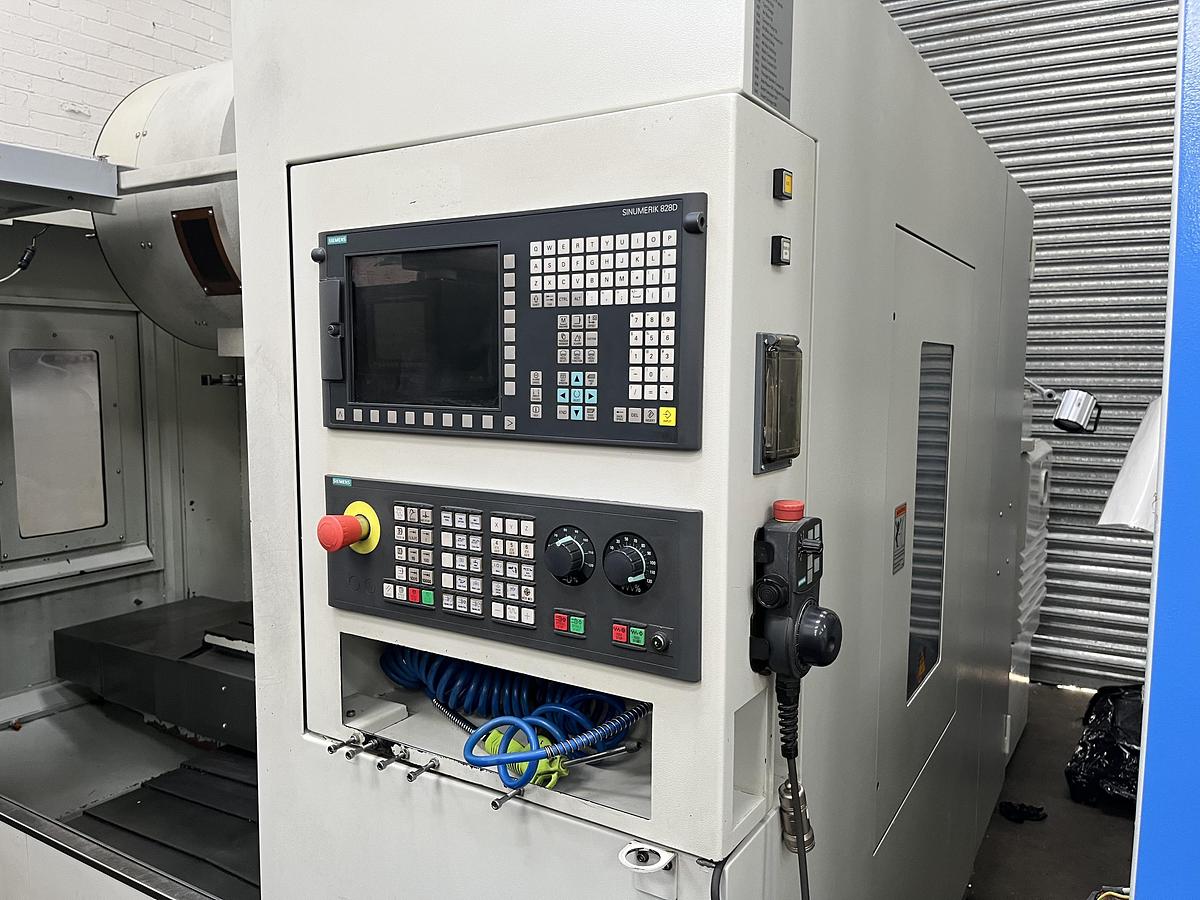

• Control: Siemens 828D with ShopMill
• Power Supply: 415 V / 3 Phase / 50 Hz
• Machine Input Power: 5.5 kW Continuous
• Main Motor: 11 kW
