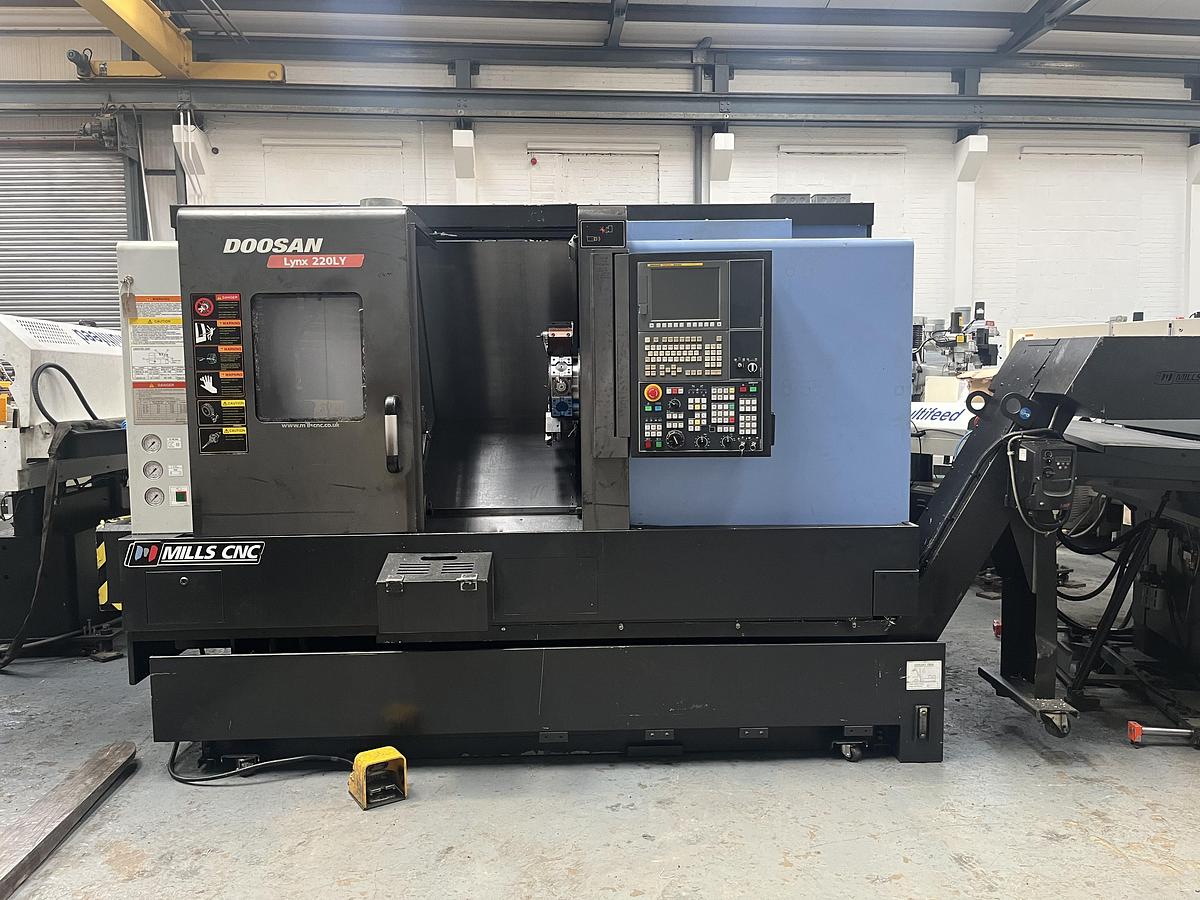

2014 Doosan Lynx 220LY C

Used Doosan 220LY CNC Turning Centre in Excellent Condition

A high-speed, multi-axis CNC lathe built for precision, efficiency, and flexibility. The Doosan 220LY features live tooling, Y-axis capability, and a 12-station turret – making it ideal for complex turning and milling applications in a compact footprint. Available for a powered Demo in our Bristol showroom.

Machine Specification:

CAPACITY

• Swing Over Bed: 600 mm
• Swing Over Saddle: 400 mm
• Max Turning Diameter: 300 mm
• Recommended Turning Diameter: 210 mm
• Max Turning Length: 130 mm
• Max Bar Capacity: 65 mm

SPINDLE

• Max Spindle Speed: 6,000 rpm
• Spindle Nose: A2-6
• Spindle Through-Hole Diameter: 76 mm
• Spindle Bearing Diameter (Front): 110 mm
• C-Axis Indexing: 360°
• Spindle Motor Power: 15 / 11 kW

TURRET

• Tool Type: BMT Block
• Tool Capacity: 12 Stations
• OD Tool Size: 20 x 20 mm
• Boring Bar Diameter: 32 / 20 mm
• Rotary Tool Speed: 6,000 rpm
• Rotary Tool Motor Power: 3.7 kW

FEEDRATES & TRAVELS

• X Axis Travel: 205 mm
• Z Axis Travel: 560 mm
• Y Axis Travel: 105 mm (±52.5 mm)
• Rapid Traverse (X Axis): 30 m/min
• Rapid Traverse (Z Axis): 36 m/min
• Rapid Traverse (Y Axis): 10 m/min

TAILSTOCK

• Quill Diameter: 65 mm
• Quill Bore Taper: MT#4
• Quill Travel: 80 mm

MOTORS & POWER

• Feed Motors (X / Y / Z): 1.8 / 2.5 / 1.8 kW
• Coolant Pump Motor: 1.5 kW
• Power Supply (Rated Capacity): 28.22 kVA
