2017 Hurco DCX22i / 40
2017 Hurco DCX22i / 40
Available quantity:1
Description

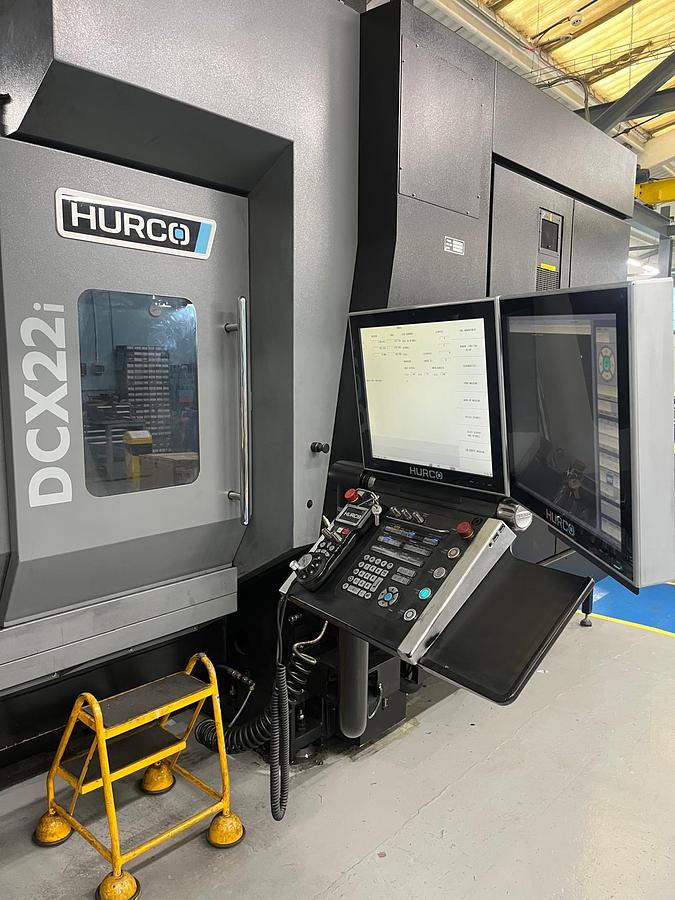

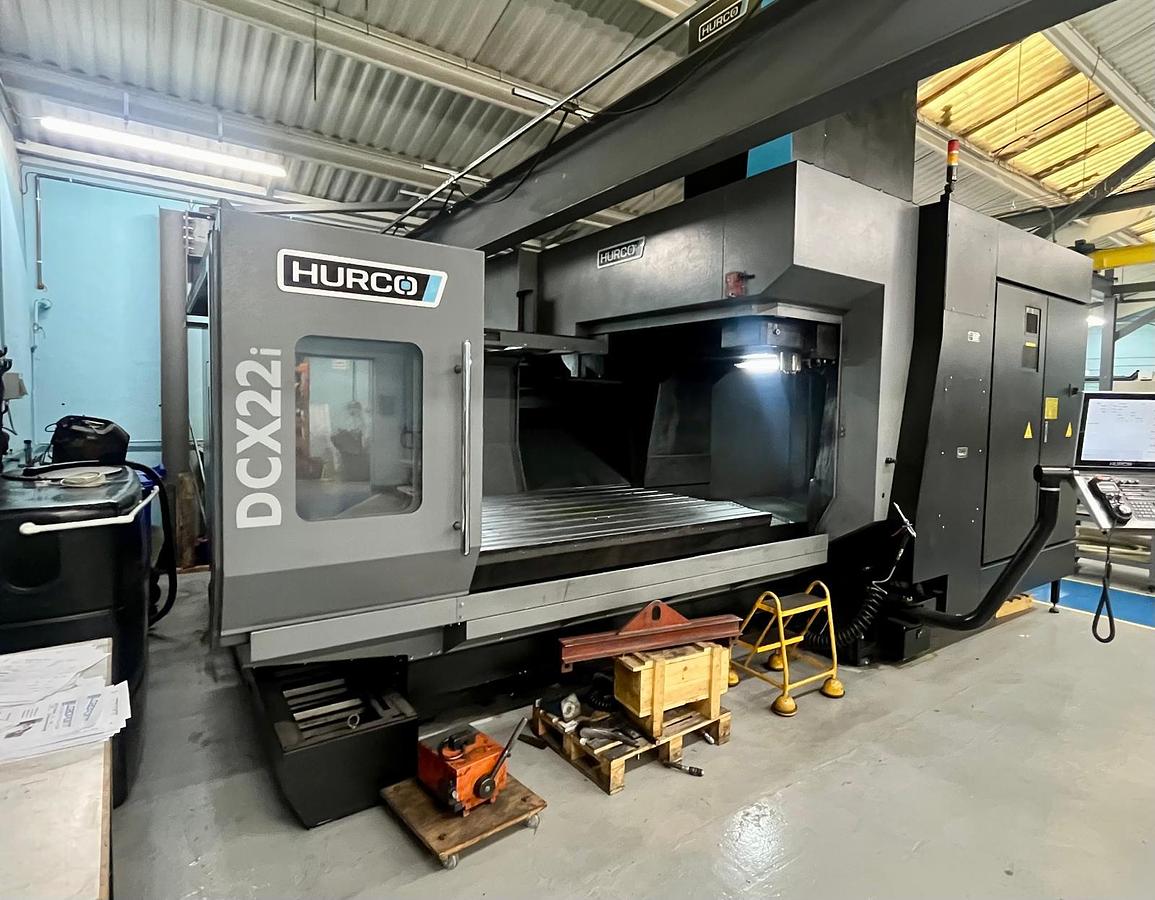

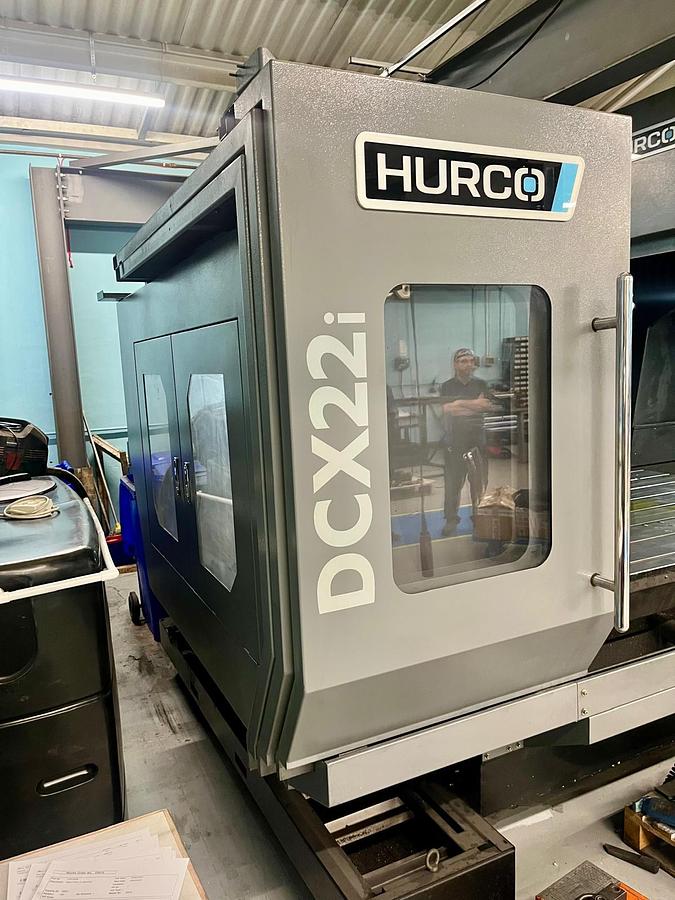

An immaculate, ex OEM owned, lightly used Hurco DCX22i / 40 Double Column VMC that is very rarely seen on the pre owned market.

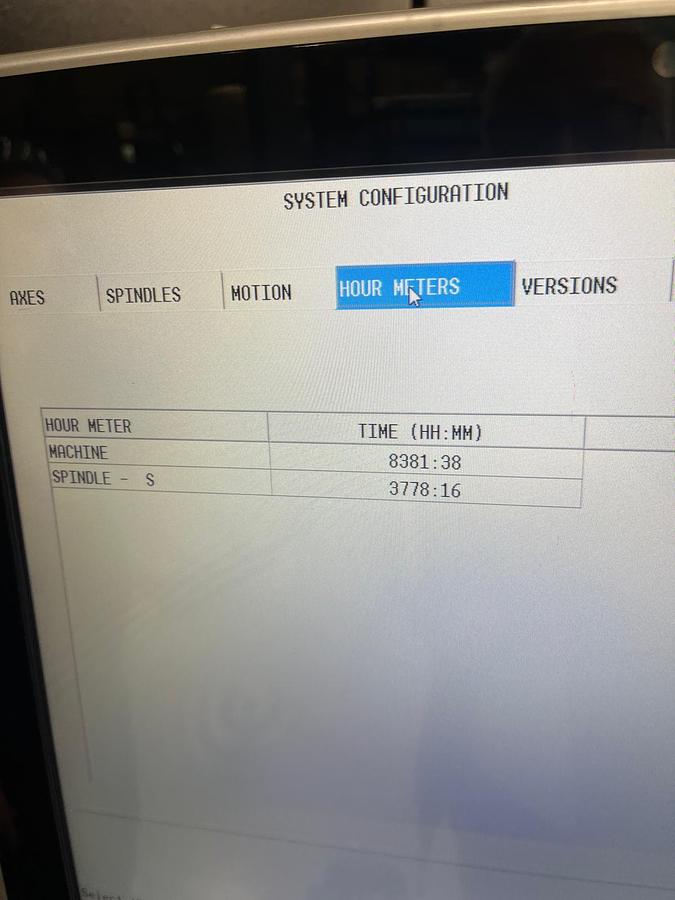

This machine is spec'd with the more flexible 40 size CAT spindle taper and only 3700 cutting hours used for prototyping.

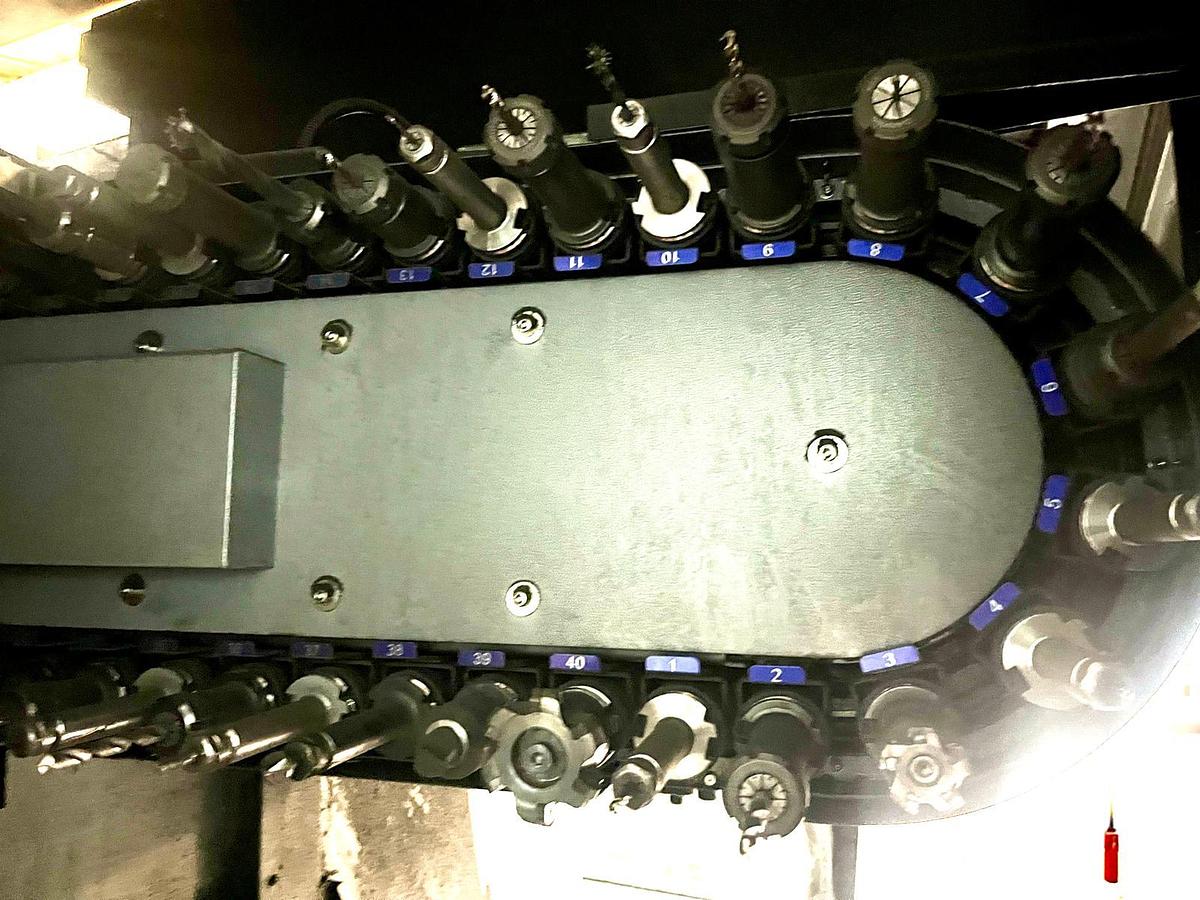

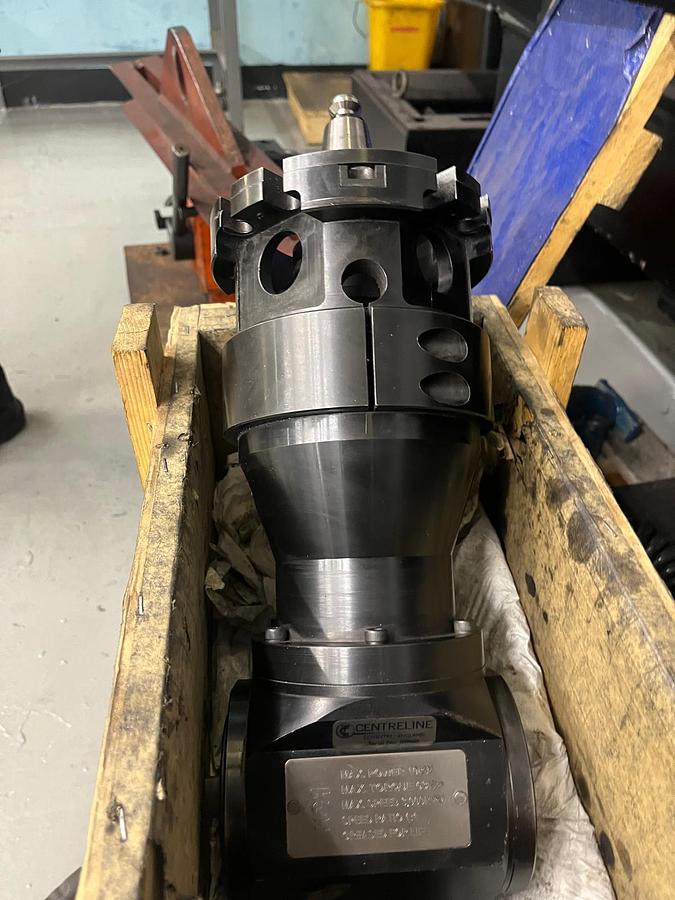

Machine is also supplied with a Centreline right angle attachment and a full suit of tool holders as photographed.
Great capacity too, as follows:
Travels: 2,200 x 1,700 x 750 mm

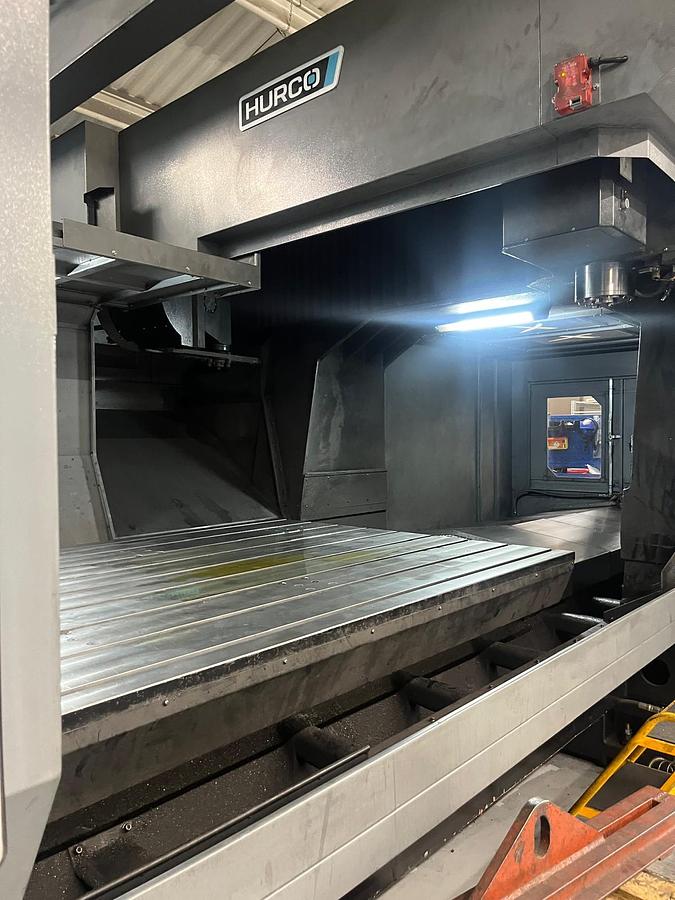

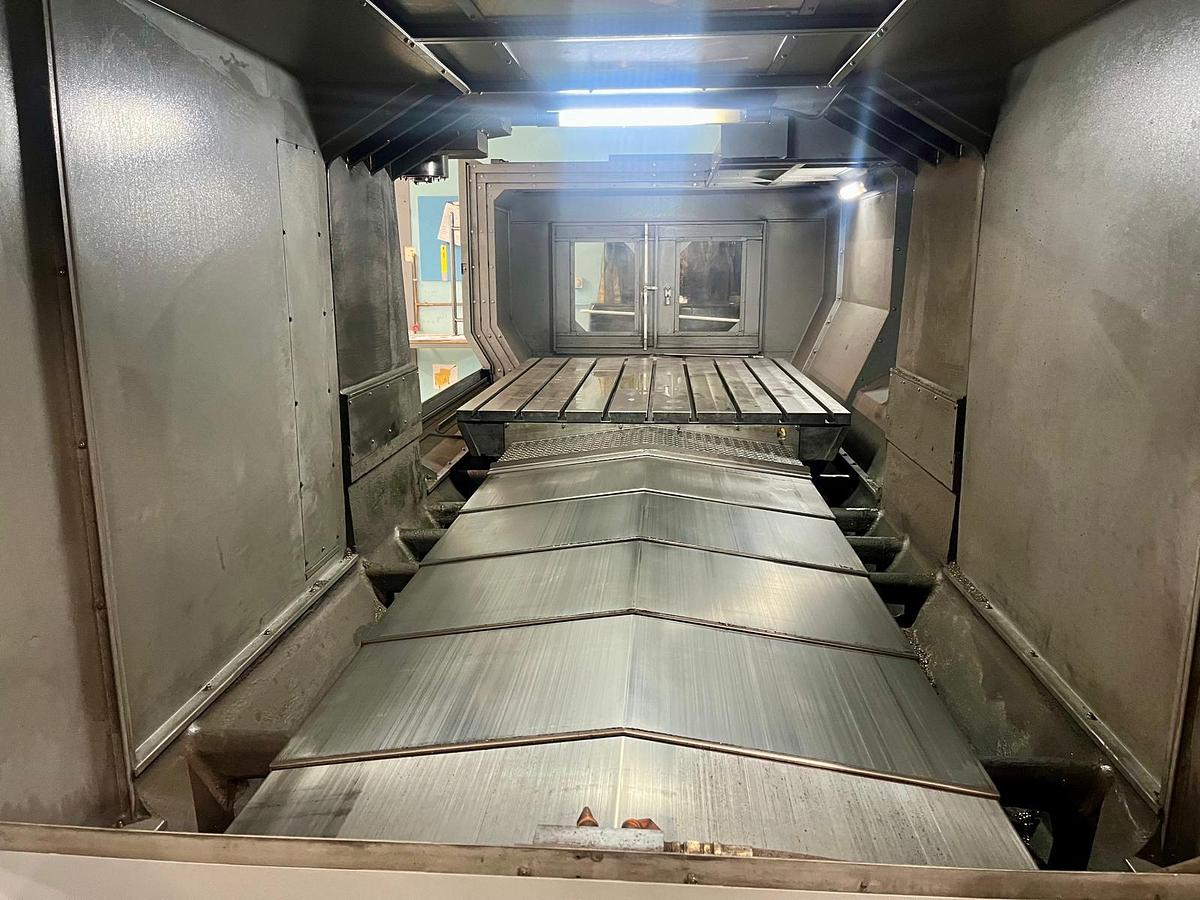

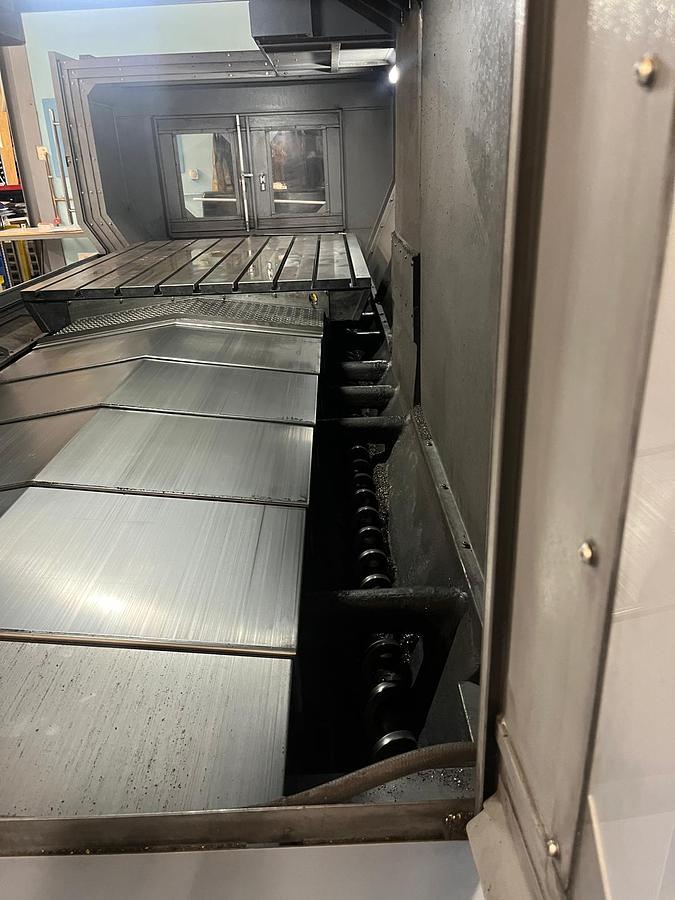

Table Size: 2,100 x 1,600 mm

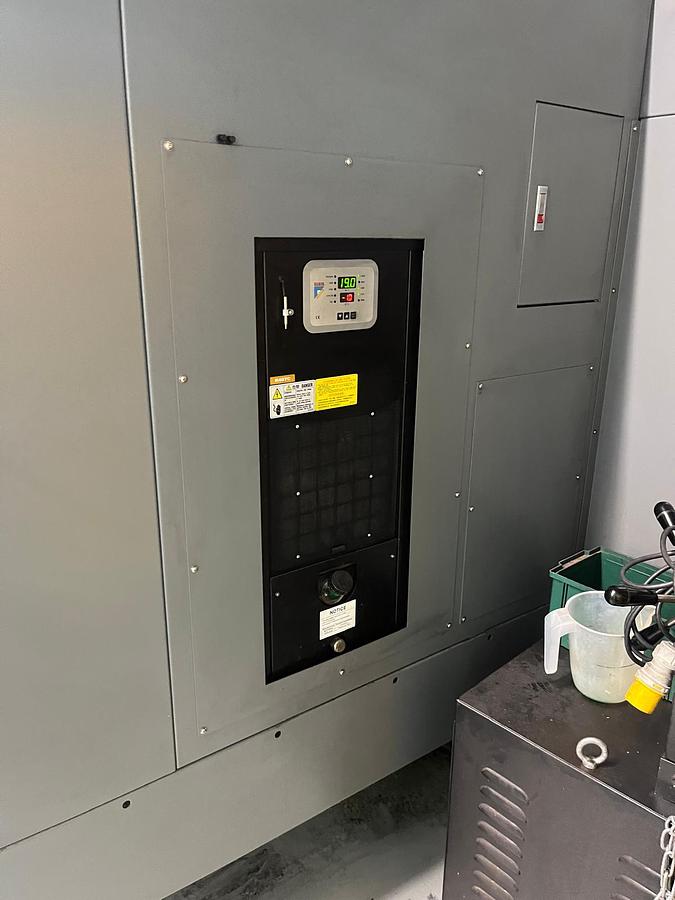

12,000 RPM CAT 40 direct drive spindle with chiller
Spindle Nose to Table 152 / 902 mm (Min-Max)
Max. Weight on Table: 8,000 kg
Distance b/w Columns:1,750 mm
Max. Spindle Speed: 12,000 rpm
Spindle Power (peak - 1 min) 24 hp @ 900 rpm (18 kW @ 900 rpm)
Spindle Torque (peak - 1 min) 175 ft lbs @ 720 rpm (237 Nm @ 720 rpm)
Tool Type: CAT 40
Number Of Tools 40
Max Tool Diameter: 75 mm
Max Tool Length: 300 mm
Max Tool Weight: 7 kg
Feedrates
Rapid Traverse: 24 m/min
Size
Max. Operating Floor Space: 7,210 x 5,765 mm (with doors Open)
Machine Height: 3,889 mm
Machine Weight: 21,000 kg
Power Rating-Full Load: 48KVA
Specifications
| Manufacturer | Hurco |
| Model | DCX22i / 40 |
| Year | 2017 |
| Condition | Used |
| Stock Number | cmu/0518 |
| Table Size | 2,100 x 1,600 mm |
| Max. Weight on Table | 8,000 kg |
| Distance b/w Columns | 1,750 mm |
| Max. Spindle Speed | 12,000 rpm |
| Tool Type | CAT 40 |
| Max Tool Diameter | 75 mm |
| Max Tool Length | 300 mm |
| Max Tool Weight | 7 kg |
| Rapid Traverse | 24 m/min |
| Machine Height | 3,889 mm |
| Machine Weight | 21,000 kg |
| Power Rating-Full Load | 48KVA |
