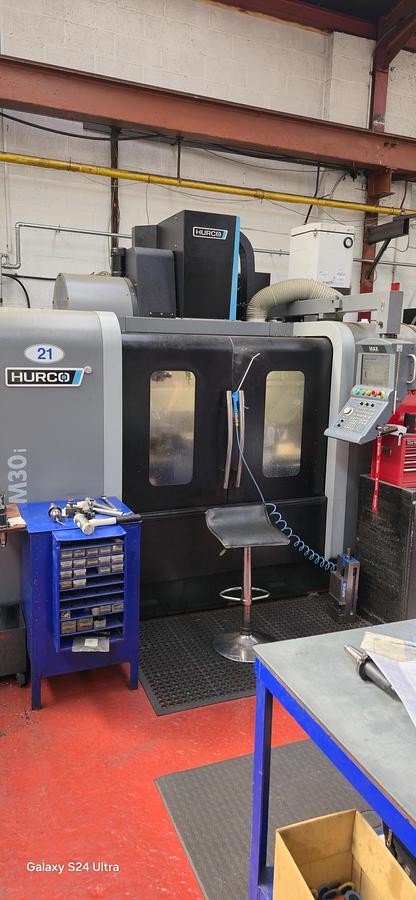

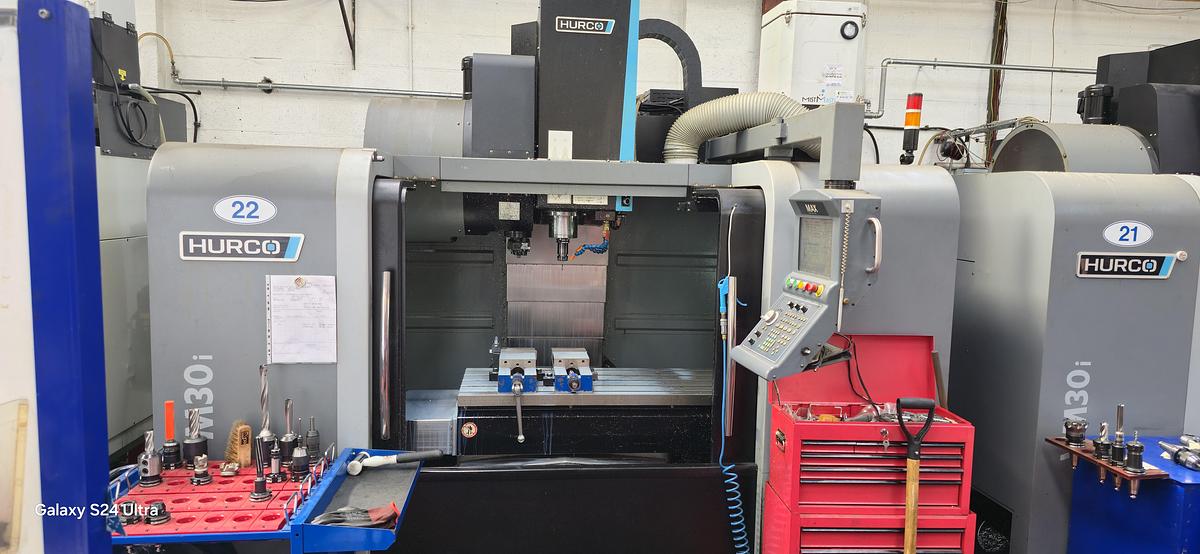

2014 Hurco VM30i

A pair of well looked after 2014 built Hurco VM30i with single MAX screen Hurco Control.

Note: Photographed on Site...more pictures to follow when the machines arrive in Bristol.

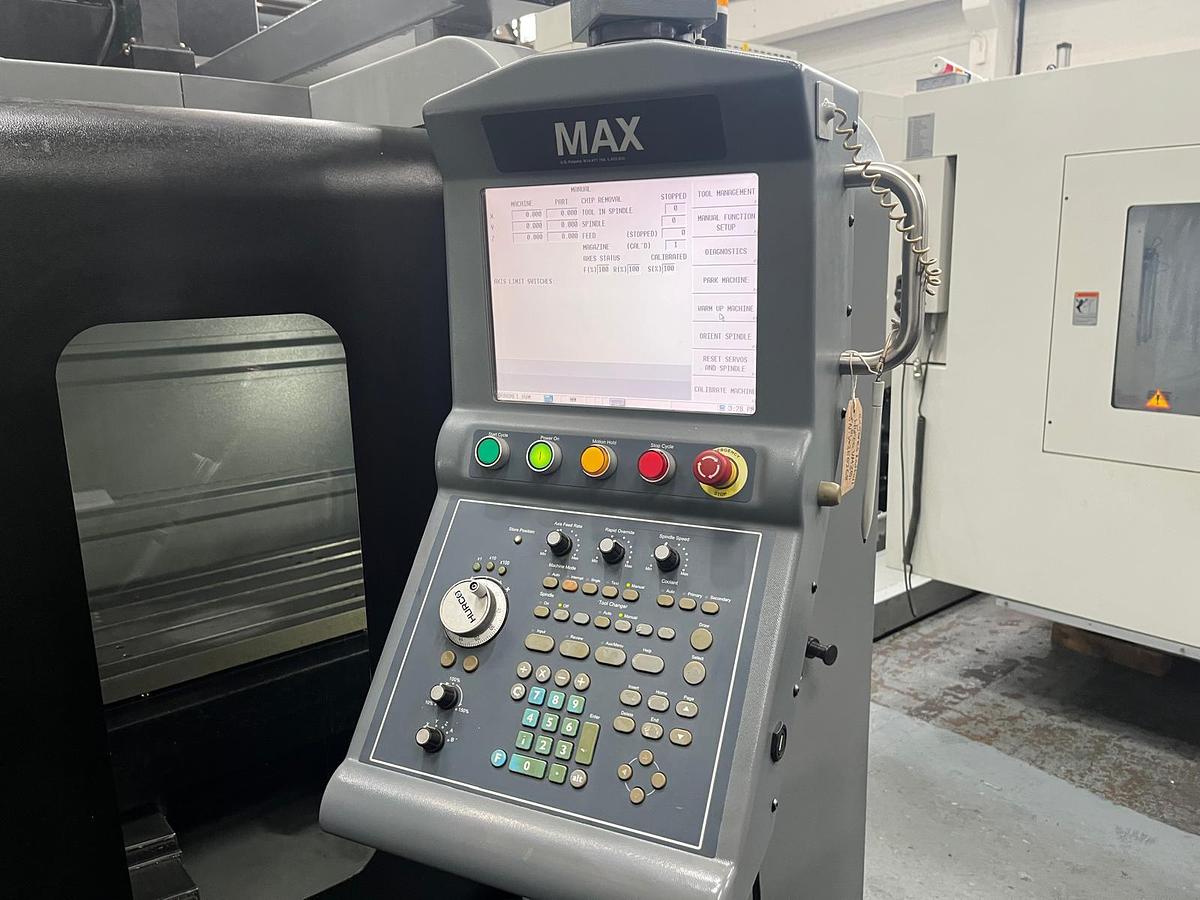

Fitted with Max control, 10,000 RPM BT40 spindle. In super condition given their age! .

Specification:

X Axis stroke mm 1.270

Y Axis travel mm 510

Z Axis stroke mm 510

Spindle nose to table surface mm 100-610

T slot (WxDxN) mm 5x18

Working table area (LxW) mm 1.320x510

Spindle Speed rpm 10.000

Main motor kw 15

Motor torque Nm 102

X/Y/Z Axis cutting feedrate mm/min 24/ 24/ 24

Pull stud SK40

Tool storage capacity pc 20

Max. Tool Diameter mm 89

Max. Tool Length mm 250

Max. Tool Weight Kg 7

Machine weight Kg 4.245

Floor space (LxWxH) mm 4.083x2.743x2.576

Standard configuration

Control: WinMax

Spindle 10.000 RPM

Swing arm type 20 tool ATC

Pocket and island milling

Rigid tap and tapping

Remote Jogbox
