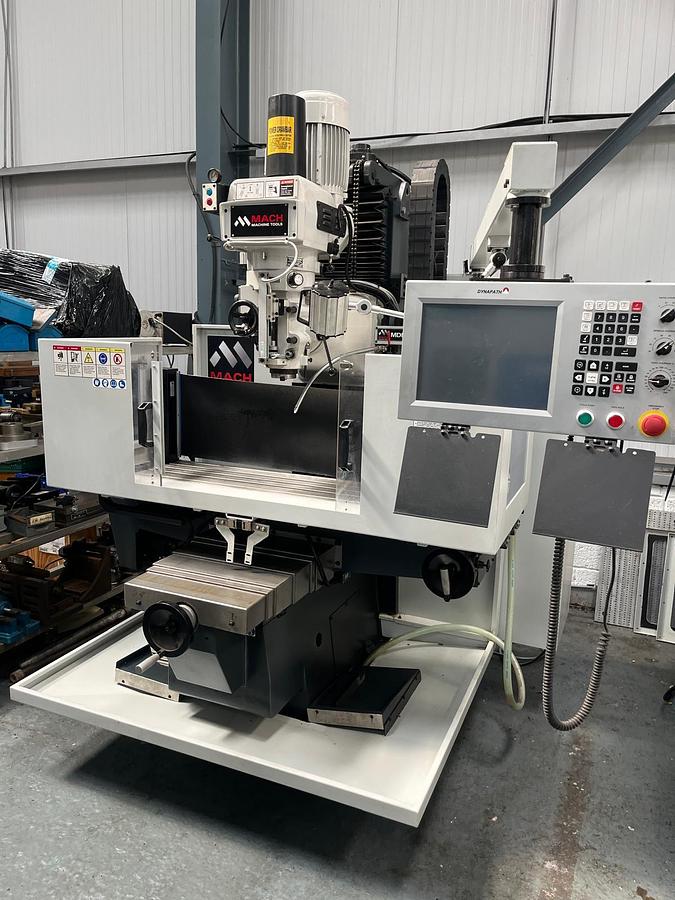

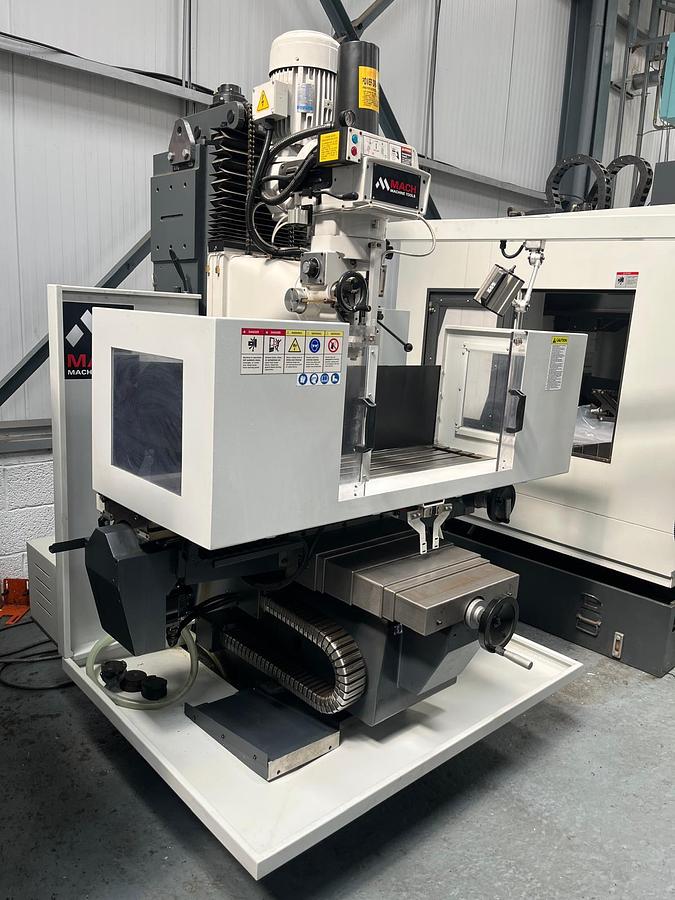

2021 MACH MDM 1000

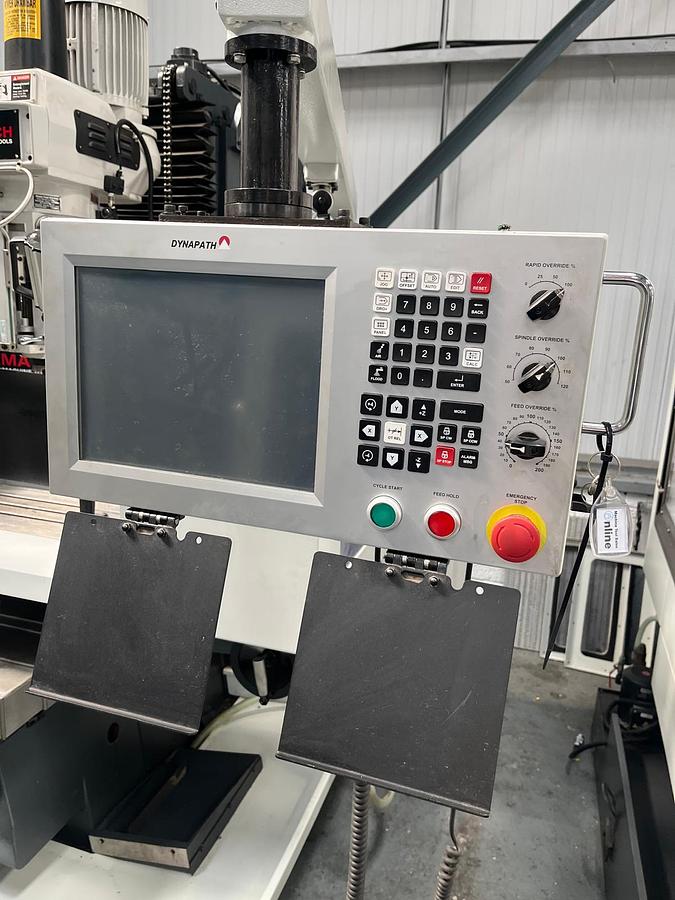

Just arrived, this 2021 MACH MDM 1000 with DynaPath Windelta Touchscreen full 3D control, with 10,000 Blocks lookahead, 24Gb of memory and MACH's now legendary Wi-Fi Remote Support package included. The machine is as new, photo'd as arrived, and will be supplied with life time Wi Fi remote Support and control system updates FOC and a 6 month parts & Labour warranty. One not be missed!

Specification:

Spindle Taper: ISO 40

Spindle RPM: 50-5000 RPM

Spindle Power: 3.7Kw (5 HP)

Motors X,Y & Z: .96 Kw (1.3 HP)

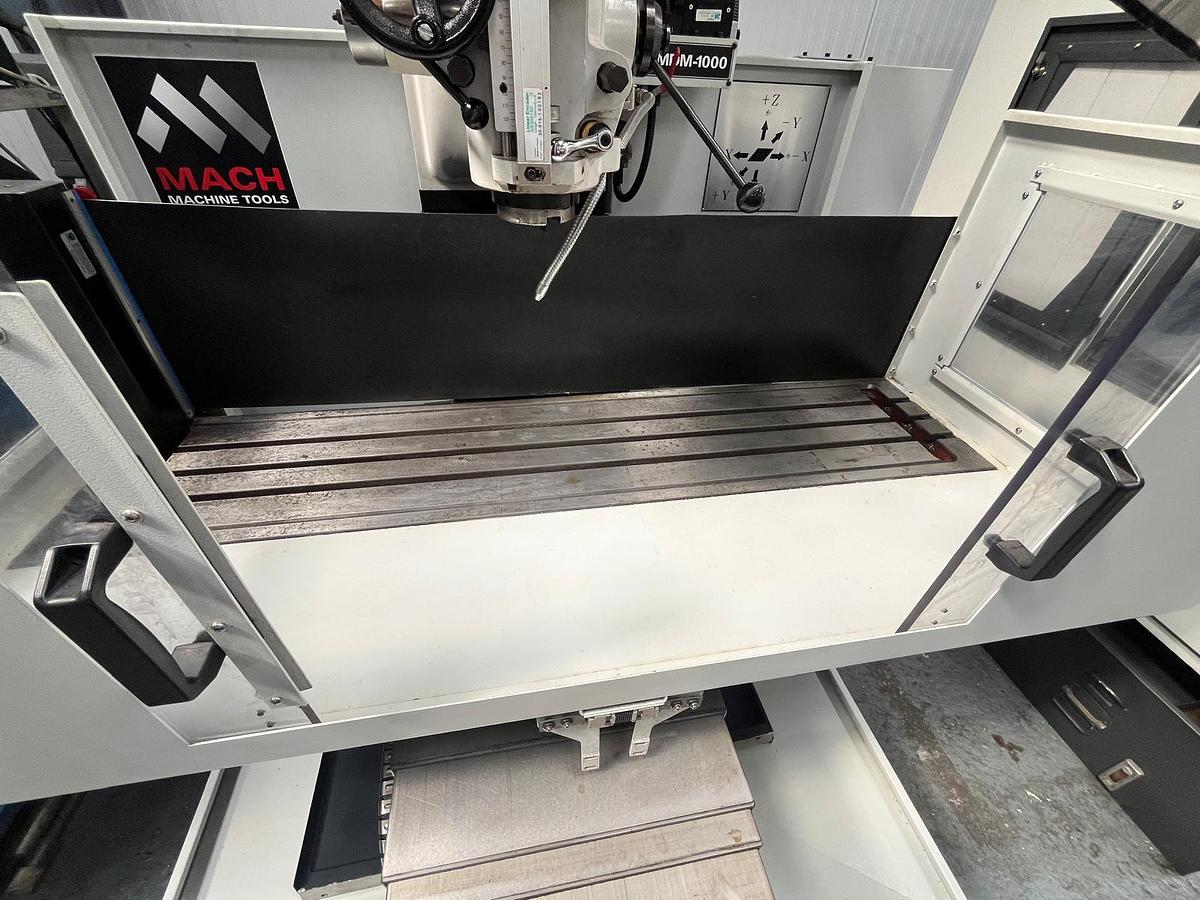

Table Length: 1524mm (60”) Table Width :330mm (12.99”)

Tee Size & No 16mm - 3, Tee Slot Off Set 65mm (2.56”)

X Axis Travel: 1000mm (40”)

Y Axis Travel: 500mm (20”)

Z Axis Travel: 610mm (24”)

Quill Travel: Spindle Taper ISO 40

Spindle RPM: 50-5000 RPM

Spindle Power: 3.7Kw (5 HP)

Motors X,Y & Z: .96 Kw (1.3 HP)

Table Length: 1524mm (60”)

Table Width: 330mm (12.99”)

Tee Size & No: 16mm - 3

Tee Slot Off Set: 65mm (2.56”)

X Axis Travel: 1000mm (40”)

Y Axis Travel: 500mm (20”)

Z Axis Travel: 610mm (24”)

Quill Travel: 127mm (5")

Quill Dia: 100mm (3.93")

Spindle Nose to Table: 100-710mm (3.94” – 27.95”)

Spindle centre to Column: 420mm (16.53”)

Head Swivel: + / - 90 Deg

X Axis Way: Dovetail: Y & Z Axis Way Square

Max table load 500 Kgs (1100 lbs)

Coolant Capacity: 120 L

Coolant flow rate: 50 L/min – 3 bar

Machine Weight: 2810 Kg (6208 lbs)

Quill Dia: 127mm (5")

Spindle Nose to Table: 100-710mm (3.94” – 27.95”)

Spindle centre to Column: 420mm (16.53”)

Machine Weight: 2810 Kg (6208 lbs)
