2024 MACH MDM 1000

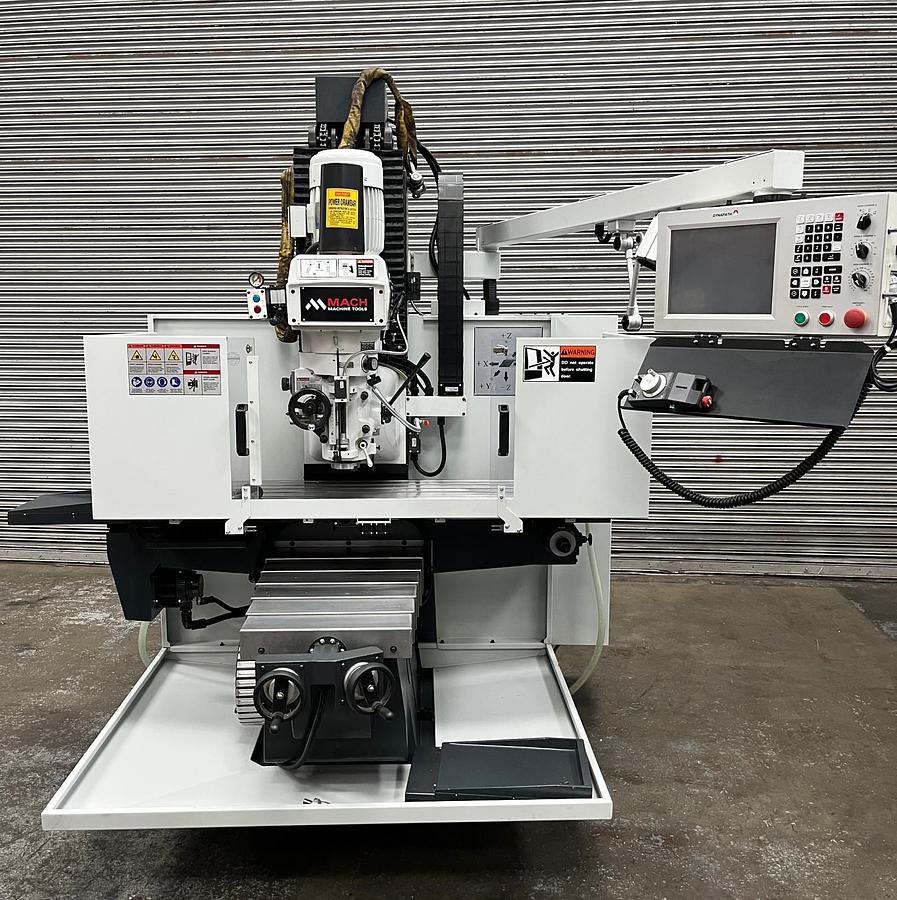

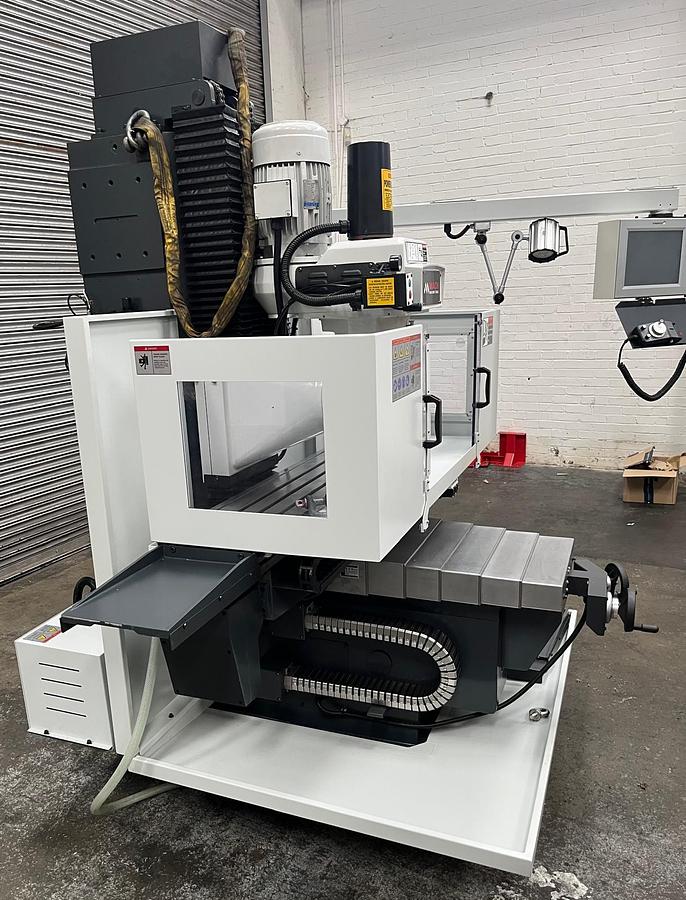

This just in, taken back in Part Exchange against a New MACH VMC, this absolutely immaculate MACH Bed Type milling machine is now in the showroom here in Bristol and photo'd here as it arrived...you can see just how good it is!

Specification:

Spindle Taper: ISO 40

Spindle RPM: 50-5000 RPM

Spindle Power: 3.7Kw (5 HP)

Motors X,Y & Z: .96 Kw (1.3 HP)

Table Length: 1524mm (60”) Table Width :330mm (12.99”)

Tee Size & No 16mm - 3, Tee Slot Off Set 65mm (2.56”)

X Axis Travel: 1000mm (40”)

Y Axis Travel: 500mm (20”)

Z Axis Travel: 610mm (24”)

Quill Travel: Spindle Taper ISO 40

Spindle RPM: 50-5000 RPM

Spindle Power: 3.7Kw (5 HP)

Motors X,Y & Z: .96 Kw (1.3 HP)

Table Length: 1524mm (60”)

Table Width: 330mm (12.99”)

Tee Size & No: 16mm - 3

Tee Slot Off Set: 65mm (2.56”)

X Axis Travel: 1000mm (40”)

Y Axis Travel: 500mm (20”)

Z Axis Travel: 610mm (24”)

Quill Travel: 127mm (5")

Quill Dia: 100mm (3.93")

Spindle Nose to Table: 100-710mm (3.94” – 27.95”)

Spindle centre to Column: 420mm (16.53”)

Head Swivel: + / - 90 Deg

X Axis Way: Dovetail: Y & Z Axis Way Square

Max table load 500 Kgs (1100 lbs)

Coolant Capacity: 120 L

Coolant flow rate: 50 L/min – 3 bar

Machine Weight: 2810 Kg (6208 lbs)

Quill Dia: 127mm (5")

Spindle Nose to Table: 100-710mm (3.94” – 27.95”)

Spindle centre to Column: 420mm (16.53”)

Machine Weight: 2810 Kg (6208 lbs)
