2020 Hurco VM20i

Sold

2020 Hurco VM20i

Description

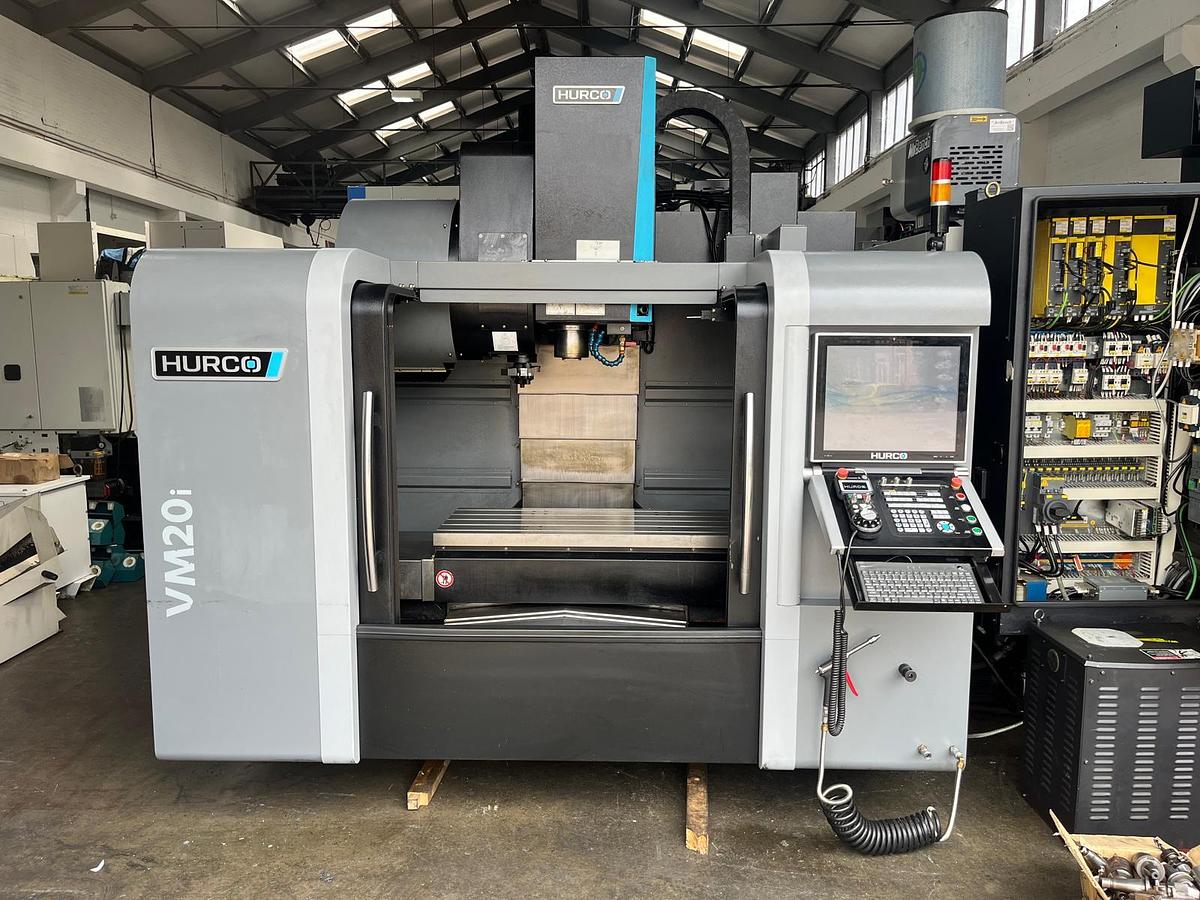

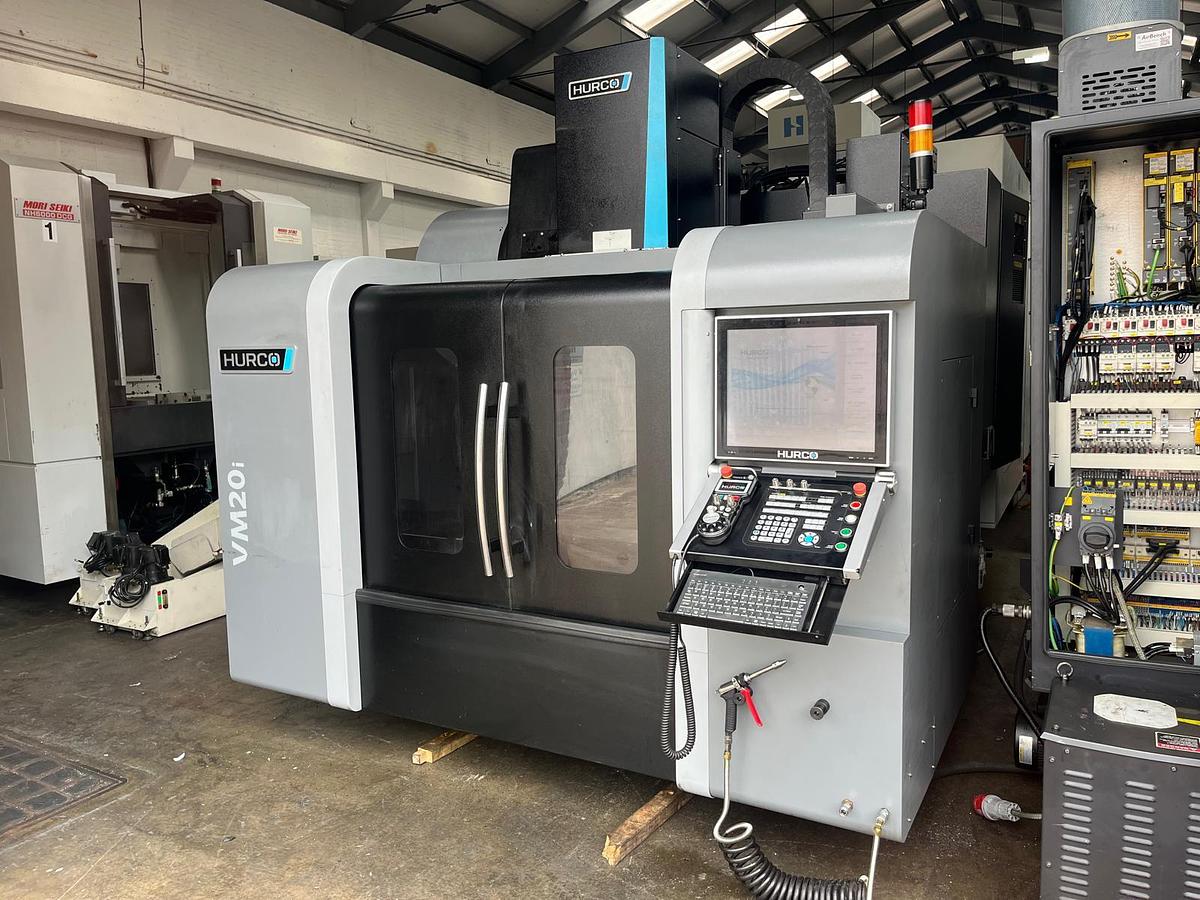

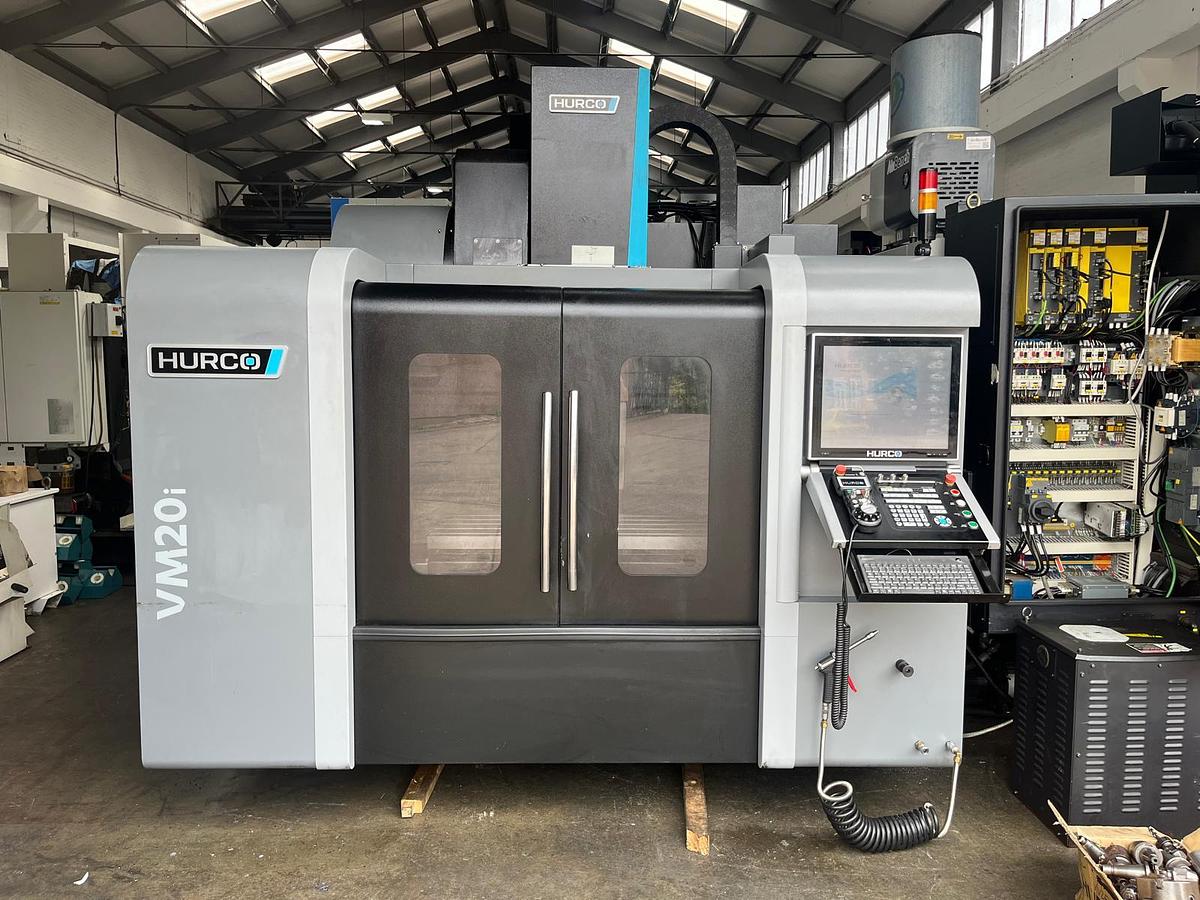

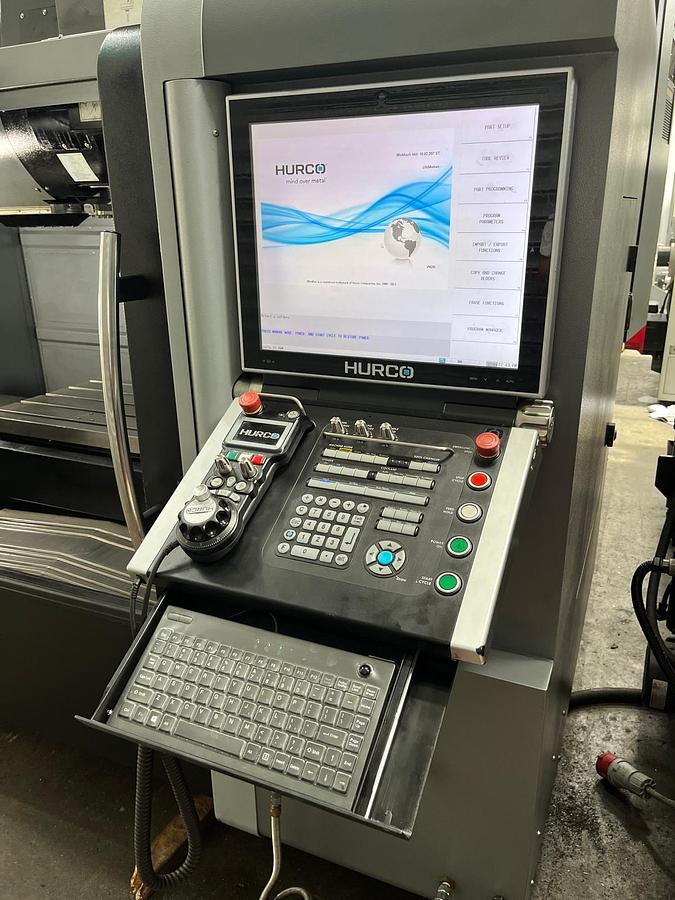

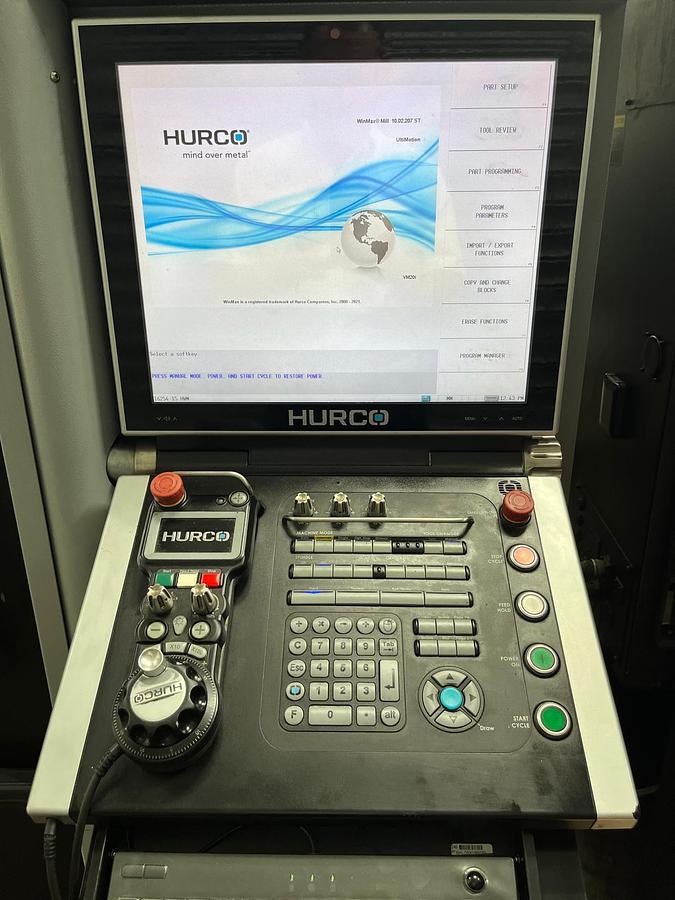

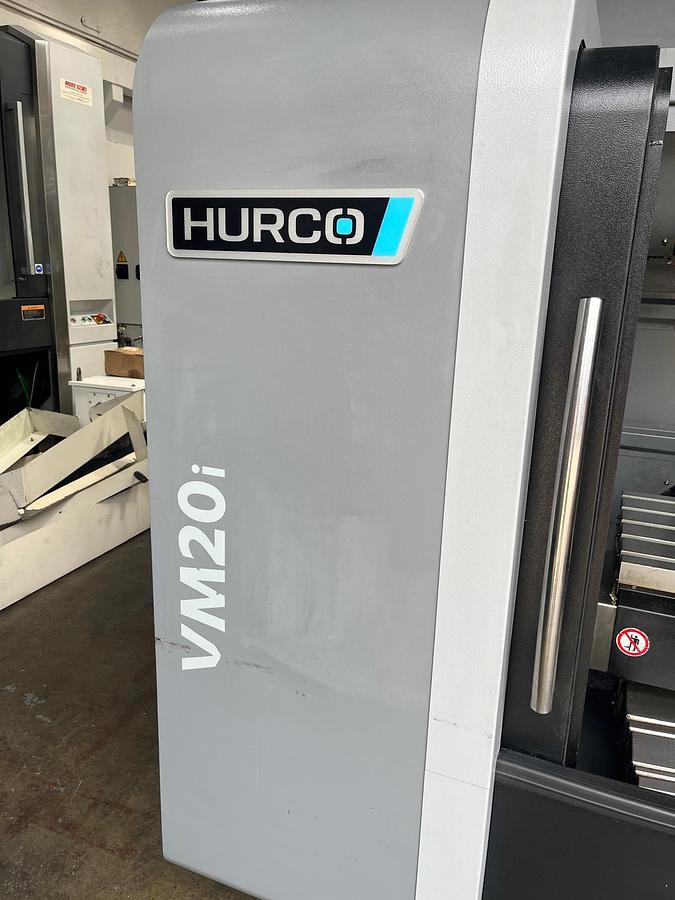

An immaculate, 2020 built and lightly used Hurco VM20i with single wide screen Hurco Control.


Machine is fitted with a 10,000 RPM Cat 40 spindle, swarf conveyor and a full suit of tool holders.


Specification:

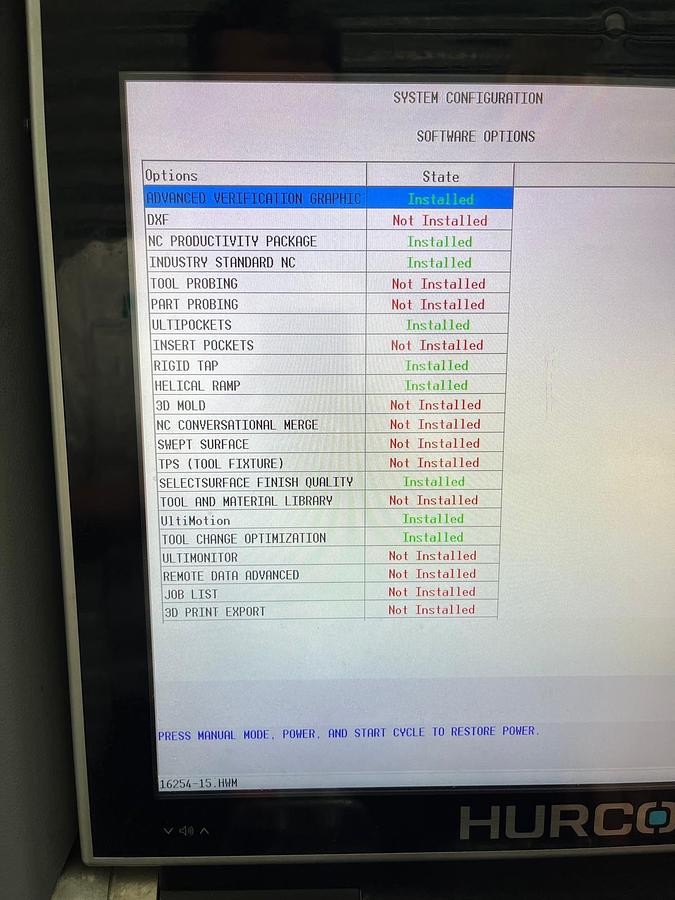

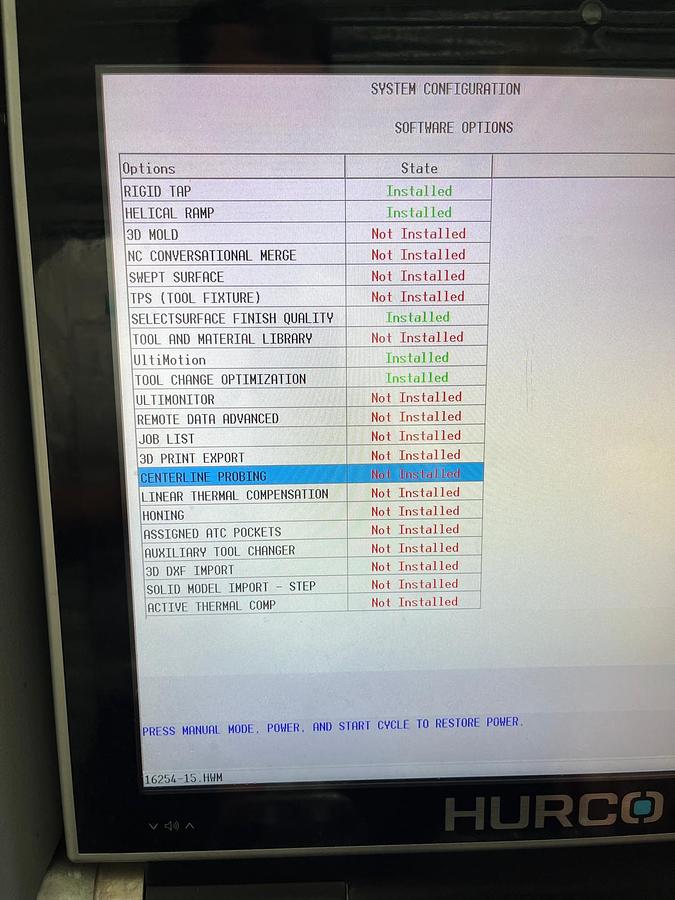

10,000 RPM spindle, 20 tool side mount ATC, swarf conveyor, DFX file reader,

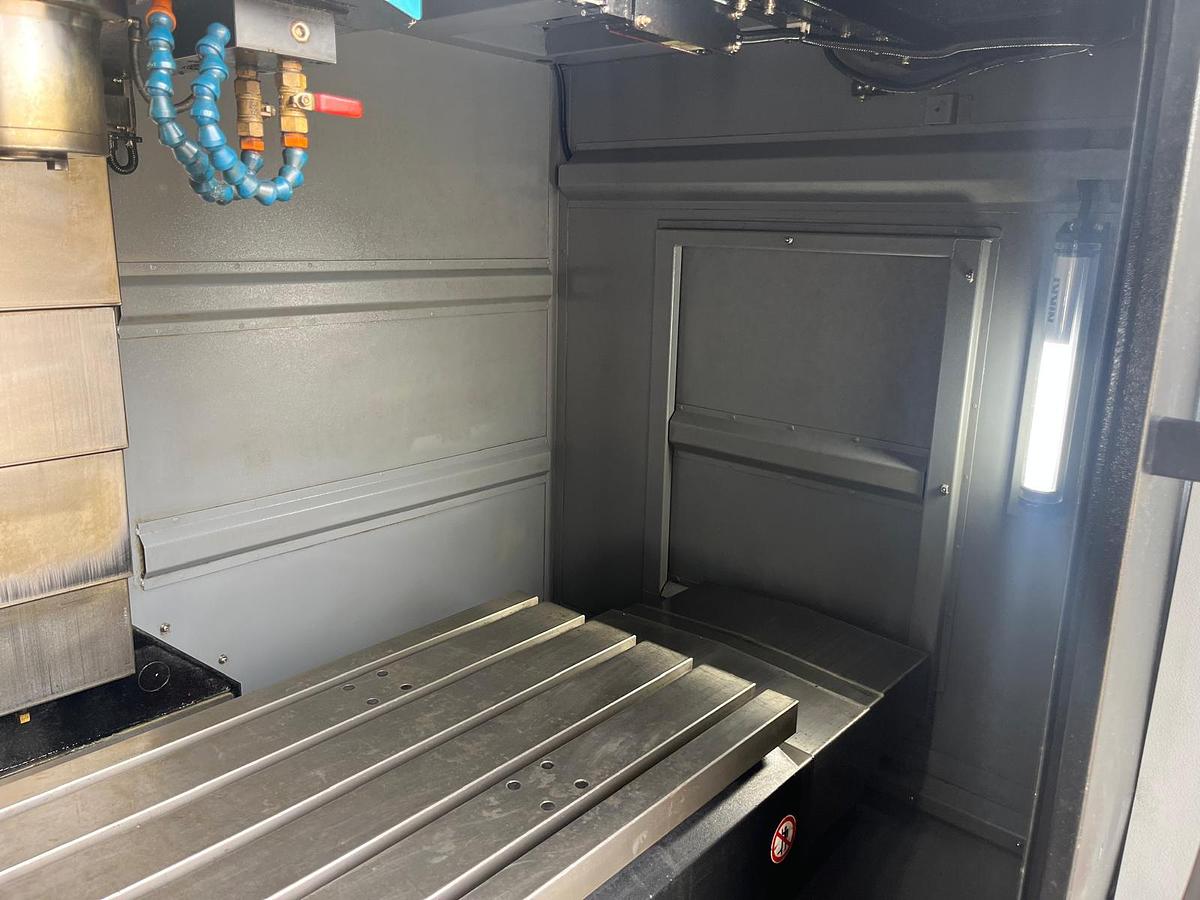

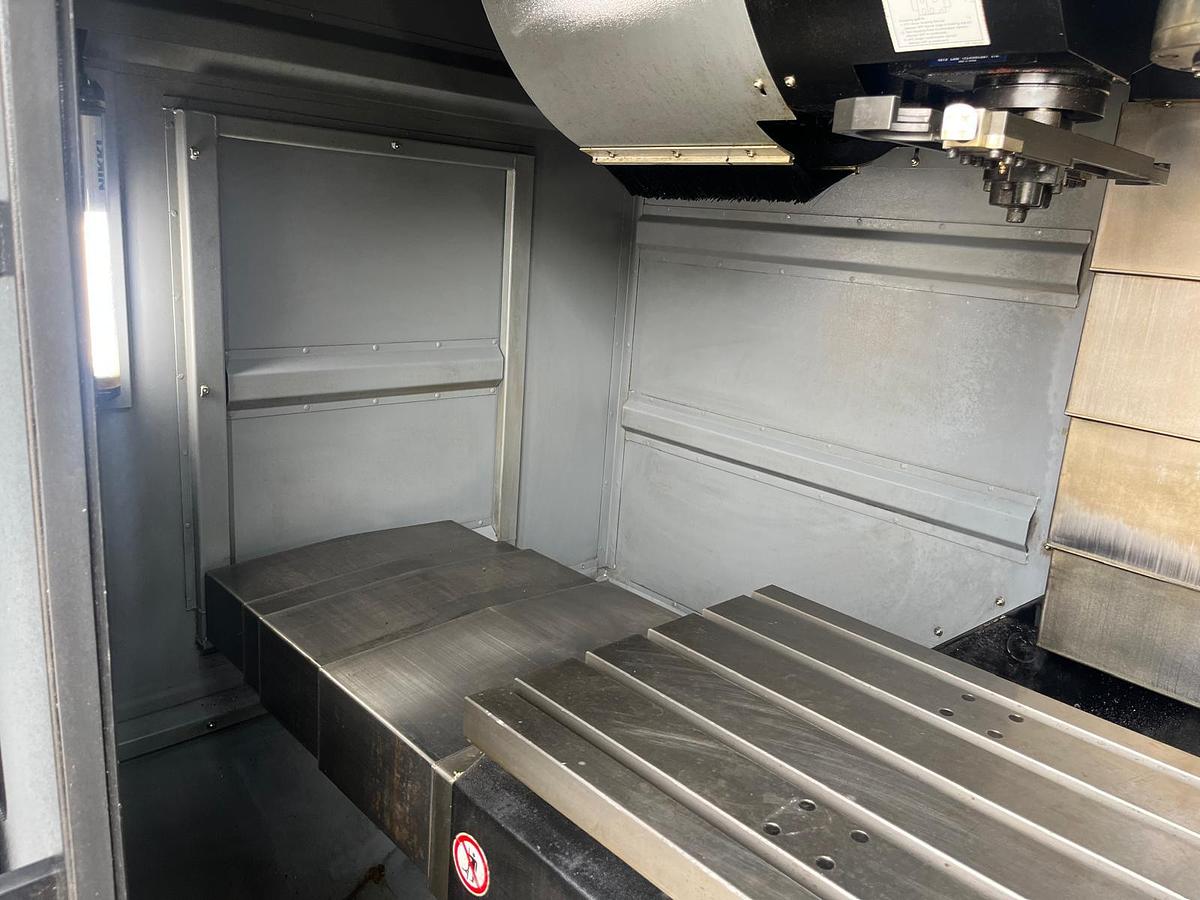

Table Specs:

X, Y, Z Axis Travel: 40 x 20 x 20 inches (1016 x 508 x 508 mm)

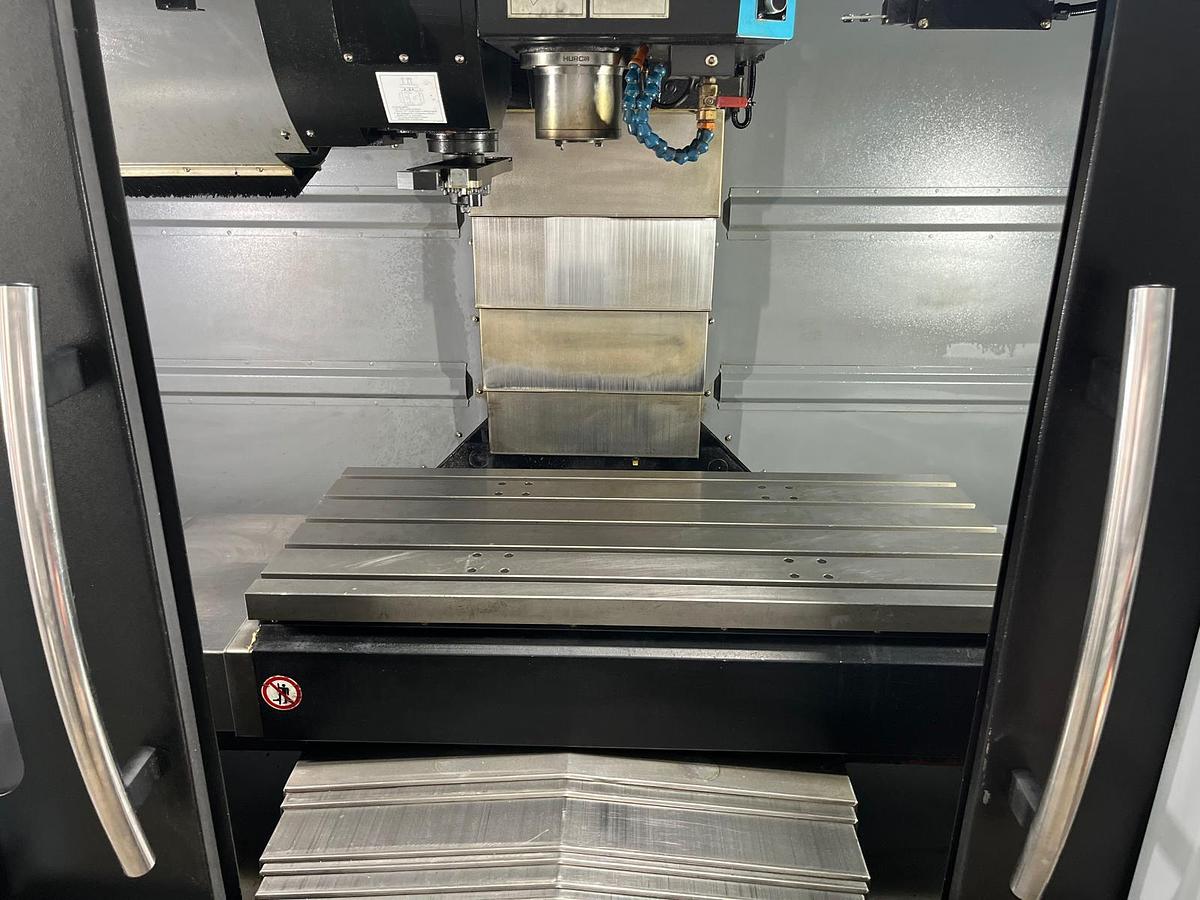

Table Size: 46 x 20 inches (1168 x 508 mm)

Max. Weight on Table: 3970 lbs (1800 kg)


Spindle Nose to Table Min/Max: 4.0 / 24 inches (102 / 610 mm)

T-Slot Size: 5 x 0.71 inches (5 x 18 mm)


Spindle:

Max. Spindle Speed: 10,000 rpm

Spindle Power (peak - 1 min): 20 hp (15.0 kW)

Spindle Torque (peak - 1 min): 75 ft-lbs @ 1450 rpm (102 Nm @ 1450 rpm)

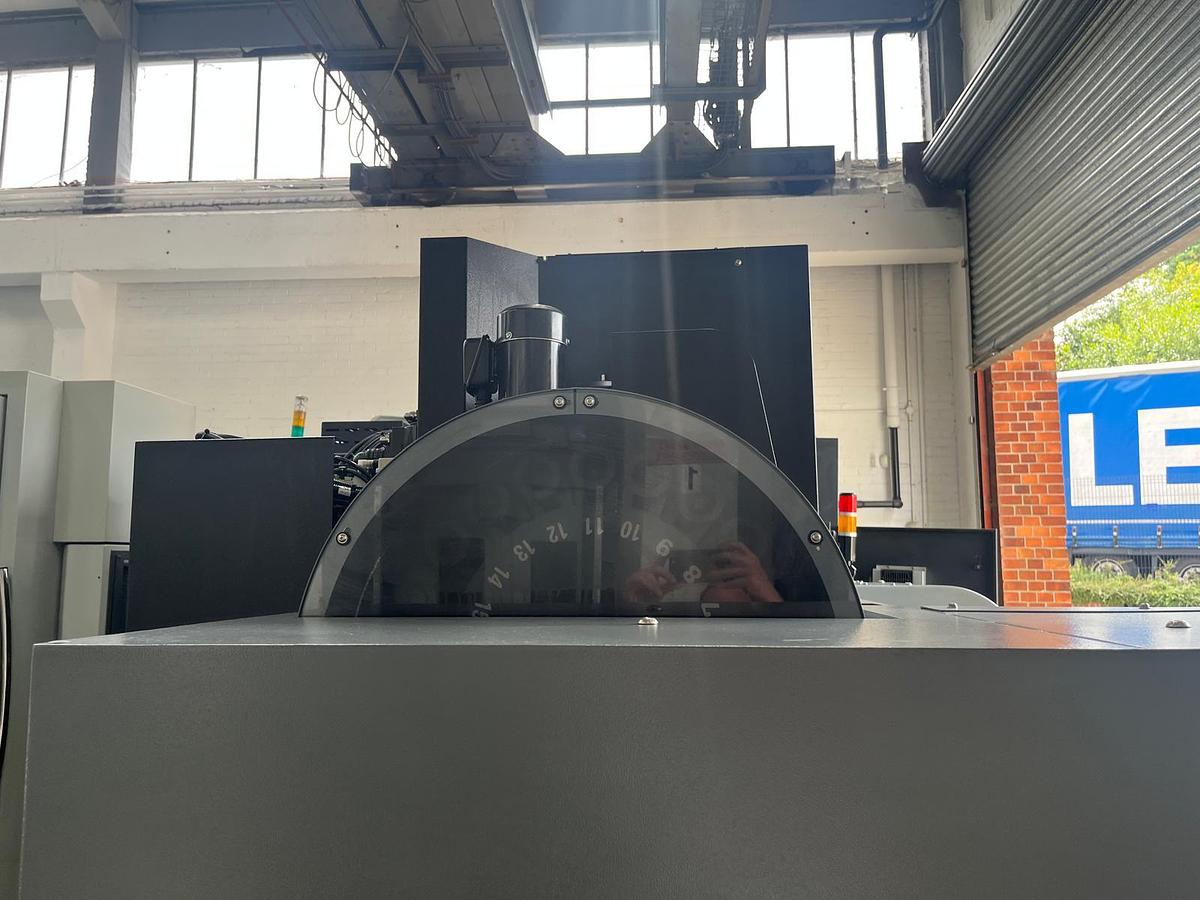

Tool Changer:

Tool Type: CAT 40 / Big Plus®

Number of Tools: 20

Max Tool Diameter: 3.1 inches (80 mm)

Max Tool Length: 9.8 inches (250 mm)

Max Tool Weight: 15.4 lbs (7 kg)


Feedrates:

Rapid Traverse X, Y, Z Axis:

1102 inches/min (28 m/minute)

Max Programmable Feedrate: 1102 inches/minute (25.5 m/minute)


Size:

Max Operating Floor Space:

145.8 x 118.4 inches (3703 x 3007 mm)

Machine Height: 101.5 inches (2576 mm)

Machine Weight: 9,039 lbs (4100 kg)

Specifications

ManufacturerHurco
ModelVM20i
Year2020
ConditionUsed
Serial NumberS202300220FKAAH
Stock NumberMTSO cmj/0217
