2014 XYZ XL 730 x 1m

2014 XYZ XL 730 x 1m

Description

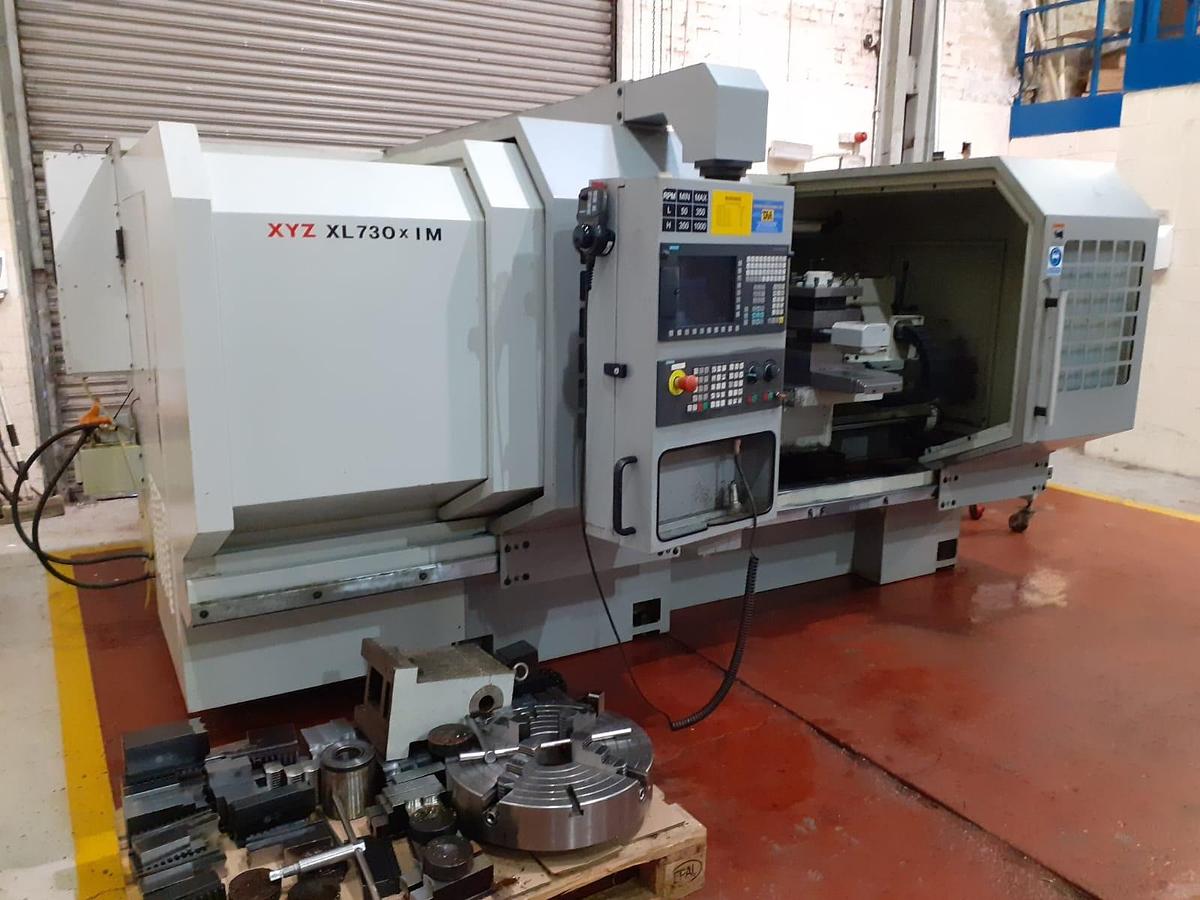

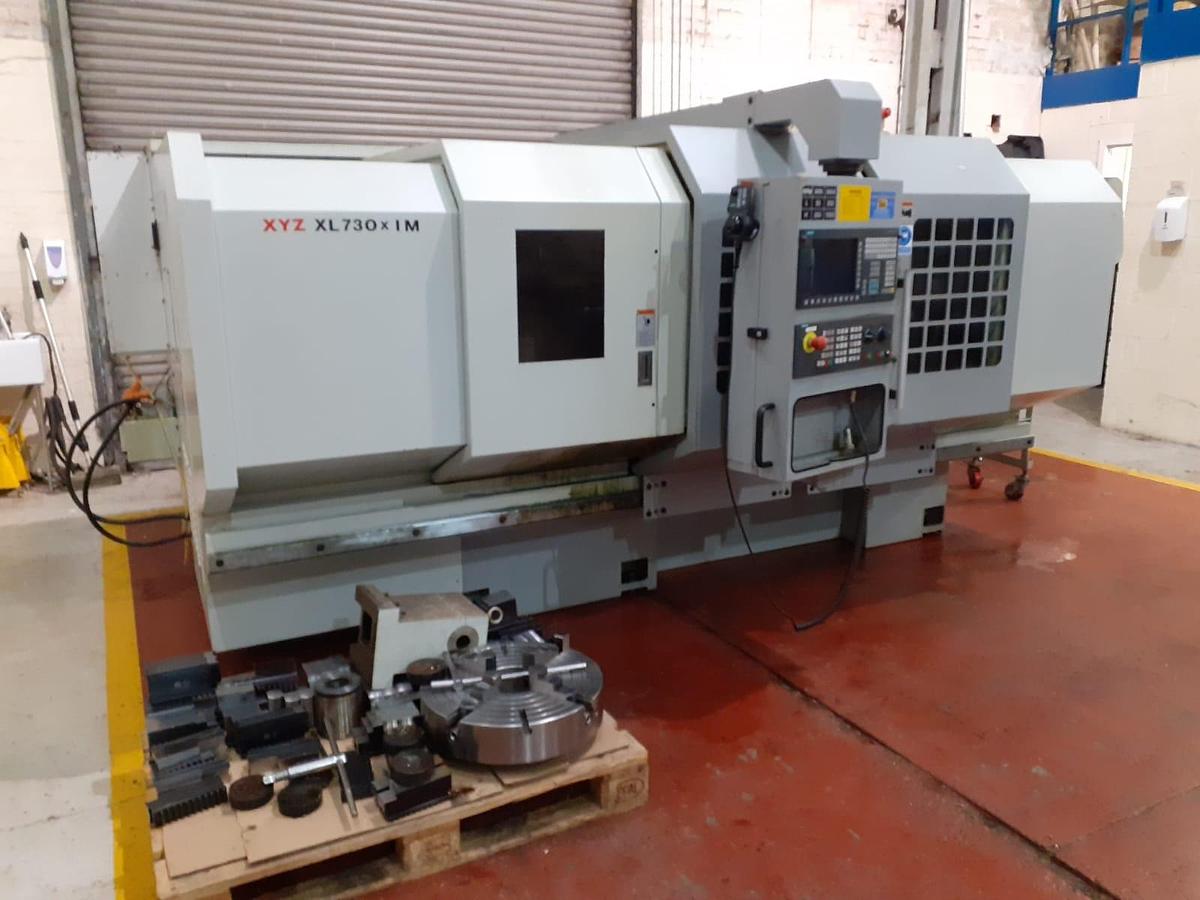

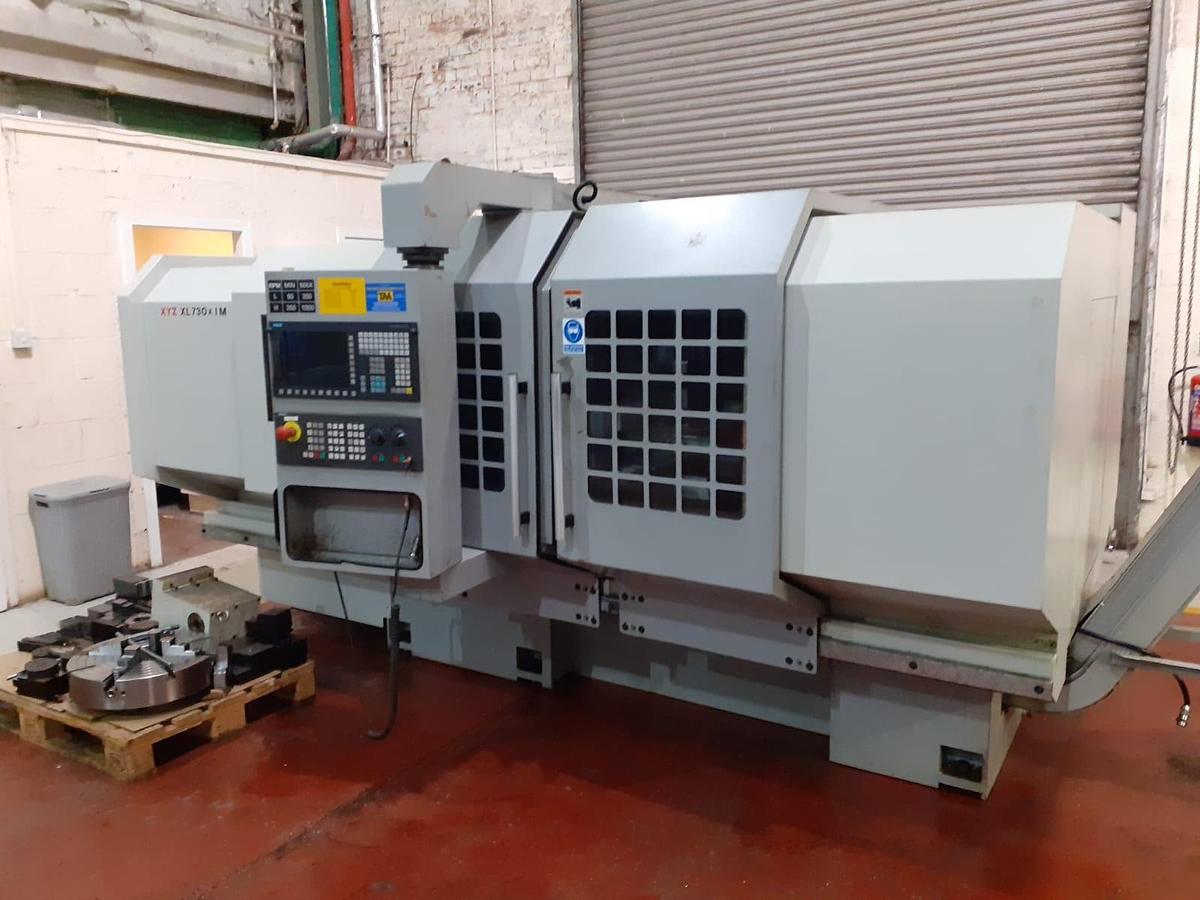

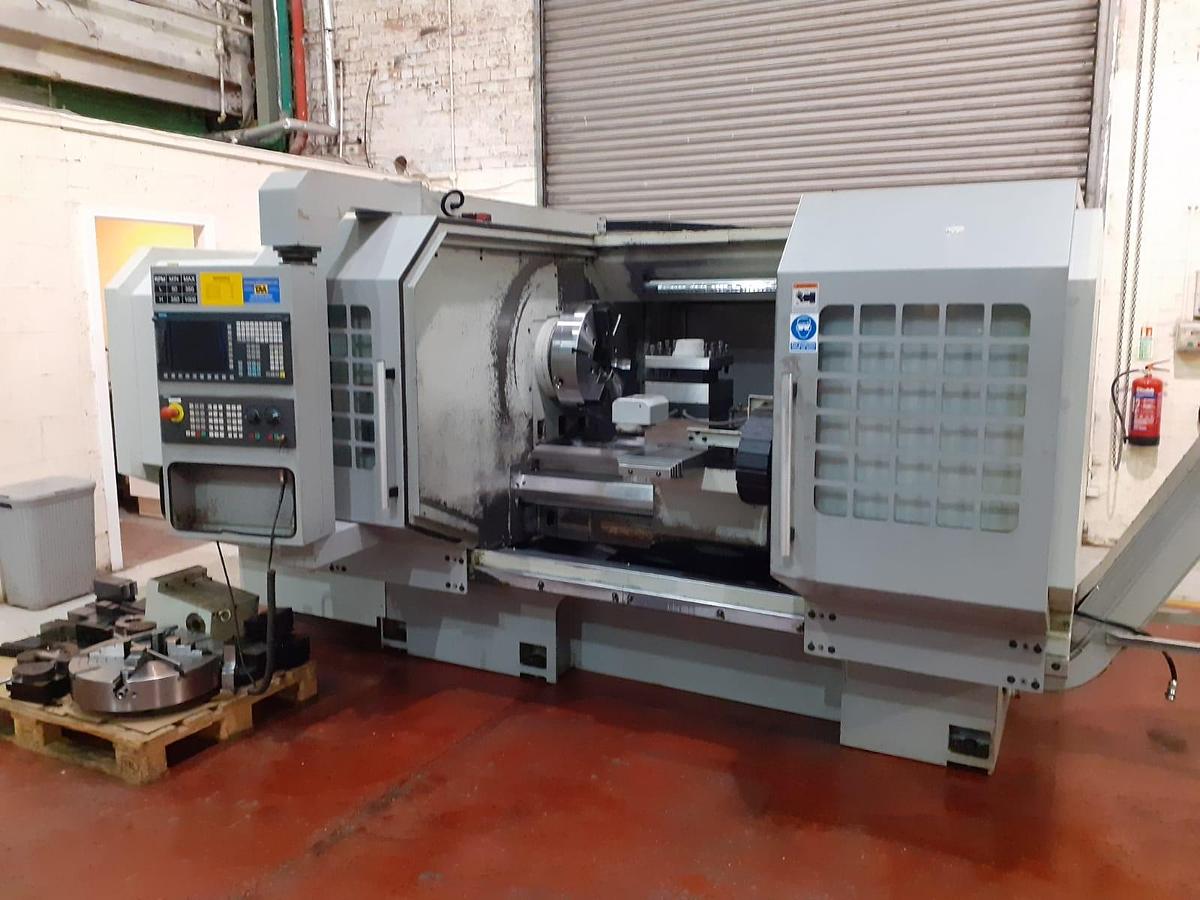

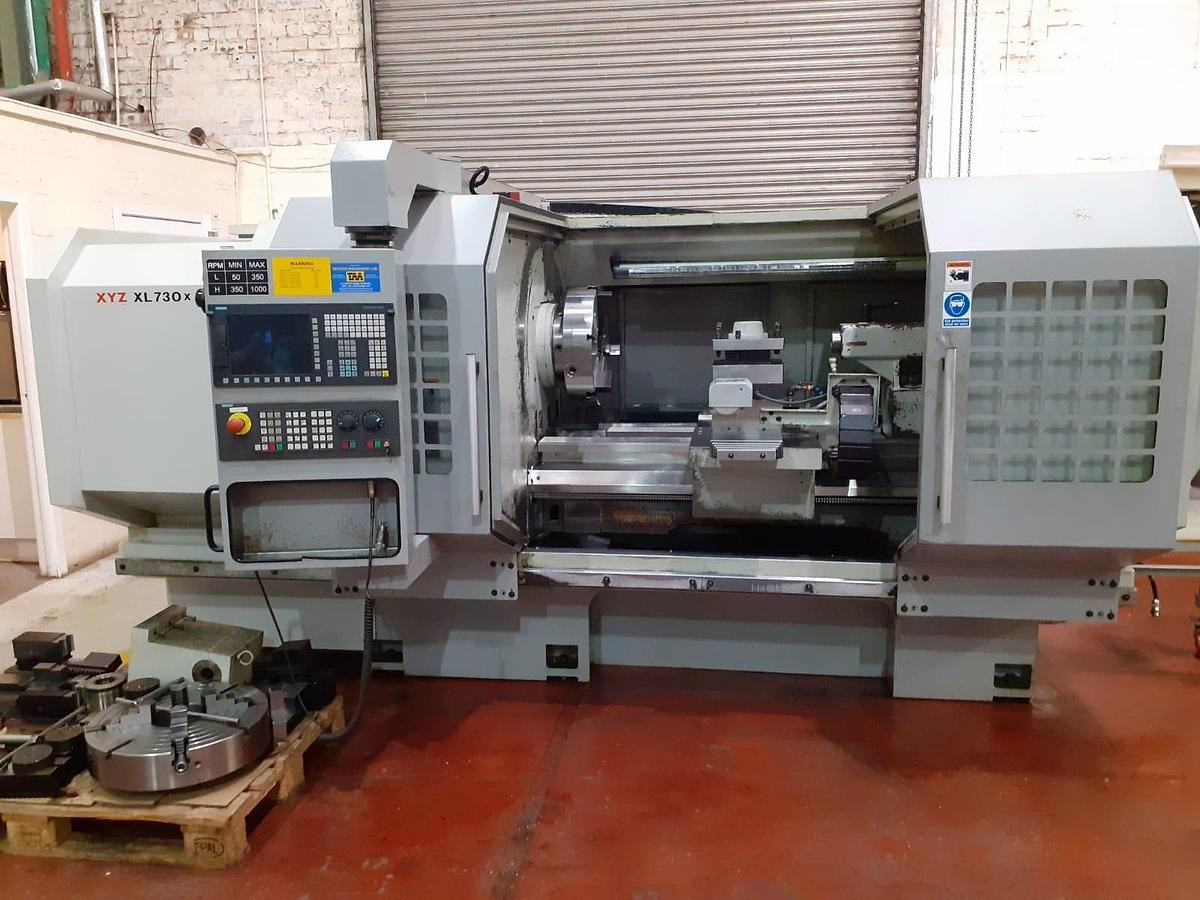

2014 XYZ XL 730 x 1000 CNC lathe with Siemens Sinumerik 828D control. A robust machine with large swing and spindle bore, suitable for a wide range of turning operations. Supplied with 3-jaw chuck, 4-jaw chuck, 4-way indexing toolpost, and swarf conveyor.


CONTROL

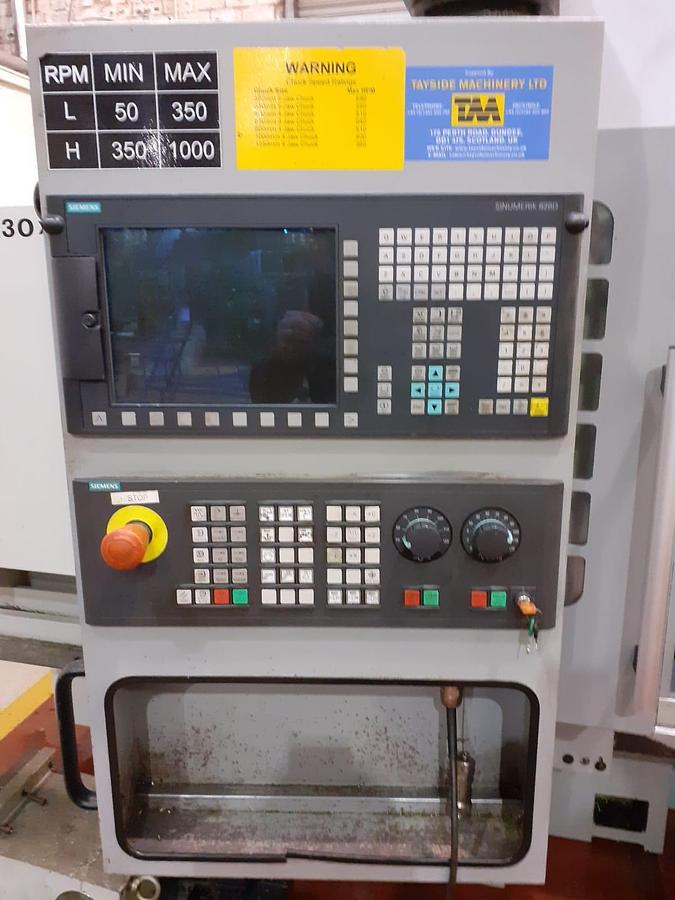

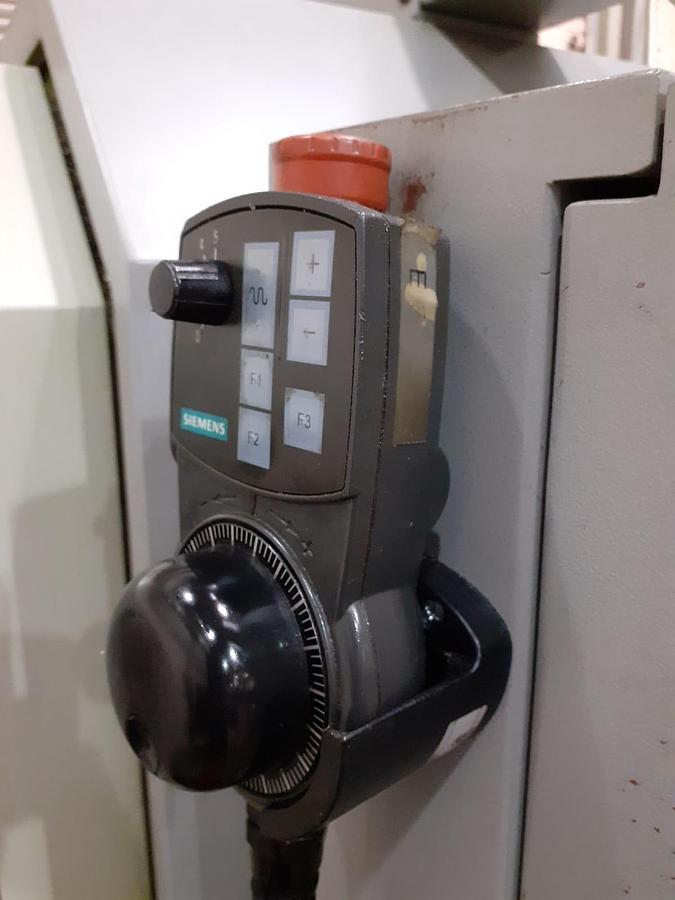

Siemens Sinumerik 828 D CNC Control

Full CNC operation


CAPACITY

Swing Over Bed: 730mm

Swing Over Cross Slide: 510mm

Distance Between Centres: 1000mm

Cross Travel (X Axis): 360mm

Longitudinal Travel (Z Axis): 1000mm


MAIN SPINDLE

Spindle Speeds: 50–1000 RPM

Spindle Bore: 130mm

Spindle Motor: 20 HP

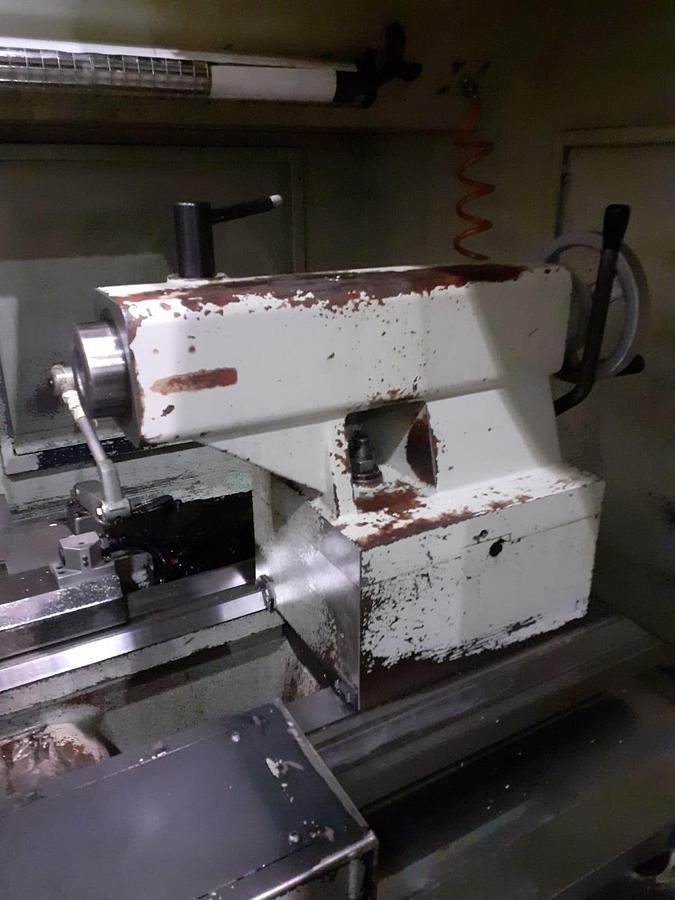

TAILSTOCK

Tailstock included: Yes

Tailstock Taper: MT5


ACCESSORIES

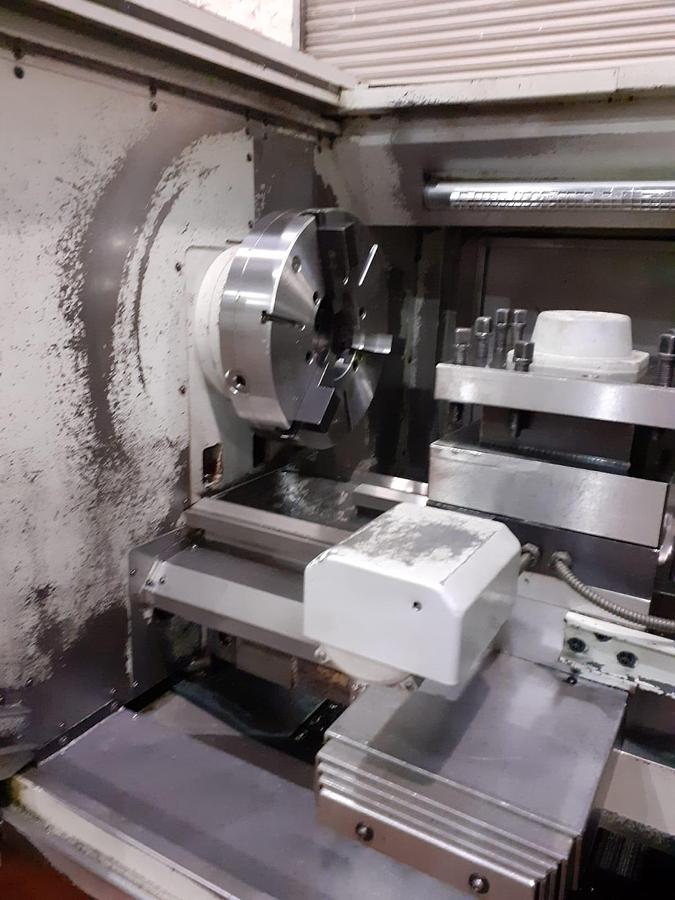

3-Jaw Chuck

4-Jaw Chuck

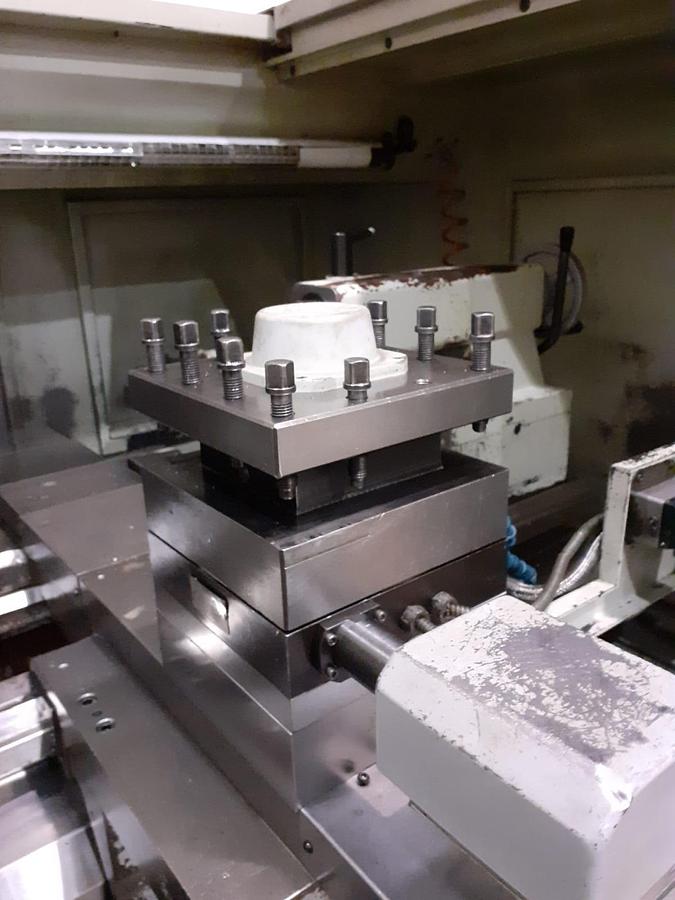

4-Way Indexing Toolpost

Swarf Conveyor


MACHINE SIZE

Machine Weight: Not specified

Dimensions: Not specified

Power Consumption: Not specified

Specifications

ManufacturerXYZ
ModelXL 730 x 1m
Year2014
ConditionUsed

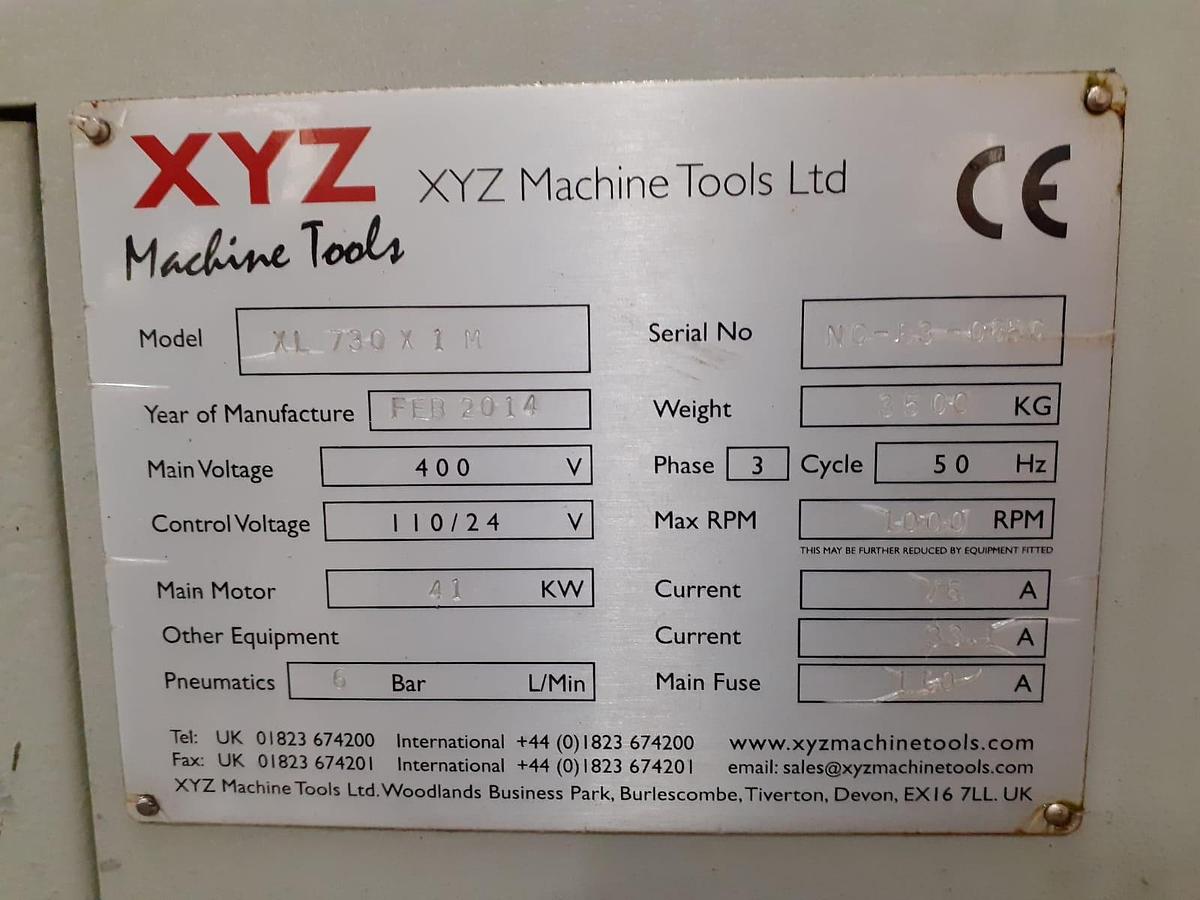

Serial NumberNC-B3-0650
Stock Numberclu/0394
ControlSiemens Sinumerik 828D
SpecSpindle bore 130 mm | Max Swing 730 mm | Travel X 360 Z 1000 mm
Accessories 3-Jaw Chuck, 4-Jaw Chuck, 4-Way Indexing Toolpost, Swarf Conveyor
