2016 Doosan Lynx 300

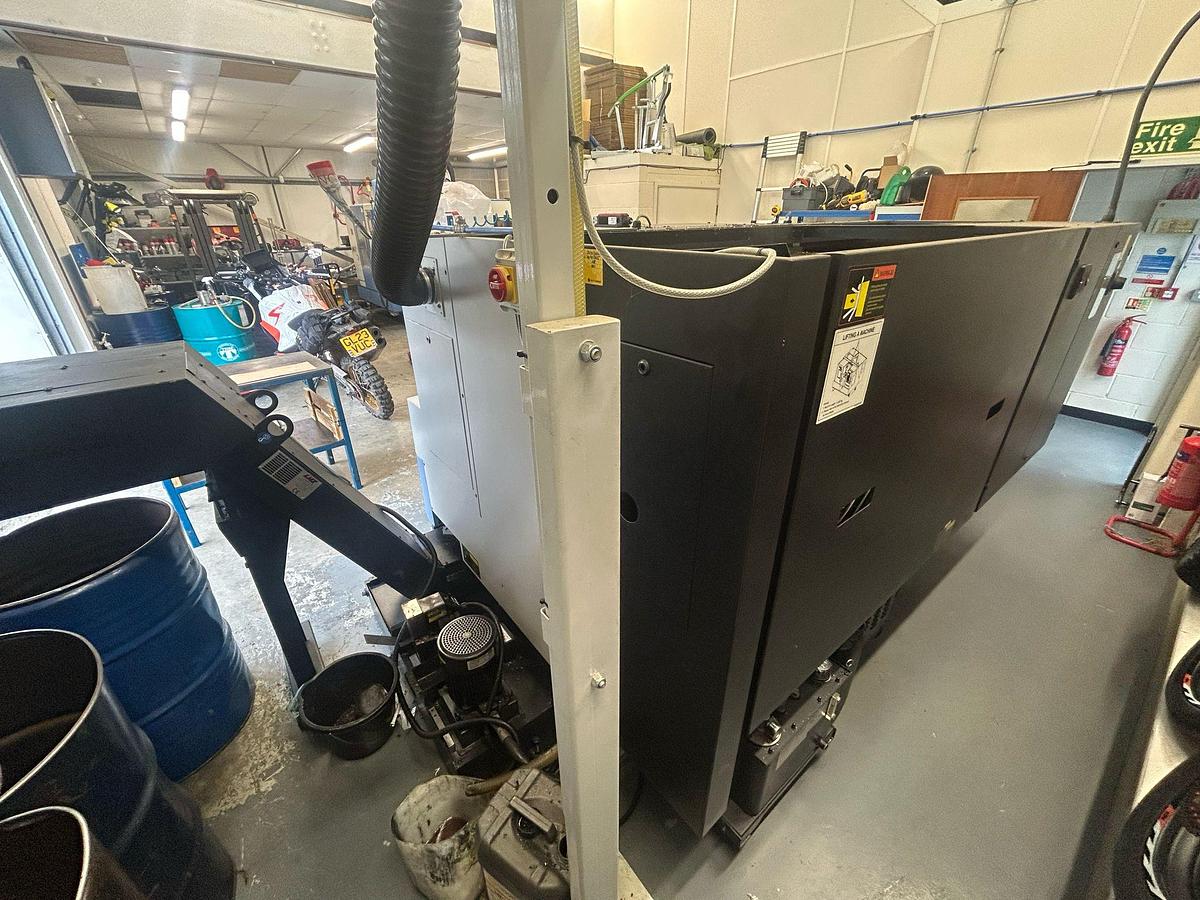

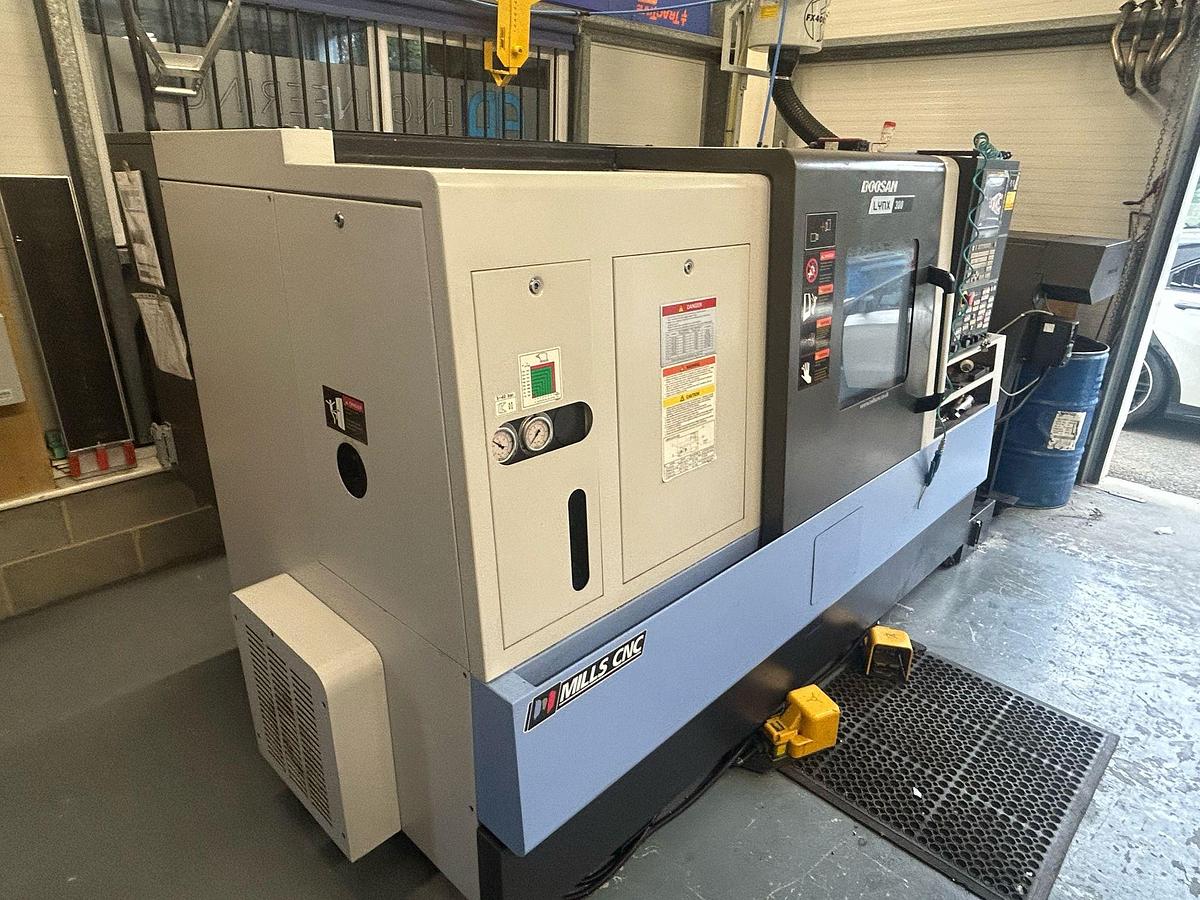

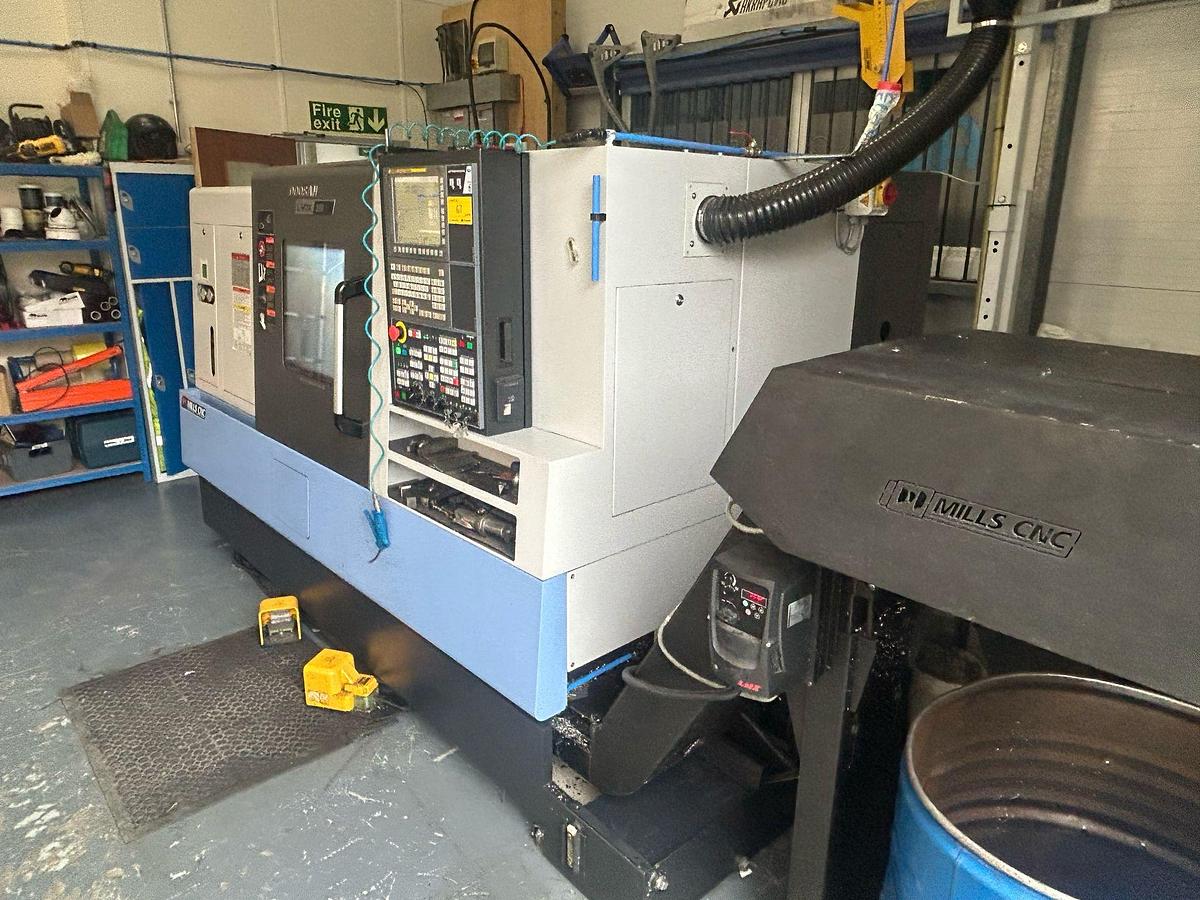

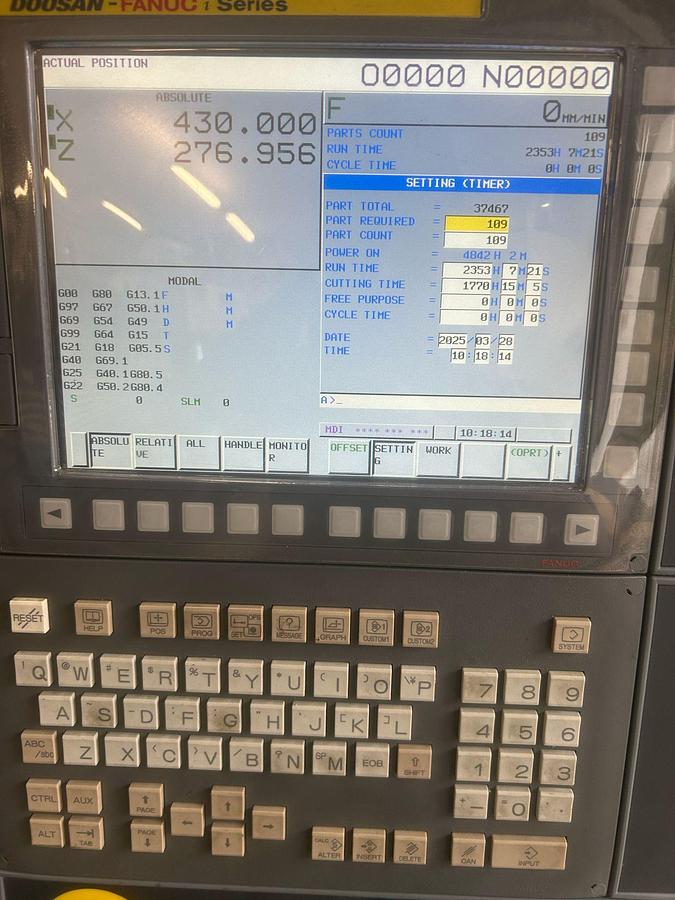

Used 2016 Doosan Lynx 300 CNC Lathe with Swarf Conveyor, Parts catcher, tool setter, Mist extractor and 3 Jaw power chuck. In super condition with only 2353 spindle hours.

Machine Specification:

CAPACITY

Swing Over Bed: 651 mm

Swing Over Cross Slide: 461 mm

Max Cutting Diameter: 450 mm

Max Cutting Length: 765 mm

Bar Capacity: 76 mm

Chuck Diameter: 254 mm

SPINDLE

Max Spindle Speed: 3,500 rpm

Spindle Nose: A2-8

Spindle Bore Diameter: 86 mm

Spindle Motor Power: 15 / 11 kW

FEED AXES

X Axis Travel: 255 mm

Z Axis Travel: 790 mm

Rapid Traverse (X Axis): 24 m/min

Rapid Traverse (Z Axis): 30 m/min

TAILSTOCK

Quill Diameter: 80 mm

Quill Stroke: 120 mm

Quill Taper: MT#4

CONTROL

CNC System: Fanuc i-Series

SIZE

Machine Dimensions (L x W x H): 3,991 mm x 1,785 mm x 1,715 mm

Approximate Machine Weight: 4,000 kg

For more information or to schedule a viewing, please contact us.
