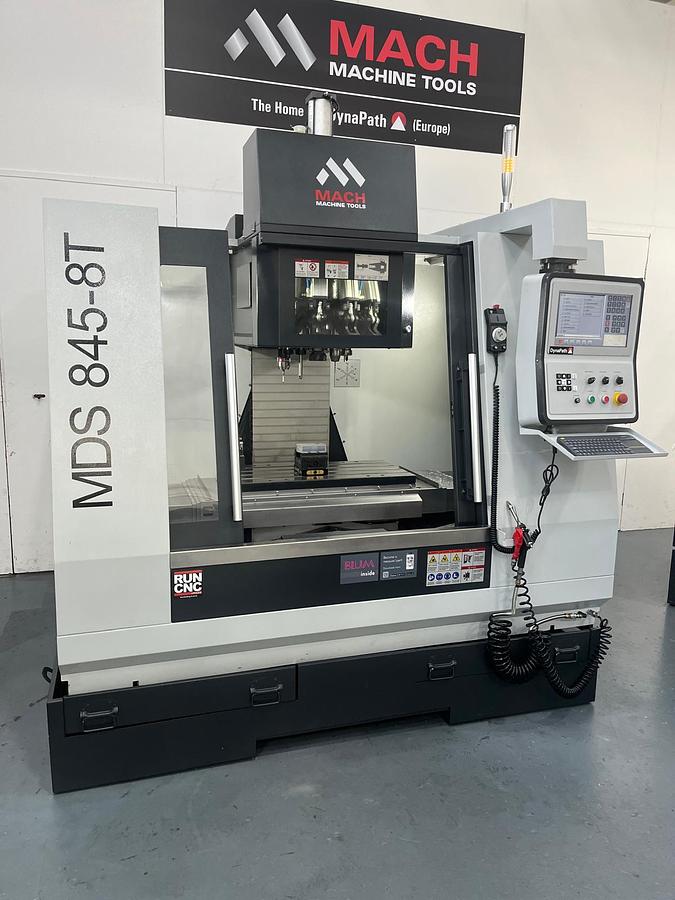

2023 MACH MDS 845-8T

Here’s the very 1st used MACH 845-8T Toolroom VMC to appear on the used market!

This 2022 built, highly spec’d and immaculate example is equipped with DynaPath’s Windelta touch screen control has just arrived in our Bristol Showroom and is now available for sale...it’s in super condition, has an 8,000RPM spindle, 8Gb memory, 10,000 blocks of look ahead and is Wi-Fi enabled for remote support from MACH & DynaPath..(that’s included on this used machine tool )

Taken from MACH Machine Tools marketing material, they say;

This small footprint, high build and component part quality toolroom VMC features MACH’s cleverly designed 8 position ATC that’s arrange around the 10,000 RPM spindle, for simple, efficient and quick tool changes. As with all MACH CNC machines, the MDS 845-8T is equipped with DynaPath’s feature packed Windelta control system, with touch screen user interface. The control is capable of accepting multiple programme formats via its inbuilt USB, Ethernet or wireless interfaces. It can be programmed Conversationally, via DXF, in ISO/EIA G-Code formats and has a DFX and DFX program editor in built, making the control capable of accepting and editing programmes in any machine format. As a standard feature its equipped with full Wi-Fi connectivity for remote factory support. It has a huge 8Gb of memory, 1000 blocks of look ahead, for high quality and fast 3D contouring, a solid-state hard drive, Yaskawa digital drives and servo motors and a Delta spindle drive that controls the 10,000 RPM Direct Drive spindle, all mounted in an air-conditioned electrical cabinet. Specified way beyond its price point and backed up by the now legendary, MACH-DynaPath’s worldwide Wi-Fi remote support and team of dedicated engineers.

Specification:

Travels: X/Y/Z: 800 / 450 / 450 mm

Spindle Nose to Table: 90 ~ 537 mm

Centre of spindle to column: 435 mm

Spindle Taper: BT40

Spindle Max RPM: 8,000 RPM

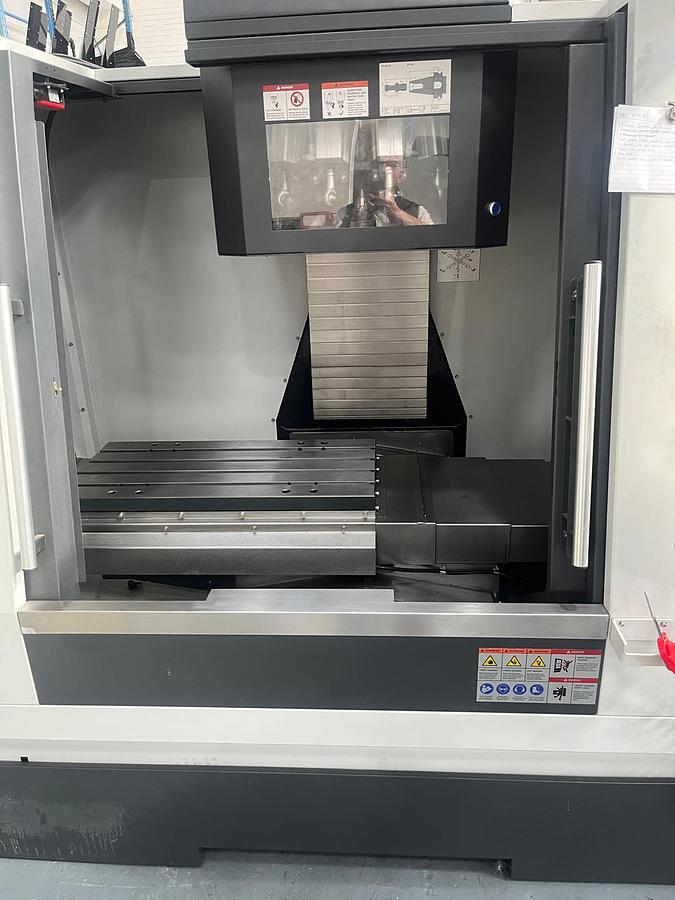

Table Size: 850 x 420 mm

T-Slots: 18 x 85 x 4off

Max Table Load: 220 kg

Max Rapid Rate: 20 m/min

Max Cutting Rate: 10 m/min

X/Y/Z Axis Type: Linear rail with roller bearings + Ball Screw

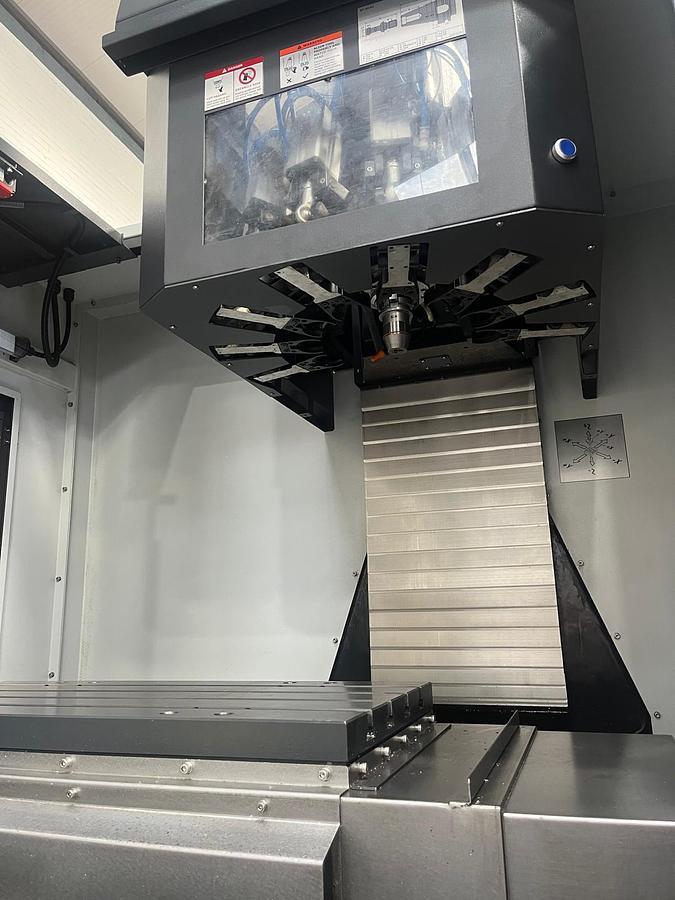

ATC Type: 8-Tool Independent Arm, arrange around the spindle

Max Tool Dia: 63 mm Ø

Max Tool Weight: 5 kg

Tool Change time: (Tool to Tool) : 2.8 sec

Spindle Motor: 5.5 kW (7 HP) / 35 Nm

X/Y/Z Servo motor rating: Yaskawa 0.85 / 0.85 / 1.3 kW

Positioning Accuracy: 0.005 um

Repeatability:  ±0.003 um

Power requirement: 15 Kva (supplied with 415V-220V 7kVA Transformer for UK)

Air requirement: 6 kg/cm3

Footprint: (LxWxH): 2200 x 2539 x 2304 mm

Weight: 3750 kg

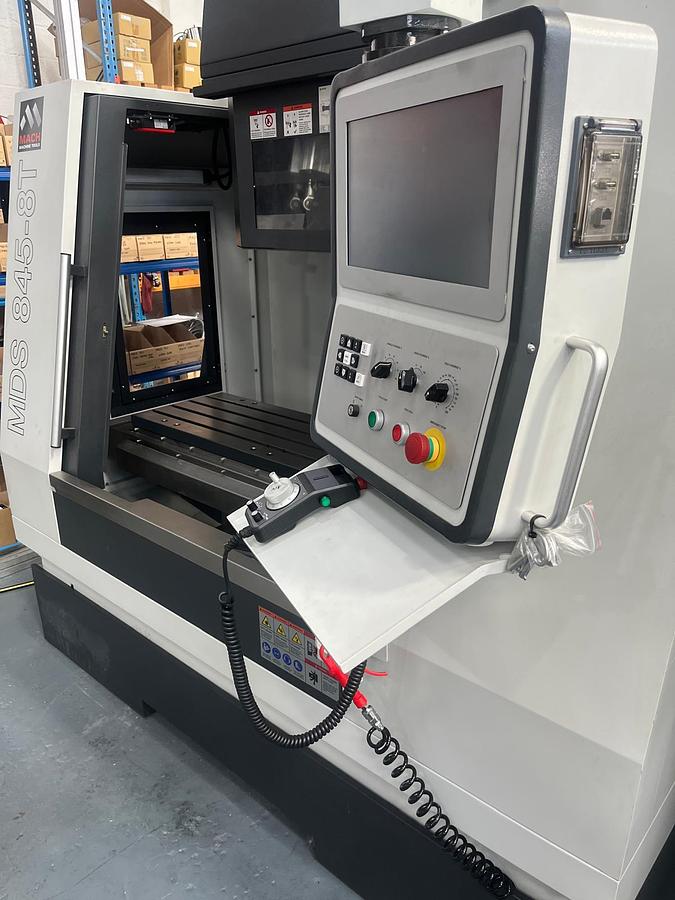

Control System: DynaPath WinDelta with 15" Touchscreen LCD D11 Console, MPG Handwheels, Conversational + DXF + ISO/EIA G-Code

UKAS & CE compliant safety modules, interlocks & certification.

415V to 220V 7kVA

Supplied with: UKCA/CE safety enclosure, interlocks and electrical equipment, 10,000 RPM BT40 spindle, set of 8 pull studs, through spindle coolant, bed wash, coolant/air gun, swarf augers, LED machine lighting, end of cycle light stack, electrical cabinet air conditioning, MPG, 8Gb of memory, DFX File reader with program editor, 1000 blocks look ahead, Wi-Fi remote support.
