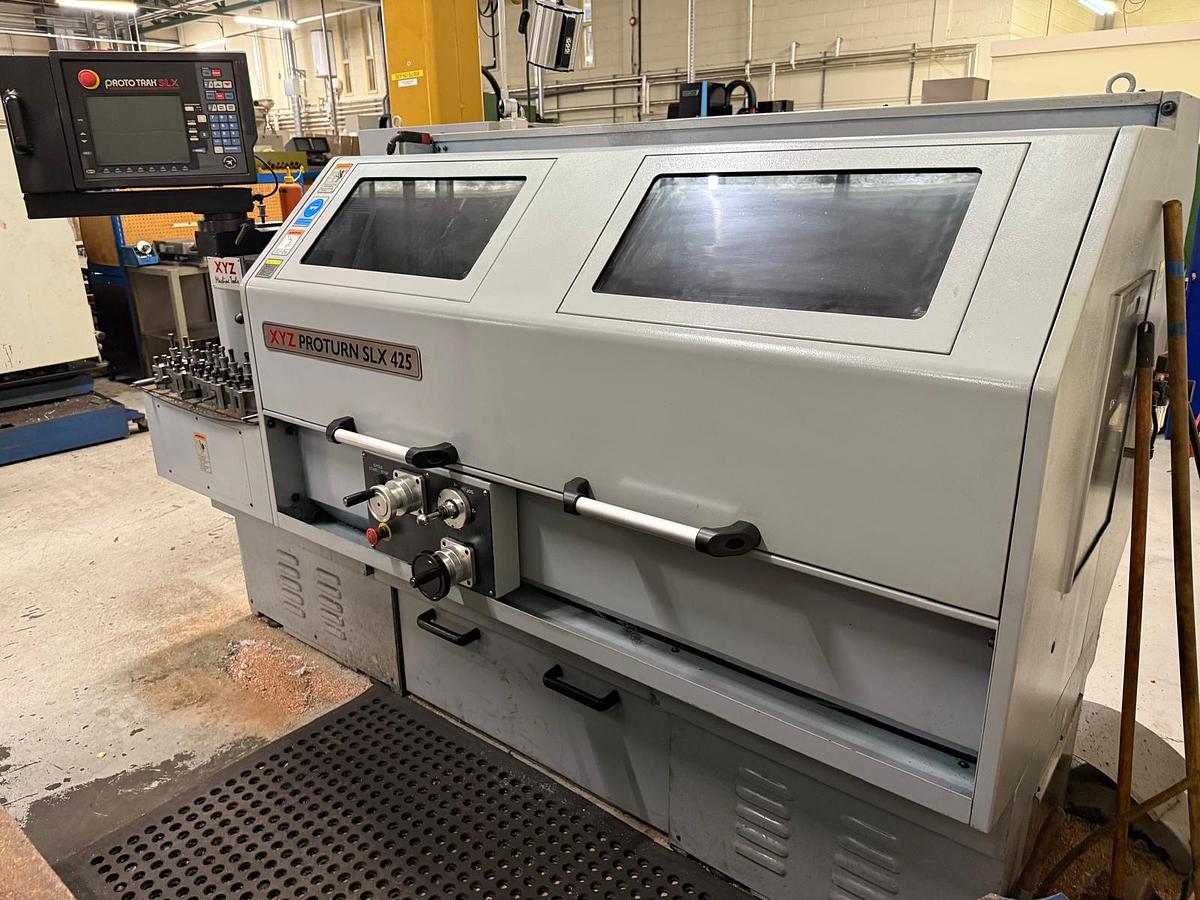

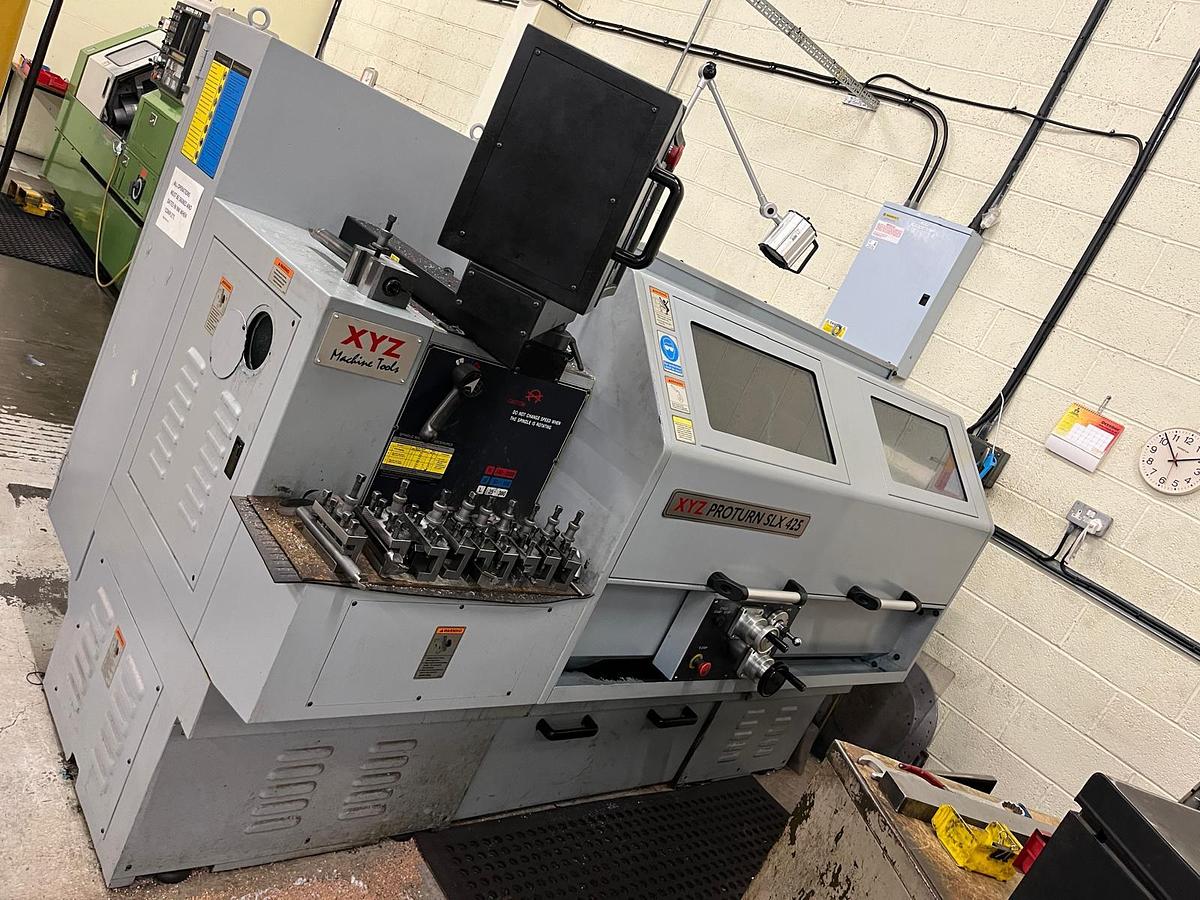

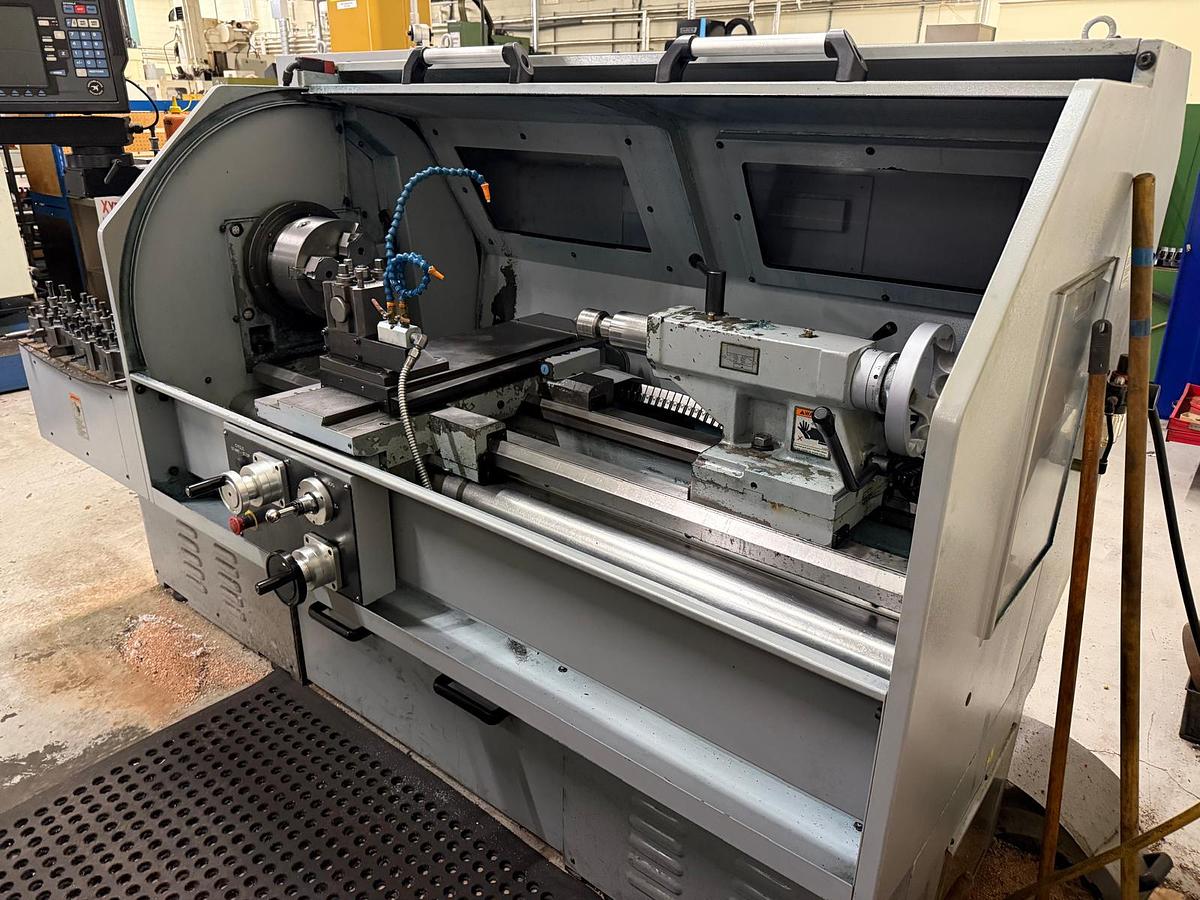

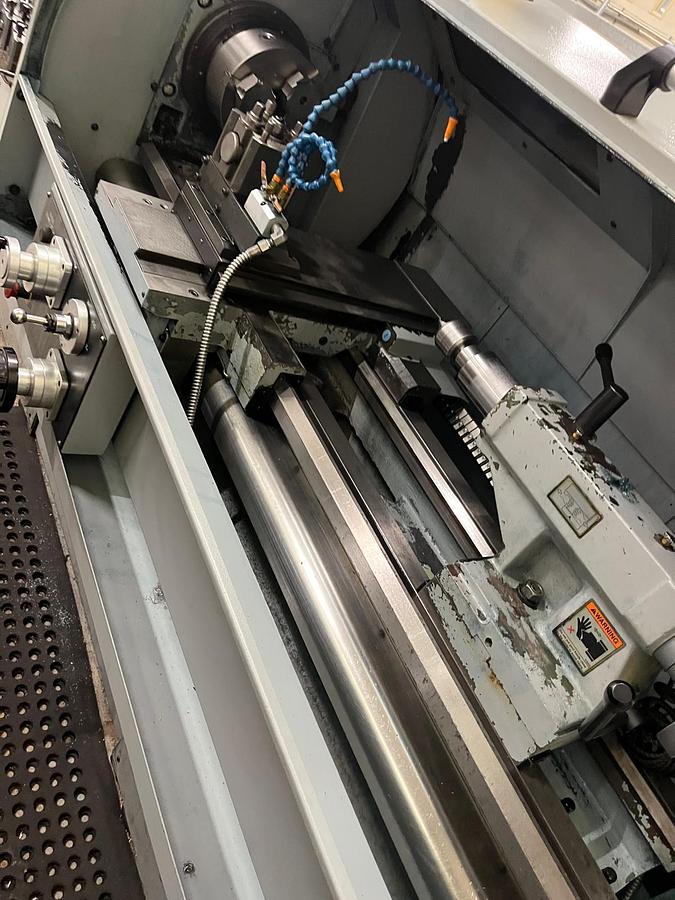

2013 XYZ SLX 425 x 1250

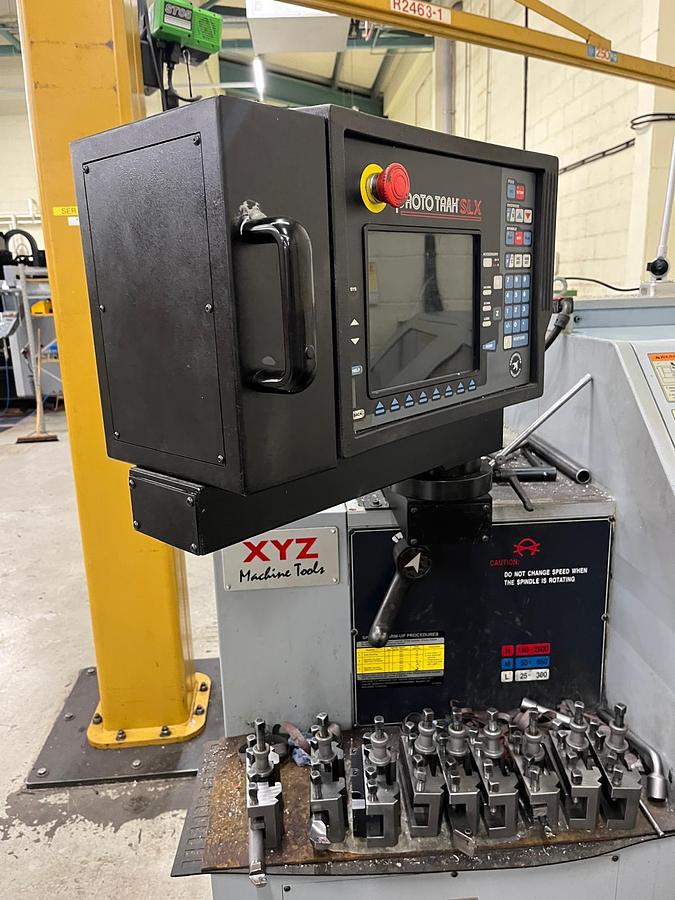

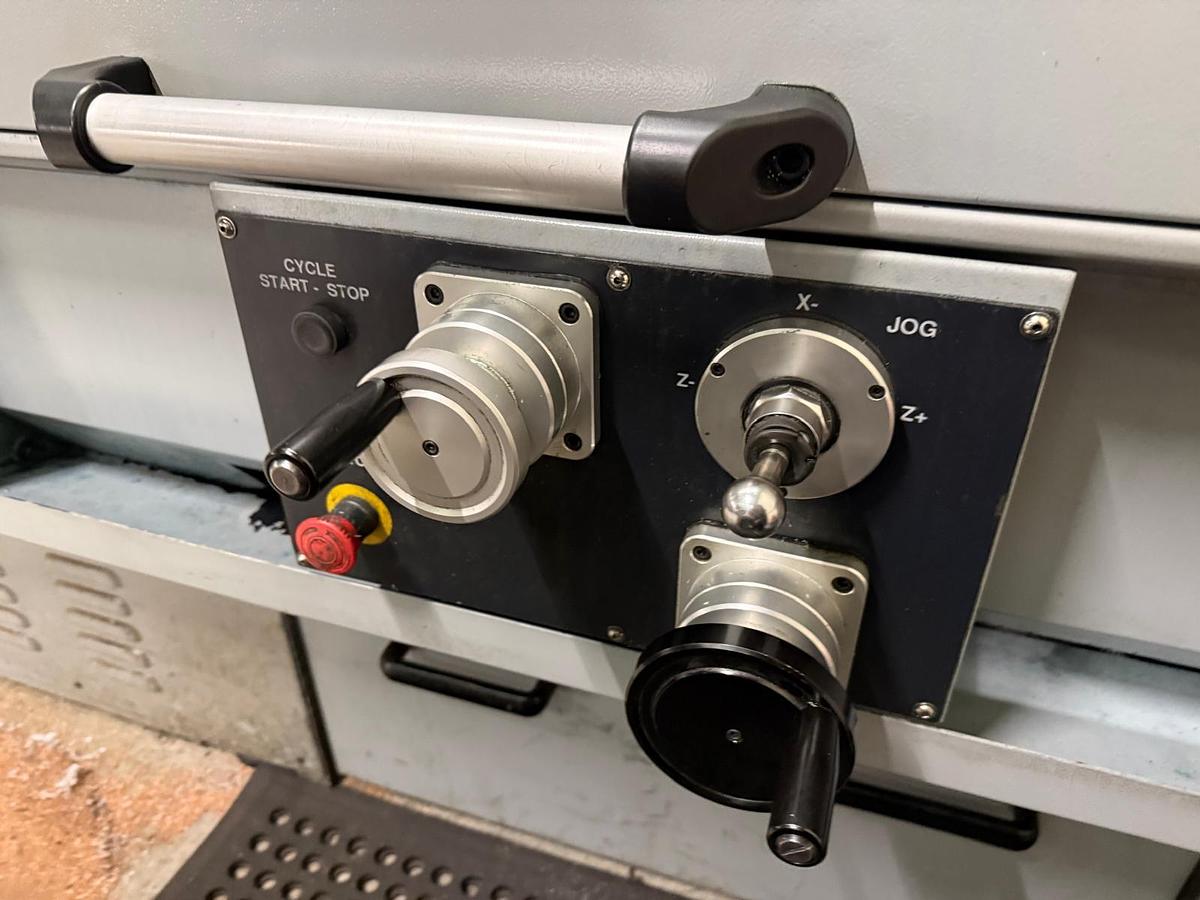

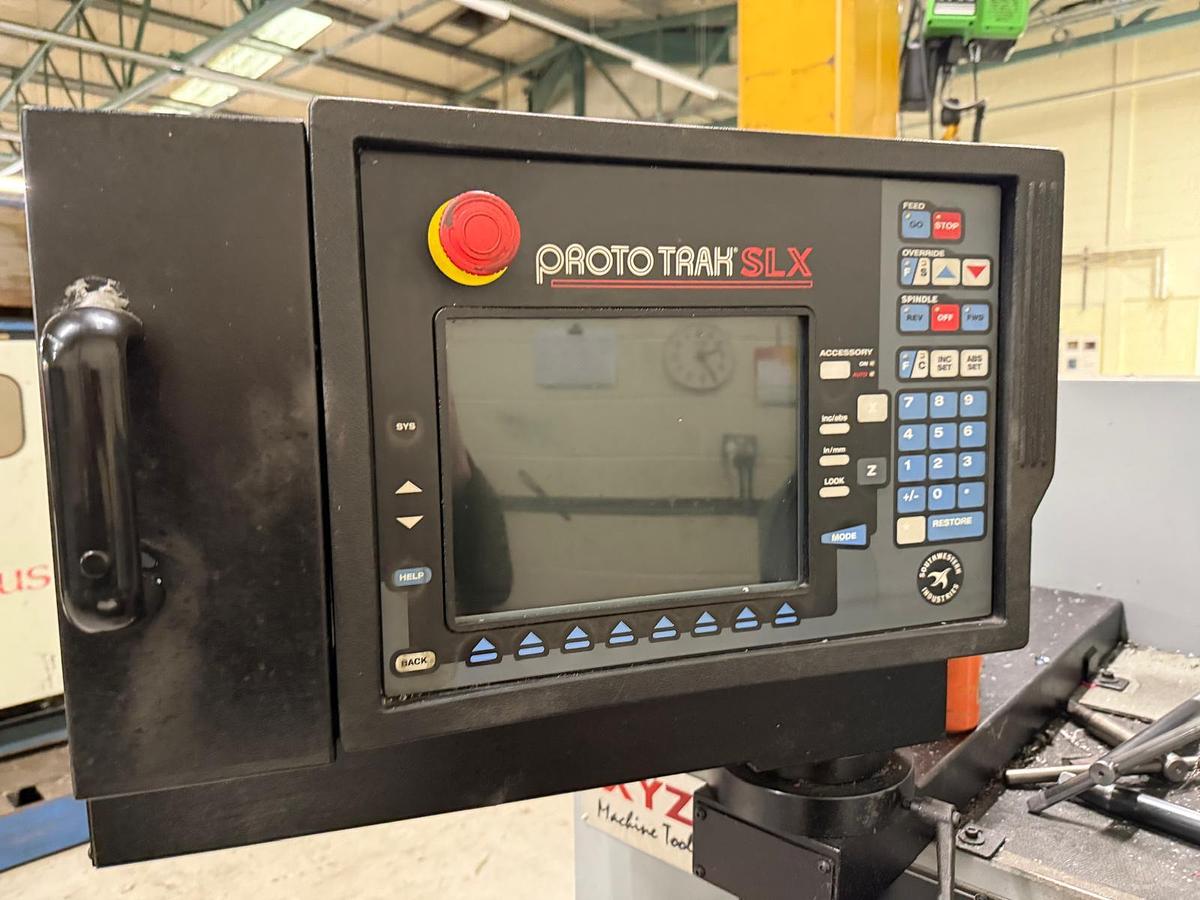

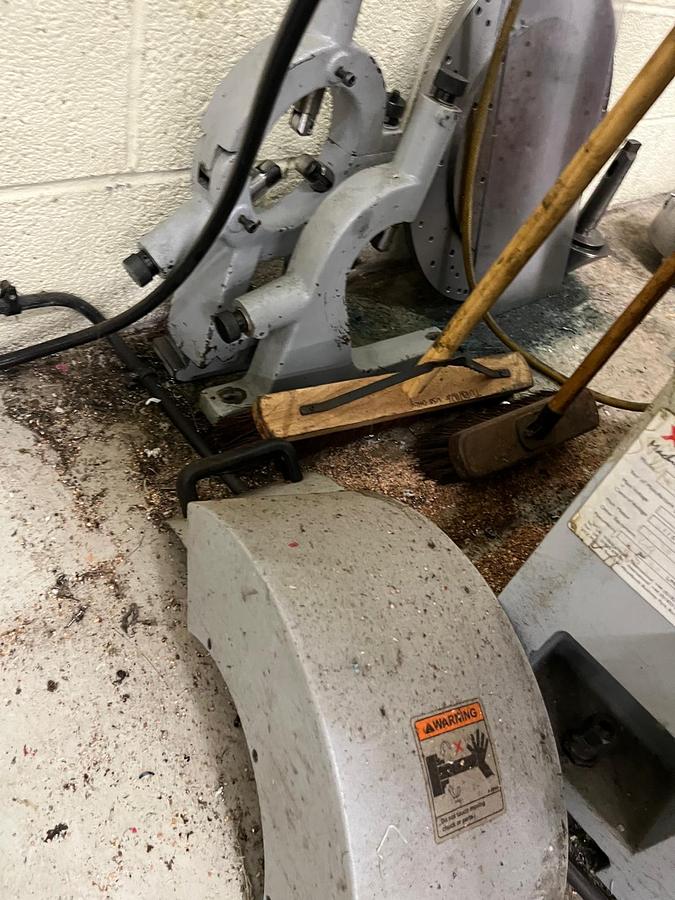

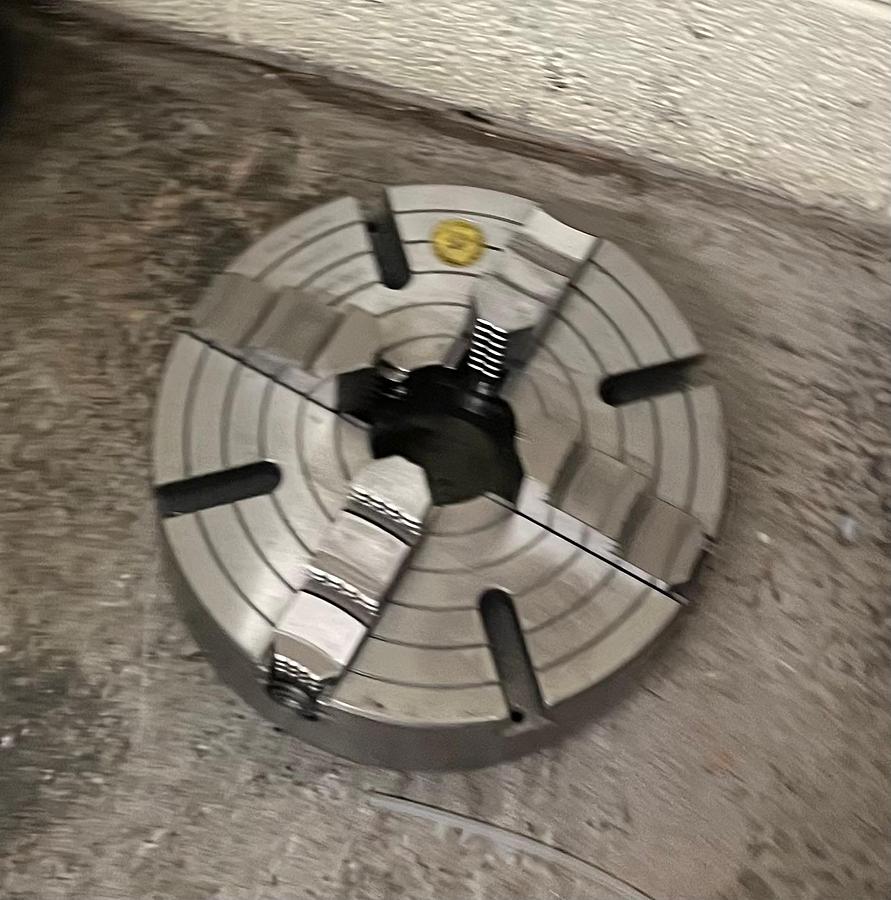

A very nice 2013 built XYZ Proturn SLX 425 x 1250 with SLX control, quick change tool post & holders, 3 & 4 jaw chucks, travelling and fixed steadies, electronic handwheels, air rise tailstock and coolant equipment

Swing over bed 480 mm

Swing in Gap 700 mm

Gap in front of faceplate 175 mm

Swing over cross slides 257 mm

Cross Slide Travel 230 mm

Distance between centres 1250 mm

Maximum Cutting Length 1080 mm

Spindle bore 80 mm

Spindle nose D 1-8 camlock

Spindle taper MT7 in bush

Spindle motor 7.5 Kw (10hp)

Spindle speeds 25-2500 rpm - 3 ranges

Tailstock Travel 160 mm

Tailstock taper MT5

Tailstock diameter 75 mm

Bed Width 370 mm

Footprint L x D x H 2600 x 1250 x 1750 mm
