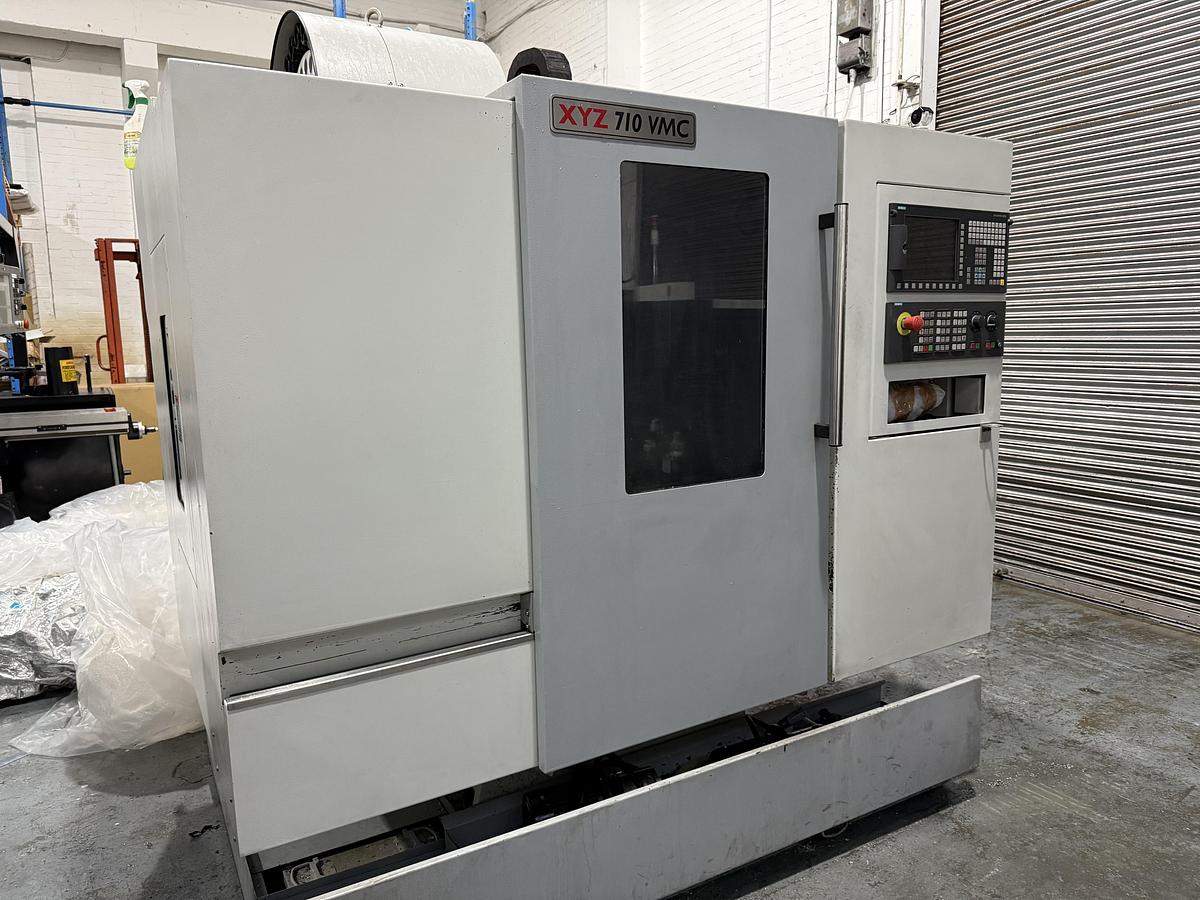

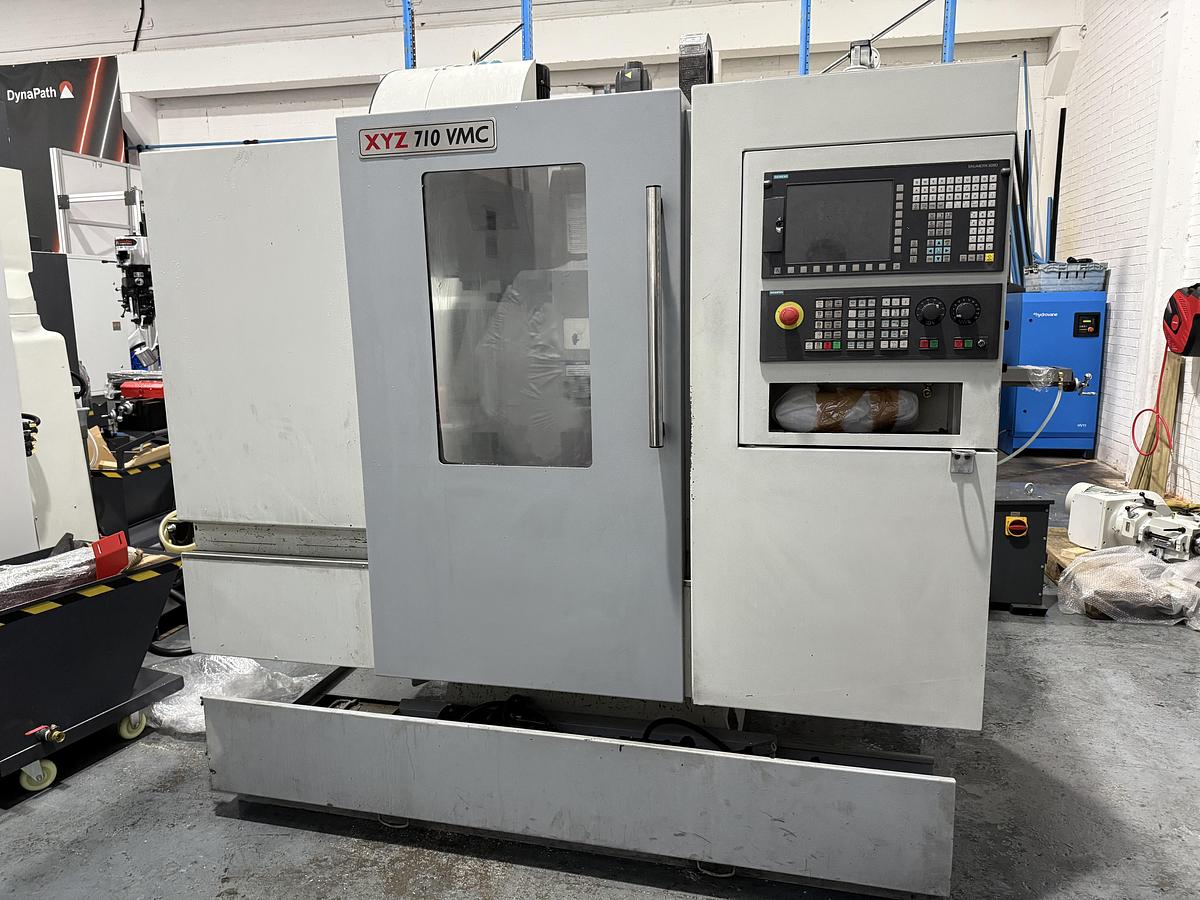

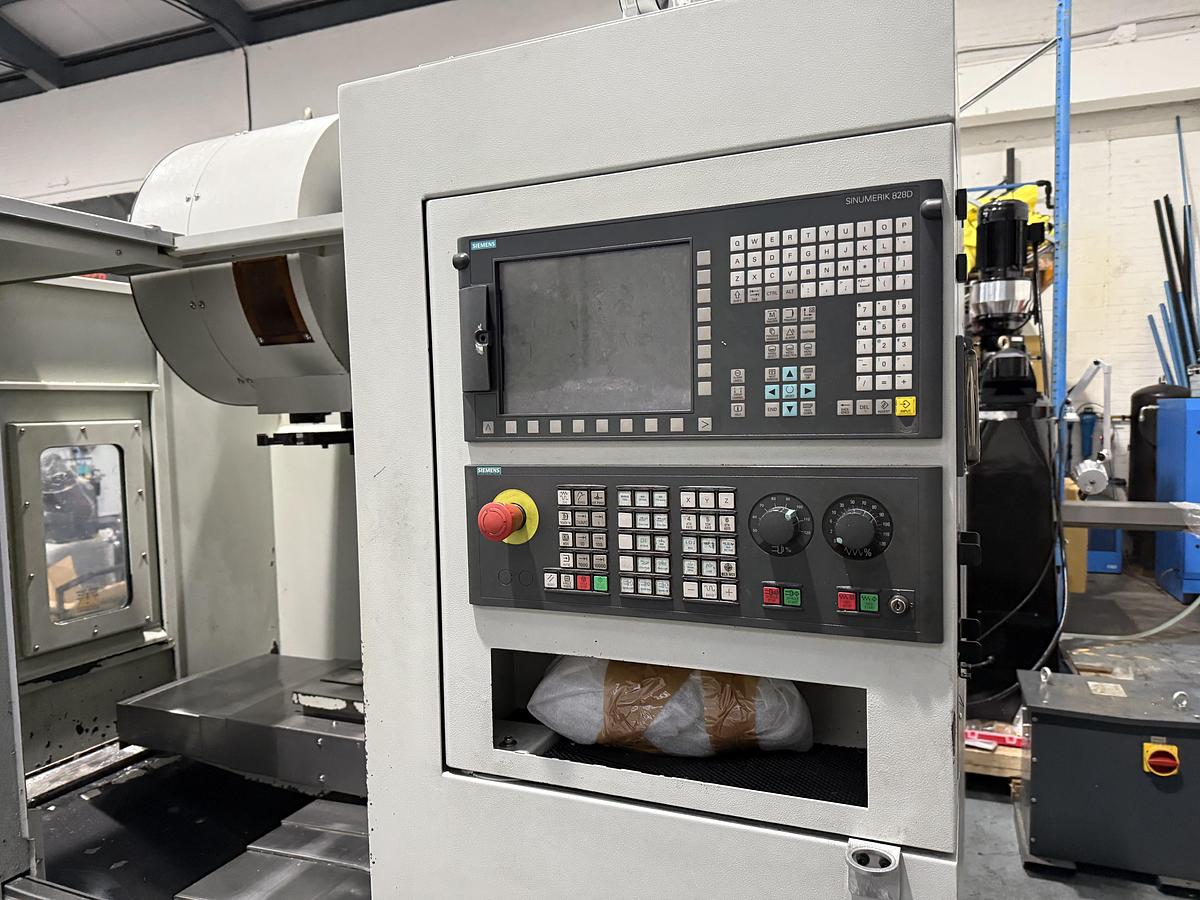

Used 2012 XYZ VMC 710, fitted with 24 Tool Side-Mount ATC, Siemens 828D Control with ShopMill.

Table Size. 760 x 430 mm

Max Table Load Capacity: 500 kg

Distance from Spindle Nose to Table Surface: 150 – 650 mm

AXIS TRAVEL:

X-Axis Travel: 710 mm

Y-Axis Travel: 450 mm

Z-Axis Travel: 500 mm

SPINDLE:

Spindle Taper: BT40

Spindle Speeds: 40 – 8,000 rpm

FEEDRATES:

Rapids: 12,000 mm/min

Cutting Feed Rates (XYZ): 1 – 500 mm/min

TOOL CHANGER:

Type: 24 Tool Side-Mount ATC

Max Tool Weight: 7 kg

DRIVE MOTOR:

Spindle Drive Motor: 11 kW (Main) / 5.5 kW Continuous

Electrical Input: 415V / 3 Phase / 50 Hz
