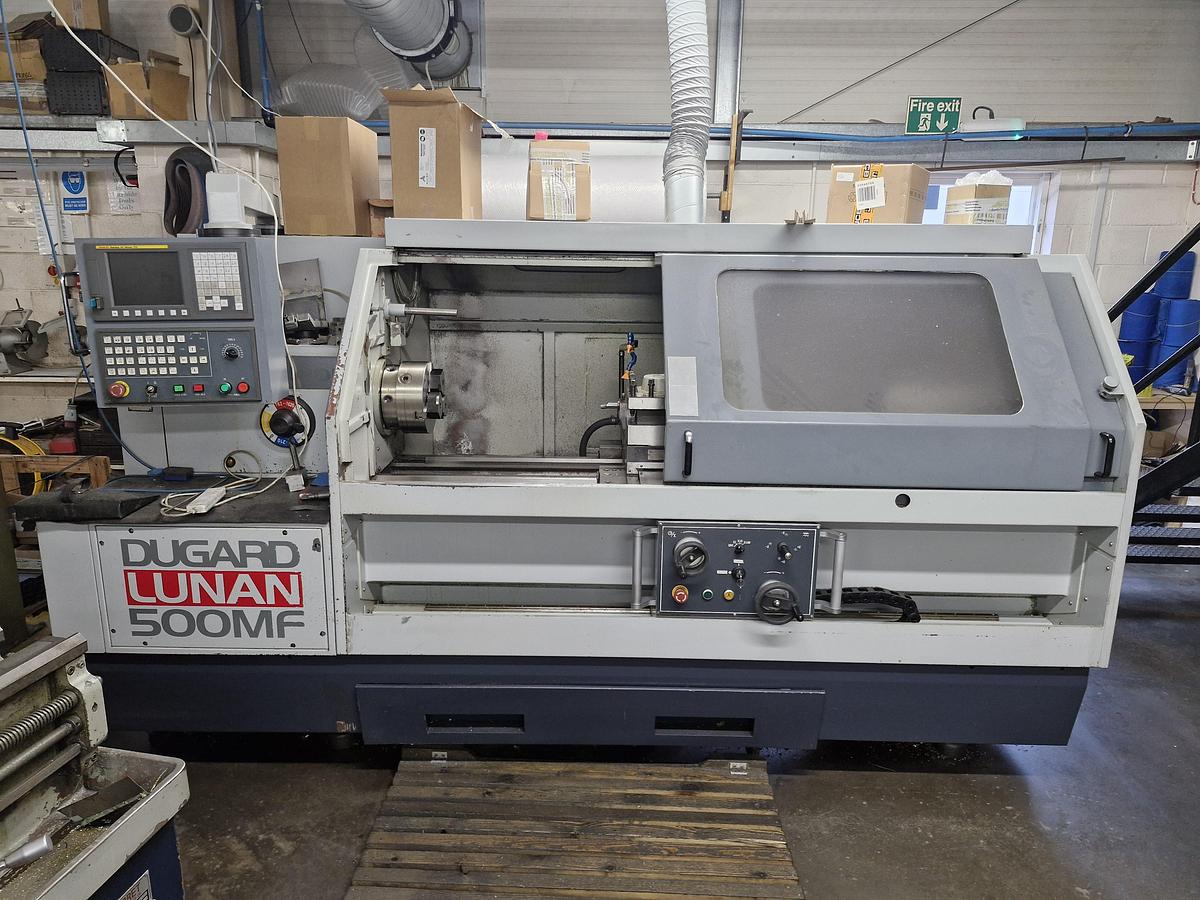

2015 DUGARD Lunan 500MF

This Used Dugard CNC lathe is ideal for general engineering and medium-duty production environments. Featuring a Fanuc CNC control, inverter-driven spindle, and a programmable electric toolpost, the machine offers excellent flexibility and ease of operation. With generous swing and turning capacity, a rigid gearbox-driven spindle, and comprehensive standard equipment, this machine is well suited for both one-off components and small to medium batch production.

CONTROL

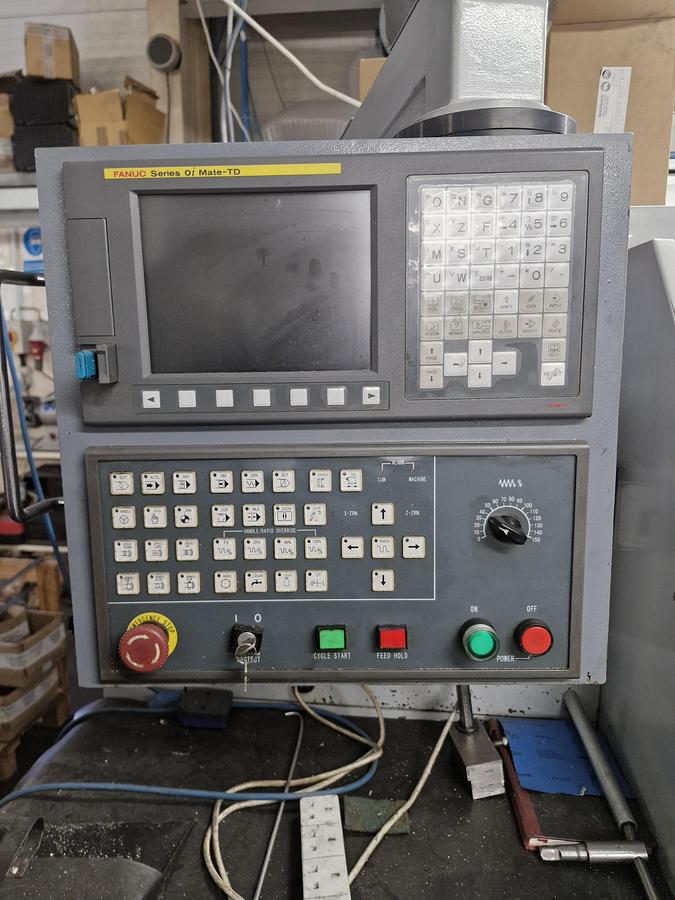

CNC control – Fanuc

Electronic manual turn handwheel

CAPACITY

Max Swing Over Bed: 500mm

Max Swing Over Cross Slide: 280mm

Max Turned Diameter: 500mm

Max Workpiece Length: 1400mm

Max Turned Length (with electronic handwheel): 1320mm

MAIN SPINDLE

Spindle Nose: D1-8

Spindle Bore: 77mm

Spindle Speed Range: 20 – 1620 RPM

Gearbox: 3-range gearbox

Main Spindle Motor Output: 7.5kW

FEEDS & TRAVERSE

Rapid Traverse X-axis: 6 m/min

Rapid Traverse Z-axis: 8 m/min

TOOLING

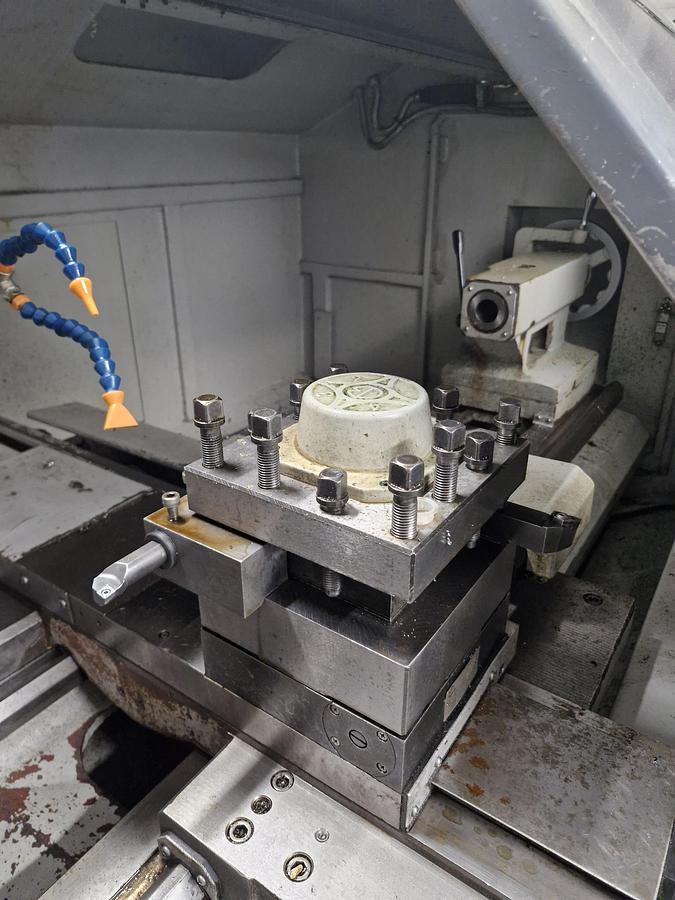

4-position programmable electric toolpost

Tool Size: 25 x 25mm

TAILSTOCK

Tailstock included: Yes

Quill Diameter: 75mm

Morse Taper: MT5

Quill Travel: 150mm

STANDARD EQUIPMENT

2-range gearbox (400MF)

3-range gearbox (500MF)

200mm 3-jaw chuck (400MF)

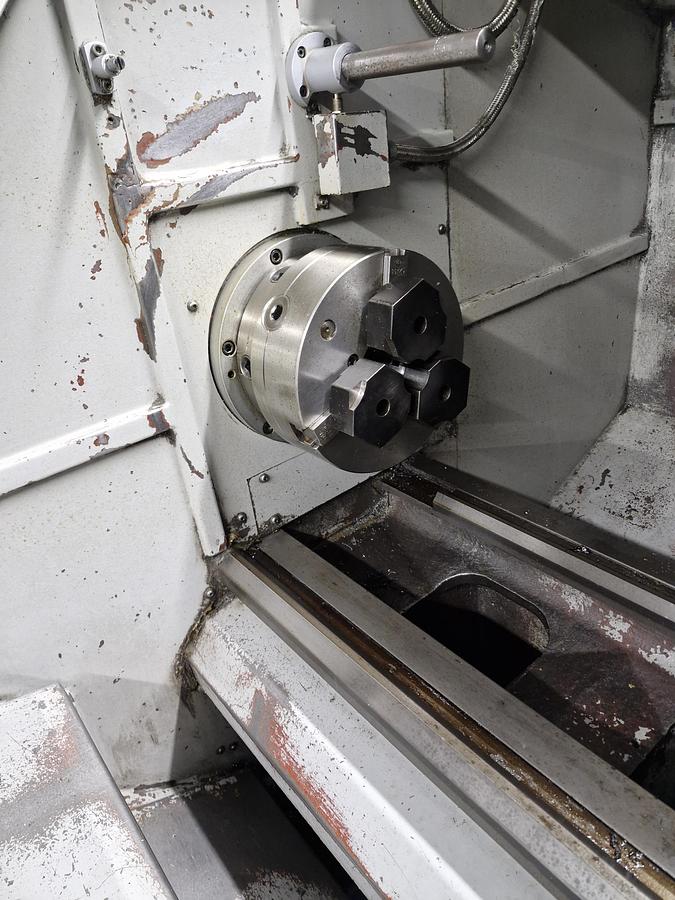

305mm 3-jaw chuck (500MF)

4-position electronic toolpost

Manual tailstock

Coolant system and machine lighting

MACHINE SIZE

Machine Weight: 3100 kg

Dimensions (L x W x H): 3000 x 1370 x 1700mm
