2020 Hurco TM6i

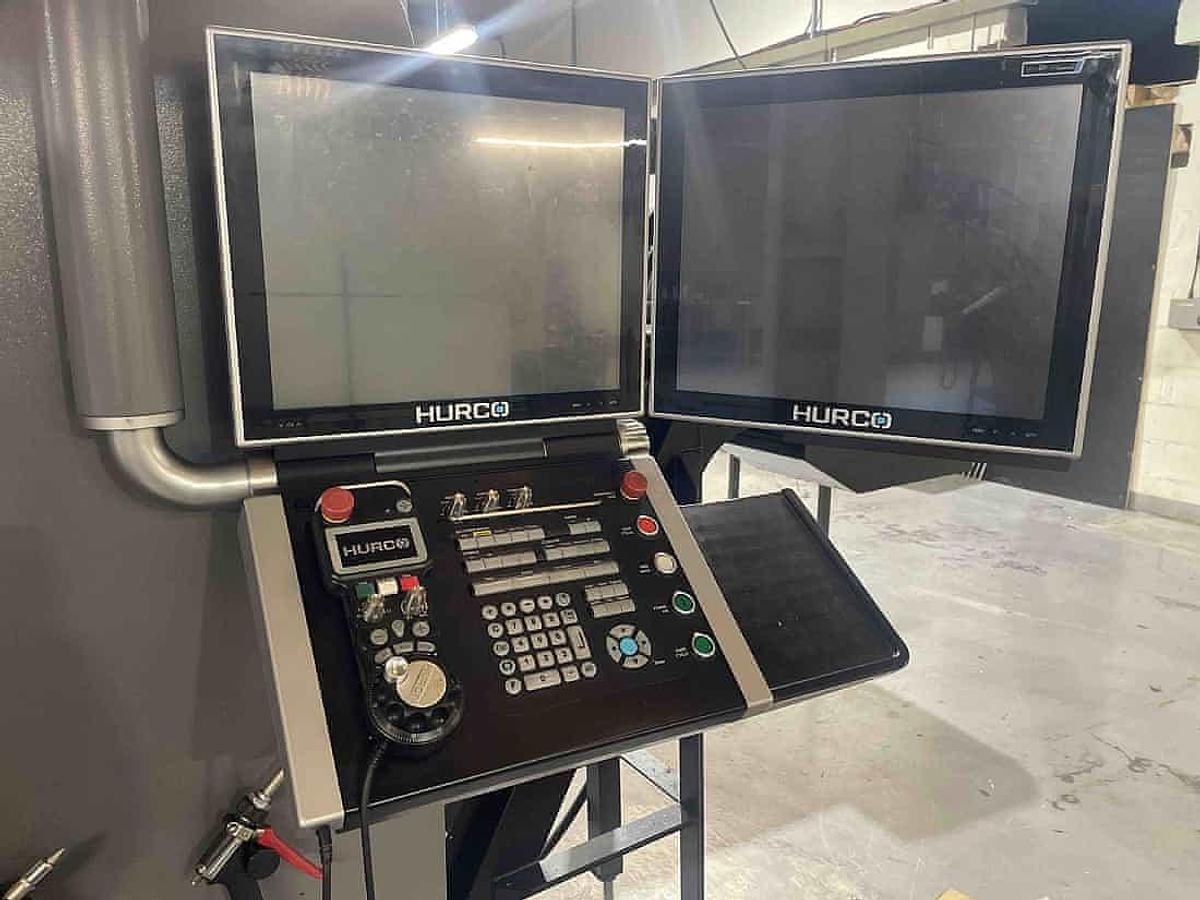

Used 2020 Hurco TM6i CNC Lathe available in very good condition. Fitted with the Hurco WinMax Control, this machine offers intuitive programming, fast setup times, and reliable high-speed machining performance. The lathe is fully operational and can be inspected under power in our showroom.

A compact yet capable CNC turning solution, the Hurco TM6i is designed to deliver consistent accuracy, efficiency, and productivity across a wide range of production applications.

Machine Specification

CAPACITY

• Max Turning Diameter: 215 mm
• Swing Over Bed Diameter: 405 mm
• Swing Over Cross Slide Diameter: 240 mm
• X-Axis Travel: 168 mm
• Z-Axis Travel: 356 mm

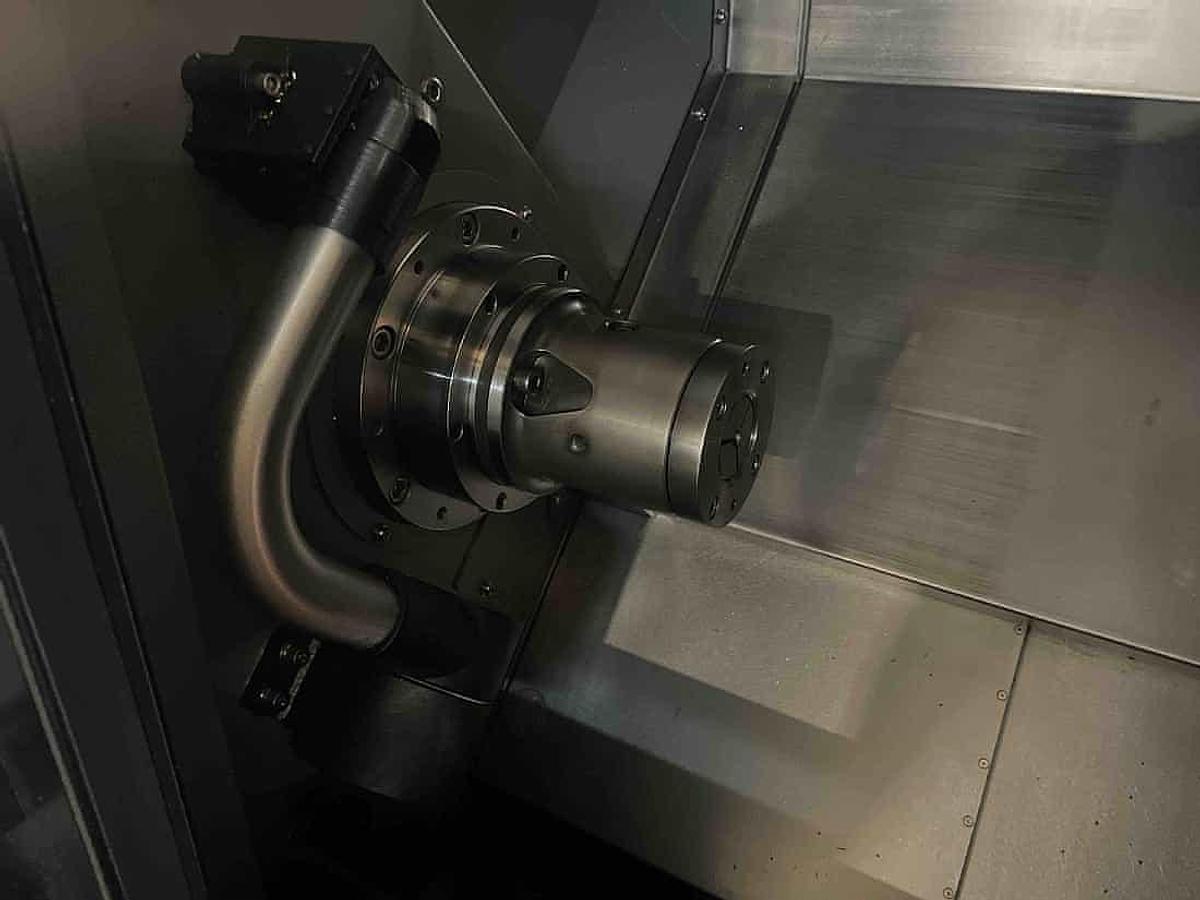

SPINDLE

• Max Spindle Speed: 6,000 rpm
• Max Spindle Torque: 114 Nm
• Spindle Power: 13 kW
• Chuck Diameter: 169 mm
• Draw Tube Diameter: 45 mm

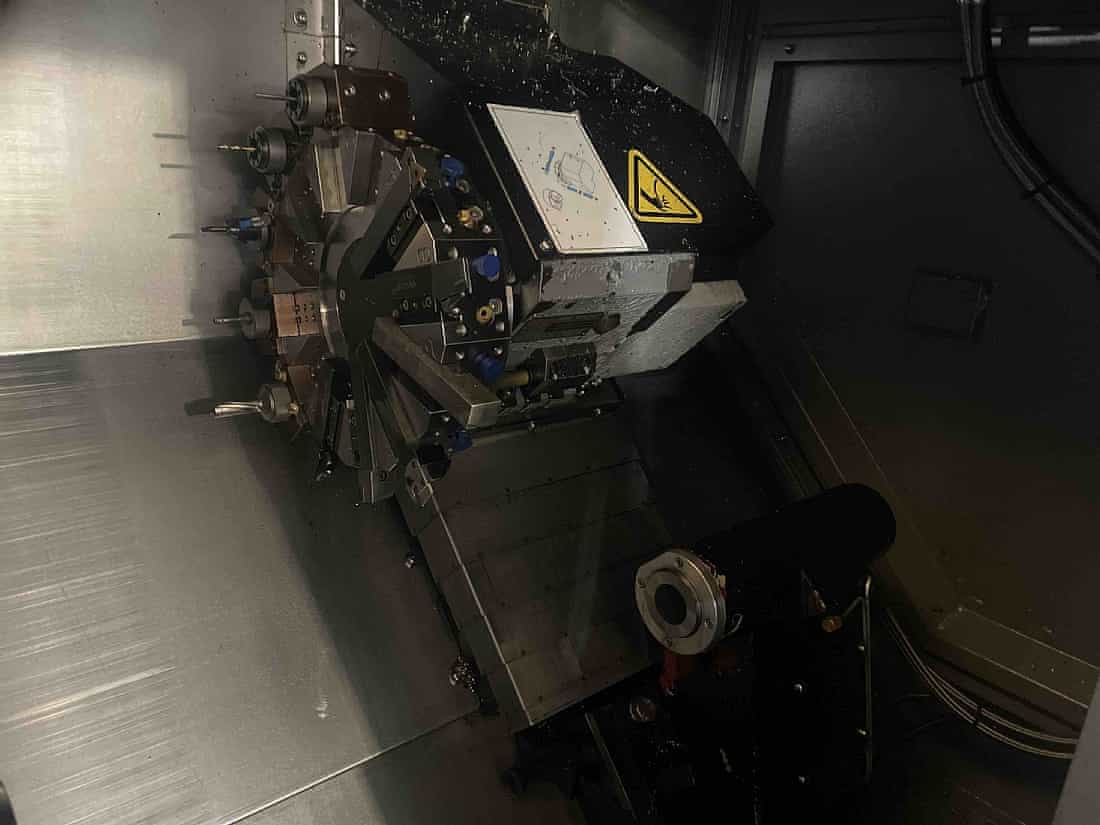

TURRET

• Turret Type: VDI 20
• Tool Stations: 12
• Max Boring Bar Diameter: 32 mm
• Tool Shank Width: 19 mm

FEEDRATES

• Rapid Traverse (X / Z Axis): 30 / 30 m/min



SIZE & WEIGHT

• Floor Space Required (doors open, incl. control & chip conveyor):
• 3,916 x 2,525 x 2,144 mm
• Machine Weight: 3,250 kg
