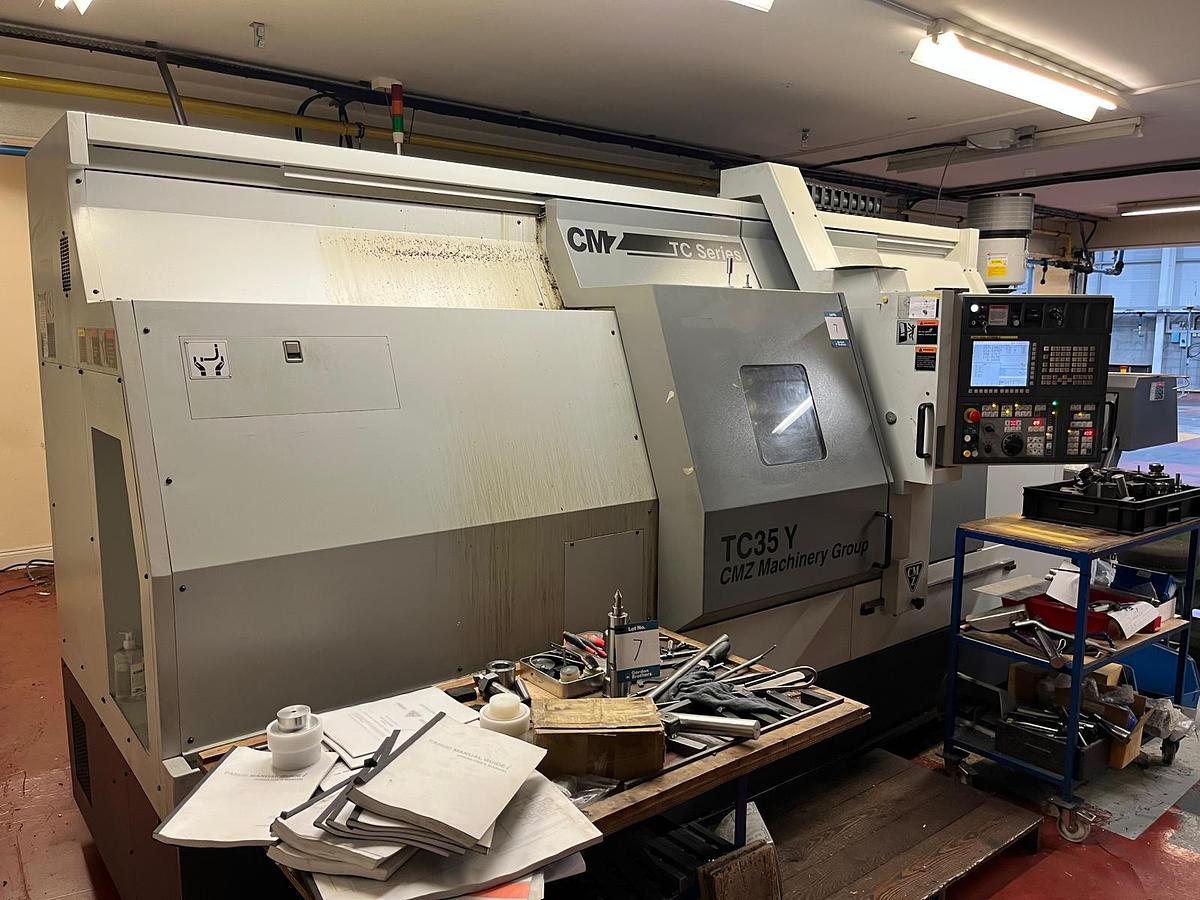

2016 CMZ TC 35 Y

Here’s a rare machine! Due in on the 16th February, photo’d on site.

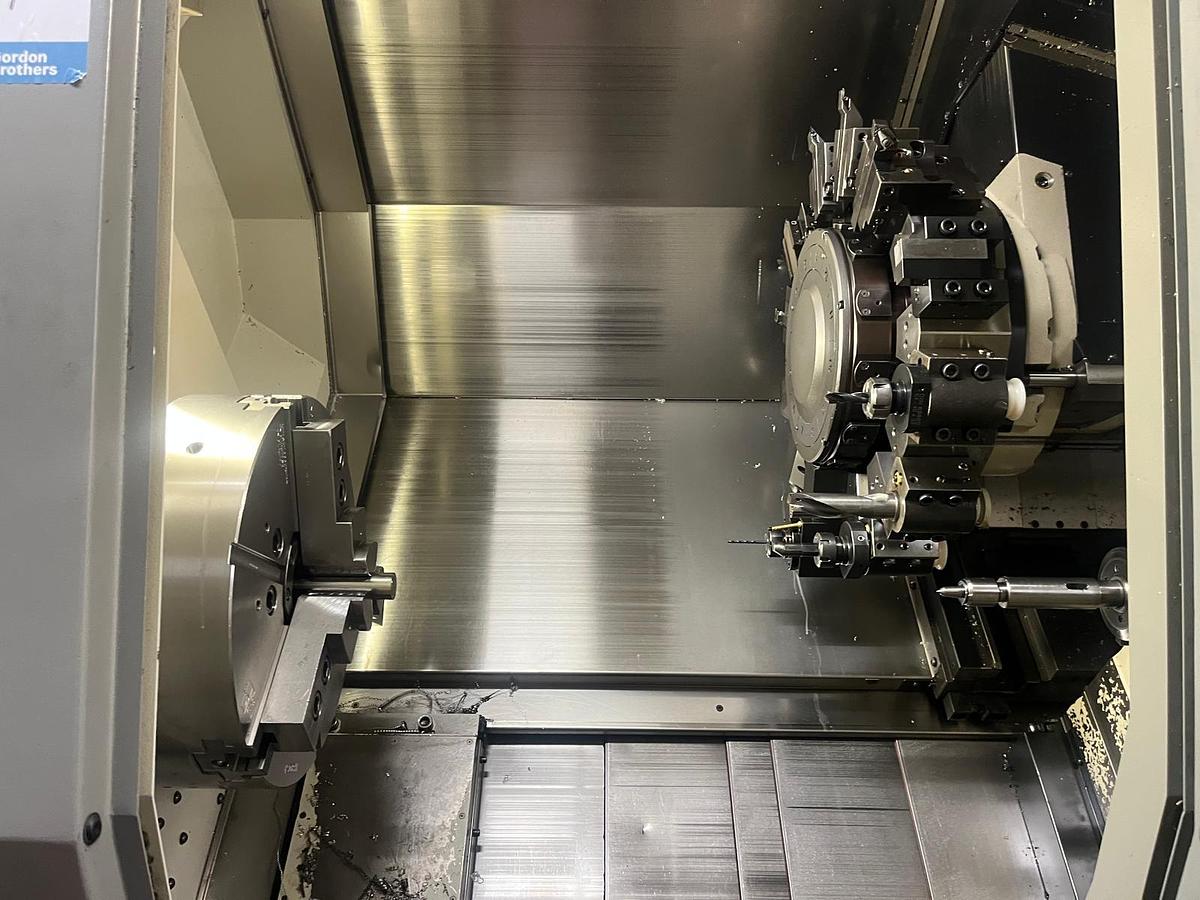

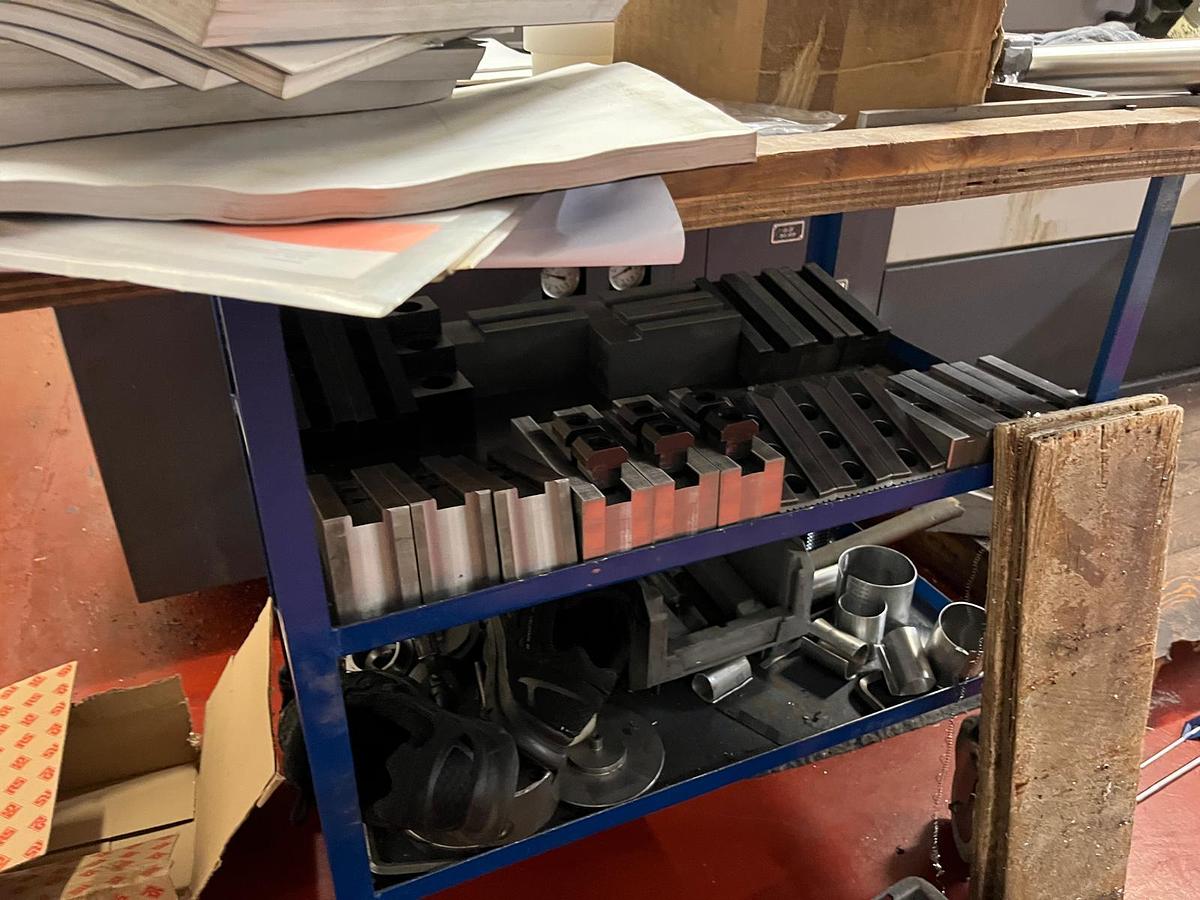

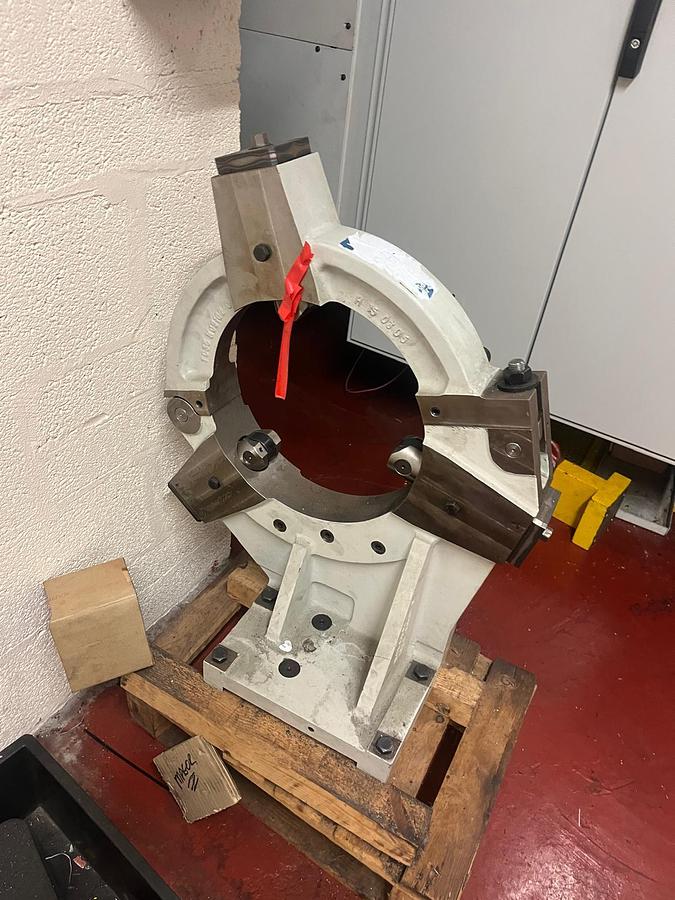

2016 CMZ TC35-Y x 1350, supplied with a 12” 3 jaw power chuck, tailstock, removable tool setter, driven tools, C-Axis, Y-Axis, suit of static and driven tools, fixed steady, various soft jaws, Coolant Mist extraction, swarf conveyor & high-pressure coolant. In superb condition!

Specification:

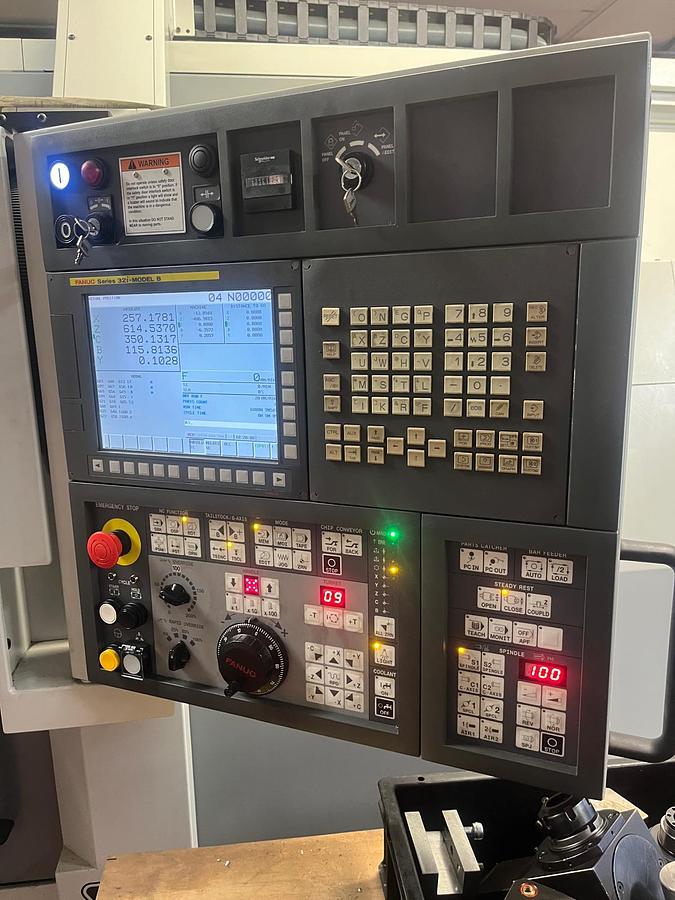

Control: CNC FANUC 32i Model-B control

Max swing over bed 745mm, Max swing over carriage 560mm

Max turning dia: 550mm

Distance between centres: 1410mm

X-Axis stroke: 315mm, Z-Axis stroke: 1350 mm, Y-Axis Stroke 140mm,

Rapid feed rates: 30 m/min

Max Spindle RPM: 3000, Spindle Nose: ASA 11" A2, Spindle bore: 106mm, Max Bar to pass: 95mm

Std Chuck diameter: 315mm Spindle motor:48 Kw

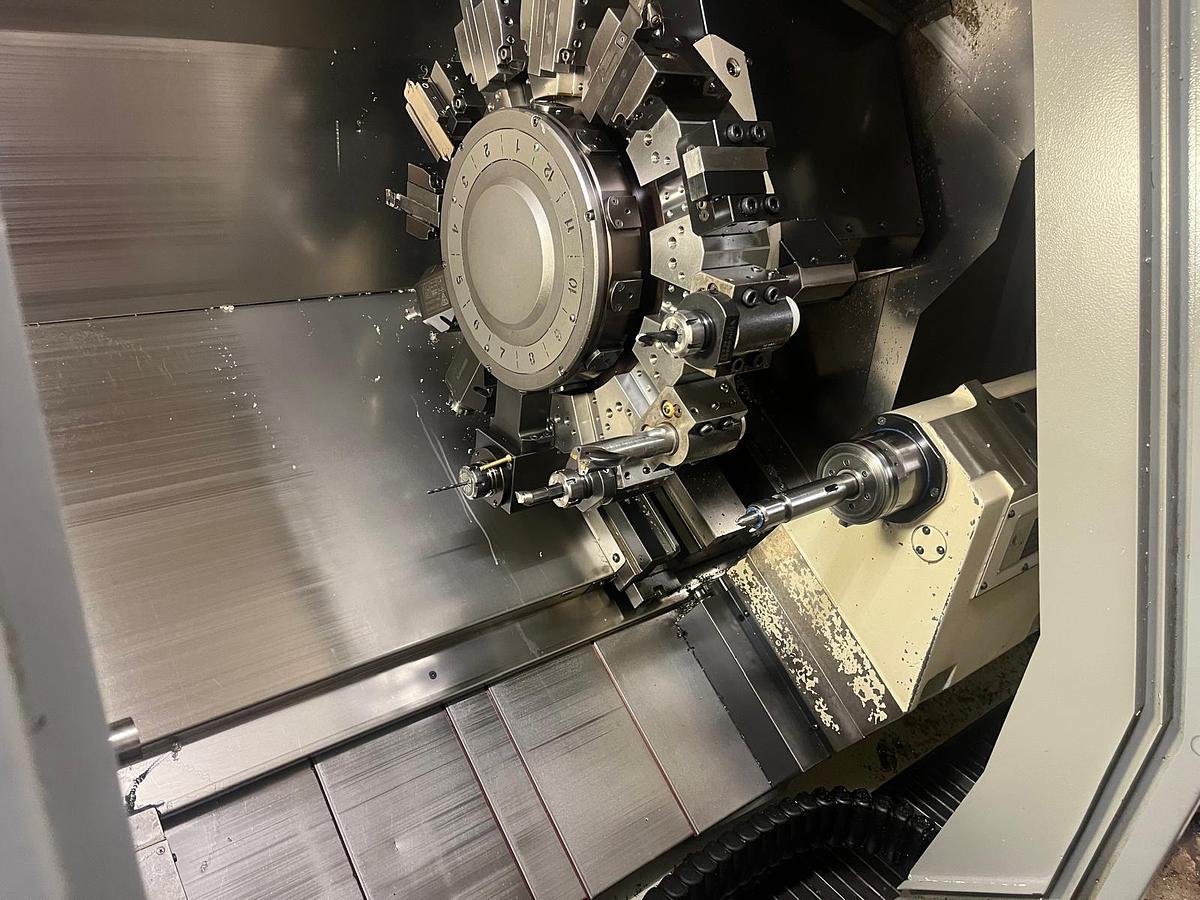

Turret:

No of turret positions: 12, No of driven stations: 12, Max Driven tool RPM: 4000, Driven tool motor power: 16,7 Kw

Tailstock:

Quill dia: 110mm, Quill taper: MT4, Quill stroke: 150mm

GENERAL DATA:

Power requirement: 65 KVA, Weight: 8000 Kg, Machine Size: 4090x2210x2360mm
