2023 XYZ 750 TMC

Sold

2023 XYZ 750 TMC

Description

An as new 2023 and hardly used, XYZ TMC 750 Toolroom VMC with RMX wide screen control, additionally specified with: Advance Features RMX, Tacking including retractable Electronic Handwheels, and DXF Converter - cost in excess of £50,000 + VAT when new!


Specification:


Working Area 743 x 425 x 489mm

Table Size 830 x 410mm

Spindle Centre to Column 500mm

Spindle to Table 100 - 600mm

Column Front to Table Centre 305 - 745mm

Rapid Feedrate 20 M/min Cutting Feedrates 1 - 20,000 MM/min

Max Table Load 500kg

T Slot Size 16mm T Slot Number & Pitch 3 off @100mm

Spindle Speeds 5 - 8,000 rpm

Spindle Motor 11kW (15hp)

Spindle Taper BT40

20 Station Carousel ATC

Chip to Chip Tool Change Time 8 secs

Max Tool Diameter 100mm

Max Tool Weight 7kg

Coolant Tank Capacity 125L

Ballscrew (Grade C3) 32mm Dia

P8 AC Servo Motor Max Torque X = 5 Nm / Y = 5 Nm / Z = 10 Nm

Machine Weight 3,500kg Footprint 2,392 x 2,460 x 2,670m

Specifications

ManufacturerXYZ
Model750 TMC
Year2023
ConditionUsed
Stock Numbercmu/OBO 0004

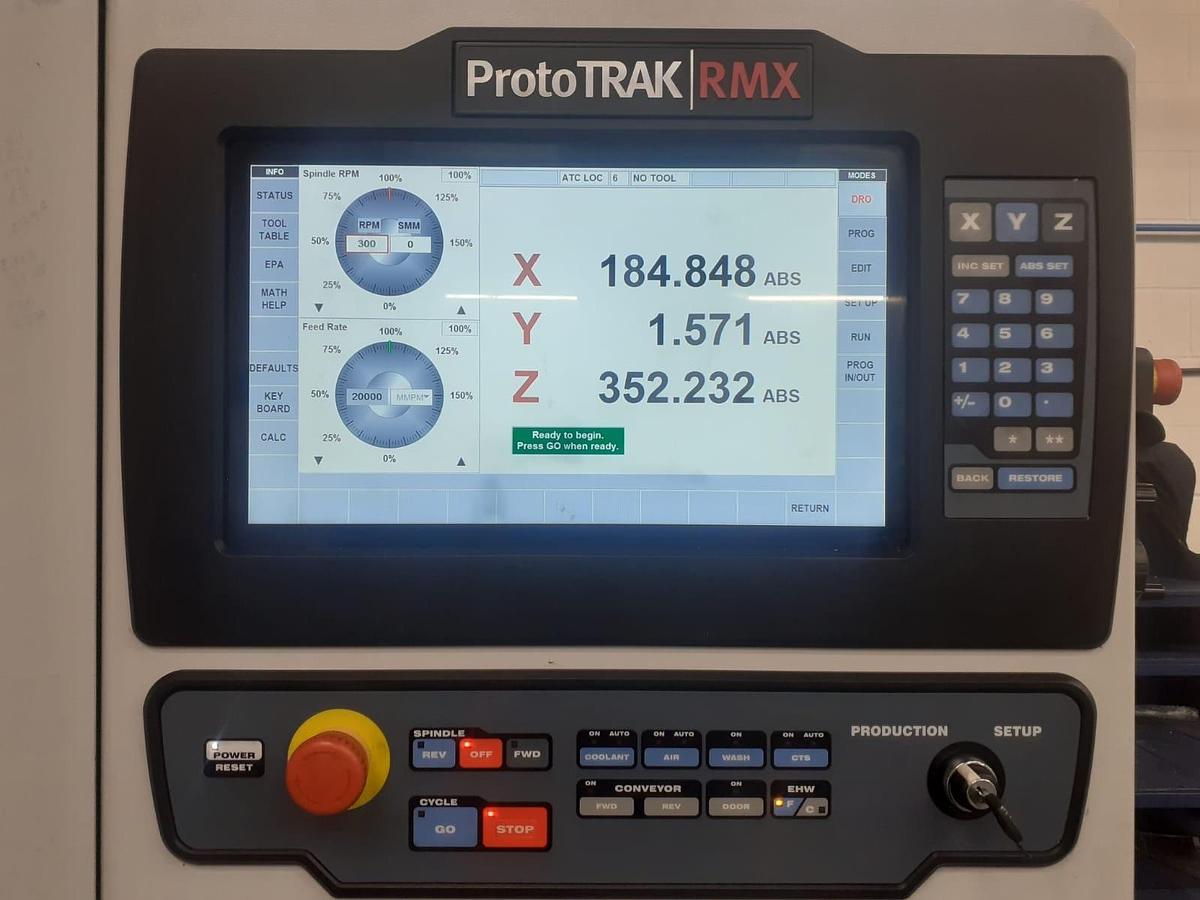

ControlProtoTRAK RMX
SpecX 743 Y 425 Z 489 / 8,000RPM / BT40
Accessories Advance Features RMX, Tacking including retractable Electronic Handwheels, and DXF Converter
