2007 HWACHEON Hi-Tech 200 B

2007 HWACHEON Hi-Tech 200 B

Available quantity:1

or
Call +44 (0) 117 965 2706

Description

Hwacheon Hi-TECH 200B

Description

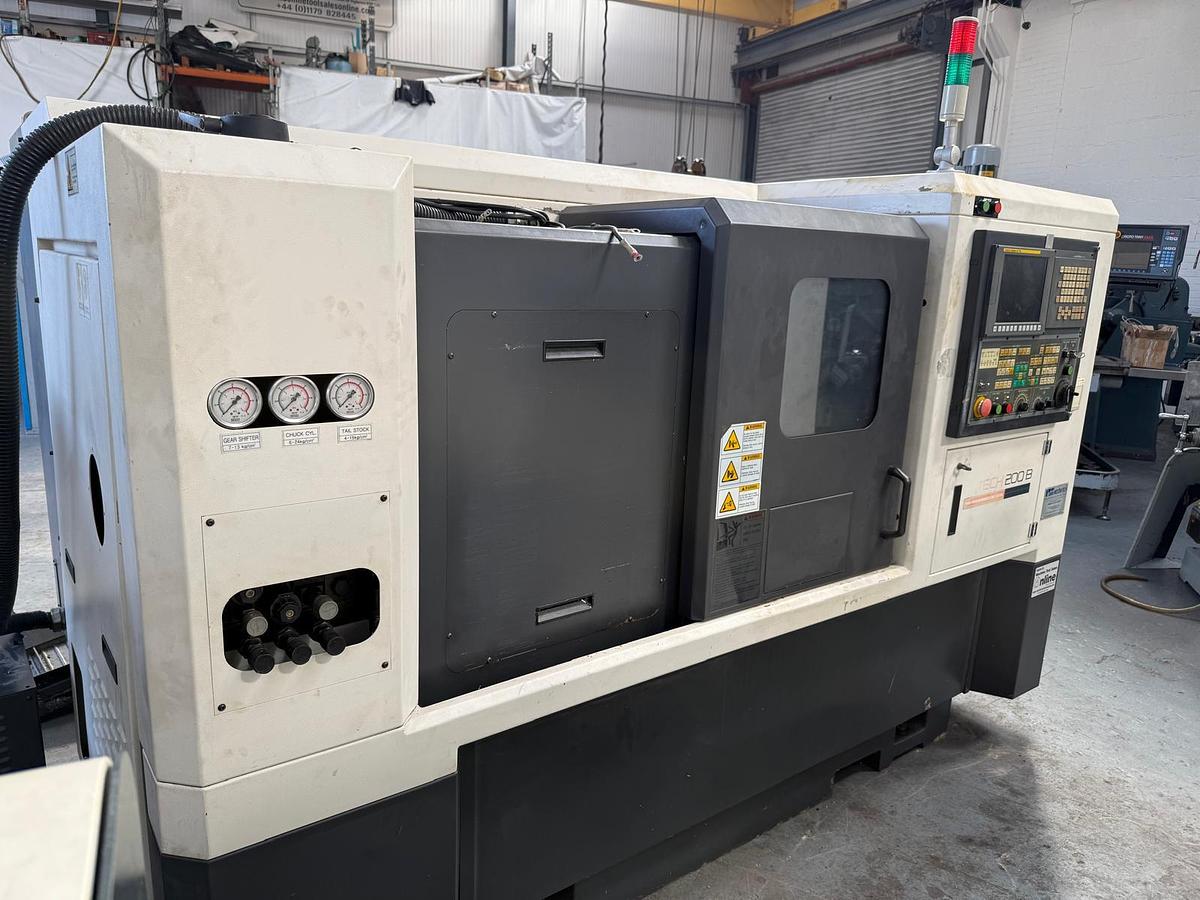

2007 Hwacheon Hi-TECH 200B 3 Axis slant bed CNC lathe with driven tools C axis, fitted with Fanuc control. tailstock, swarf conveyor, and 8” 3 jaw power chuck. A well-specified and versatile turning centre suitable for a wide range of precision machining applications.


Control

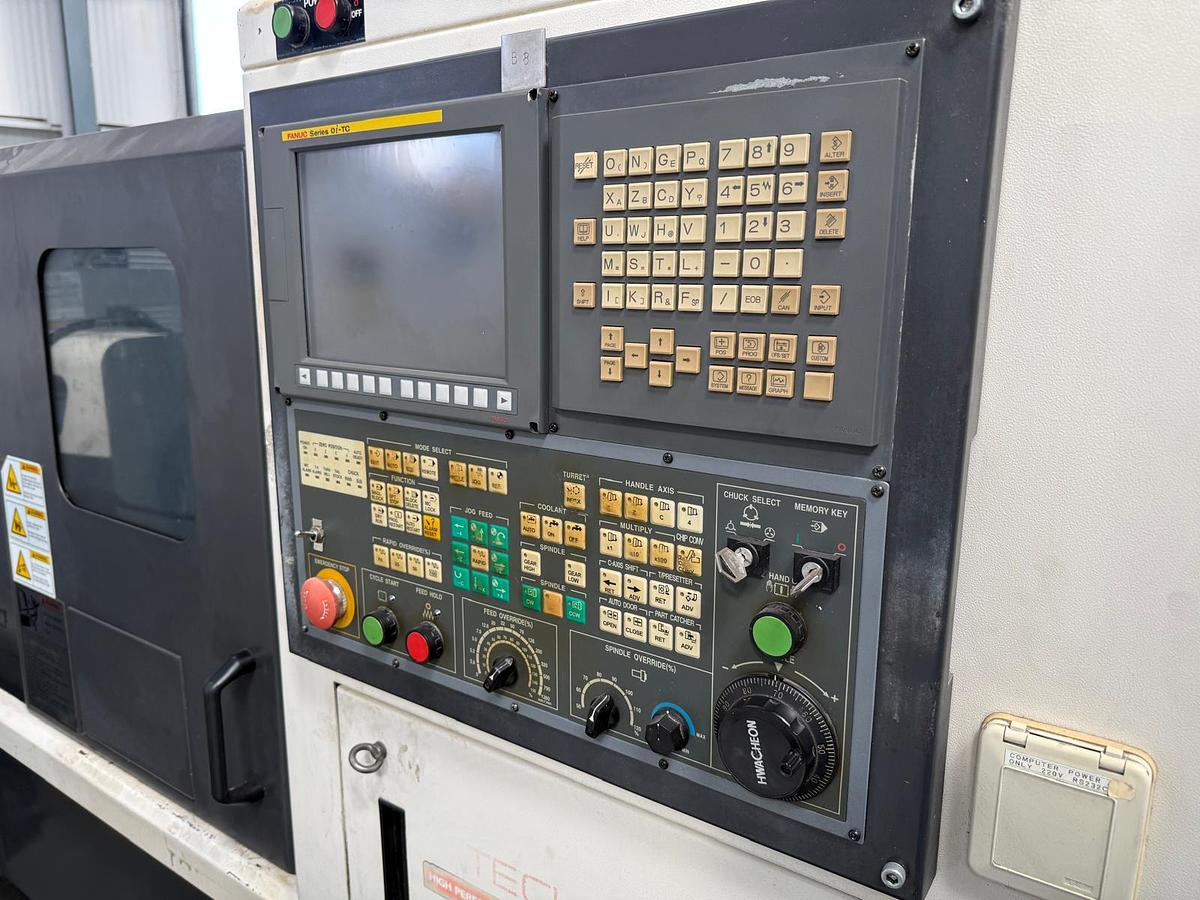

Fanuc Oi-TB CNC Control

Full CNC operation

Capacity

Maximum Turning Diameter: 350.5mm

Maximum Turning Length: 398.8mm

Spindle Bore: 76mm

Main Spindle

Maximum Spindle Speed: 3,500 RPM

Spindle Motor Power: 14.9 kW

Turret

Number of Tool Stations: 12


Axis Travels

X Axis Travel: 195.6mm

Z Axis Travel: 429.3mm

Tailstock

Tailstock Included: Yes


Accessories

8” 3 Jaw Power Chuck

Tailstock

Swarf Conveyor

Tooling package

Specifications

ManufacturerHWACHEON
ModelHi-Tech 200 B
Year2007
ConditionUsed
Serial NumberM015355J4F 0
Stock Numberclu/0405
ControlFanuc
SpecMax bar 53mm | Max Swing 600 mm | Travel X 195.6 Z 429.3 mm
AccessoriesDriven Tool C axis, 8” 3 Jaw Power Chuck, Tailstock, Swarf Conveyor, Tooling package
