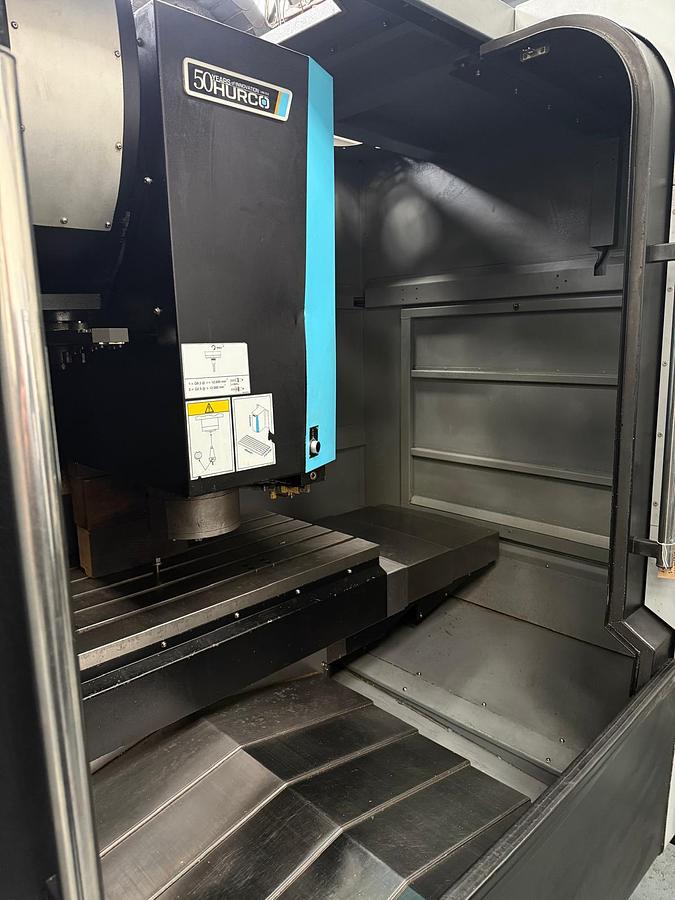

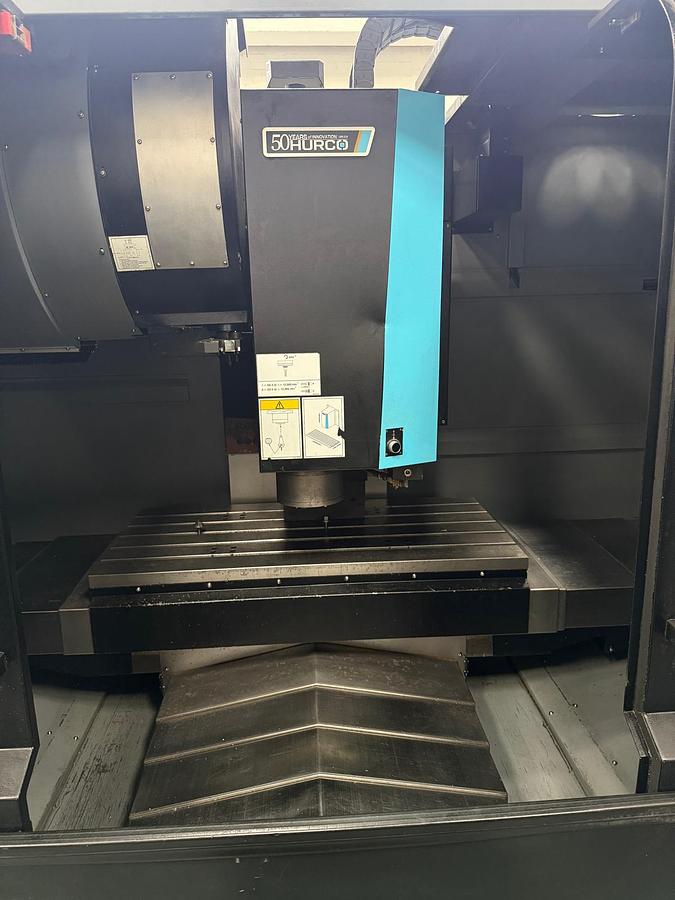

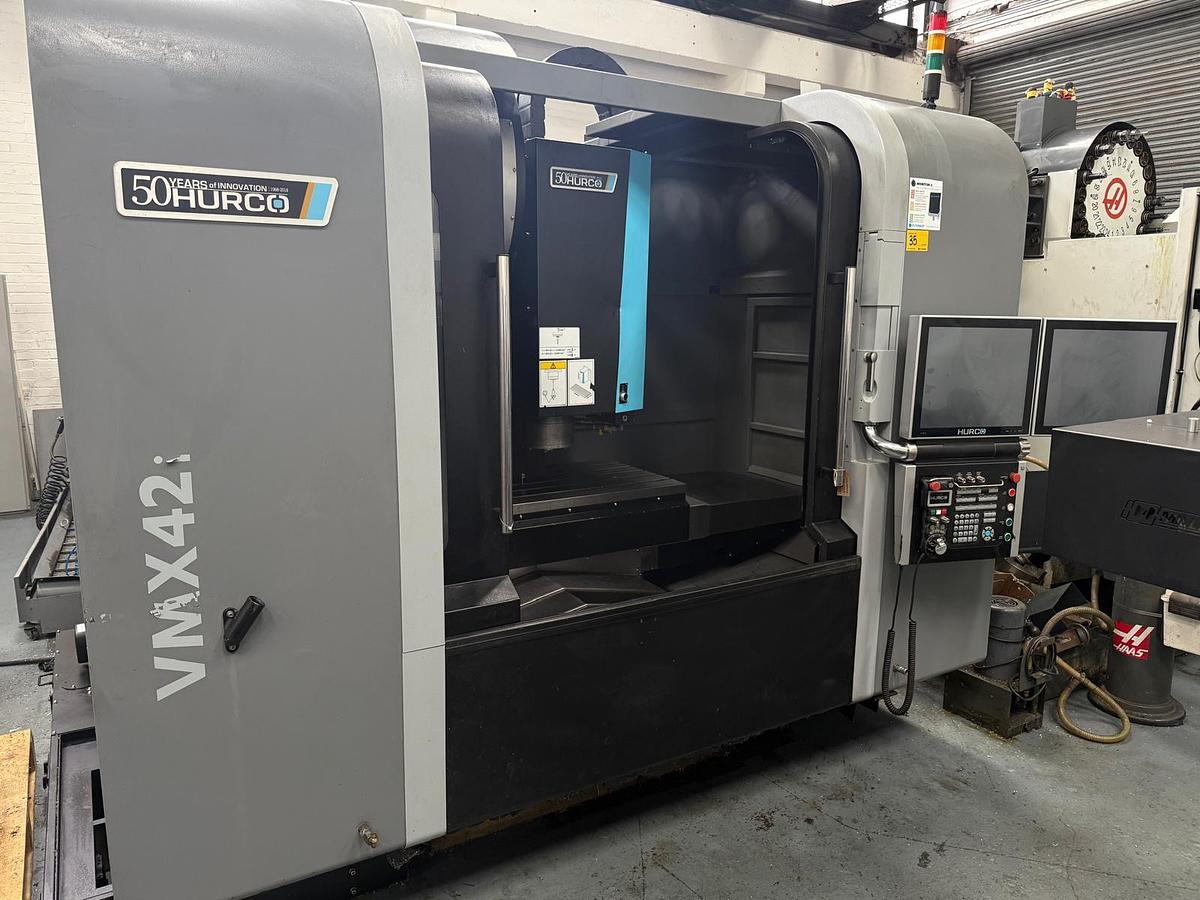

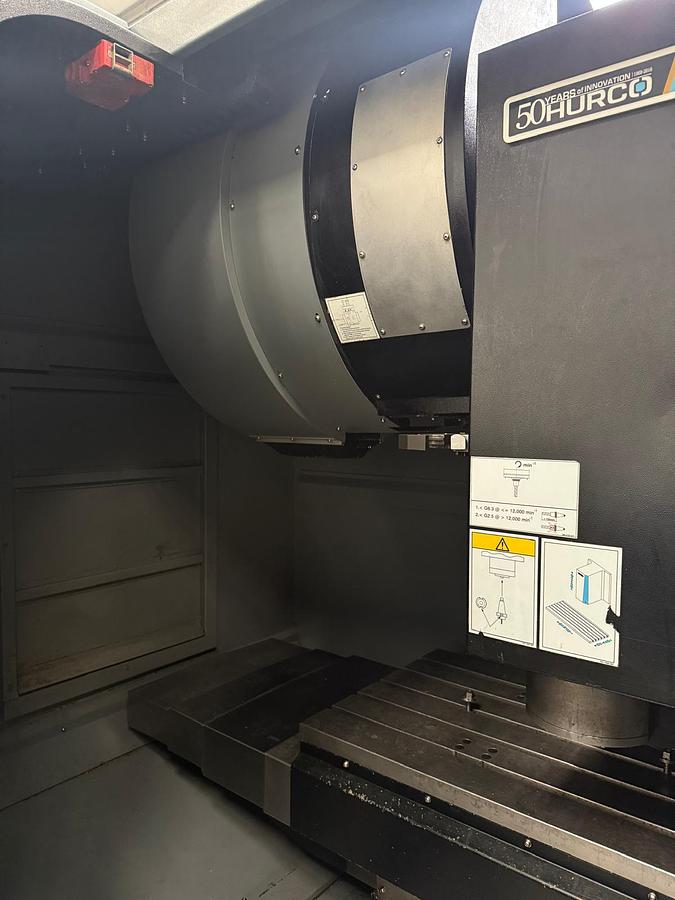

Hurco VMX42Ti

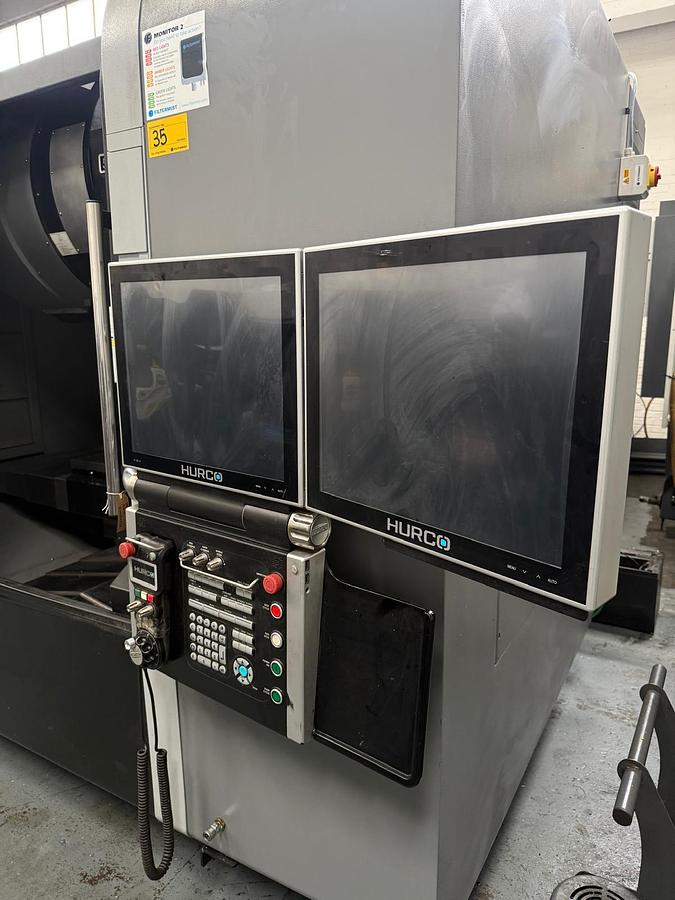

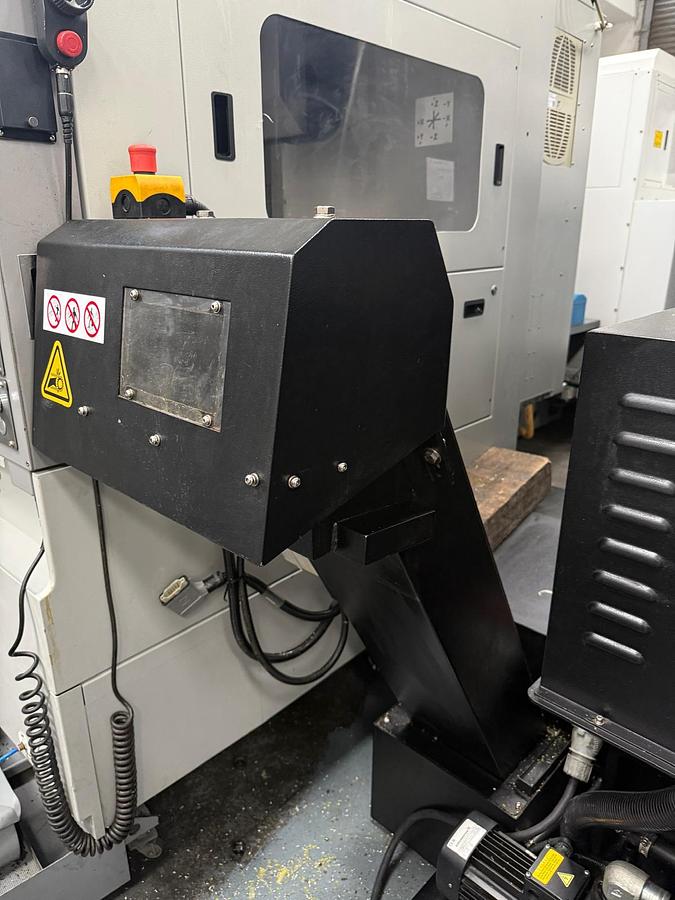

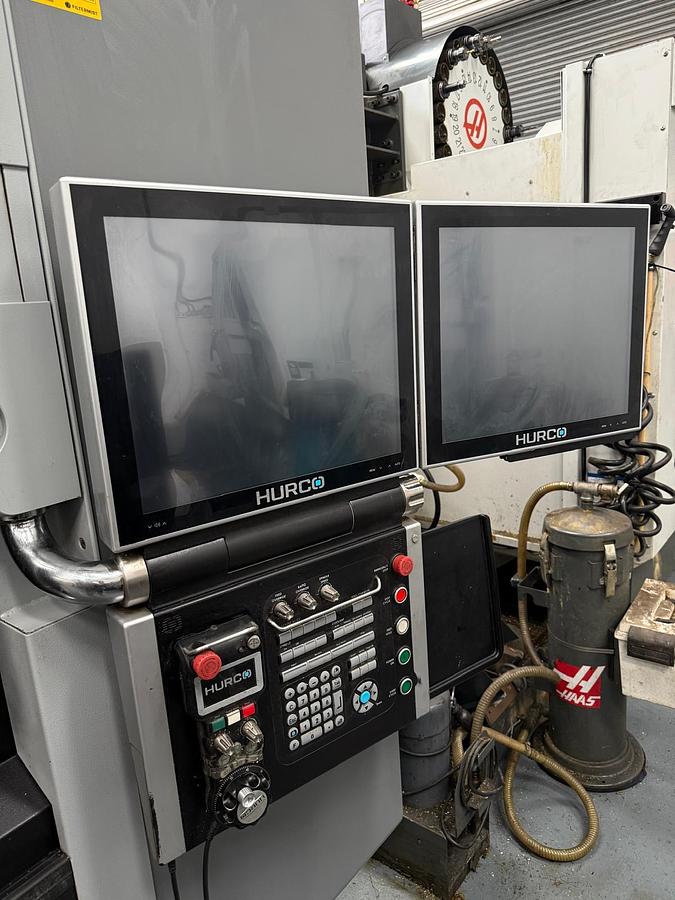

Used 2018 Hurco VMX42Ti, fitted with 12,000 RPM spindle with spindle chiller, swarf conveyor, filter mist unit and Hurco MAX5 dual screen WinMax control system.

TABLE:

Table Size: 1,270 x 610 mm

Max Table Load Capacity: 1,360 kg

Distance from Spindle Nose to Table Surface: 152 mm (min)

AXIS TRAVEL:

X-Axis Travel: 1,067 mm

Y-Axis Travel: 610 mm

Z-Axis Travel: 610 mm

SPINDLE:

Spindle Taper: CAT40

Spindle Speeds: Up to 12,000 rpm

Peak Spindle Motor: 35 kW

Peak Spindle Torque: 119 Nm @ 2,800 rpm

FEEDRATES:

Rapid Traverse (X/Y/Z): 45 / 45 / 40 m/min

Max Programmable Feedrate: 40 m/min

TOOL CHANGER:

Type: 30 Tool ATC

Max Tool Diameter: 76.2 mm

Max Tool Length: 300 mm

Max Tool Weight: 8 kg

MACHINE DIMENSIONS:

Machine Height: 2,860 mm

Floor Space Required: 4,600 x 3,984 mm

Machine Weight: 7,091 kg

ADDITIONAL OPTIONS:

Filtermist Extraction Unit

Programmable Air Blast

Rigid Tapping
