2012 Haas VM3

Sold

2012 Haas VM3

Description

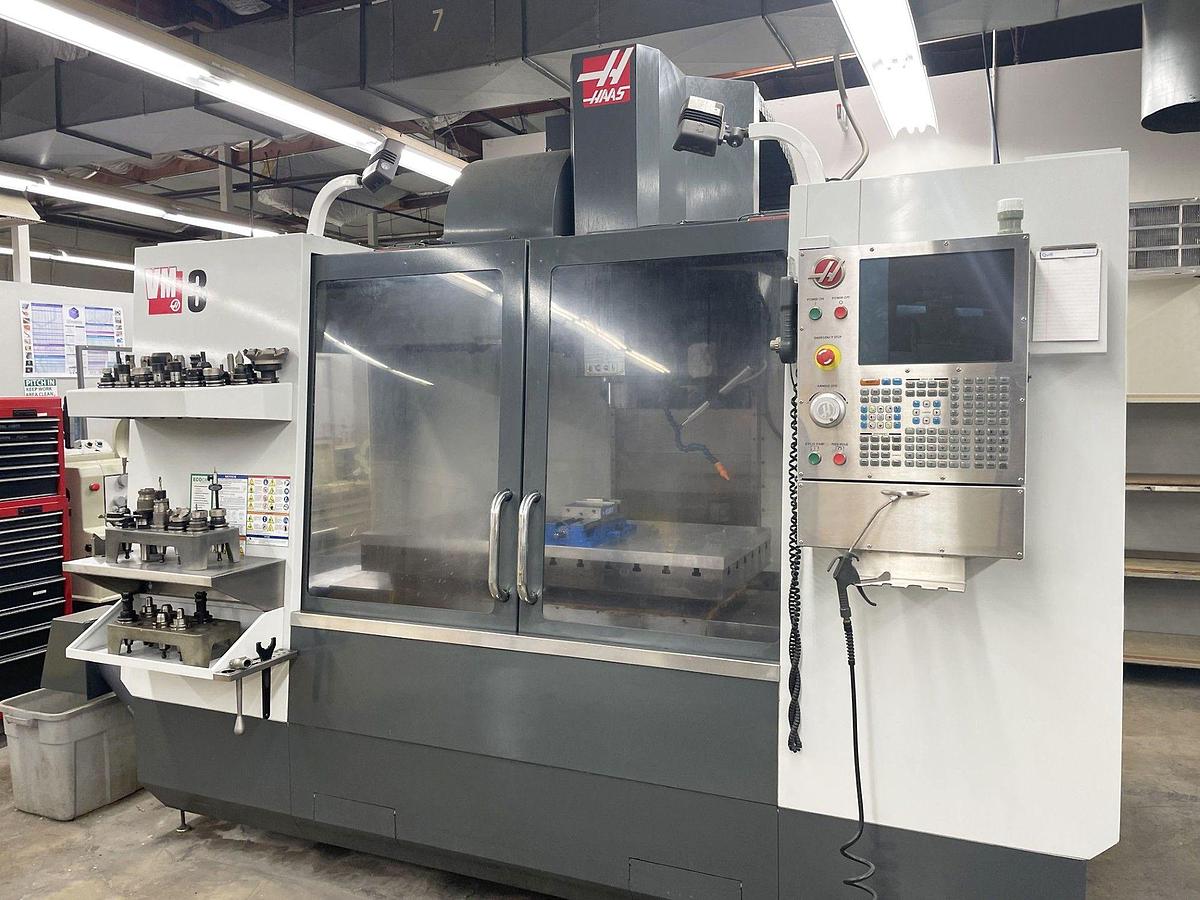

Used HAAS VM-3 CNC Vertical Machining Centre, fitted with HRT 4th axis unit, 12,000 RPM inline direct-drive spindle, side-mount tool changer, multi-fixturing table and Haas high-speed control with full look-ahead, programmable coolant nozzle and automatic air gun. Note: Stock Image Machine pictures coming soon.


TABLE:

Table Size: 1,372 x 610 mm

Max Table Load Capacity: 1,814 kg

Distance from Spindle Nose to Table Surface: 107 mm (min) / 742 mm (max)


AXIS TRAVEL:

X-Axis Travel: 1,016 mm

Y-Axis Travel: 660 mm

Z-Axis Travel: 635 mm

SPINDLE:

Spindle Taper: CT or BT 40

Spindle Speeds: Up to 12,000 rpm

Spindle Motor: 22.4 kW

Spindle Torque: 122 Nm @ 2,000 rpm

Drive System: Inline Direct-Drive


FEEDRATES:

Rapid Traverse (X/Y/Z): 18 / 18 / 18 m/min

Max Programmable Feedrate: 12.7 m/min

TOOL CHANGER:

Type: Side-Mount Tool Changer (SMTC)

Capacity: 30 + 1

Max Tool Diameter: 64 mm

Max Tool Diameter (adjacent empty): 127 mm

Max Tool Length: 330 mm

Max Tool Weight: 5.4 kg

Tool-to-Tool Time: 2.8 sec

Chip-to-Chip Time: 3.6 sec


GENERAL:

Coolant Capacity: 208 L

AIR REQUIREMENTS:

Air Consumption: 113 L/min @ 6.9 bar

Minimum Pressure: 5.5 bar


ELECTRICAL:

Voltage: 220 / 440 VAC (3 Phase)

Full Load Current: 70 A (220V) / 35 A (440V)

MACHINE DIMENSIONS:

Floor Space (approx): 3,970 x 2,600 x 2,670 mm

Machine Weight: 6,940 kg


ADDITIONAL FEATURES:

4th axis unit

High-speed machining software

Programmable coolant nozzle

Automatic air gun


Specifications

ManufacturerHaas
ModelVM3
Year2012
ConditionUsed
Serial Number1097397
Stock Numbercmu/0537
ControlHAAS
SpecX 1016 Y 660 Z 635 / 12,000RPM / BT40
Accessories4th axis, High Pressure Coolant, TSC, 30 tool side mount ATC
