2018 Doosan Lynx 2100

2018 Doosan Lynx 2100

Available quantity:1

or
Call +44 (0) 117 965 2706

Description

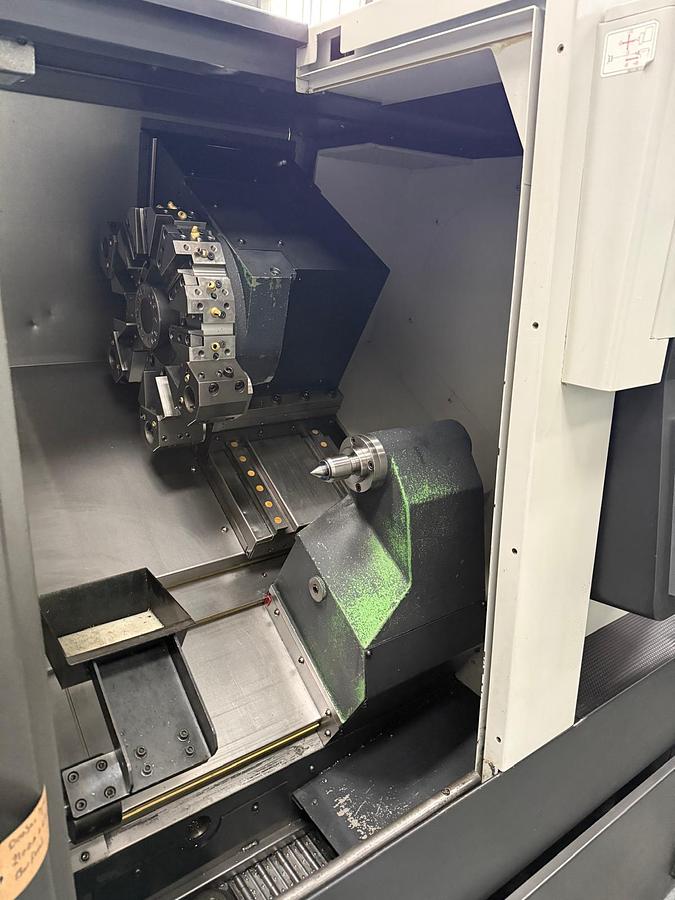

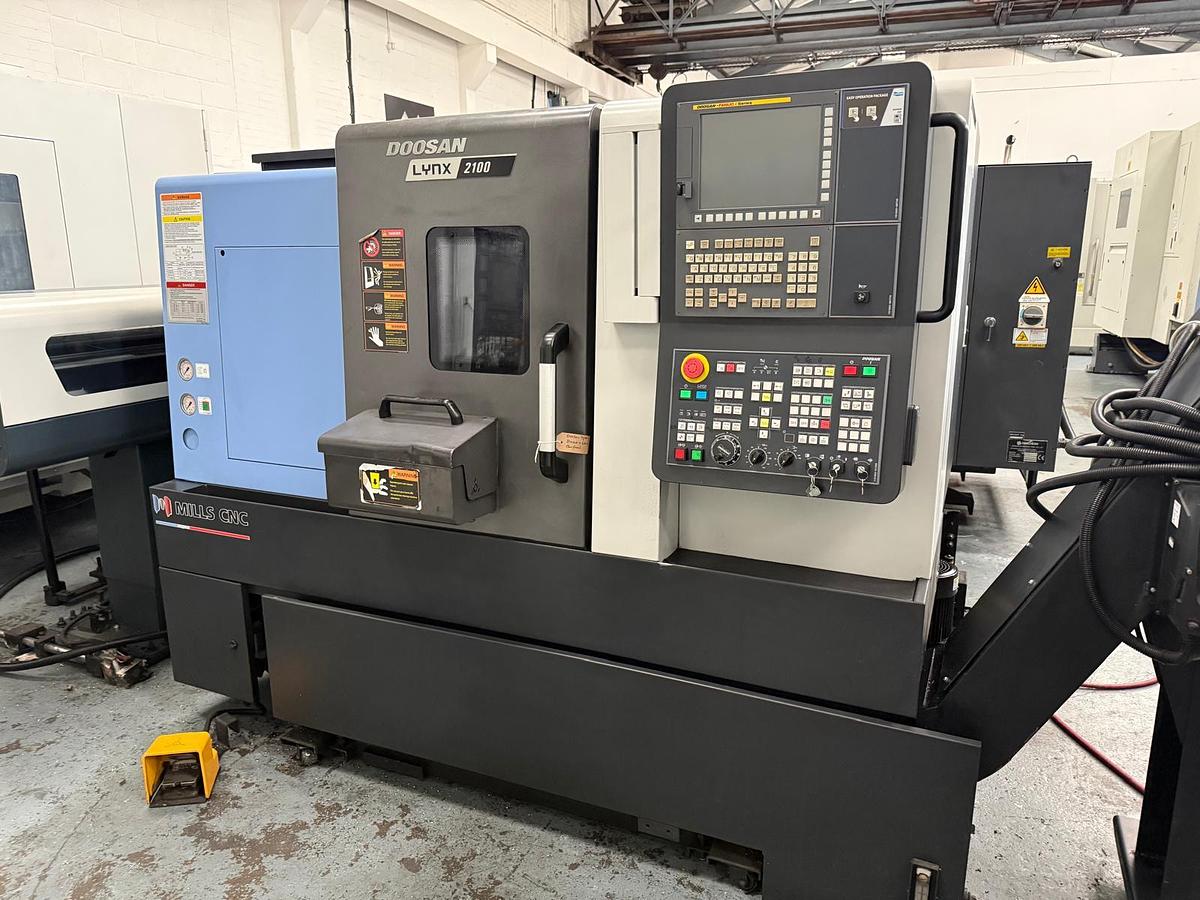

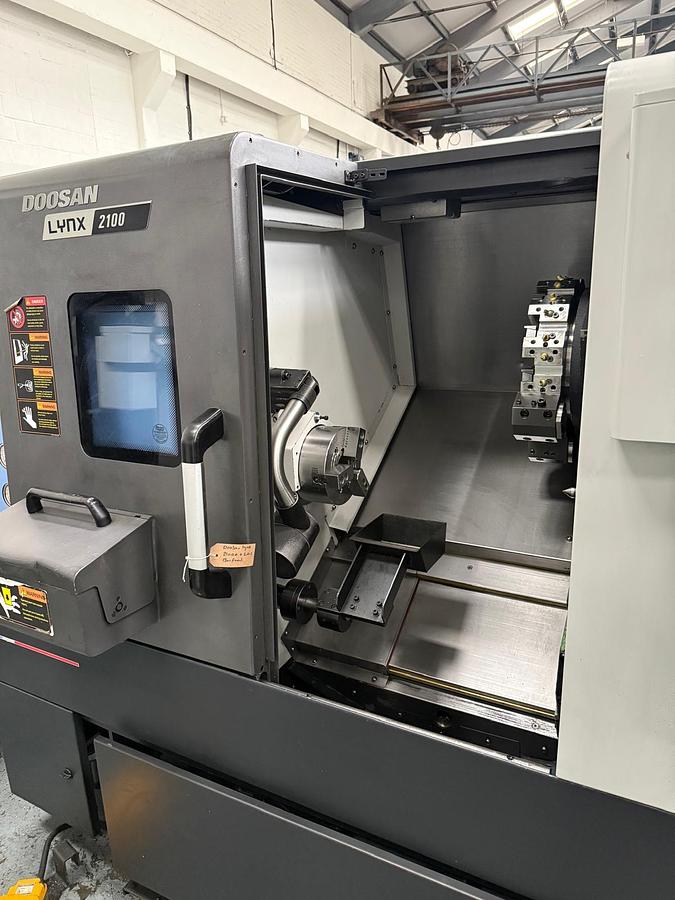

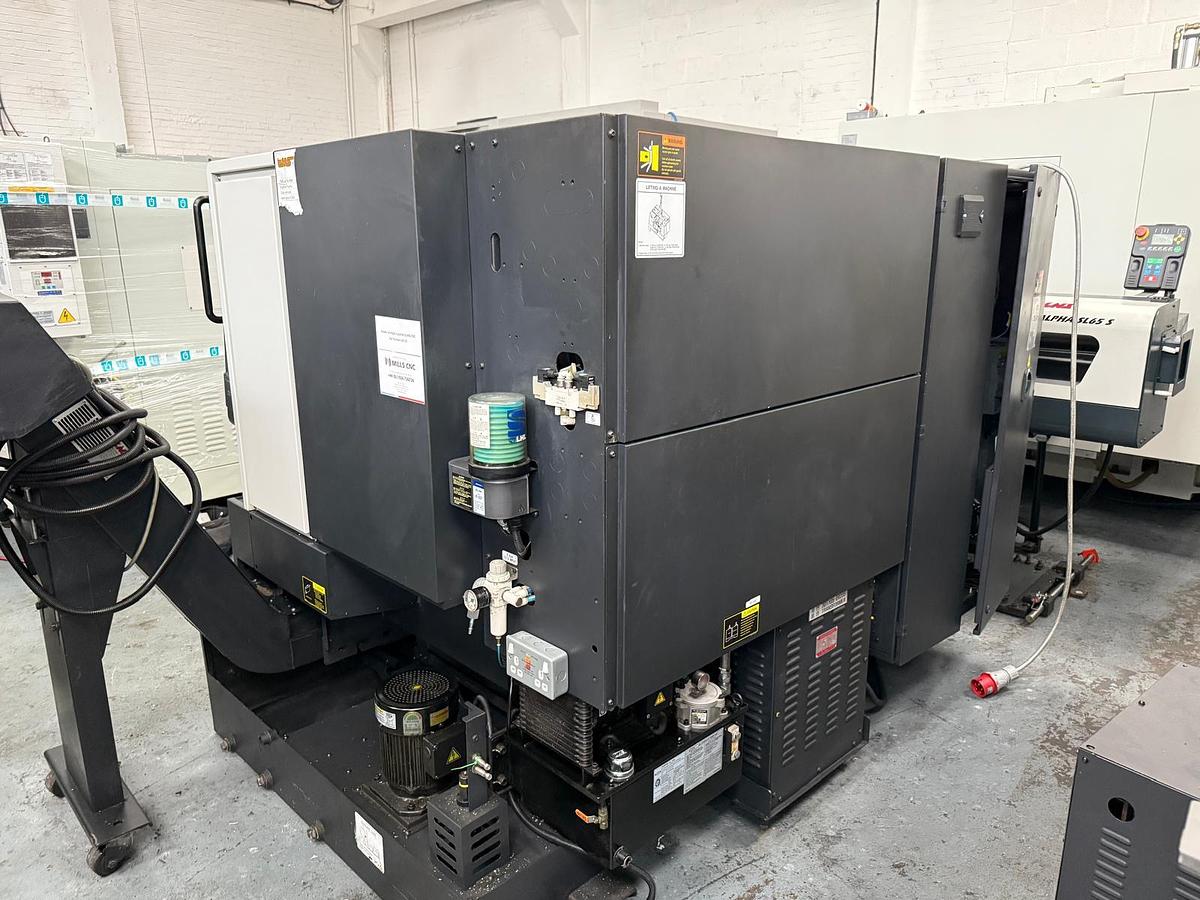

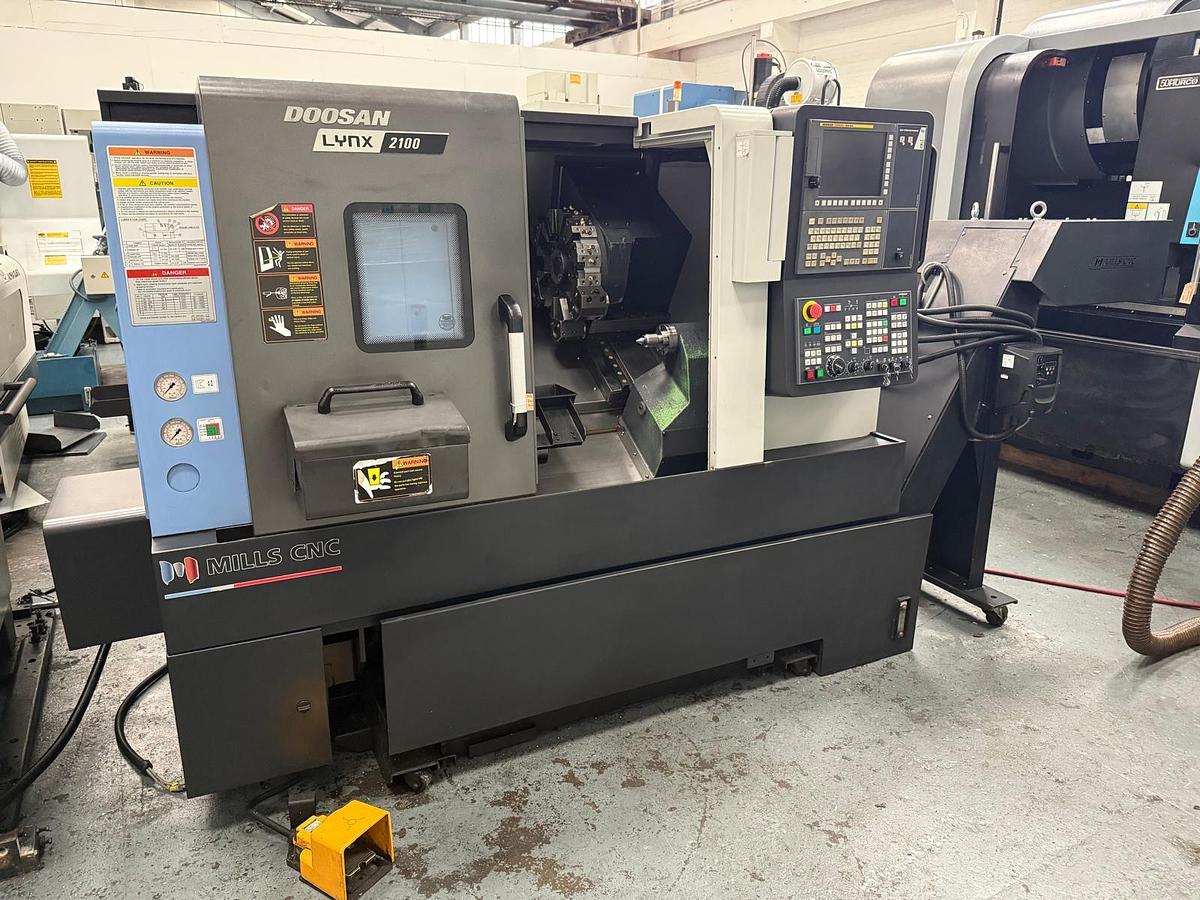

2018 Doosan 2100 A CNC Turning Centre in excellent condition with 12-position turret, LNS barfeed, swarf conveyor, parts catcher, tool setter, and tooling package.


Machine Specification:


TRAVELS

X Axis Rapid Traverse: 30 m/min

Z Axis Rapid Traverse: 36 m/min

Travel (X Axis): 205 mm

Travel (Z Axis): 340 mm

SPINDLE

Max. Spindle Speed: 6000 r/min

Max. Spindle Power: 15 kW

Max. Spindle Torque: 127 N·m

TURRET

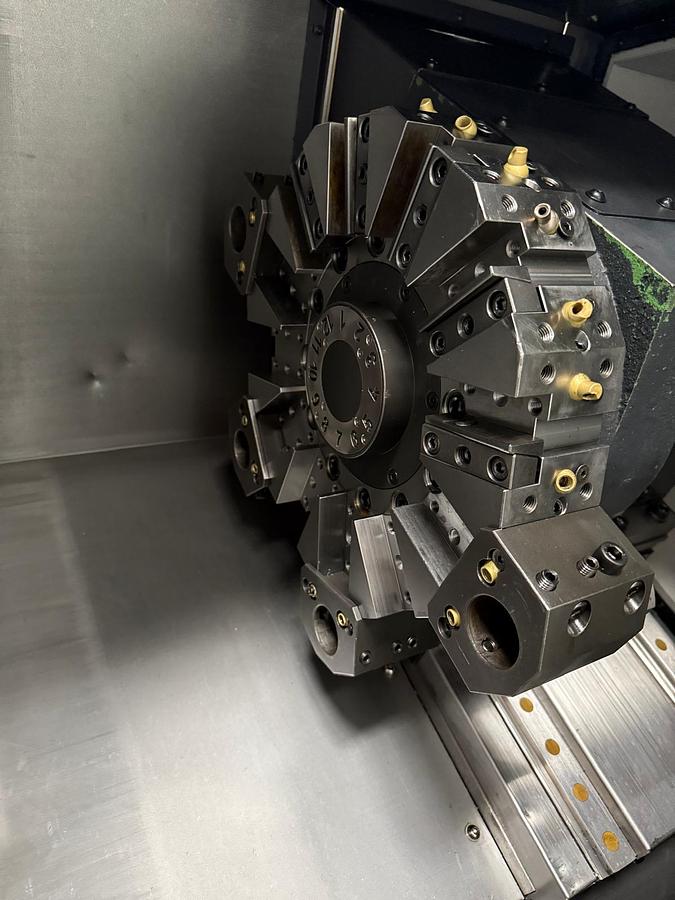

Number of Tool Stations: 12

CAPACITY

Chuck Size: 6”

Bar Capacity: 51 mm

Maximum Turning Diameter: 350 mm

Maximum Turning Length: 330 mm


MACHINE SIZE

Length 2320mm

Width 1595mm

Height 1693mm

Weight 3100kg

ACCESSORIES

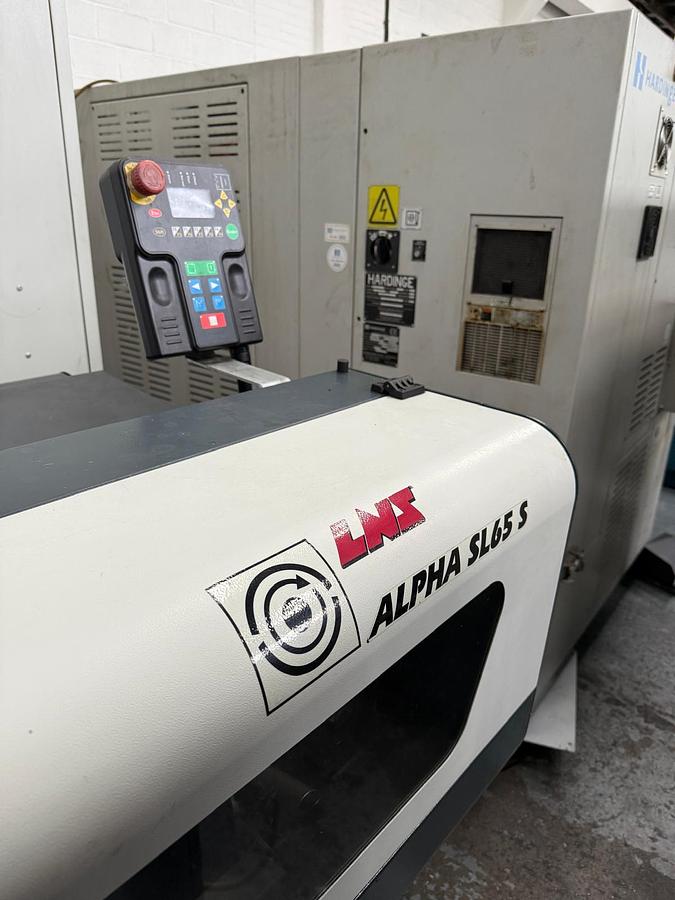

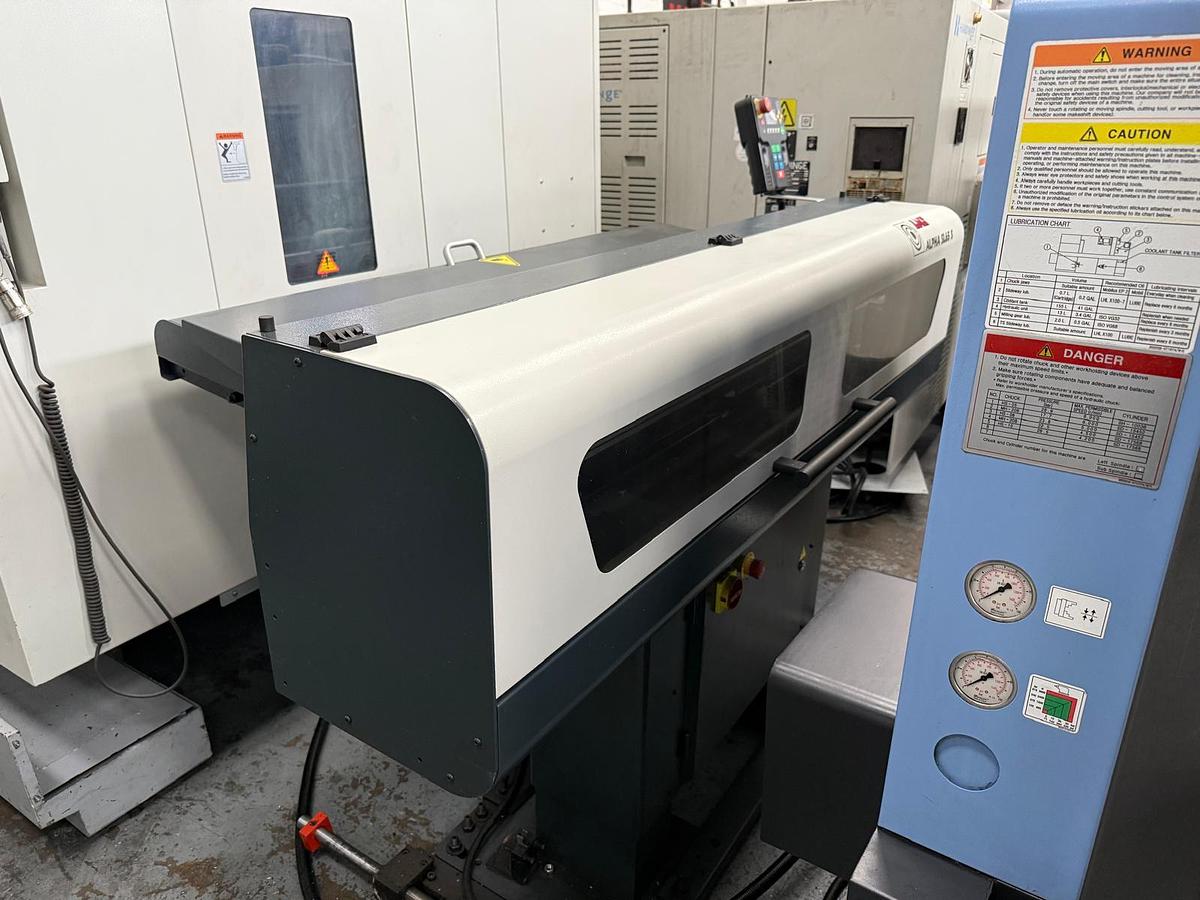

LNS Barfeed

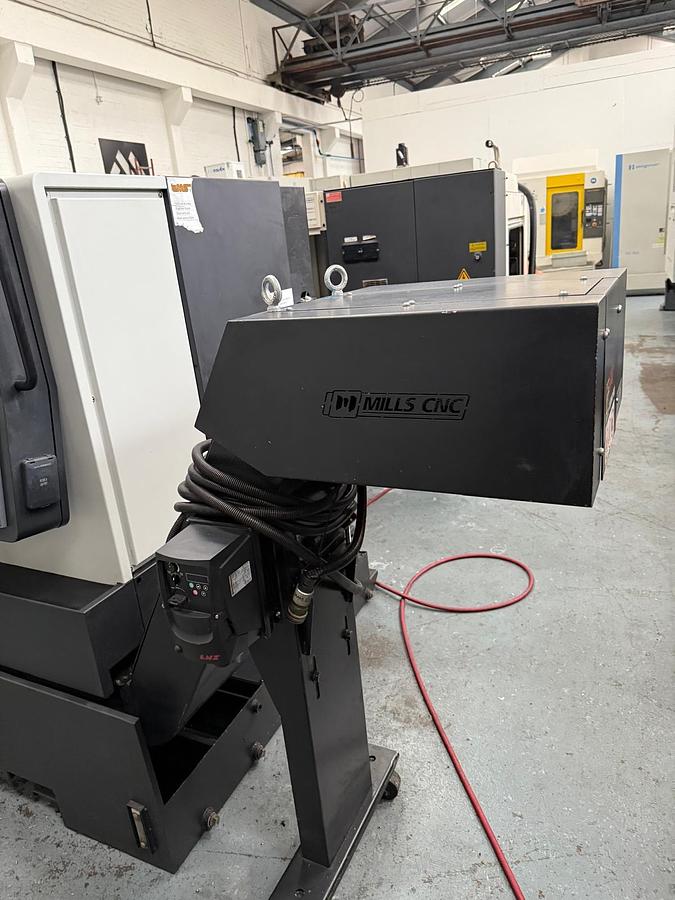

Swarf Conveyor

Parts Catcher

Tool Setter

Tooling Package

Specifications

ManufacturerDoosan
ModelLynx 2100
Year2018
ConditionUsed
Serial NumberML0330-000266
Stock Numberclu/0416

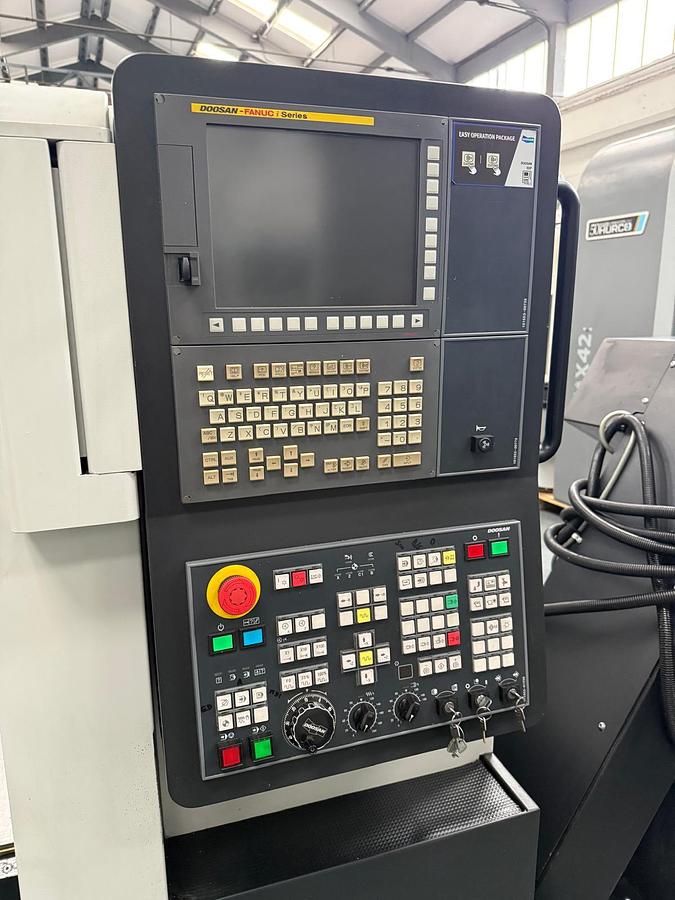

Control2018
SpecSpindle bore 51 mm | Max Swing mm | Travel X 205 Z 340 mm
AccessoriesBarfeed, Swarf conveyor, parts catcher, tool setter, Tooling package
