2012 Doosan Lynx 220L
2012 Doosan Lynx 220L
Available quantity:1
or
Call +44 (0) 117 965 2706
Description

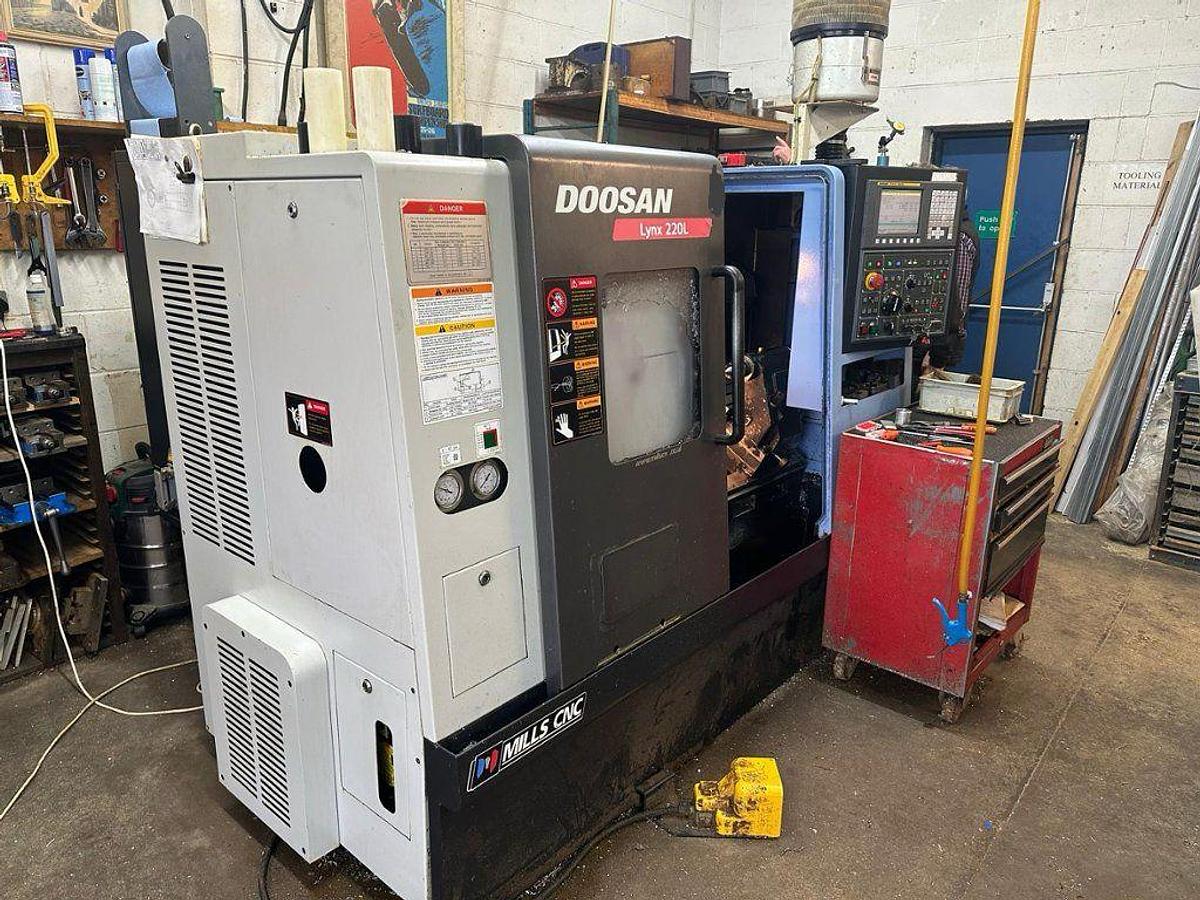

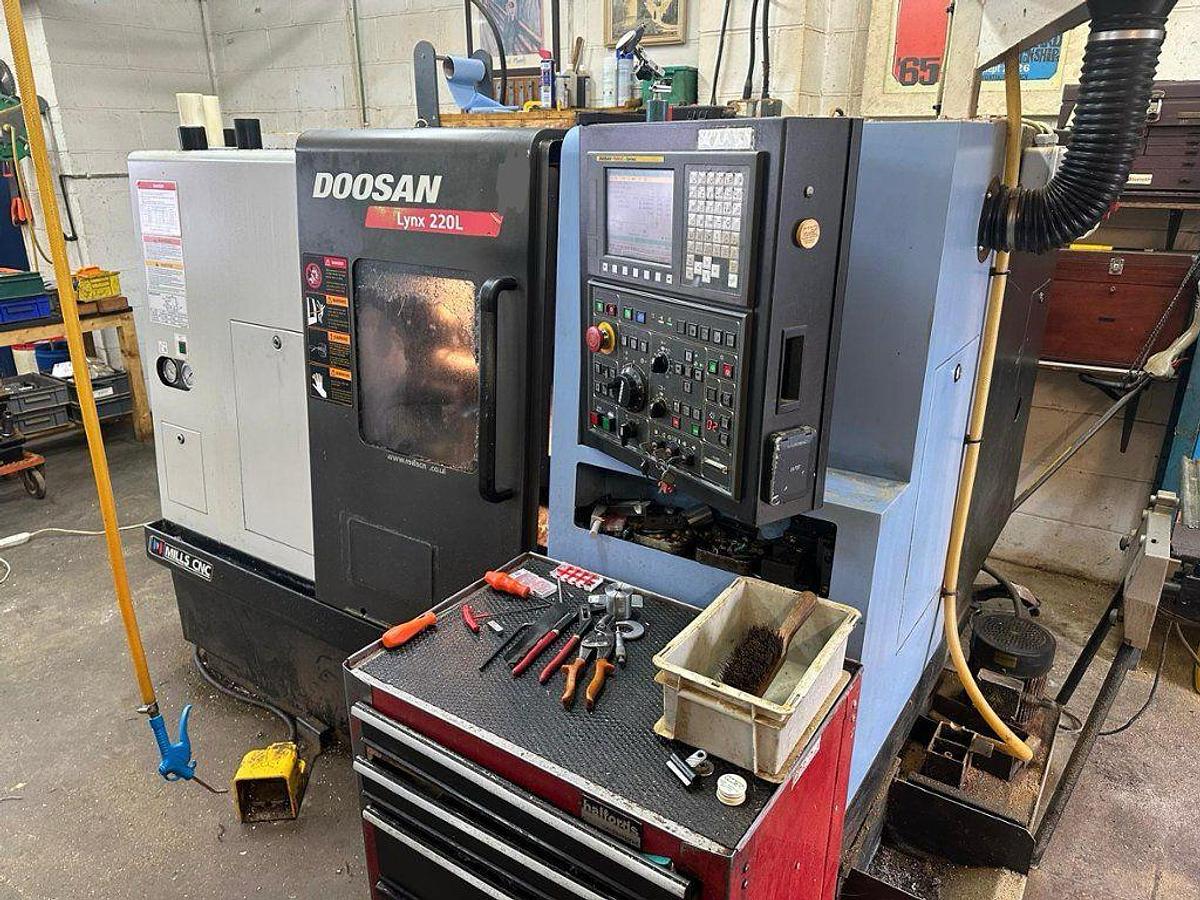

2012 Doosan Lynx 220L C 2-Axis CNC Lathe with Fanuc control, 8” chuck, tailstock, tool setter, and swarf conveyor.
Machine Specification:
CONTROL

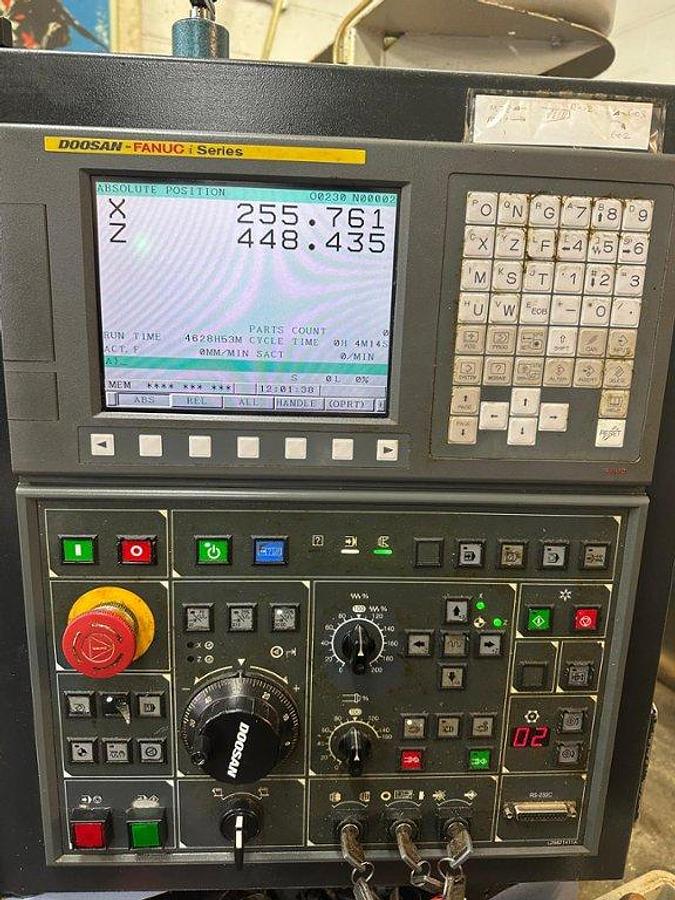

Fanuc Control
TRAVELS
Travel (X Axis): 175 mm
Travel (Z Axis): 552 mm
Rapid Traverse (X Axis): 30 m/min
Rapid Traverse (Z Axis): 30 m/min
SPINDLE
Max. Spindle Speed: 4,000 r/min
Spindle Motor Power: 20 HP

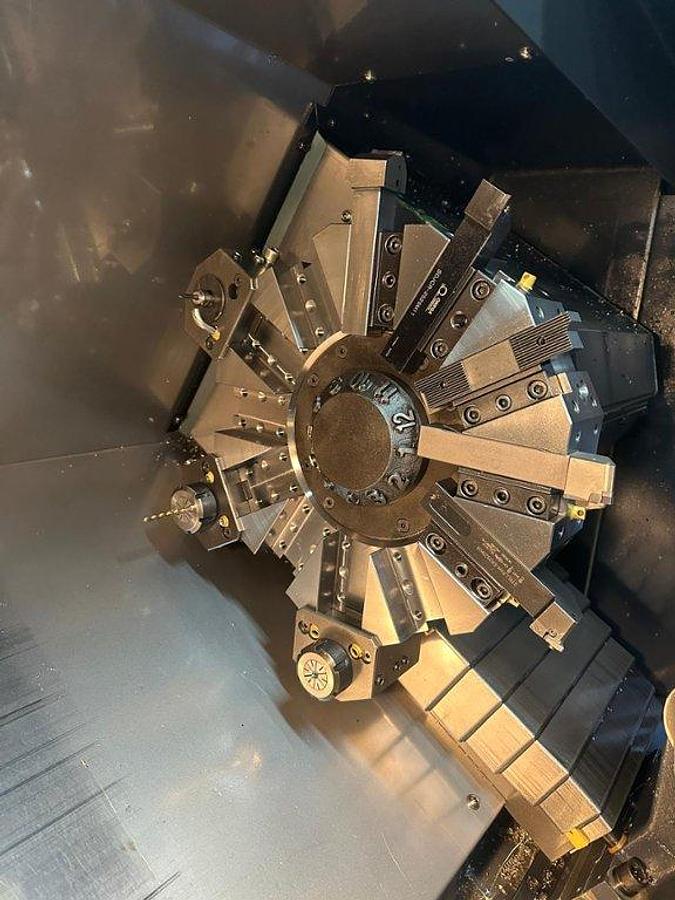

TURRET
Number of Tool Stations: 12
CAPACITY

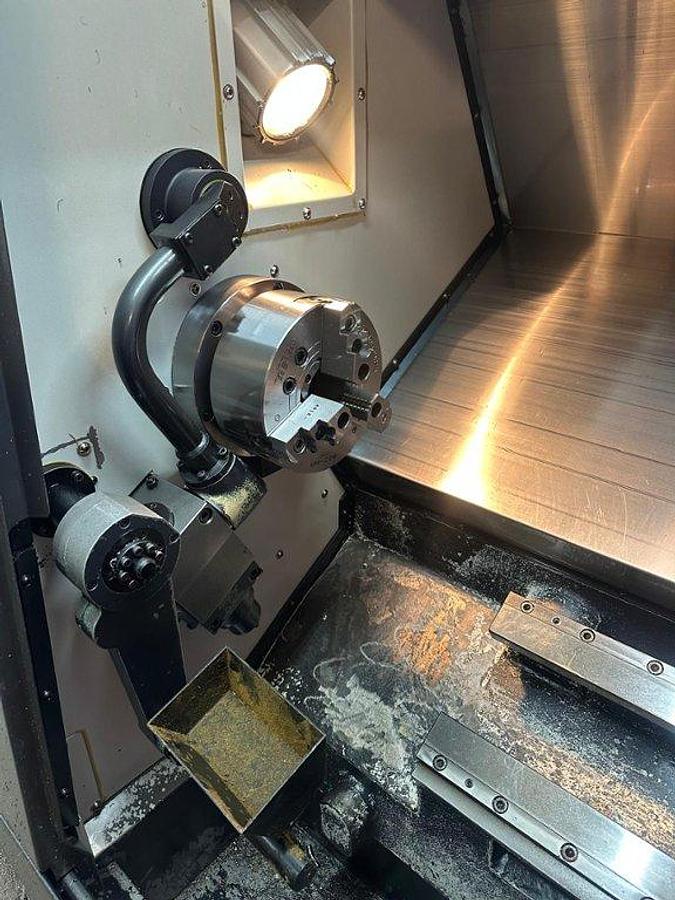

Chuck Size: 8”
Maximum Swing: 510 mm
Maximum Turning Diameter: 320 mm
Maximum Turning Length: 533 mm
Bar Capacity: 76 mm
TAILSTOCK
Quill and Body: Standard
AXES
Number of Axes: 2
ACCESSORIES
Tool Setter
Swarf Conveyor
Specifications
| Manufacturer | Doosan |
| Model | Lynx 220L |
| Year | 2012 |
| Condition | Used |
| Serial Number | ML0022-005017 |
| Stock Number | clu/0415 |
| Control | Fanuc |
| Spec | Spindle bore 76 mm | Max Swing 510 mm | Travel X 175 Z 552 mm |
| Accessories | Tailstock, Tool setter, Swarf conveyor, Parts catcher, Mist extractor |
